1QN Metric Male 74°Cone NPT Adapter

Description:

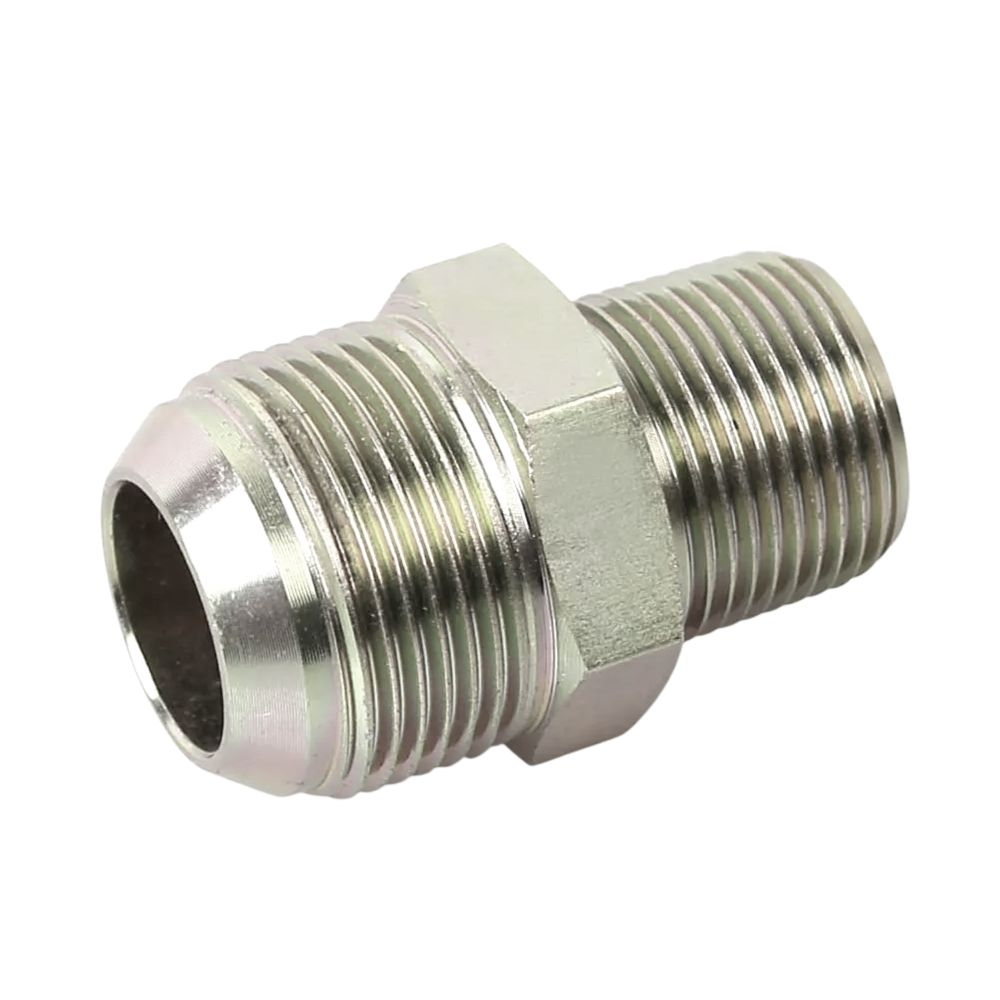

1QN metric NPT adapter is a male adapter that has a male 74-degree cone metric thread, and an NPT thread.

"*" indicates required fields

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

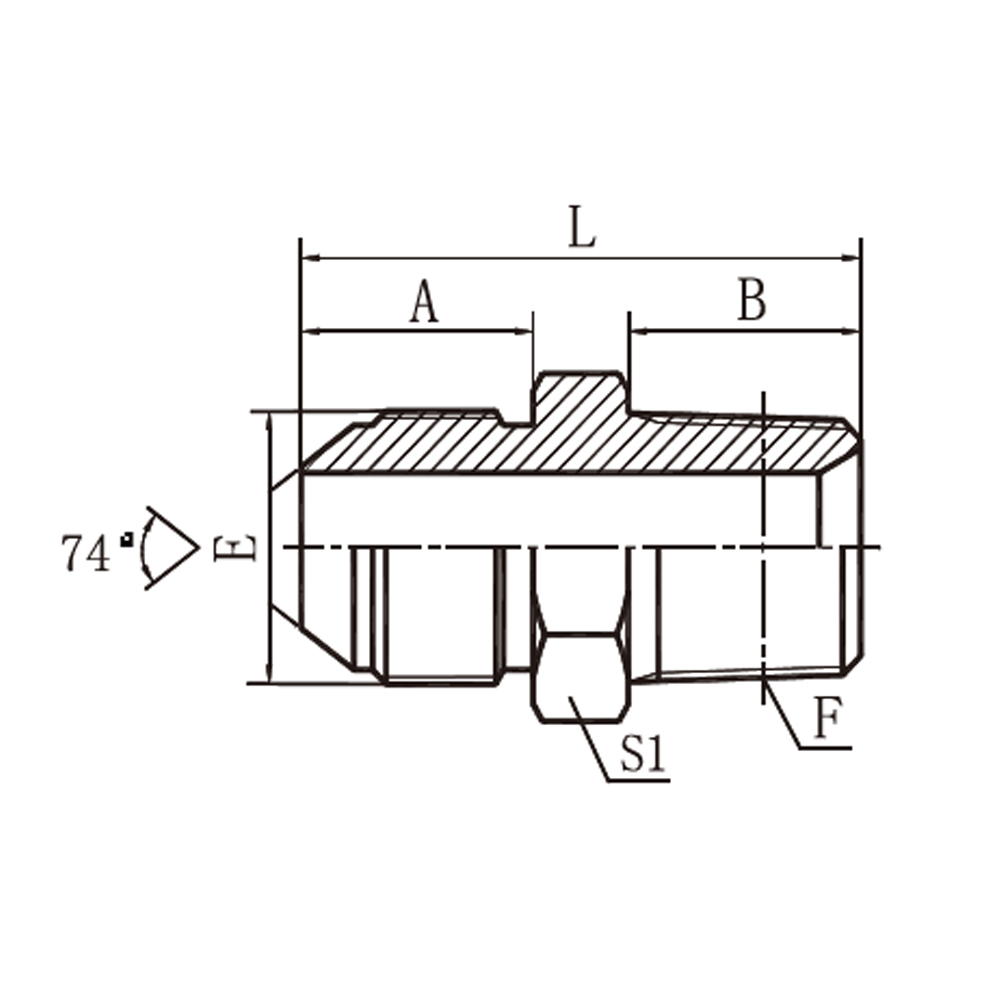

PART NO.	THREAD		TUBE O.D.	DIMENSIONS
PART NO.	E	F	D	A	B	L	S1	S2
1QN-12-02	M12X1.5	Z1/8″X27	6	15.7	10.5	32	14	14
1QN-12-04	M12X1.5	Z1/4″X18	6	15.7	15	36.5	14	14
1QN-14-02	M14X1.5	Z1/8″X27	8	17	10.5	33	17	17
1QN-14-04	M14X1.5	Z1/4″X18	8	17	15	38	17	17
1QN-16-04	M16X1.5	Z1/4″X18	10	18	15	39	19	22
1QN-16-06	M16X1.5	Z3/8″X18	10	18	16	40	19	22
1QN-18-04	M18X1.5	Z1/4″X18	12	18	15	39	19	24
1QN-18-06	M18X1.5	Z3/8″X18	12	18	16	40	19	24
1QN-18-08	M18X1.5	Z1/2″X14	12	18	19.5	45.5	22	24
1QN-22-06	M22X1.5	Z3/8″X18	14	19.5	16	43.5	24	27
1QN-22-08	M22X1.5	Z1/2″X14	14	19.5	19.5	47	24	27
1QN-27-06	M27X1.5	Z3/8″X18	18	20	16.5	46	30	32
1QN-27-08	M27X1.5	Z1/2″X14	18	20	19	49	30	32
1QN-27-12	M27X1.5	Z3/4″X14	18	20	19.5	49.5	30	32
1QN-27-16	M27X1.5	Z1″X11.5	18	20	25.5	56.5	36	32
1QN-30-12	M30X1.5	Z3/4″X14	20	23	19.5	53.5	32	36
1QN-33-12	M33X2	Z3/4″X14	22	26	19.5	56.5	36	41
1QN-36-16	M36X2	Z1″X11.5	25	25	25.5	63	41	41
1QN-39-16	M39X2	Z1″X11.5	28	26	25.5	64.5	41	46
1QN-45-16	M45X2	Z1″X11.5	34	28.5	25.5	67	46	50
1QN-45-20	M45X2	Z1.1/4″X11.5	34	28.5	26.5	68	46	50
1QN-45-24	M45X2	Z1.1/2″X11.5	34	28.5	27.5	71	50	50
1QN-52-20	M52X2	Z1.1/4″X11.5	42	30	26.5	71.5	55	60

Click to enlarge

Category: DIN Hose Adapters Tags: 74° Cone, 1QN, Carbon Steel, NPT, Metric

Description
Package& Shipping

Description

PART NO.	THREAD		TUBE O.D.	DIMENSIONS
PART NO.	E	F	D	A	B	L	S1	S2
1QN-12-02	M12X1.5	Z1/8″X27	6	15.7	10.5	32	14	14
1QN-12-04	M12X1.5	Z1/4″X18	6	15.7	15	36.5	14	14
1QN-14-02	M14X1.5	Z1/8″X27	8	17	10.5	33	17	17
1QN-14-04	M14X1.5	Z1/4″X18	8	17	15	38	17	17
1QN-16-04	M16X1.5	Z1/4″X18	10	18	15	39	19	22
1QN-16-06	M16X1.5	Z3/8″X18	10	18	16	40	19	22
1QN-18-04	M18X1.5	Z1/4″X18	12	18	15	39	19	24
1QN-18-06	M18X1.5	Z3/8″X18	12	18	16	40	19	24
1QN-18-08	M18X1.5	Z1/2″X14	12	18	19.5	45.5	22	24
1QN-22-06	M22X1.5	Z3/8″X18	14	19.5	16	43.5	24	27
1QN-22-08	M22X1.5	Z1/2″X14	14	19.5	19.5	47	24	27
1QN-27-06	M27X1.5	Z3/8″X18	18	20	16.5	46	30	32
1QN-27-08	M27X1.5	Z1/2″X14	18	20	19	49	30	32
1QN-27-12	M27X1.5	Z3/4″X14	18	20	19.5	49.5	30	32
1QN-27-16	M27X1.5	Z1″X11.5	18	20	25.5	56.5	36	32
1QN-30-12	M30X1.5	Z3/4″X14	20	23	19.5	53.5	32	36
1QN-33-12	M33X2	Z3/4″X14	22	26	19.5	56.5	36	41
1QN-36-16	M36X2	Z1″X11.5	25	25	25.5	63	41	41
1QN-39-16	M39X2	Z1″X11.5	28	26	25.5	64.5	41	46
1QN-45-16	M45X2	Z1″X11.5	34	28.5	25.5	67	46	50
1QN-45-20	M45X2	Z1.1/4″X11.5	34	28.5	26.5	68	46	50
1QN-45-24	M45X2	Z1.1/2″X11.5	34	28.5	27.5	71	50	50
1QN-52-20	M52X2	Z1.1/4″X11.5	42	30	26.5	71.5	55	60

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
