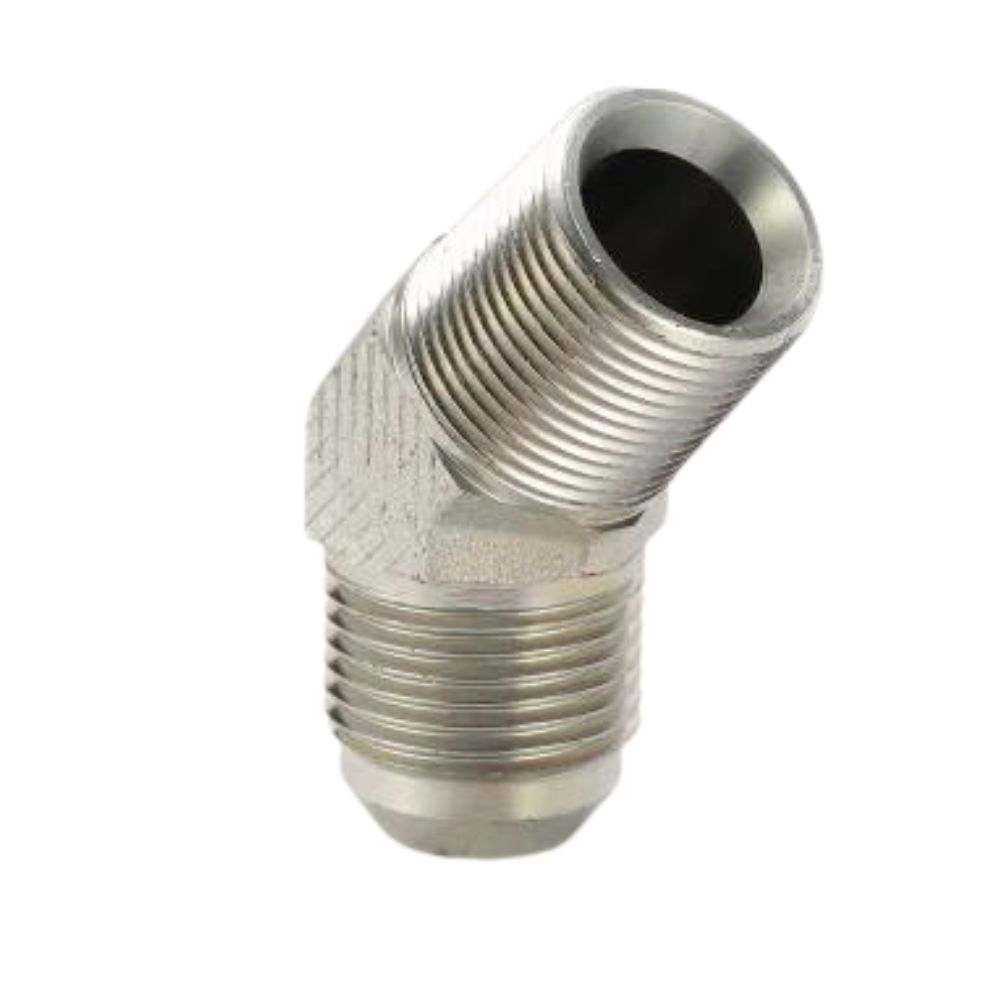

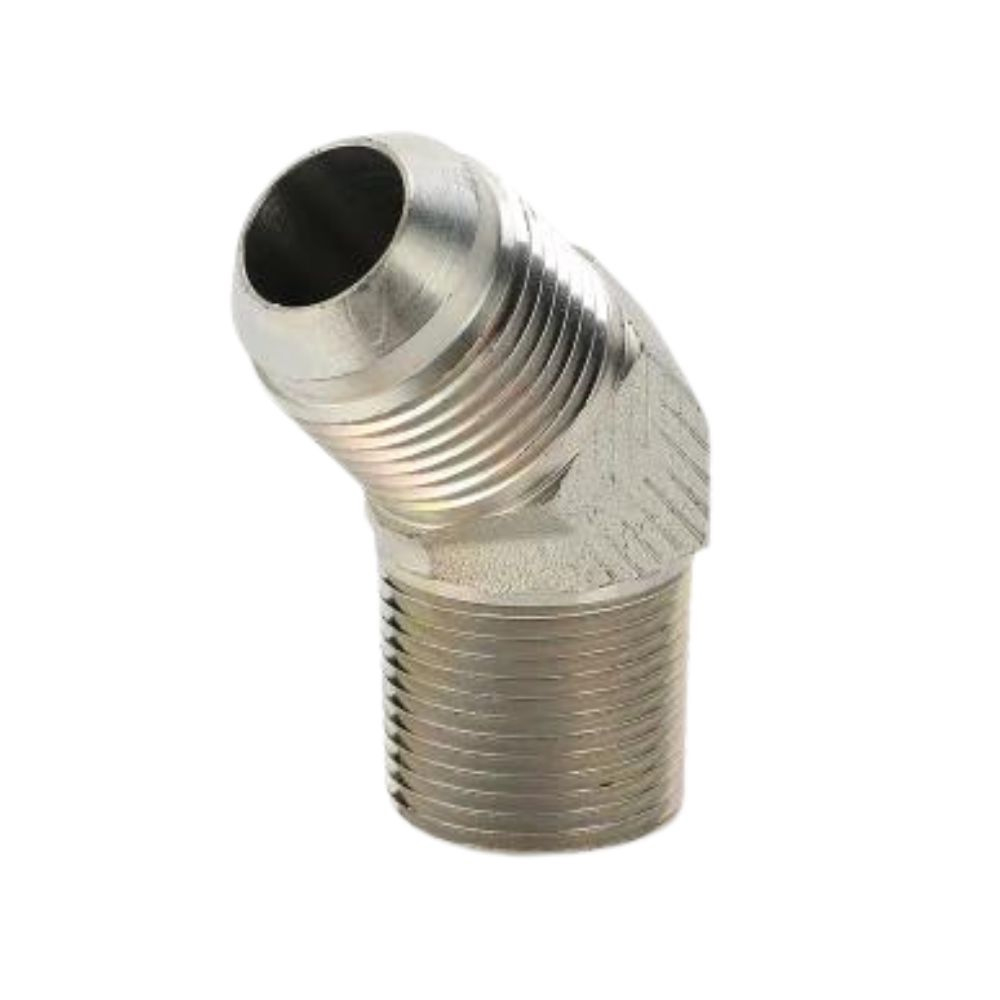

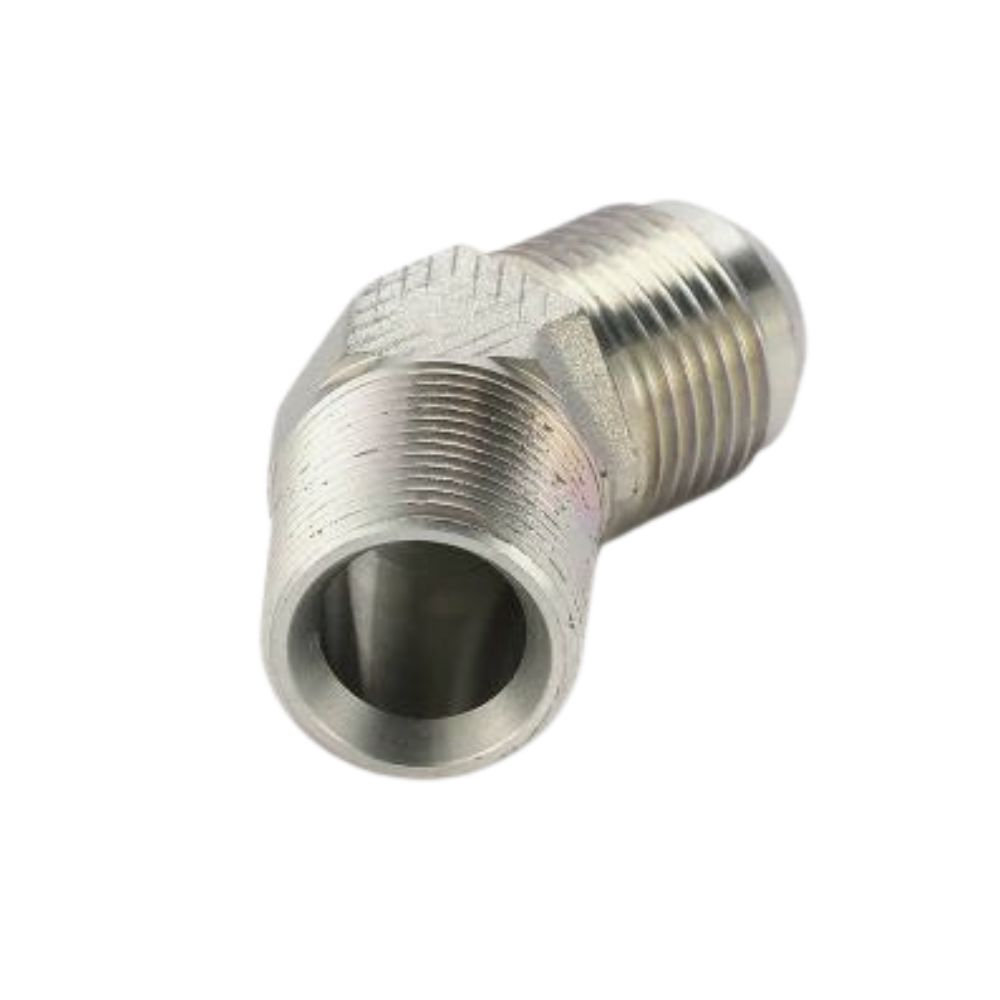

1QN4 Metric 45-Degree Elbow NPT Adapter

Description:

1QN4 45-degree elbow metric NPT adapter is a male adapter that has a male 74-degree cone metric thread, and an NPT thread.

Category: DIN Hose Adapters Tags: 1QN4, Carbon Steel, NPT, Metric, 74° Cone

Description
Package& Shipping

Description

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

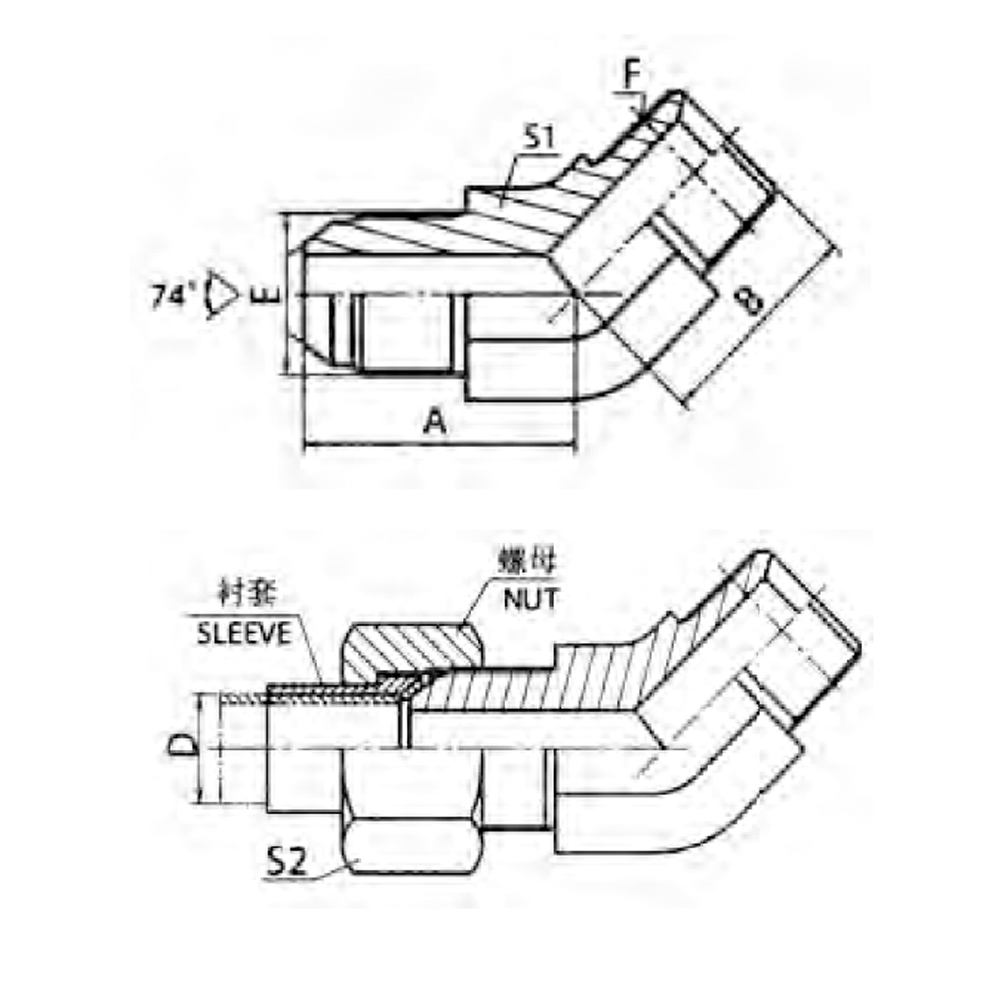

PART NO.	THREAD		TUBE O.D.	DIMENSIONS
PART NO.	E	F	D	A	B	S1	S2
1QN4-12-02	M12X1.5	Z1/8″X27	6	23	17	11	14
1QN4-14-02	M14X1.5	Z1/8″X27	8	26	18	14	17
1QN4-14-04	M14X1.5	Z1/4″X18	8	26	21	14	17
1QN4-16-06	M16X1.5	Z3/8″X18	10	24	24	16	22
1QN4-18-06	M18X1.5	Z3/8″X18	12	28	24	19	24
1QN4-22-08	M22X1.5	Z1/2″X14	14	30.5	29.5	22	27
1QN4-27-08	M27X1.5	Z1/2″X14	18	33	31	27	32
1QN4-27-12	M27X1.5	Z3/4″X14	18	33	35	27	32
1QN4-30-12	M30X1.5	Z3/4″X14	20	36.2	35.5	30	36
1QN4-36-16	M36X2	Z1″X11.5	25	42	41	36	41
1QN4-39-16	M39X2	Z1″X11.5	28	44.5	42.5	41	46

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
