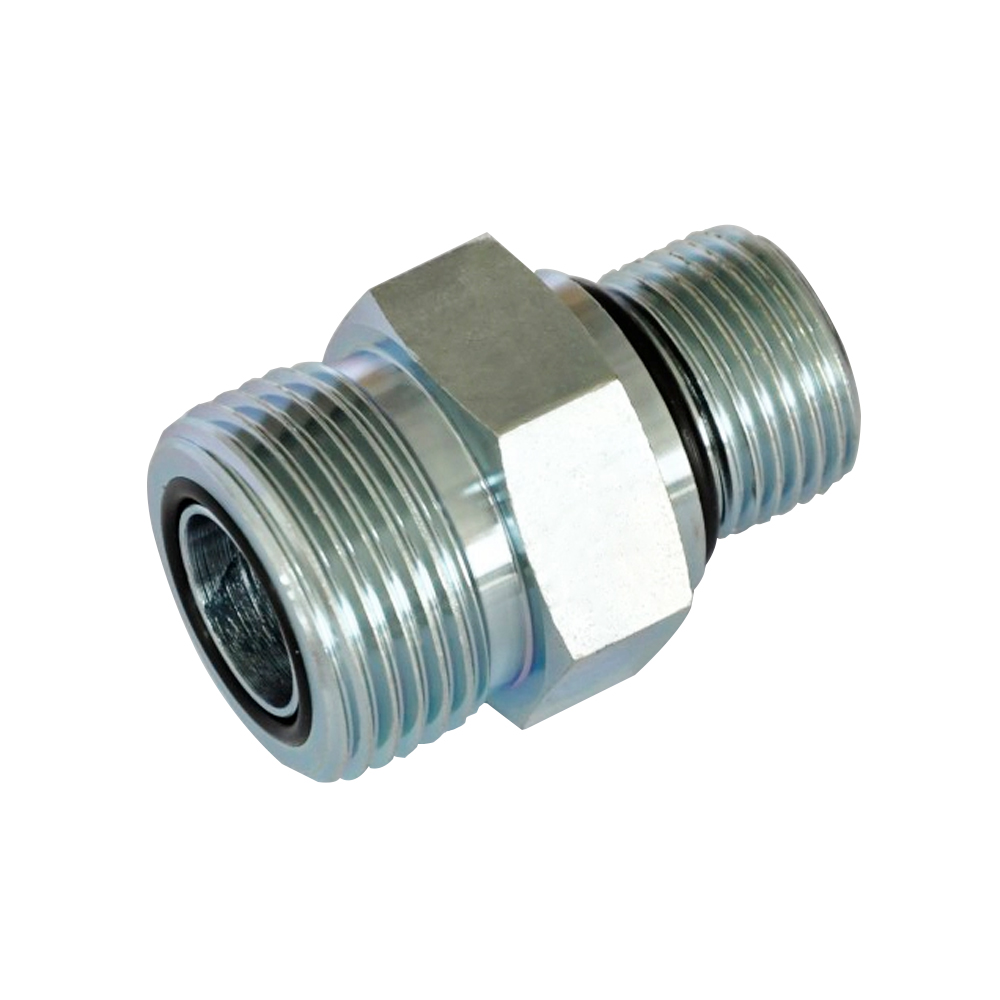

1EZ Metric Male O-ring BSP Male Adapter

Description:

1EZ metric male BSP complies to DIN3852-2 .  it has a male metric thread with an o-ring seal.

INQUIRE NOW

"*" indicates required fields

Category: DIN Hose Adapters Tags: Carbon Steel, BSP, O-ring, Metric, 1EZ
Share:
  • Description
  • Package& Shipping
Description

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

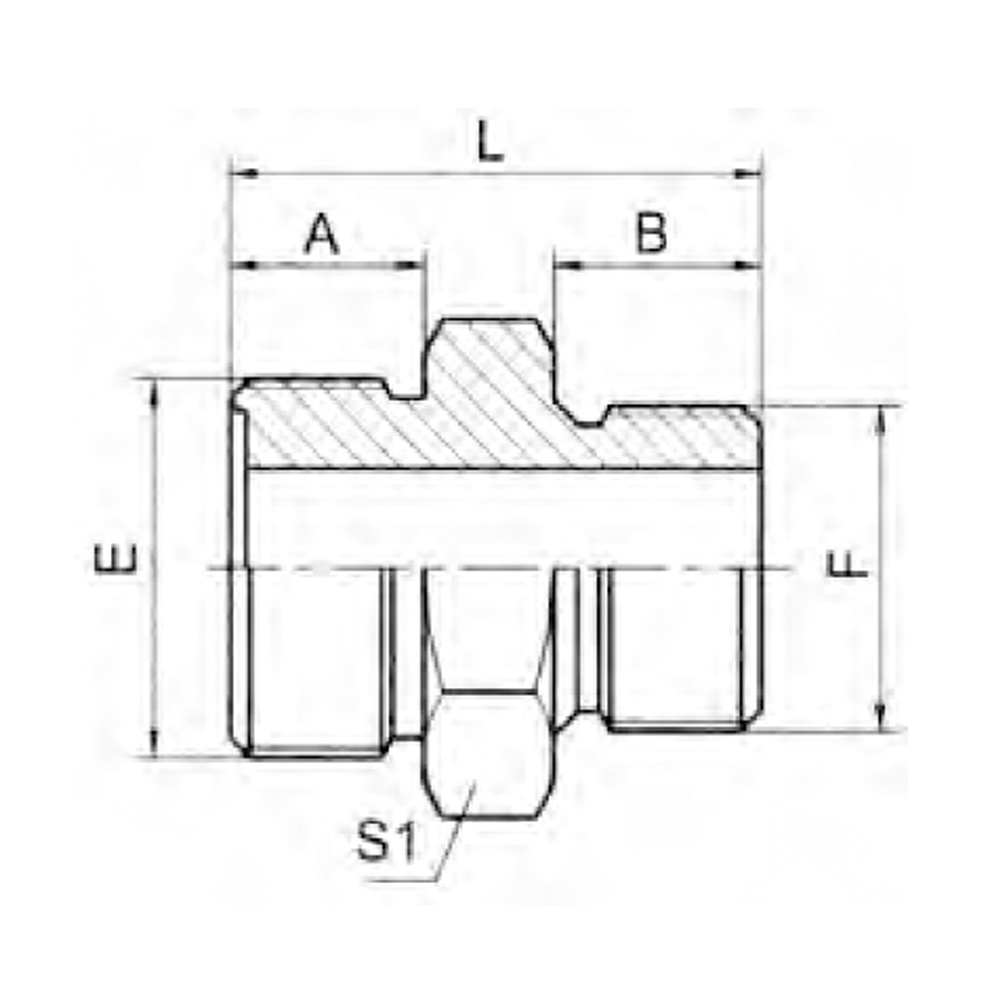

PART NO. THREAD O-RING DIMENSIONS
E F E F A B L S1
1EZ-14-04 M14X1.5 G1/4″X19 10X2 ZHD-14 11 12 29 19
1EZ-16-04 M16X1.5 G1/4″X19 11X1.9 ZHD-14 11 12 29 19
1EZ-16-06 M16X1.5 G3/8″X19 11X1.9 ZHD-18 11 12 31 22
1EZ-18-06 M18X1.5 G3/8″X19 13X2.0 ZHD-18 11 12 31 22
1EZ-18-08 M18X1.5 G1/2″X14 13X2.0 ZHD-22 11 14 35 30
1EZ-22-08 M22X1.5 G1/2″X14 16.1X2.4 ZHD-22 12 14 35 27
1EZ-27-08 M27X1.5 G1/2″X14 20.1X2.4 ZHD-22 13 14 37 30
1EZ-27-12 M27X1.5 G3/4″X14 20.1X2.4 ZHD-27 13 16 40 32
1EZ-30-12 M30X2 G3/4″X14 24.1X2.4 ZHD-27 14 16 41 32
1EZ-30-16 M30X2 G1″X11 24.1X2.4 ZHD-33 14 18 45 41
1EZ-36-16 M36X2 G1″X11 30X3.1 ZHD-33 16 18 47 41
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
