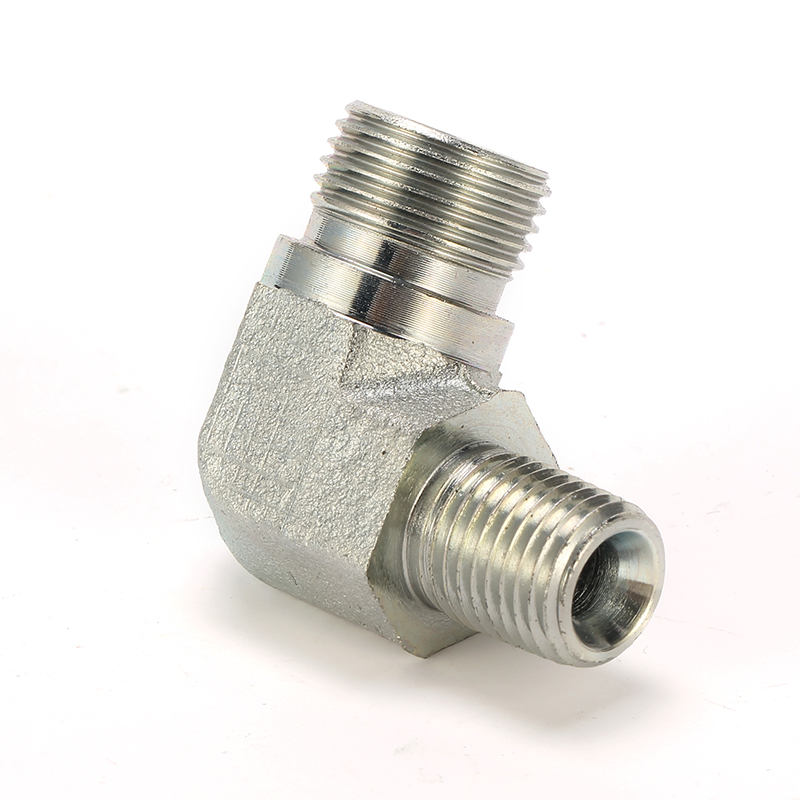

1CN9/1DN9 90°Elbow NPT Metric Male Adapter

Description:

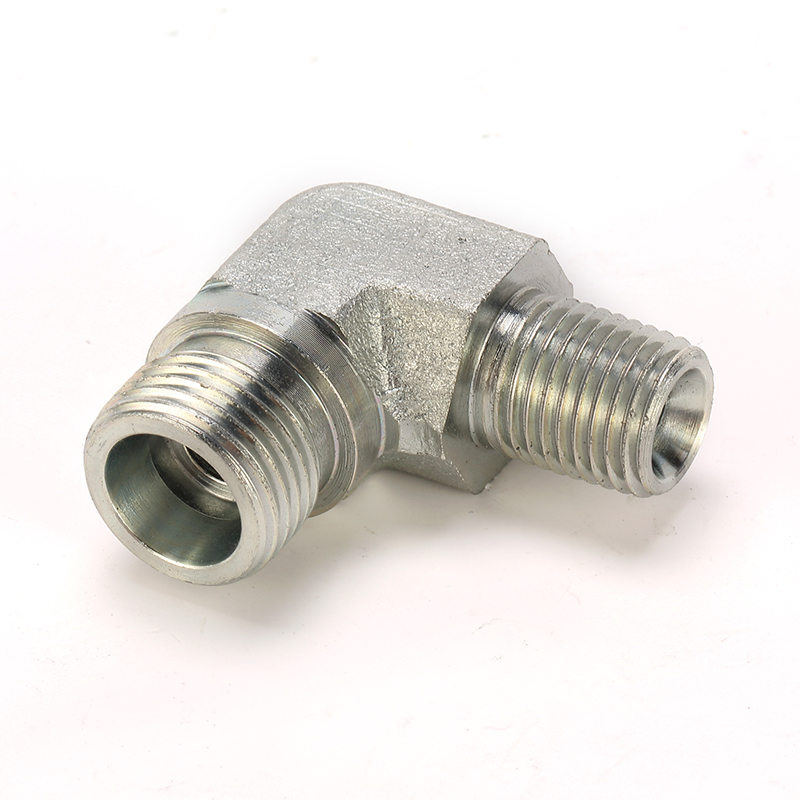

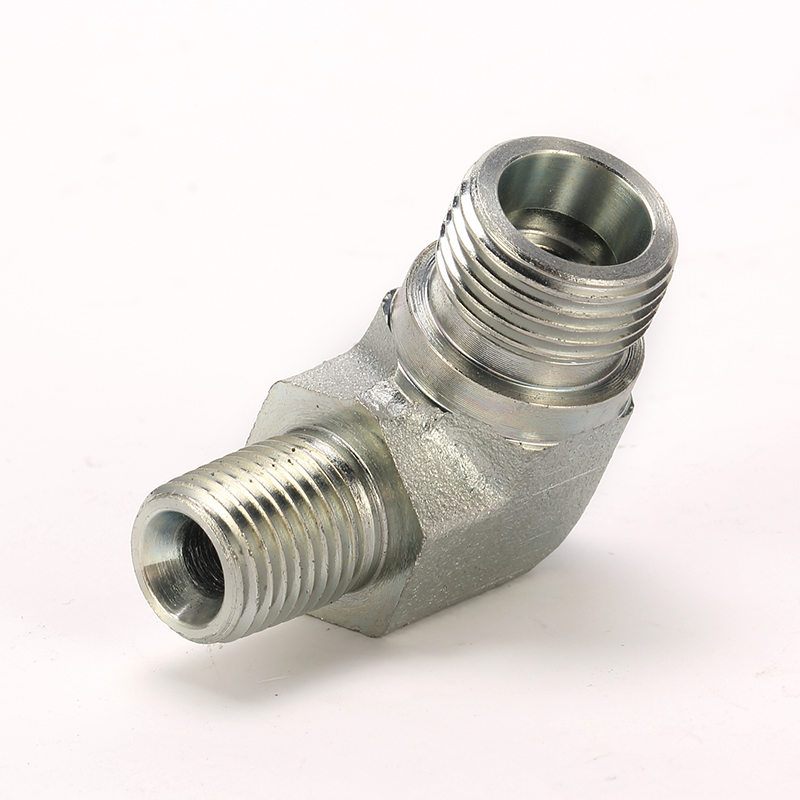

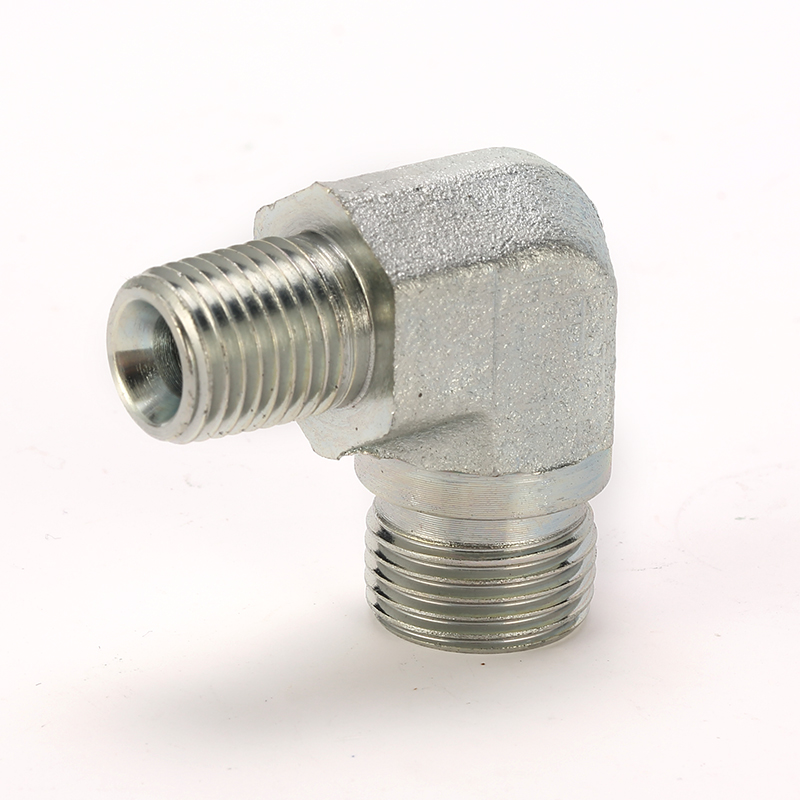

1CN9/1DN9 90° elbow metric NPT adapter is a male adapter that has a male 24-degree cone metric thread, and an NPT thread.

"*" indicates required fields

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

PART NO.	THREAD		TUBE O.D.	DIMENSIONS					MPa

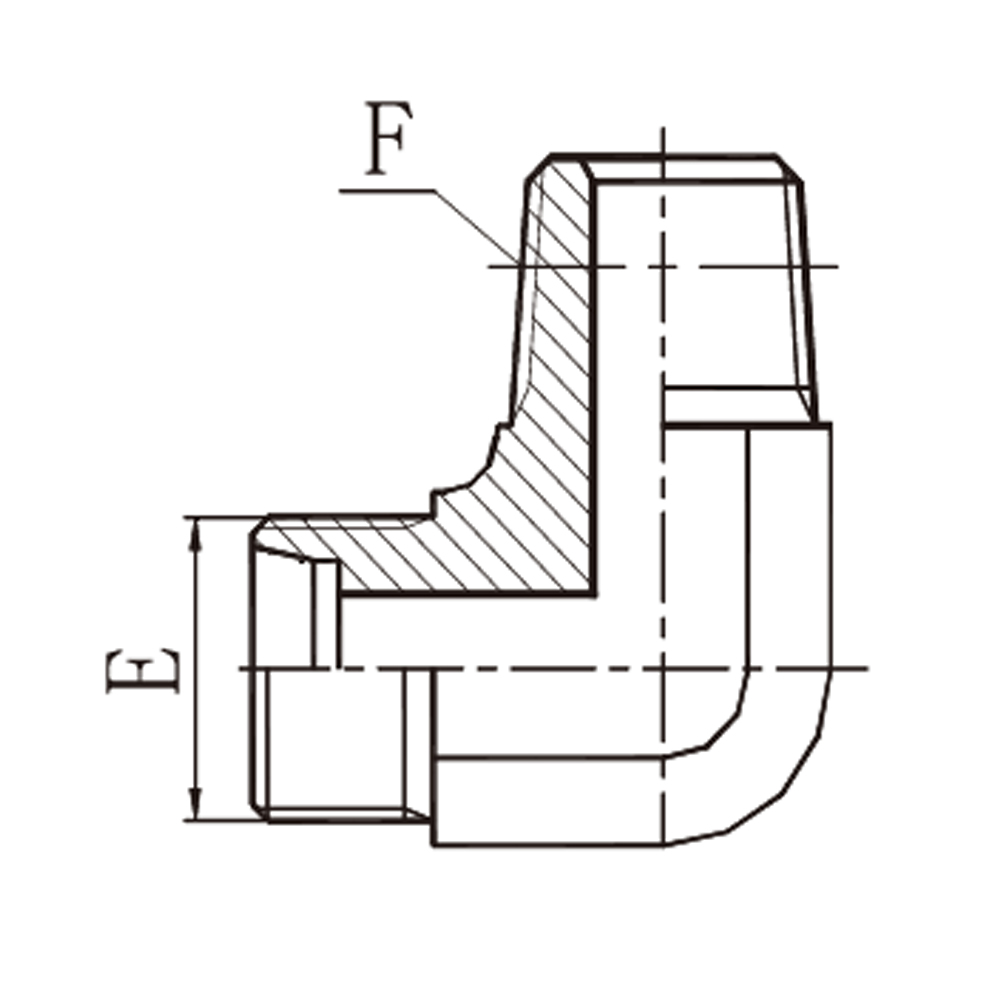

PART NO.	E	F	D1	I1	L1	L2	S1	S2	MPa
1CN9-12-02	M12X1.5	Z1/8″X27	6	13	20	21	11	14	25 L series
1CN9-12-04	M12X1.5	Z1/4″X18	6	15.5	22.5	25.5	14	14
1CN9-14-04	M14X1.5	Z1/4″X18	8	15.5	22.5	25.5	14	17
1CN9-16-06	M16X1.5	Z3/8″X18	10	19	26	31	19	19
1CN9-18-04	M18X1.5	Z1/4″X18	12	19	26	28	19	22
1CN9-18-06	M18X1.5	Z3/8″X18	12	19	26	31	19	22
1CN9-18-08	M18X1.5	Z1/2″X14	12	21	28	36.5	22	22
1CN9-22-06	M22X1.5	Z3/8″X18	15	22	29	32.5	22	27
1CN9-22-08	M22X1.5	Z1/2″X14	15	22	29	36.5	22	27
1CN9-26-08	M26X1.5	Z1/2″X14	18	25.5	33	40	27	32	16 L series
1CN9-26-12	M26X1.5	Z3/4″X14	18	25.5	33	44	27	32
1CN9-30-12	M30X2	Z3/4″X14	22	29.3	36.8	45	30	36
1CN9-30-16	M30X2	Z1″X11.5	22	32	39.5	50	33	36
1CN9-36-16	M36X2	Z1″X11.5	28	33	40.5	51.5	36	41
1CN9-45-20	M45X2	Z1.1/4″X11.5	35	39	49.5	58.5	48	50
1CN9-52-24	M52X2	Z1.1/2″X11.5	42	40.5	51.5	61	50	60
1DN9-14-04	M14X1.5	Z1/4″X18	6	17.5	24.5	25.5	14	17	40 S series
1DN9-16-04	M16X1.5	Z1/4″X18	8	18.5	25.5	26.5	16	19
1DN9-18-06	M18X1.5	Z3/8″X18	10	19.5	27	31	19	22
1DN9-20-04	M20X1.5	Z1/4″X18	12	19.5	27	28	19	24
1DN9-20-06	M20X1.5	Z3/8″X18	12	19.5	27	31	19	24
1DN9-22-06	M22X1.5	Z3/8″X18	14	23	31	33	22	27
1DN9-22-08	M22X1.5	Z1/2″X14	14	23	31	36.5	22	27
1DN9-24-06	M24X1.5	Z3/8″X18	16	24	32.5	34	24	30
1DN9-24-08	M24X1.5	Z1/2″X14	16	24	32.5	37.5	24	30
1DN9-30-08	M30X2	Z1/2″X14	20	28	38.5	41	30	36	25 S series
1DN9-30-12	M30X2	Z3/4″X14	20	28	38.5	45	30	36
1DN9-36-12	M36X2	Z3/4″X14	25	32.5	44.5	49	36	46
1DN9-36-16	M36X2	Z1″X11.5	25	32.5	44.5	51.5	36	46
1DN9-42-16	M42X2	Z1″X11.5	30	36	49.5	54.5	41	50
1DN9-42-20	M42X2	Z1.1/4″X11.5	30	36	49.5	54.5	41	50
1DN9-52-20	M52X2	Z1.1/4″X11.5	38	39.5	55.5	58.5	48	60
1DN9-52-24	M52X2	Z1.1/2″X11.5	38	41.5	57.5	61	50	60
