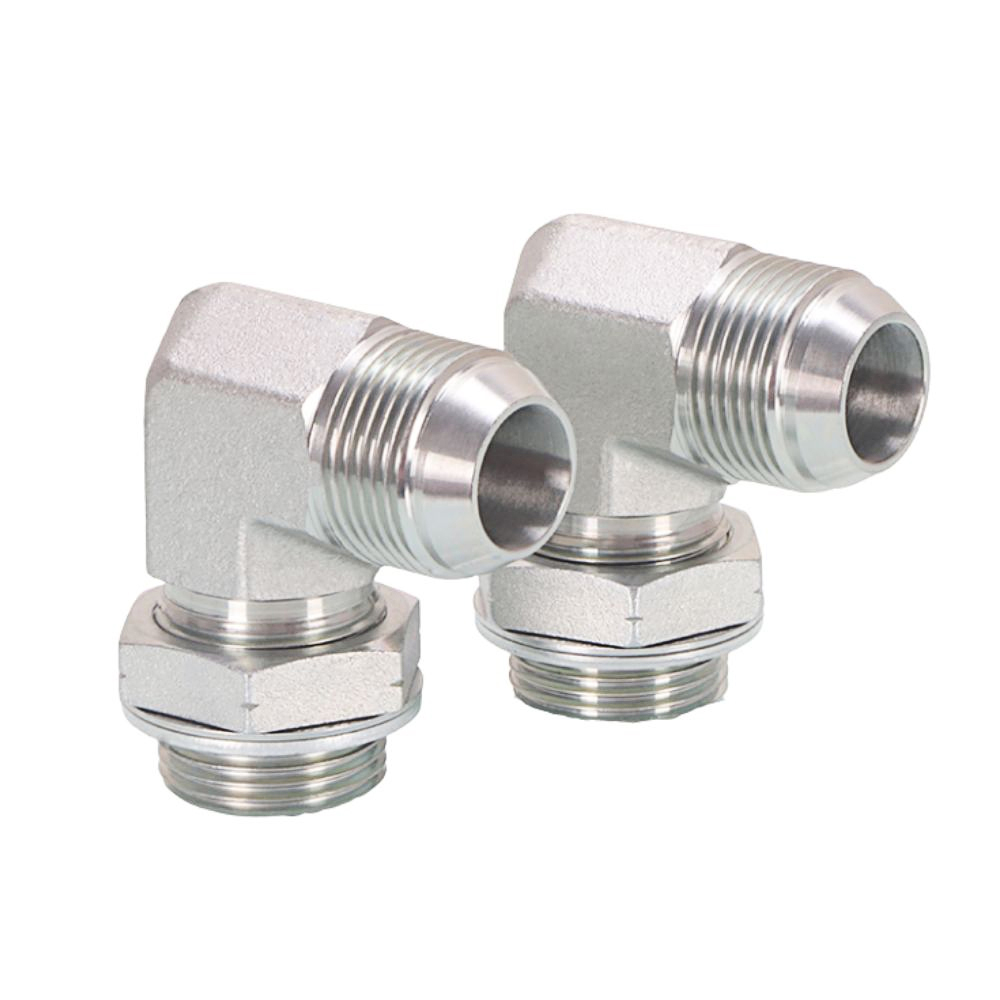

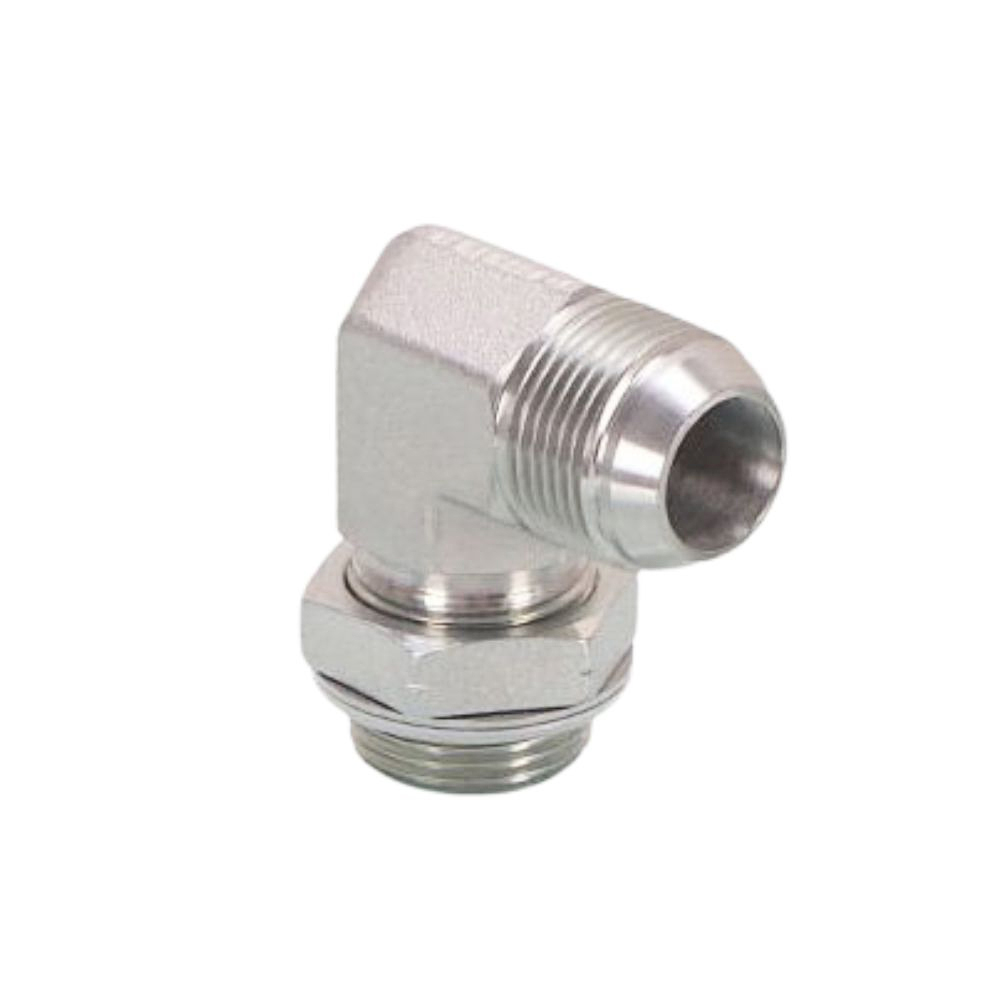

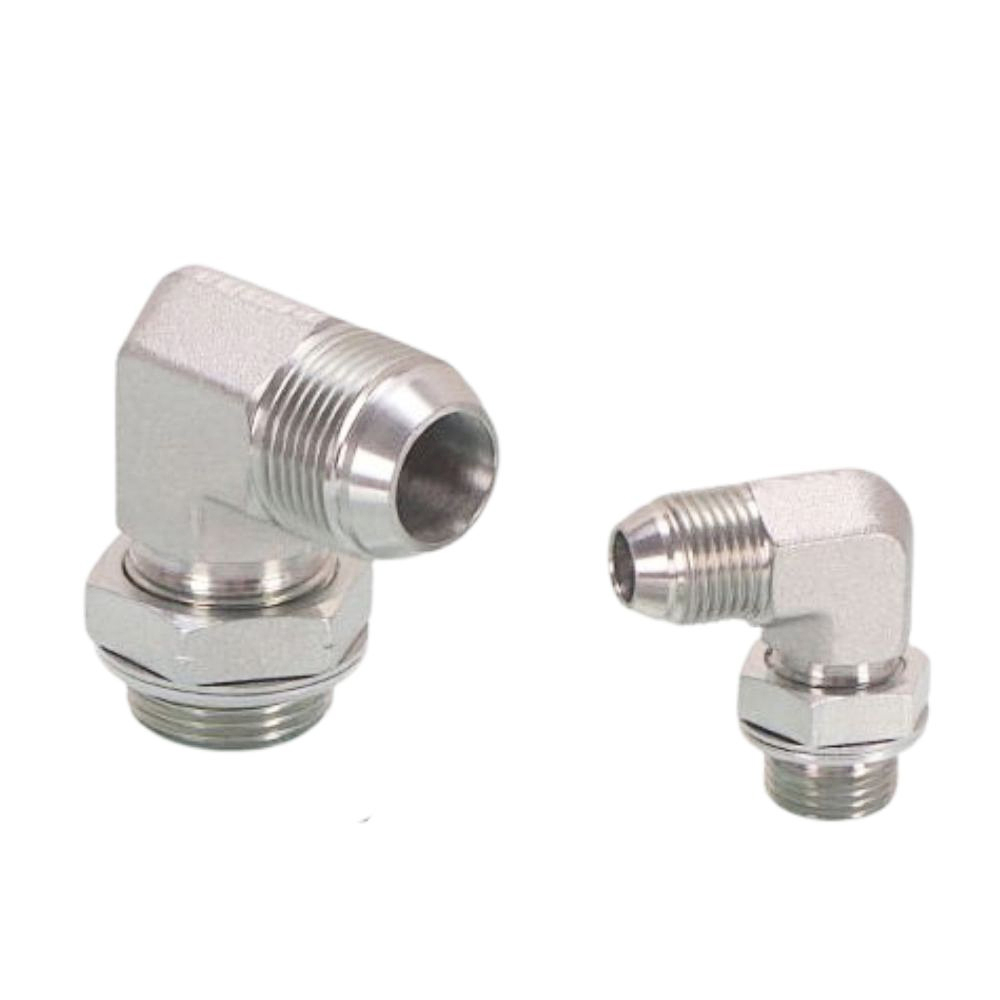

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

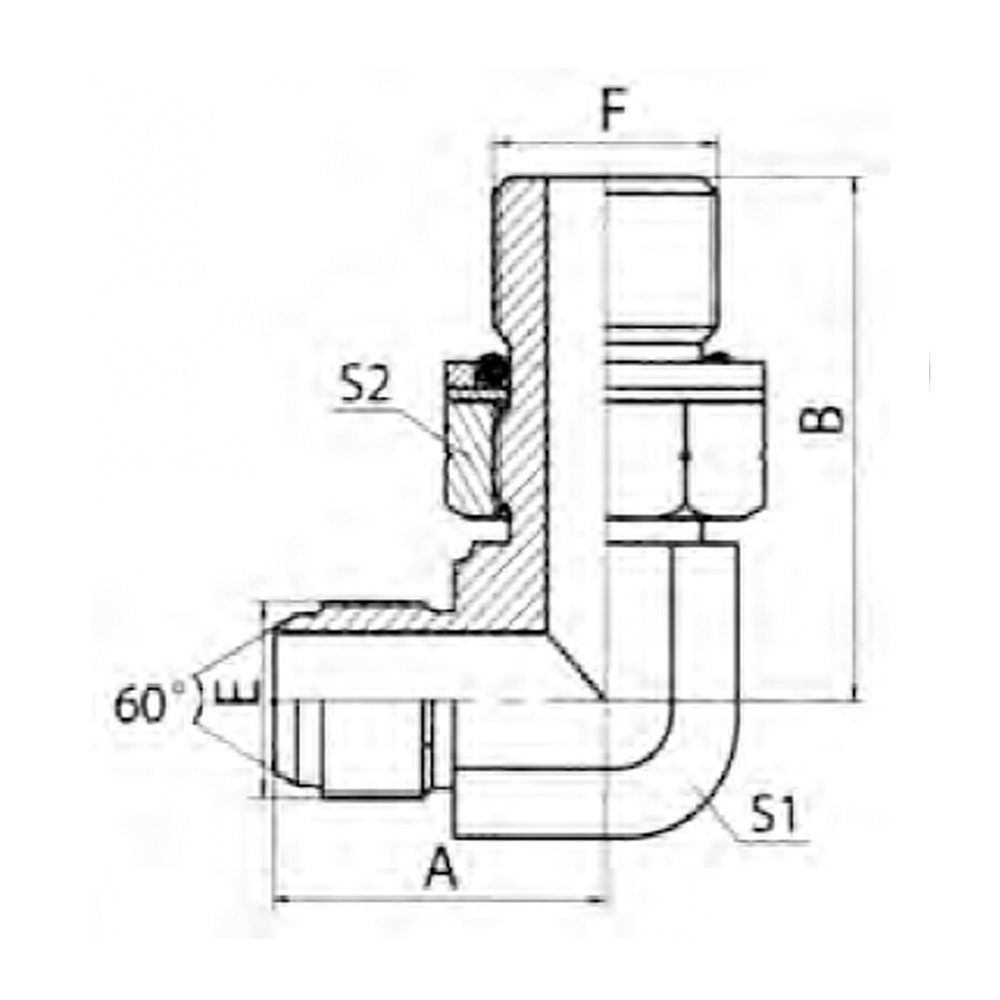

| PART NO. | THREAD | O-RING | DIMENSIONS | ||||
| E | F | F | A | B | S1 | S2 | |
| 1KG9-14-04OG | M14X1.5 | G1/4″X19 | O111 | 26.5 | 31.3 | 14 | 19 |
| 1KG9-14-06OG | M14X1.5 | G3/8″X19 | O113 | 28.5 | 35.8 | 16 | 22 |
| 1KG9-16-06OG | M16X1.5 | G3/8″X19 | O113 | 28 | 35.8 | 16 | 22 |
| 1KG9-18-06OG | M18X1.5 | G3/8″X19 | O113 | 30.8 | 37 | 19 | 22 |
| 1KG9-22-08OG | M22X1.5 | G1/2″X14 | O115 | 35.5 | 43.2 | 22 | 27 |
| 1KG9-24-08OG | M24X1.5 | G1/2″X14 | O115 | 37 | 46 | 24 | 27 |
| 1KG9-24-12OG | M24X1.5 | G3/4″X14 | O119 | 40 | 49.3 | 27 | 27 |
| 1KG9-30-12OG | M30X1.5 | G3/4″X14 | O119 | 47.5 | 49.3 | 27 | 32 |
| 1KG9-33-12OG | M33X1.5 | G1″X14 | O217 | 50 | 53 | 33 | 41 |
| 1KG9-33-16OG | M42X1.5 | G1.1/4″X14 | O222 | 63 | 59 | 41 | 50 |
