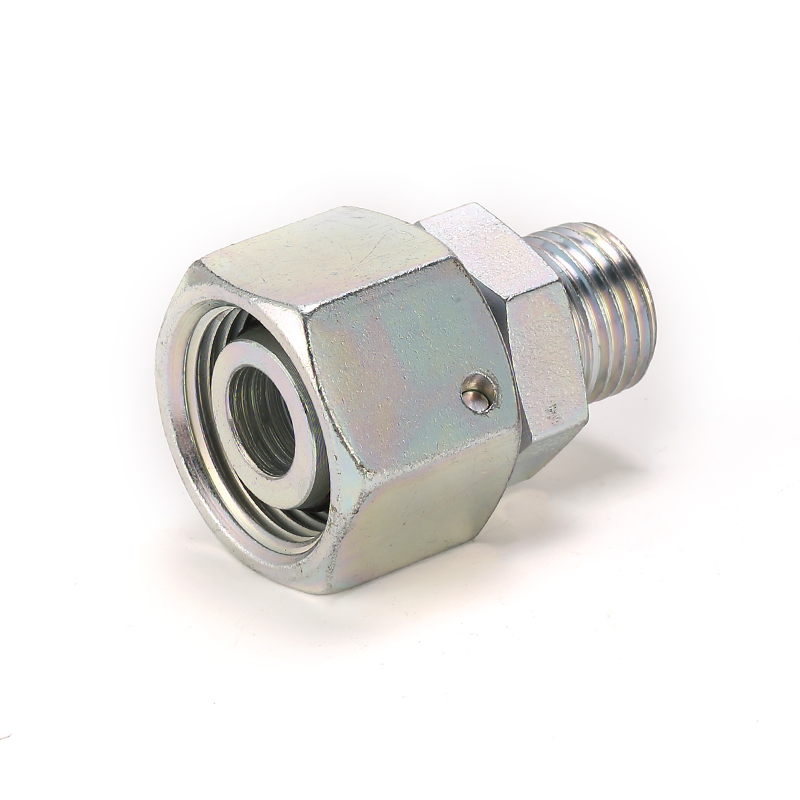

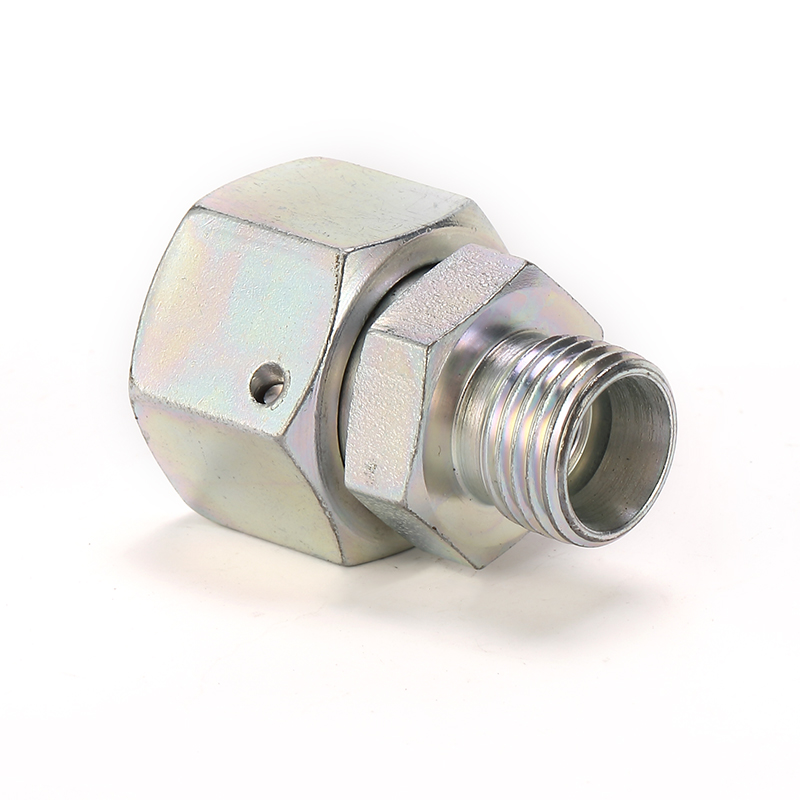

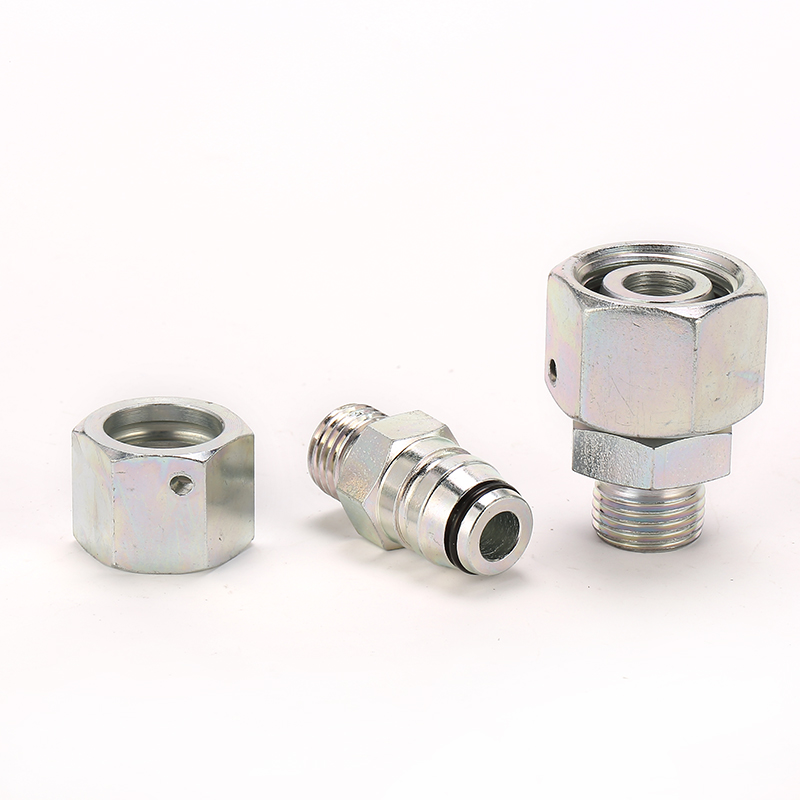

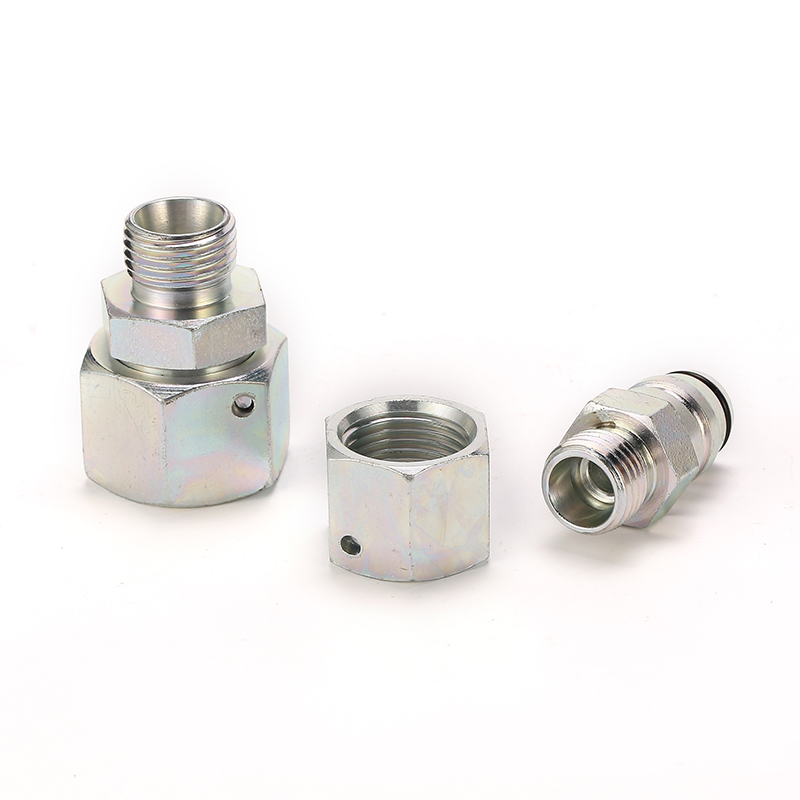

2C Metric Reducer Tube Adapter With Swivel Nut

Description:

2C Metric Hydraulic Adapter With Swivel Nut Light Series Male to Female 24 Cone Seat Fittings Hydraulic Adapter.

"*" indicates required fields

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

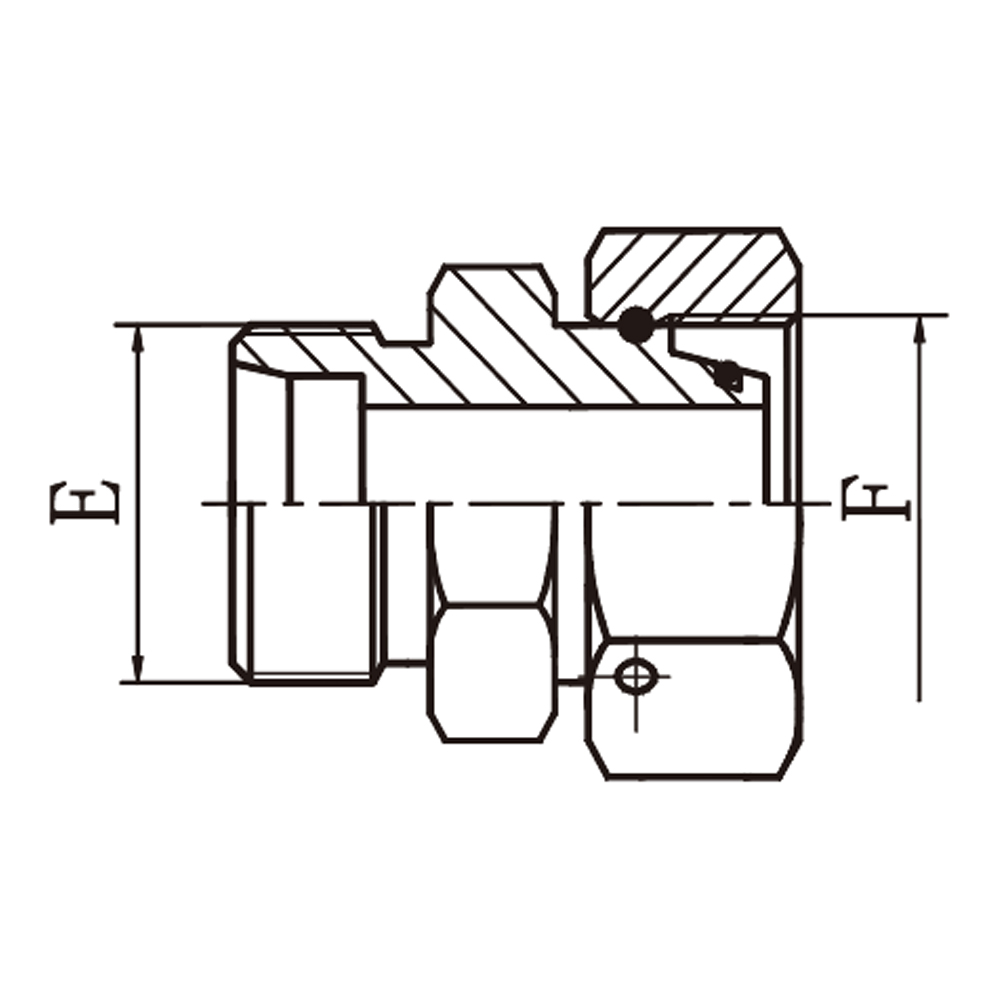

PART NO.	THREAD		TUBE O.D.		DIMENSIONS					MPa
PART NO.	E	F	D1	D2	I1	L1	S1	S2	S3	MPa
2C-12-14	M12X1.5	M14X1.5	6	8	24	31	14	14	17	31.5 L series
2C-12-16	M12X1.5	M16X1.5	6	10	25	32	17	14	19
2C-14-16	M14X1.5	M16X1.5	8	10	25.5	32.5	17	17	19
2C-12-18	M12X1.5	M18X1.5	6	12	25	32	17	14	22
2C-14-18	M14X1.5	M18X1.5	8	12	27	34	17	17	22
2C-16-18	M16X1.5	M18X1.5	10	12	28	35	17	19	22
2C-12-22	M12X1.5	M22X1.5	6	15	29	36	22	14	27
2C-14-22	M14X1.5	M22X1.5	8	15	30	37	22	17	27
2C-16-22	M16X1.5	M22X1.5	10	15	30	37	22	19	27
2C-18-22	M18X1.5	M22X1.5	12	15	30	37	22	22	27
2C-12-26	M12X1.5	M26X1.5	6	18	31.5	38.5	24	14	32
2C-14-26	M14X1.5	M26X1.5	8	18	32.5	39.5	24	17	32
2C-16-26	M16X1.5	M26X1.5	10	18	32.5	39.5	24	19	32
2C-18-26	M18X1.5	M26X1.5	12	18	32.5	39.5	24	22	32
2C-22-26	M22X1.5	M26X1.5	15	18	33.5	40.5	24	27	32
2C-12-30	M12X1.5	M30X2	6	22	34.5	41.5	30	14	36	16 L series
2C-14-30	M14X1.5	M30X2	8	22	35.5	42.5	30	17	36
2C-16-30	M16X1.5	M30X2	10	22	35.5	42.5	30	19	36
2C-18-30	M18X1.5	M30X2	12	22	35.5	42.5	30	22	36
2C-22-30	M22X1.5	M30X2	15	22	36.5	43.5	30	27	36
2C-26-30	M26X1.5	M30X2	18	22	36	43.5	30	32	36
2C-12-36	M12X1.5	M36X2	6	28	36.5	43.5	36	14	41
2C-14-36	M14X1.5	M36X2	8	28	37.5	44.5	36	17	41
2C-16-36	M16X1.5	M36X2	10	28	37.5	44.5	36	19	41
2C-18-36	M18X1.5	M36X2	12	28	37.5	44.5	36	22	41
2C-22-36	M22X1.5	M36X2	15	28	38.5	45.5	36	27	41
2C-26-36	M26X1.5	M36X2	18	28	38	45.5	36	32	41
2C-30-36	M30X2	M36X2	22	28	38.5	46	36	36	41
2C-12-45	M12X1.5	M45X2	6	35	42.5	49.5	46	14	50
2C-14-45	M14X1.5	M45X2	8	35	43.5	50.5	46	17	50
2C-16-45	M16X1.5	M45X2	10	35	43.5	50.5	46	19	50
2C-18-45	M18X1.5	M45X2	12	35	42	49	46	22	50
2C-22-45	M22X1.5	M45X2	15	35	43	50	46	27	50
2C-26-45	M26X1.5	M45X2	18	35	44	51.5	46	32	50

Click to enlarge

Category: DIN Hose Adapters Tags: Carbon Steel, Metric, 2C, Reducer

Description
Package& Shipping

Description

PART NO.	THREAD		TUBE O.D.		DIMENSIONS					MPa
PART NO.	E	F	D1	D2	I1	L1	S1	S2	S3	MPa
2C-12-14	M12X1.5	M14X1.5	6	8	24	31	14	14	17	31.5 L series
2C-12-16	M12X1.5	M16X1.5	6	10	25	32	17	14	19
2C-14-16	M14X1.5	M16X1.5	8	10	25.5	32.5	17	17	19
2C-12-18	M12X1.5	M18X1.5	6	12	25	32	17	14	22
2C-14-18	M14X1.5	M18X1.5	8	12	27	34	17	17	22
2C-16-18	M16X1.5	M18X1.5	10	12	28	35	17	19	22
2C-12-22	M12X1.5	M22X1.5	6	15	29	36	22	14	27
2C-14-22	M14X1.5	M22X1.5	8	15	30	37	22	17	27
2C-16-22	M16X1.5	M22X1.5	10	15	30	37	22	19	27
2C-18-22	M18X1.5	M22X1.5	12	15	30	37	22	22	27
2C-12-26	M12X1.5	M26X1.5	6	18	31.5	38.5	24	14	32
2C-14-26	M14X1.5	M26X1.5	8	18	32.5	39.5	24	17	32
2C-16-26	M16X1.5	M26X1.5	10	18	32.5	39.5	24	19	32
2C-18-26	M18X1.5	M26X1.5	12	18	32.5	39.5	24	22	32
2C-22-26	M22X1.5	M26X1.5	15	18	33.5	40.5	24	27	32
2C-12-30	M12X1.5	M30X2	6	22	34.5	41.5	30	14	36	16 L series
2C-14-30	M14X1.5	M30X2	8	22	35.5	42.5	30	17	36
2C-16-30	M16X1.5	M30X2	10	22	35.5	42.5	30	19	36
2C-18-30	M18X1.5	M30X2	12	22	35.5	42.5	30	22	36
2C-22-30	M22X1.5	M30X2	15	22	36.5	43.5	30	27	36
2C-26-30	M26X1.5	M30X2	18	22	36	43.5	30	32	36
2C-12-36	M12X1.5	M36X2	6	28	36.5	43.5	36	14	41
2C-14-36	M14X1.5	M36X2	8	28	37.5	44.5	36	17	41
2C-16-36	M16X1.5	M36X2	10	28	37.5	44.5	36	19	41
2C-18-36	M18X1.5	M36X2	12	28	37.5	44.5	36	22	41
2C-22-36	M22X1.5	M36X2	15	28	38.5	45.5	36	27	41
2C-26-36	M26X1.5	M36X2	18	28	38	45.5	36	32	41
2C-30-36	M30X2	M36X2	22	28	38.5	46	36	36	41
2C-12-45	M12X1.5	M45X2	6	35	42.5	49.5	46	14	50
2C-14-45	M14X1.5	M45X2	8	35	43.5	50.5	46	17	50
2C-16-45	M16X1.5	M45X2	10	35	43.5	50.5	46	19	50
2C-18-45	M18X1.5	M45X2	12	35	42	49	46	22	50
2C-22-45	M22X1.5	M45X2	15	35	43	50	46	27	50
2C-26-45	M26X1.5	M45X2	18	35	44	51.5	46	32	50

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
