XC Metric Hydraulic Cross Pipe Fittings

Description:

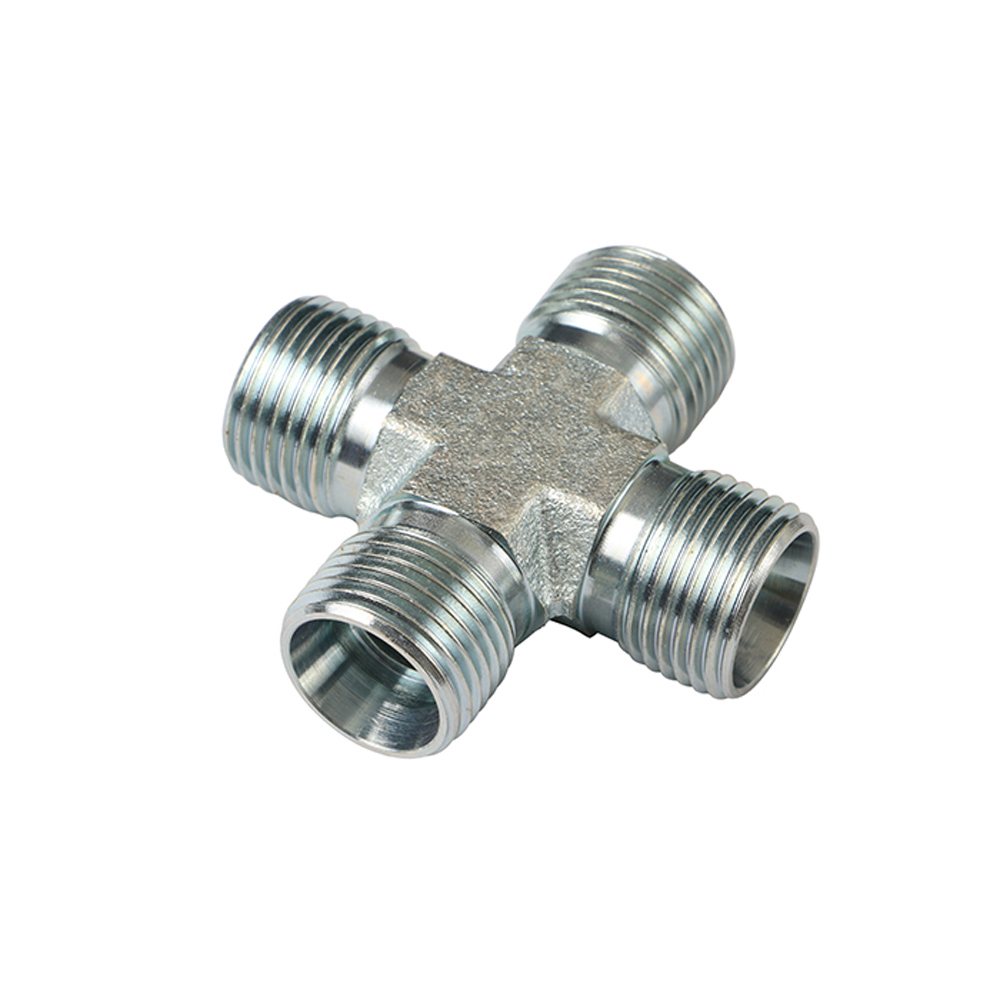

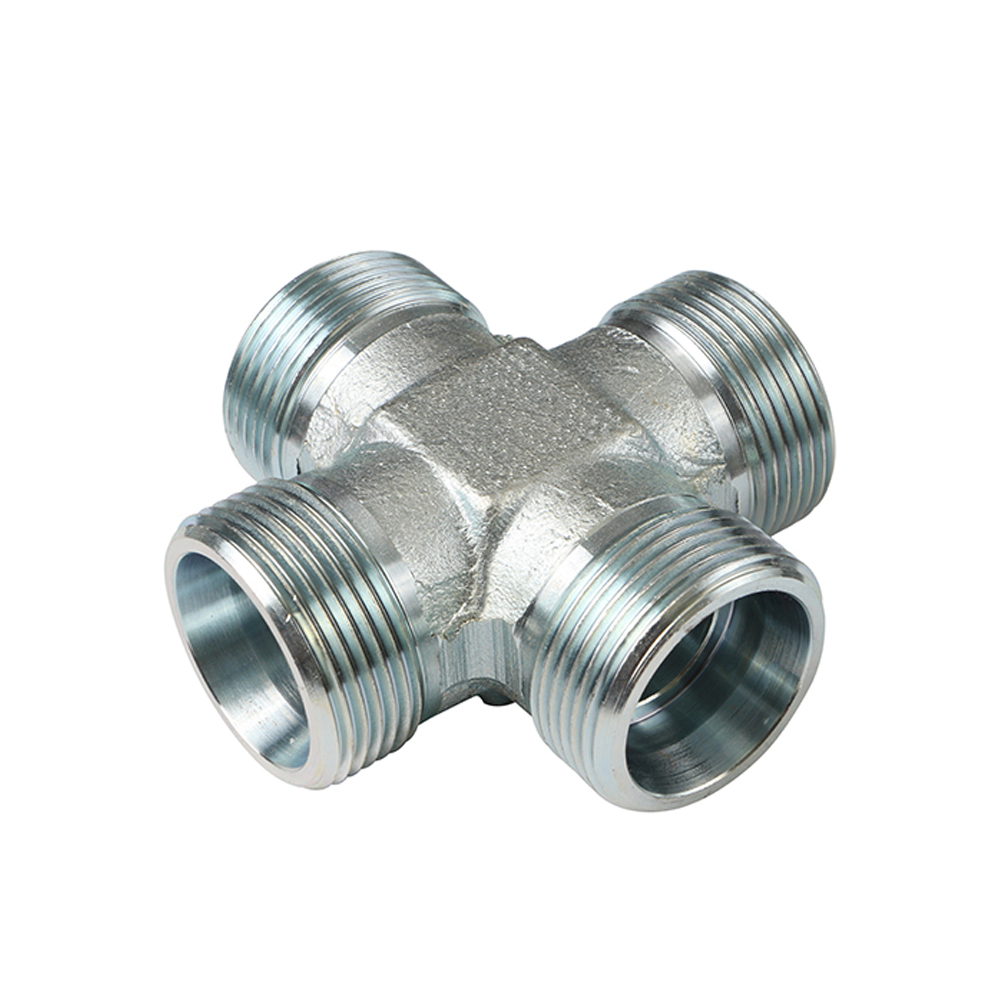

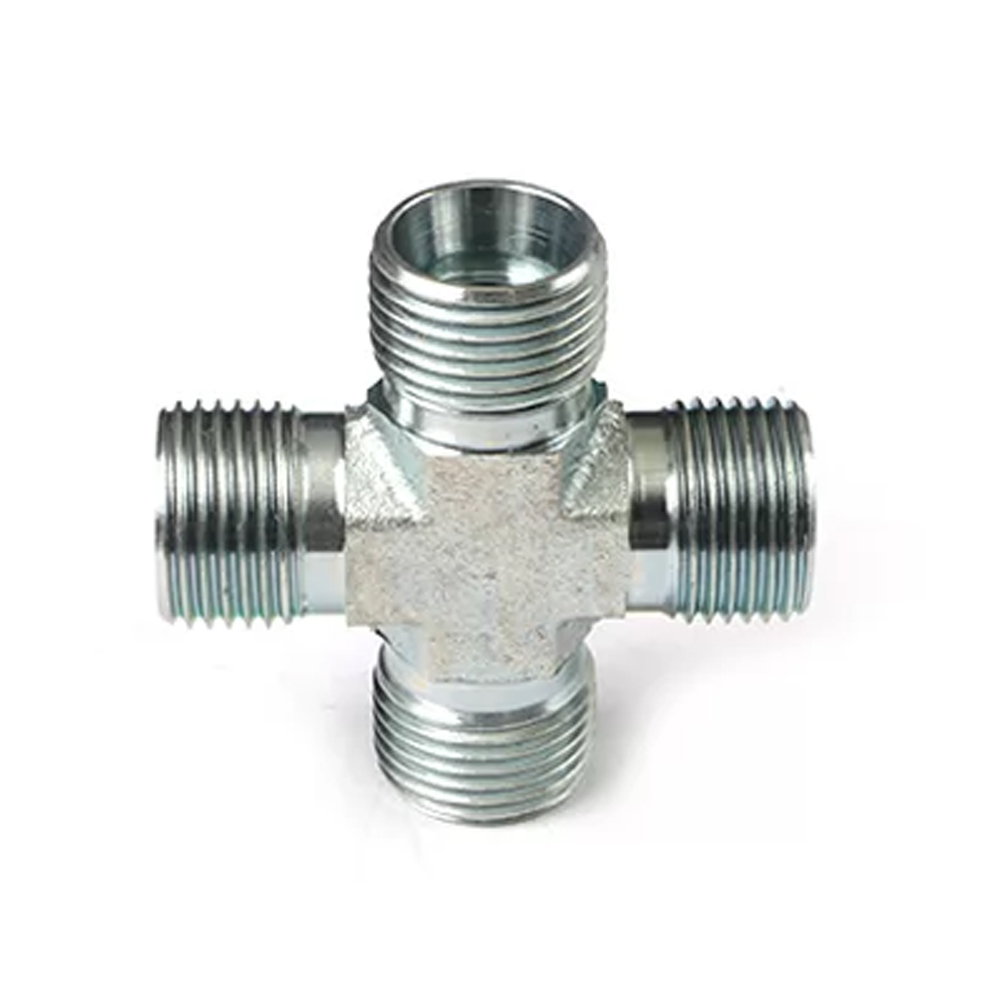

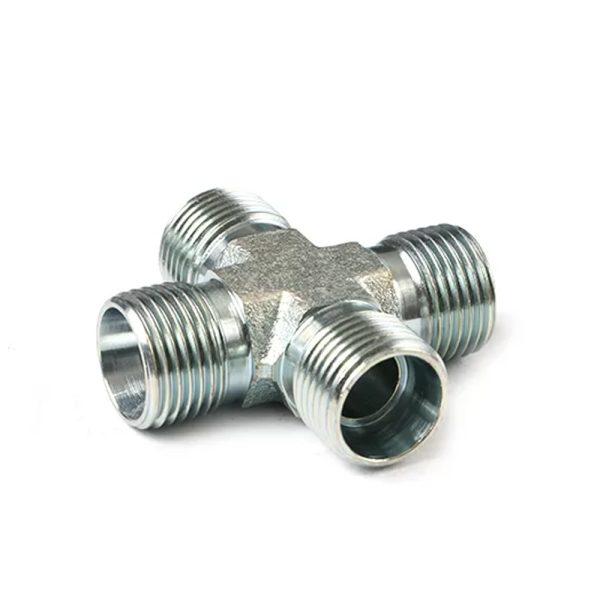

XC/XD hydraulic metric cross fitting is a type of hydraulic fitting that is designed to connect four hydraulic lines together in a cross pattern.

"*" indicates required fields

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

PART NO.	THREAD	TUBE O.D.	DIMENSIONS				MPa

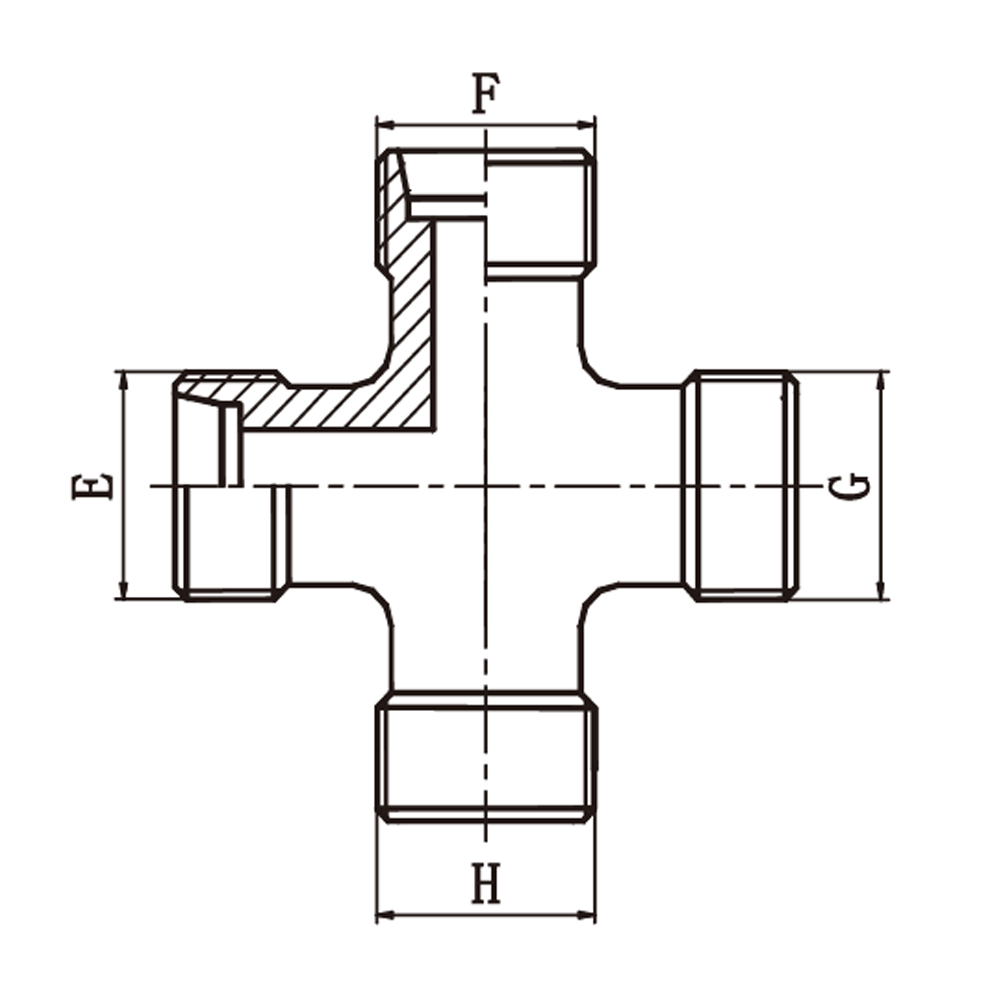

PART NO.	E,F,G,H	D1,D2,D3,D4	I1	L1	S1	S2	MPa
XC-12	M12X1.5	6	12	27	12	14	31.5 L series
XC-14	M14X1.5	8	14	29	12	17
XC-16	M16X1.5	10	15	30	14	19
XC-18	M18X1.5	12	17	32	17	22
XC-22	M22X1.5	15	21	36	19	27
XC-26	M26X1.5	18	23.5	40	24	32
XC-30	M30X2	22	27.5	44	27	36	16 L series
XC-36	M36X2	28	30.5	47	36	41
XC-45	M45X2	35	34.5	56	41	50
XC-52	M52X2	42	40	63	50	60
XD-14	M14X1.5	6	16	31	12	17	63 S series
XD-16	M16X1.5	8	17	32	14	19
XD-18	M18X1.5	10	17.5	34	17	22
XD-20	M20X1.5	12	21.5	38	17	24
XD-22	M22X1.5	14	22	40	19	27
XD-24	M24X1.5	16	24.5	43	24	30	40 S series
XD-30	M30X2	20	26.5	48	27	36
XD-36	M36X2	25	30	54	36	46
XD-42	M42X2	30	35.5	62	41	50
XD-52	M52X2	38	41	72	50	60	31.5 S series

Click to enlarge

Category: DIN Hose Adapters Tags: Carbon Steel, Metric, XC adapter

Description
Package& Shipping

Description

PART NO.	THREAD	TUBE O.D.	DIMENSIONS				MPa
PART NO.	E,F,G,H	D1,D2,D3,D4	I1	L1	S1	S2	MPa
XC-12	M12X1.5	6	12	27	12	14	31.5 L series
XC-14	M14X1.5	8	14	29	12	17
XC-16	M16X1.5	10	15	30	14	19
XC-18	M18X1.5	12	17	32	17	22
XC-22	M22X1.5	15	21	36	19	27
XC-26	M26X1.5	18	23.5	40	24	32
XC-30	M30X2	22	27.5	44	27	36	16 L series
XC-36	M36X2	28	30.5	47	36	41
XC-45	M45X2	35	34.5	56	41	50
XC-52	M52X2	42	40	63	50	60
XD-14	M14X1.5	6	16	31	12	17	63 S series
XD-16	M16X1.5	8	17	32	14	19
XD-18	M18X1.5	10	17.5	34	17	22
XD-20	M20X1.5	12	21.5	38	17	24
XD-22	M22X1.5	14	22	40	19	27
XD-24	M24X1.5	16	24.5	43	24	30	40 S series
XD-30	M30X2	20	26.5	48	27	36
XD-36	M36X2	25	30	54	36	46
XD-42	M42X2	30	35.5	62	41	50
XD-52	M52X2	38	41	72	50	60	31.5 S series

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
