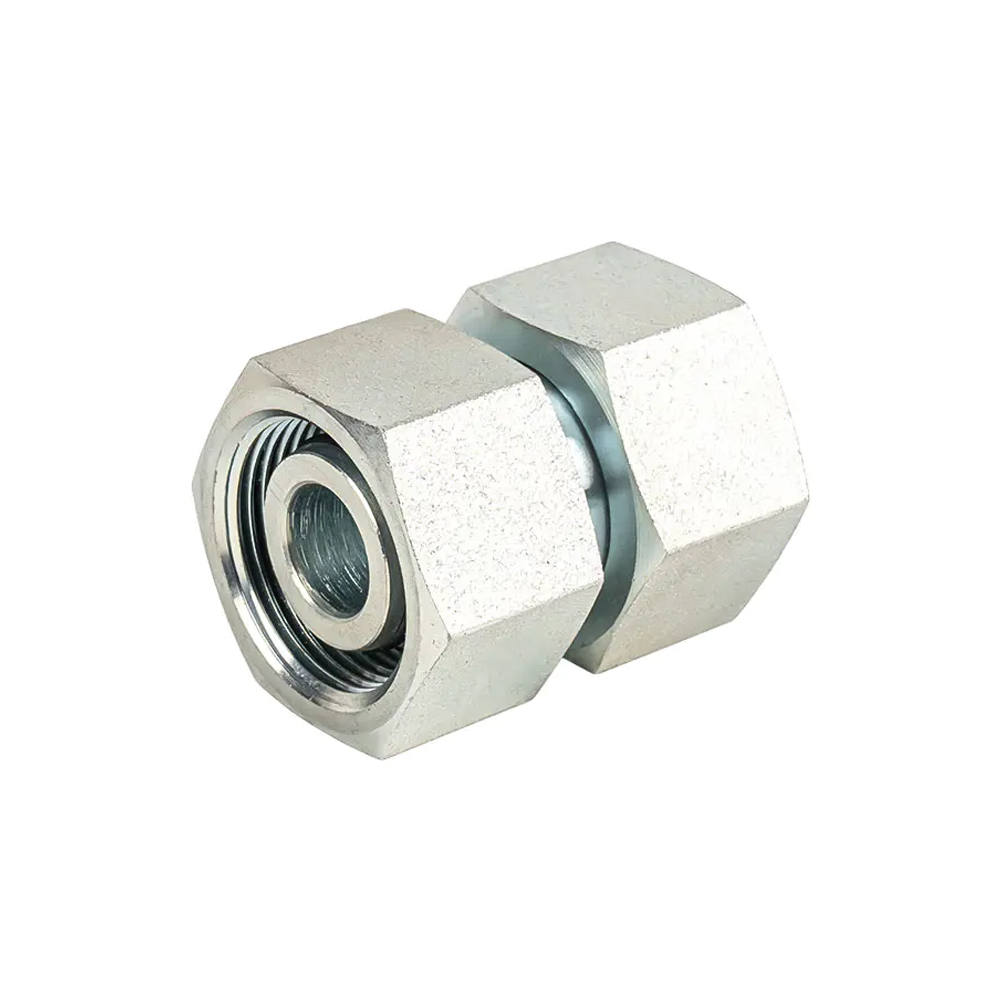

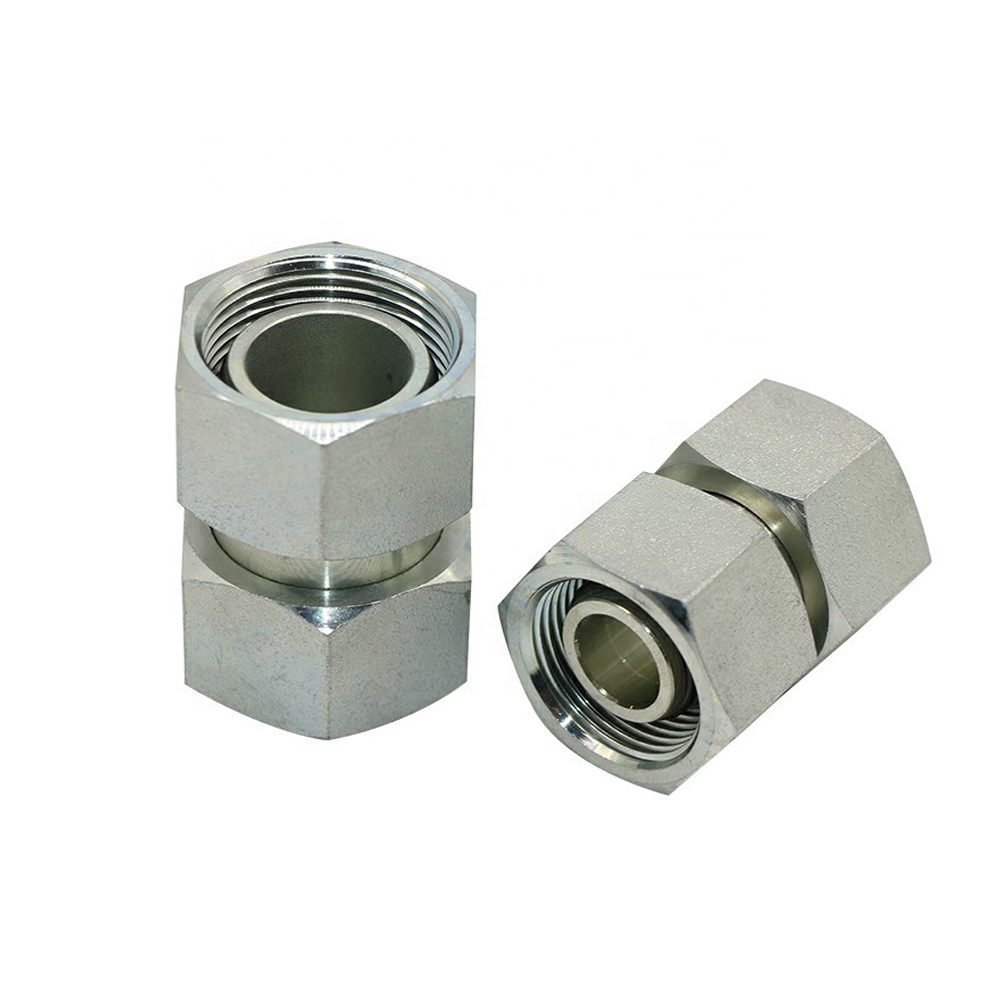

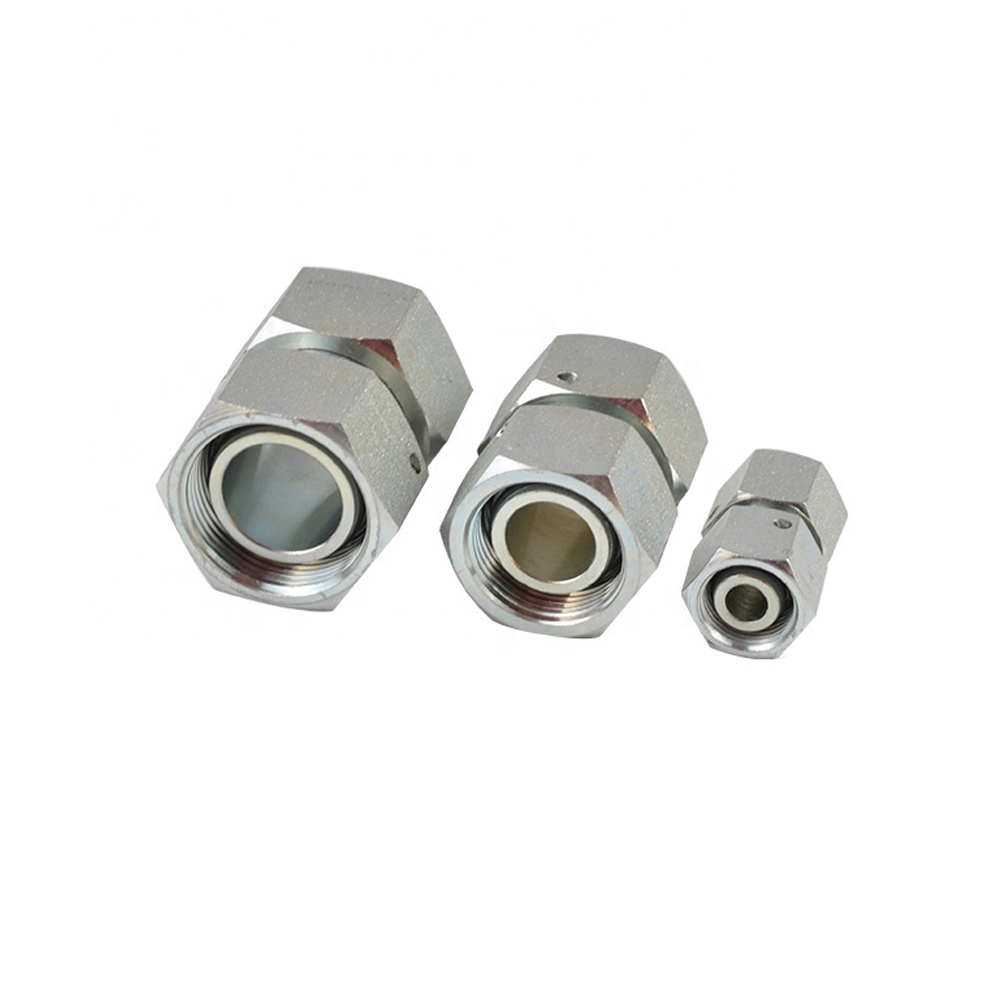

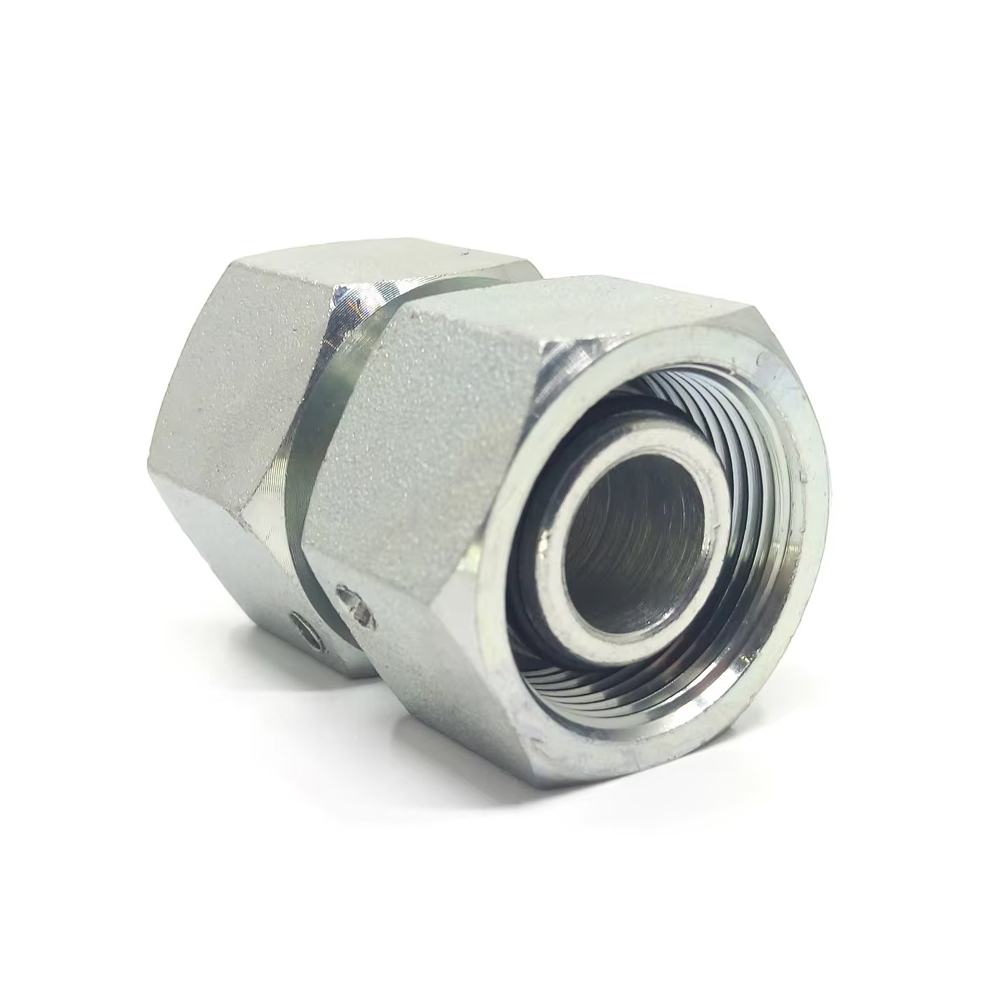

3C 3D Straight Tube Adapter With Swivel Nut

Description:

3C 3D Light/Heavy Duty Series Metric Female Straight Pipe Adapters with Swivel Nut to DIN 2353.

INQUIRE NOW

"*" indicates required fields

Category: DIN Hose Adapters Tags: 3C, 3D, Swivel nut, Carbon Steel, Metric
Share:
  • Description
  • Package& Shipping
Description

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

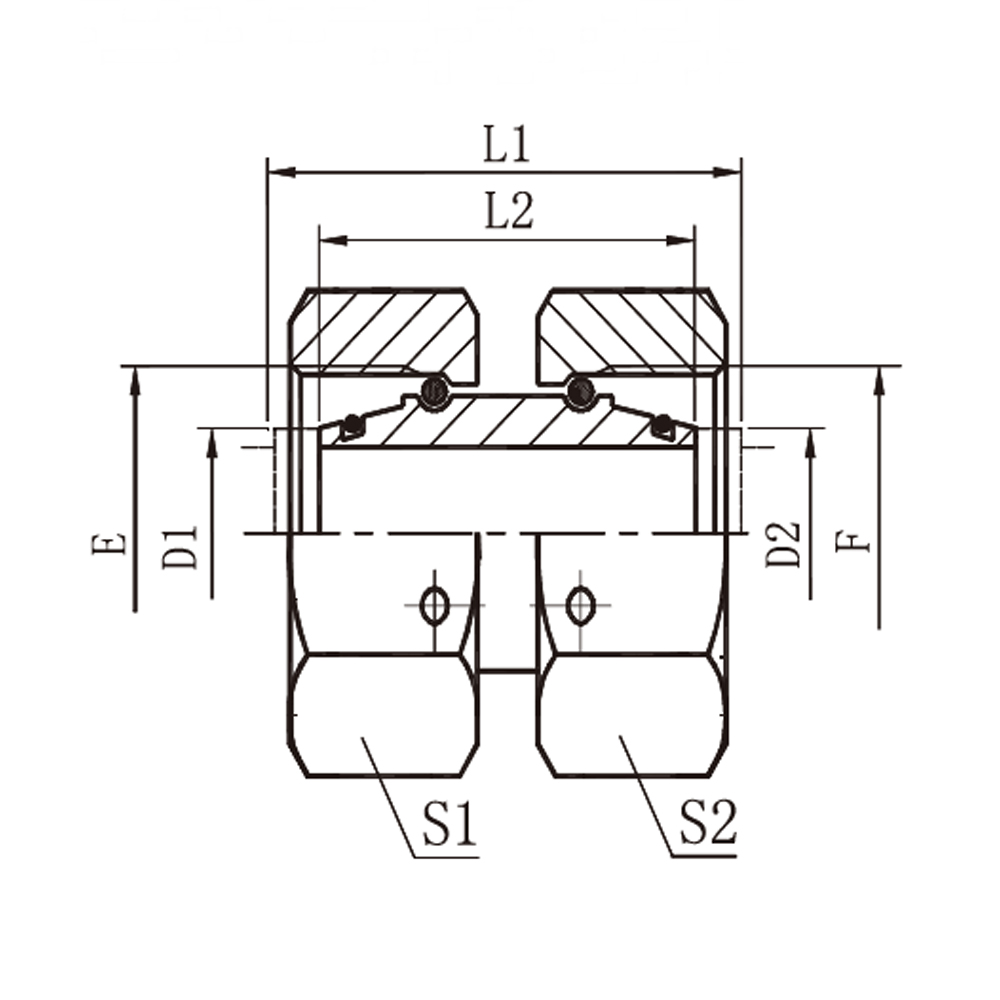

PART NO. THREAD TUBE O.D. DIMENSIONS MPa
E,F D1,D2 L2 S1,S2
3C-12 M12X1.5 6 32 14 31.5
L series
3C-14 M14X1.5 8 32 17
3C-16 M16X1.5 10 33 19
3C-18 M18X1.5 12 34 22
3C-22 M22X1.5 15 38 27
3C-26 M26X1.5 18 40 32
3C-30 M30X2 22 42 36 16
L series
3C-36 M36X2 28 46 41
3C-45 M45X2 35 51 50
3C-52 M52X2 42 56 60
3D-14 M14X1.5 6 32 17 63
S series
3D-16 M16X1.5 8 33 19
3D-18 M18X1.5 10 35 22
3D-20 M20X1.5 12 36 24
3D-22 M22X1.5 14 36 27
3D-24 M24X1.5 16 39 30 40
S series
3D-30 M30X2 20 44 36
3D-36 M36X2 25 46 46
3D-42 M42X2 30 52 50
3D-52 M52X2 38 55 60 31.5
S series
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
