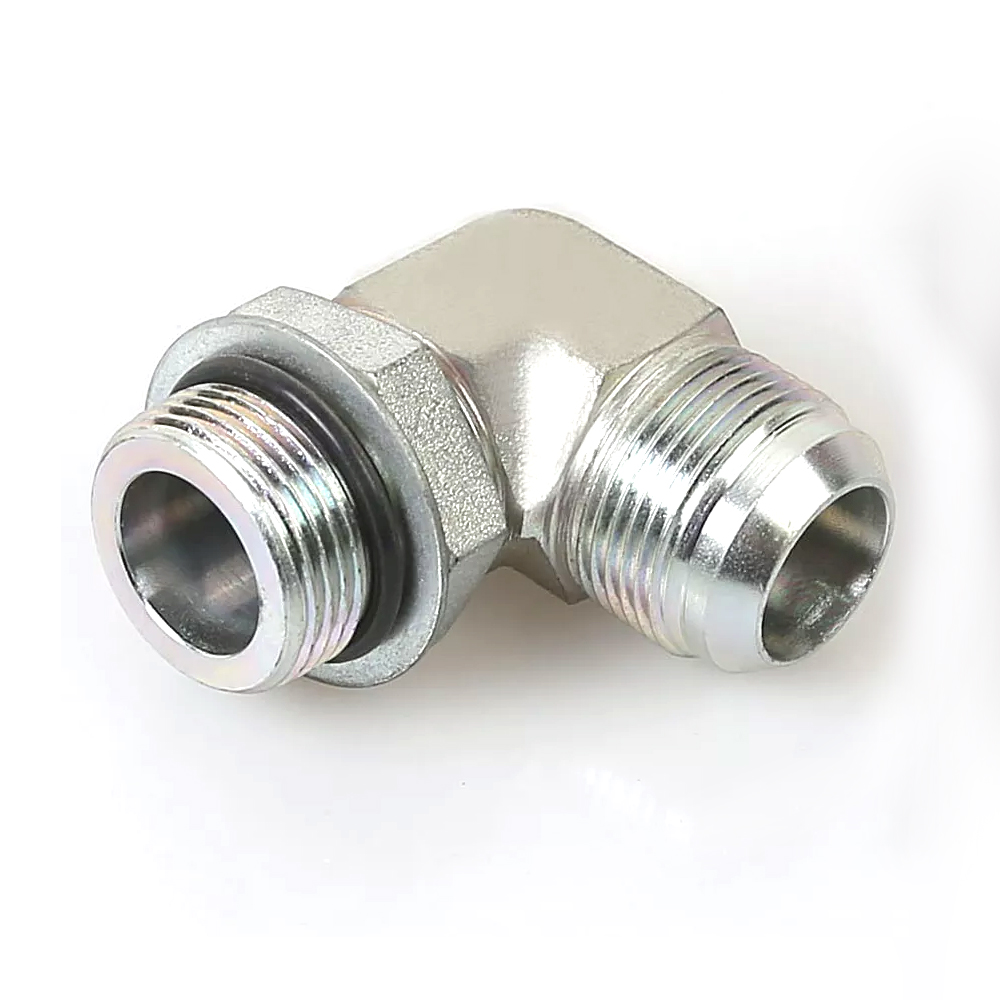

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

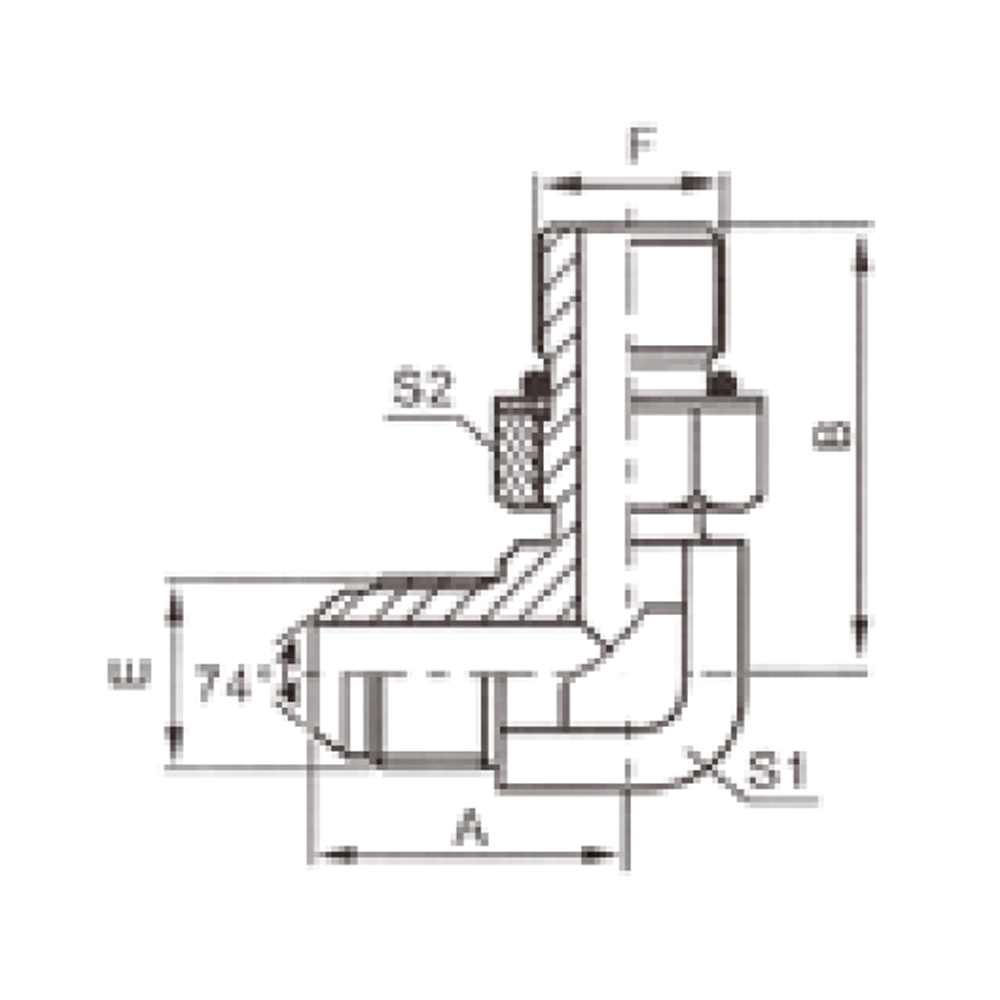

| PART NO. | THREAD | TUBE O.D. | O-RING | DIMENSIONS | |||||
| E | F | D | F | A | B | S1 | S2 | S3 | |
| 1Q09-16-06 | M16X1.5 | 9/16″X18 | 10 | O906 | 32 | 31.8 | 16 | 19 | 22 |
| 1Q09-18-08 | M18X1.5 | 3/4″X16 | 12 | O908 | 34 | 36.8 | 19 | 24 | 24 |
| 1Q09-22-10 | M22X1.5 | 7/8″X14 | 14 | O910 | 37.5 | 44 | 22 | 27 | 27 |
| 1Q09-27-12 | M27X1.5 | 1.1/16″X12 | 18 | O912 | 41.5 | 51 | 27 | 32 | 32 |
| 1Q09-30-12 | M30X1.5 | 1.1/16″X12 | 20 | O912 | 45.8 | 53 | 30 | 32 | 36 |
| 1Q09-33-16 | M33X2 | 1.5/16″X12 | 22 | O916 | 51 | 54.5 | 33 | 41 | 38 |
| 1Q09-39-16 | M39X2 | 1.5/16″X12 | 28 | O916 | 55.5 | 59.5 | 41 | 41 | 46 |
| 1Q09-42-20 | M42X2 | 1.5/8″X12 | 32 | O920 | 58.5 | 59 | 41 | 50 | 50 |
