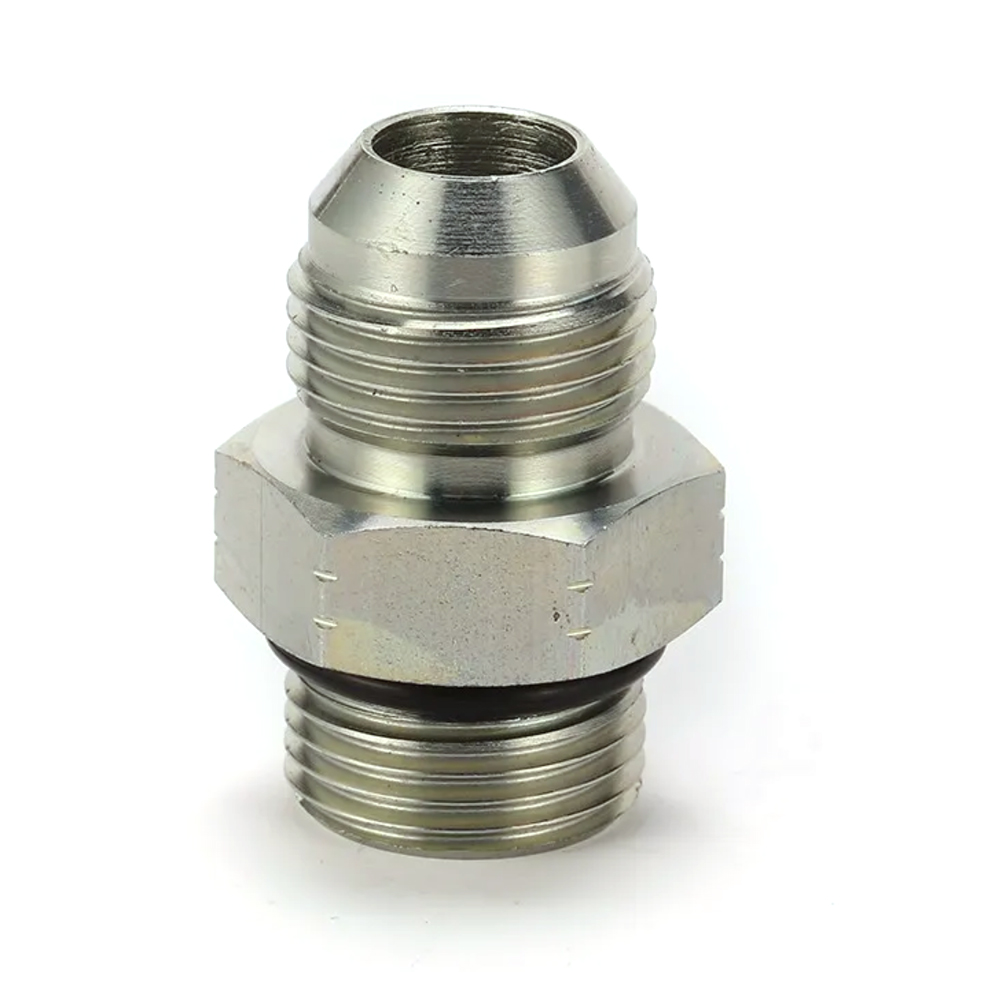

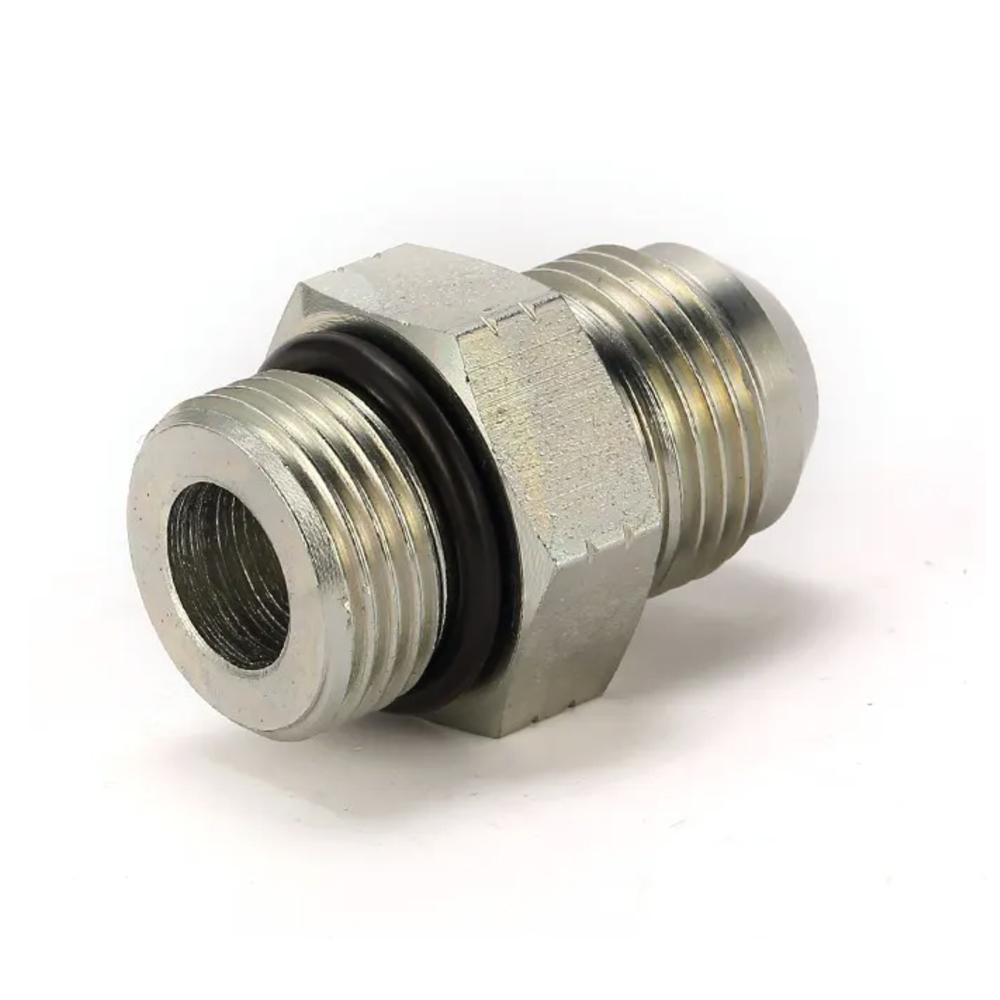

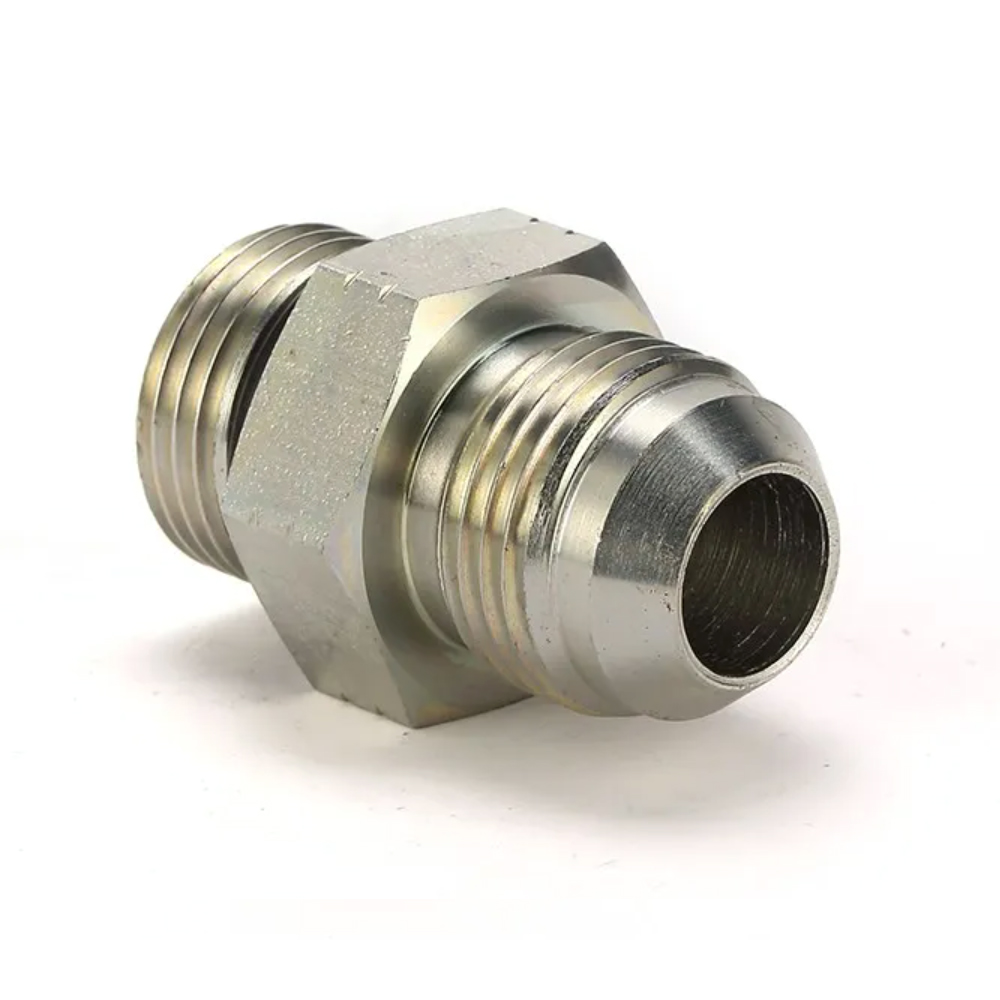

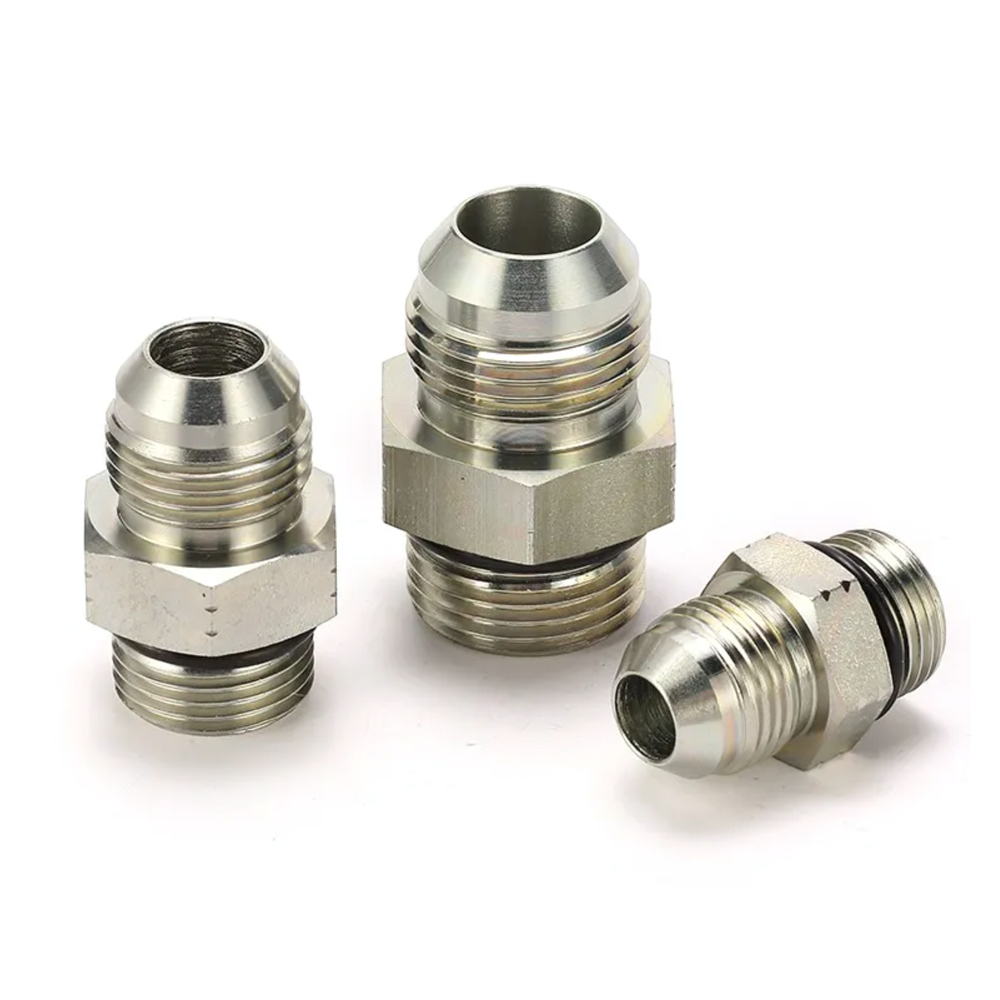

1JO JIC to ORB O-Ring Boss Hydraulic Fitting

Description:

1JO-JIC to ORB hydraulic fitting is a straight fitting with two types of thread. Hydraulic hose fittings jic 1JO are straight fittings with an o-ring boss seal.

"*" indicates required fields

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

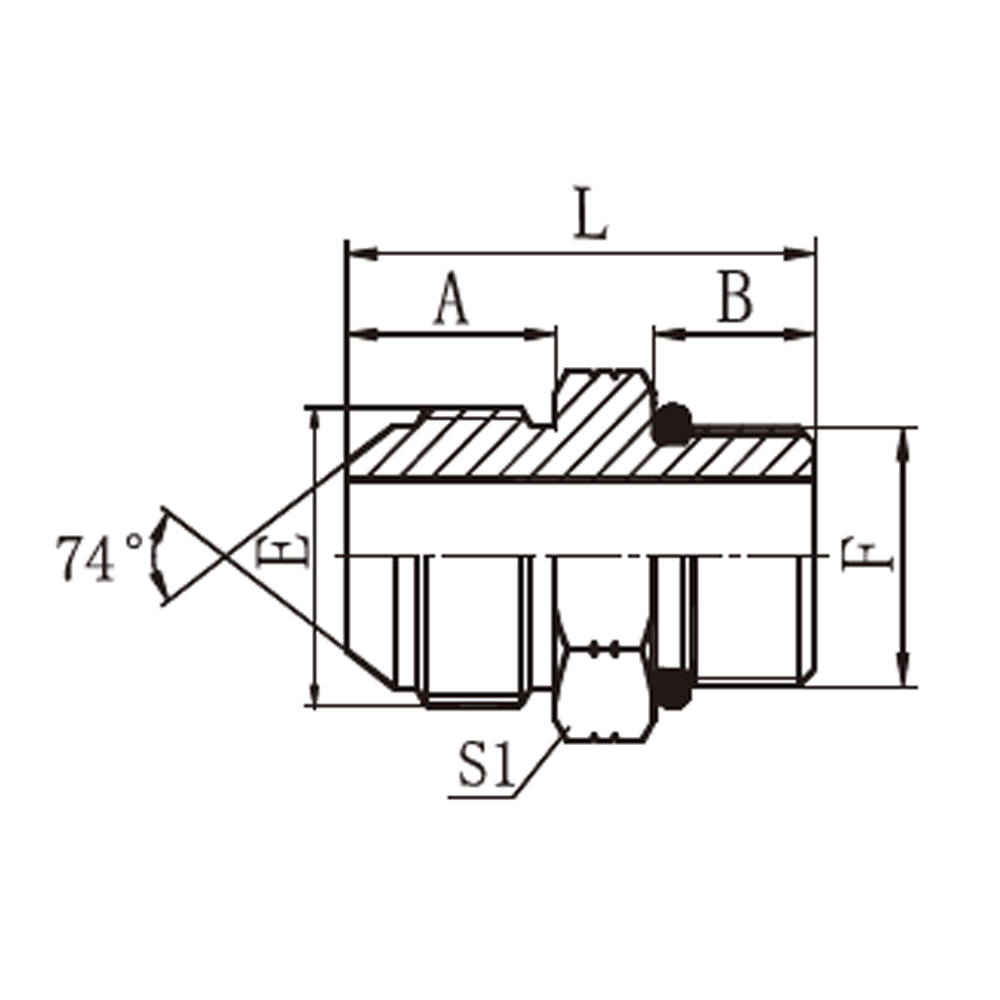

PART NO.	THREAD		O-RING	DIMENSIONS
PART NO.	E	F	F	A	B	L	S1
1JO-04-02	7/16″X20	5/16″X24	902	14	7.5	27.5	14
1JO-04-03	7/16″X20	3/8″X24	903	14	7.54	27.5	14
1JO-04	7/16″X20	7/16″X20	904	14	9.14	29	14
1JO-04-05	7/16″X20	1/2″X20	905	14	9.14	29	17
1JO-04-06	7/16″X20	9/16″X18	906	14	10	30	17
1JO-04-08	7/16″X20	3/4″X16	908	14	11.13	33	22
1JO-05	1/2″X20	1/2″X20	905	14	9.14	29	17
1JO-05-04	1/2″X20	7/16″X20	904	14	9.14	29	14
1JO-05-06	1/2″X20	9/16″X18	906	14	10	30	17
1JO-05-08	1/2″X20	3/4″X16	908	14	11.13	33	22
1JO-06	9/16″X18	9/16″X18	906	14.1	10	30	17
1JO-06-04	9/16″X18	7/16″X20	904	14.1	9.14	29	17
1JO-06-05	9/16″X18	1/2″X20	905	14.1	9.14	29.5	17
1JO-06-08	9/16″X18	3/4″X16	908	14.1	11.13	33	22
1JO-06-10	9/16″X18	7/8″X14	910	14.1	12.7	37	27
1JO-06-12	9/16″X18	1.1/16″X12	912	14.1	15.1	40	32
1JO-08	3/4″X16	3/4″X16	908	16.7	11.13	36	22
1JO-08-04	3/4″X16	7/16″X20	904	16.7	9.14	34	22
1JO-08-06	3/4″X16	9/16″X18	906	16.7	10	35	22
1JO-08-10	3/4″X16	7/8″X14	910	16.7	12.7	40	27
1JO-08-12	3/4″X16	1.1/16″X12	912	16.7	15.1	43	32
1JO-08-14	3/4″X16	1.3/16″X12	914	16.7	15.1	43	36
1JO-10	7/8″X14	7/8″X14	910	19.3	12.7	42.5	27
1JO-10-08	7/8″X14	3/4″X16	908	19.3	11.13	39	24
1JO-10-12	7/8″X14	1.1/16″X12	912	19.3	15.1	45.5	32
1JO-10-14	7/8″X14	1.3/16″X12	914	19.3	15.1	45.5	36
1JO-12	1.1/16″X12	1.1/16″X12	912	21.9	15.1	48	32
1JO-12-08	1.1/16″X12	3/4″X16	908	21.9	11.13	43	30
1JO-12-10	1.1/16″X12	7/8″X14	910	21.9	12.7	45	30
1JO-12-14	1.1/16″X12	1.3/16″X12	914	21.9	15.1	48	36
1JO-12-16	1.1/16″X12	1.5/16″X12	916	21.9	15.1	48	38
1JO-14	1.3/16″X12	1.3/16″X12	914	22.6	15.1	48.5	36
1JO-14-12	1.3/16″X12	1.1/16″X12	912	22.6	15.1	48.5	32
1JO-14-16	1.3/16″X12	1.5/16″X12	916	22.6	15.1	50.5	38

Click to enlarge

Category: SAE ORB Adapters Tags: Female, JIC 37°, Male, O-ring, 1JO

Description
Package& Shipping

Description

PART NO.	THREAD		O-RING	DIMENSIONS
PART NO.	E	F	F	A	B	L	S1
1JO-04-02	7/16″X20	5/16″X24	902	14	7.5	27.5	14
1JO-04-03	7/16″X20	3/8″X24	903	14	7.54	27.5	14
1JO-04	7/16″X20	7/16″X20	904	14	9.14	29	14
1JO-04-05	7/16″X20	1/2″X20	905	14	9.14	29	17
1JO-04-06	7/16″X20	9/16″X18	906	14	10	30	17
1JO-04-08	7/16″X20	3/4″X16	908	14	11.13	33	22
1JO-05	1/2″X20	1/2″X20	905	14	9.14	29	17
1JO-05-04	1/2″X20	7/16″X20	904	14	9.14	29	14
1JO-05-06	1/2″X20	9/16″X18	906	14	10	30	17
1JO-05-08	1/2″X20	3/4″X16	908	14	11.13	33	22
1JO-06	9/16″X18	9/16″X18	906	14.1	10	30	17
1JO-06-04	9/16″X18	7/16″X20	904	14.1	9.14	29	17
1JO-06-05	9/16″X18	1/2″X20	905	14.1	9.14	29.5	17
1JO-06-08	9/16″X18	3/4″X16	908	14.1	11.13	33	22
1JO-06-10	9/16″X18	7/8″X14	910	14.1	12.7	37	27
1JO-06-12	9/16″X18	1.1/16″X12	912	14.1	15.1	40	32
1JO-08	3/4″X16	3/4″X16	908	16.7	11.13	36	22
1JO-08-04	3/4″X16	7/16″X20	904	16.7	9.14	34	22
1JO-08-06	3/4″X16	9/16″X18	906	16.7	10	35	22
1JO-08-10	3/4″X16	7/8″X14	910	16.7	12.7	40	27
1JO-08-12	3/4″X16	1.1/16″X12	912	16.7	15.1	43	32
1JO-08-14	3/4″X16	1.3/16″X12	914	16.7	15.1	43	36
1JO-10	7/8″X14	7/8″X14	910	19.3	12.7	42.5	27
1JO-10-08	7/8″X14	3/4″X16	908	19.3	11.13	39	24
1JO-10-12	7/8″X14	1.1/16″X12	912	19.3	15.1	45.5	32
1JO-10-14	7/8″X14	1.3/16″X12	914	19.3	15.1	45.5	36
1JO-12	1.1/16″X12	1.1/16″X12	912	21.9	15.1	48	32
1JO-12-08	1.1/16″X12	3/4″X16	908	21.9	11.13	43	30
1JO-12-10	1.1/16″X12	7/8″X14	910	21.9	12.7	45	30
1JO-12-14	1.1/16″X12	1.3/16″X12	914	21.9	15.1	48	36
1JO-12-16	1.1/16″X12	1.5/16″X12	916	21.9	15.1	48	38
1JO-14	1.3/16″X12	1.3/16″X12	914	22.6	15.1	48.5	36
1JO-14-12	1.3/16″X12	1.1/16″X12	912	22.6	15.1	48.5	32
1JO-14-16	1.3/16″X12	1.5/16″X12	916	22.6	15.1	50.5	38

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
