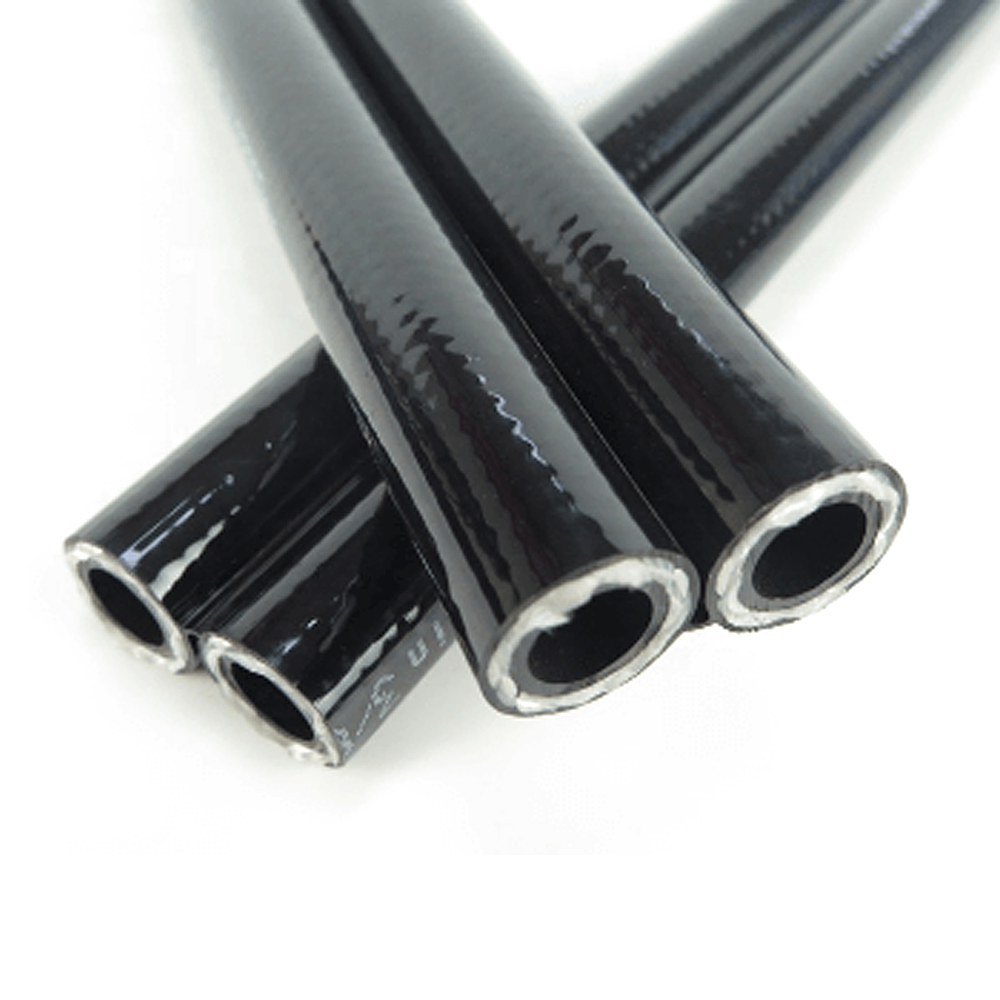

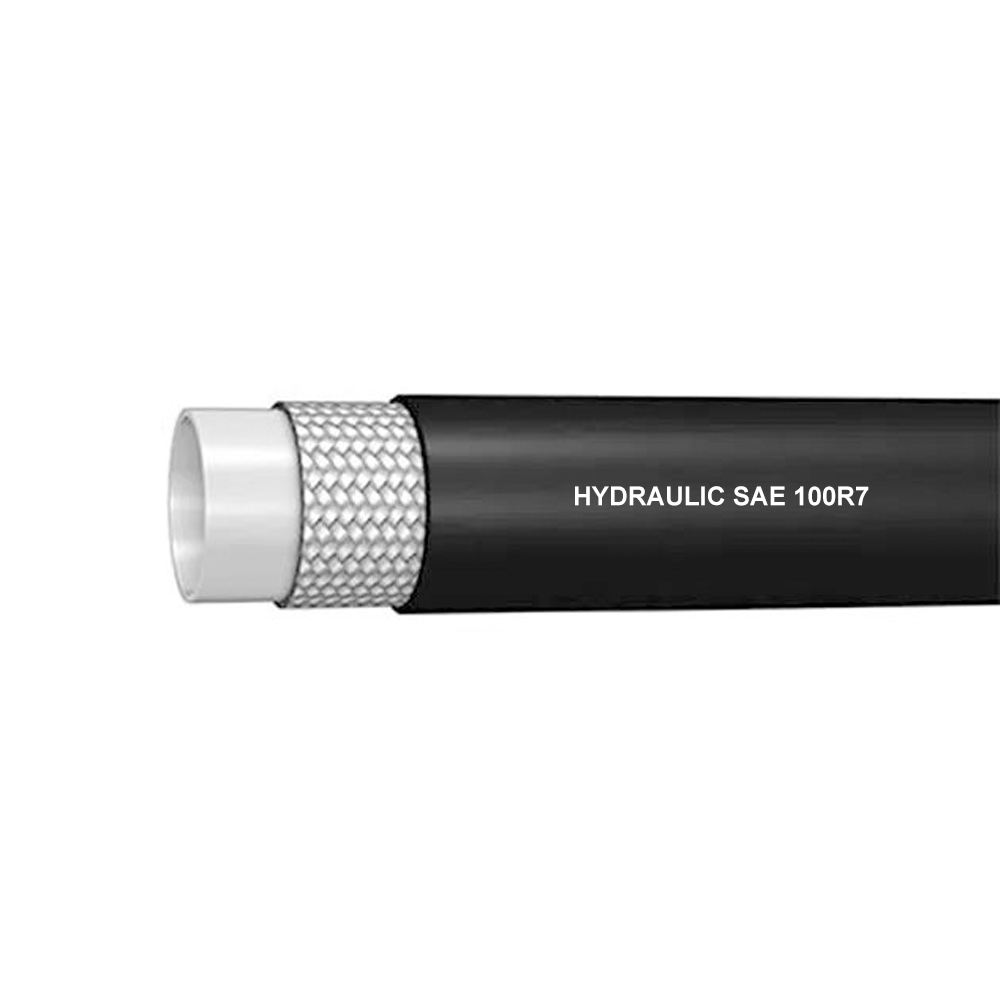

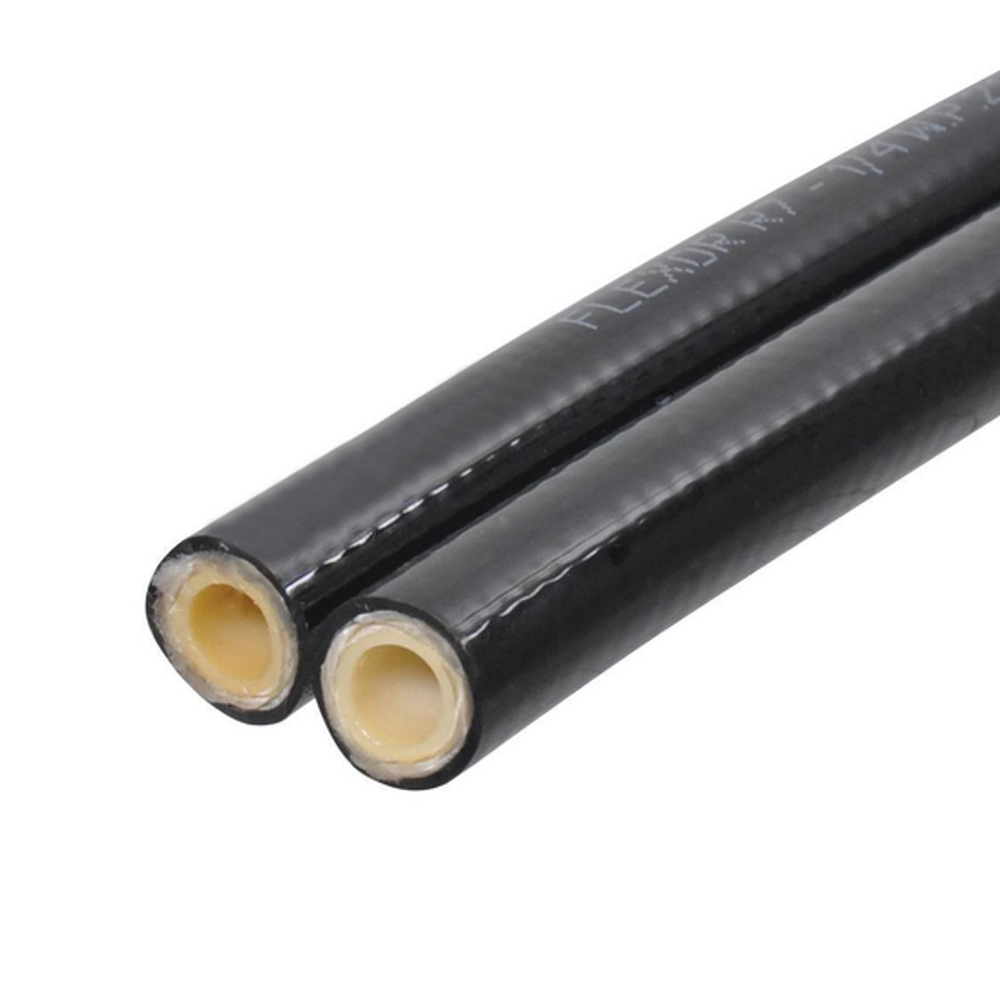

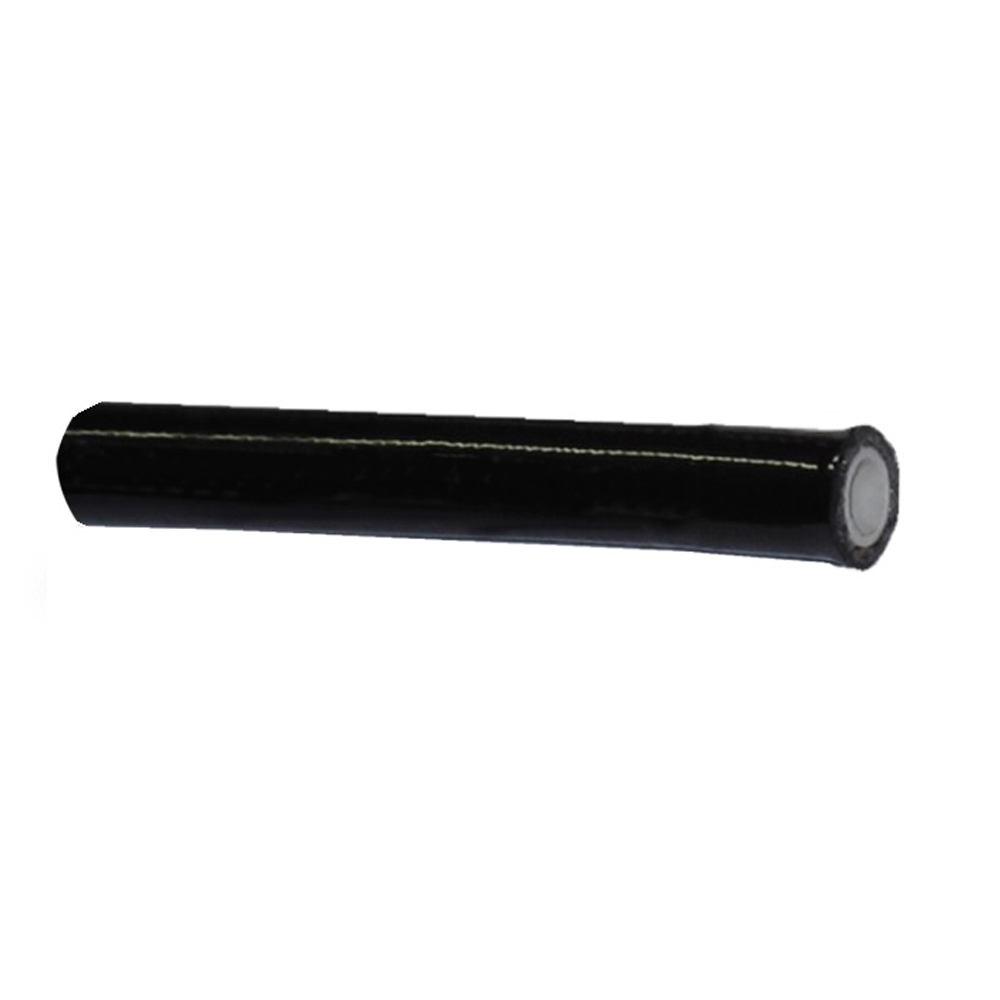

SAE 100R7 is a medium-pressure thermoplastic hydraulic hose designed for operating temperatures ranging from -40°C to +100°C. This hose is engineered for conveying petroleum-based and water-based hydraulic fluids, LPG, fuels, and other transfer liquids in medium-pressure hydraulic systems. Its applications span multiple industries including construction, mining, agriculture, marine, industrial machinery, automotive, and aerospace. The hose’s excellent chemical stability and abrasion resistance make it particularly suitable for hydraulic power transmission in high-temperature operating conditions.
| HOSE PART NO. | DN | DASH | HOSE I.D. | HOSE O.D. | Working-pressure | Burst- pressure | BendRadius | |
| mm | inch | mm | mm | bar | bar | mm | ||
| 100R7-02 | 3 | 1/8 | -2 | 3.2 | 8.5 | 300 | 1200 | 80 |
| 100R7-03 | 5 | 3/16 | -3 | 4.8 | 10.8 | 345 | 1379 | 90 |
| 100R7-04 | 6.3 | 1/4 | -4 | 6.4 | 13 | 345 | 1379 | 100 |
| 100R7-05 | 8 | 5/16 | -5 | 7.9 | 15.1 | 300 | 1200 | 115 |
| 100R7-06 | 10 | 3/8 | -6 | 9.5 | 17 | 276 | 1103 | 125 |
| 100R7-08 | 12.5 | 1/2 | -8 | 12.7 | 20.7 | 245 | 965 | 180 |
| 100R7-10 | 16 | 5/8 | -10 | 15.9 | 23 | 192 | 768 | 205 |
| 100R7-12 | 19 | 3/4 | -12 | 18.9 | 26 | 157 | 630 | 240 |
| 100R7-16 | 25 | 1 | -16 | 25.4 | 32 | 140 | 560 | 300 |
