Home Hose Assembly Hydraulic Hose SAE 100 R6 Textile Reinforced Hydraulic Braided Hose
SAE 100 R5 Steel Wire Reinforced Hydraulic Braided Hose
Back to products
SAE 100 R7 Thermoplastic Hydraulic Hose
Click to enlarge

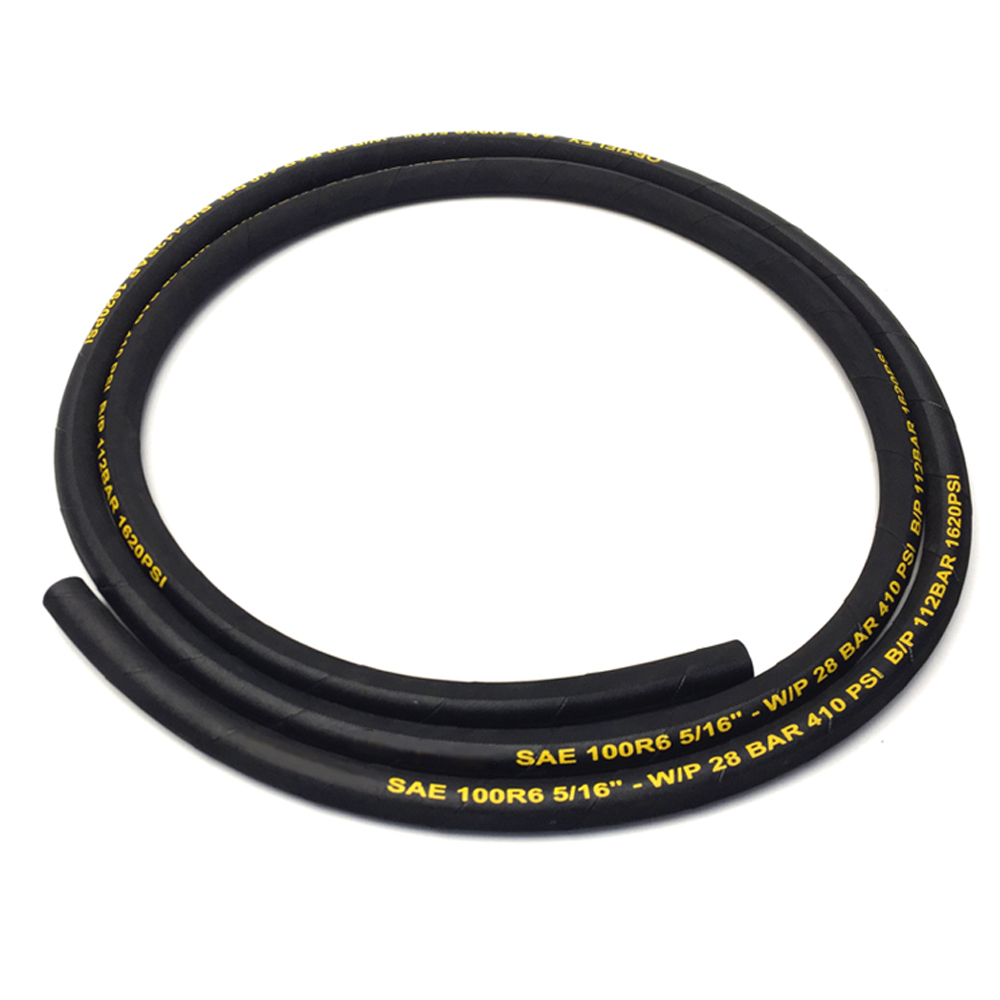

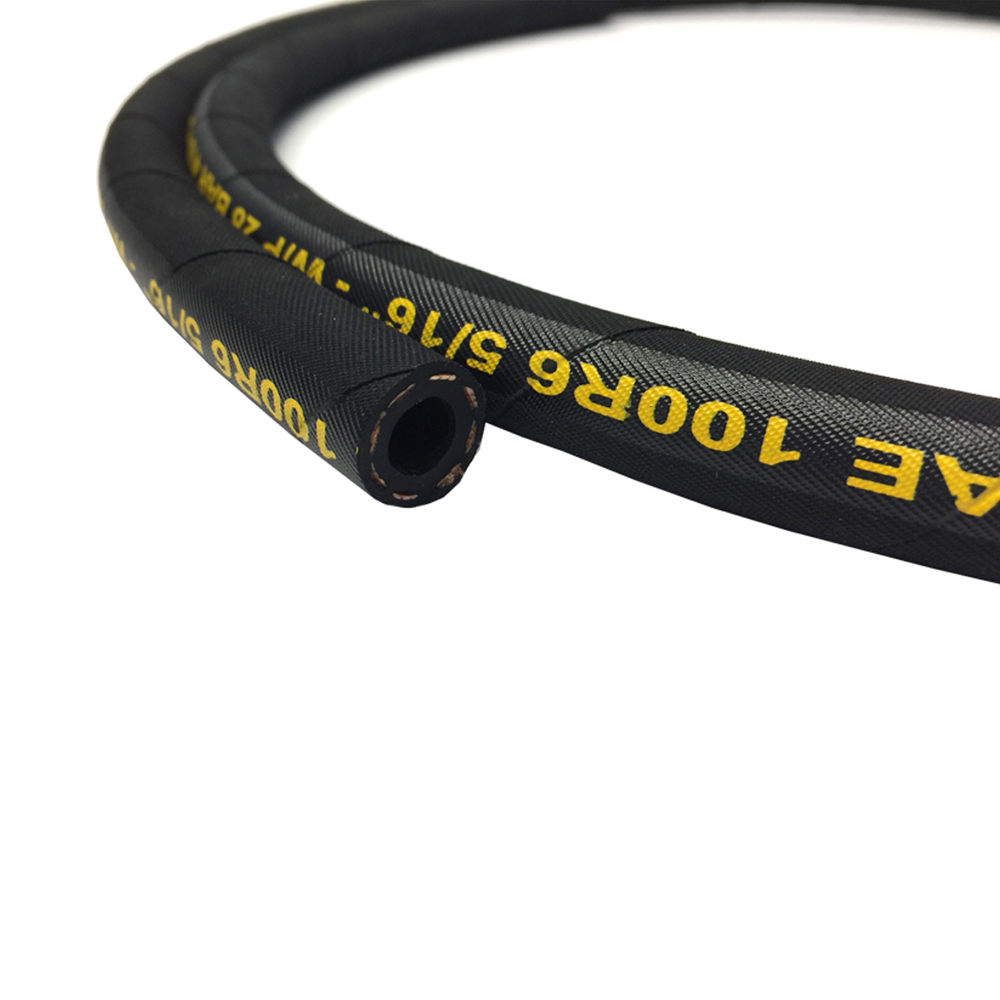

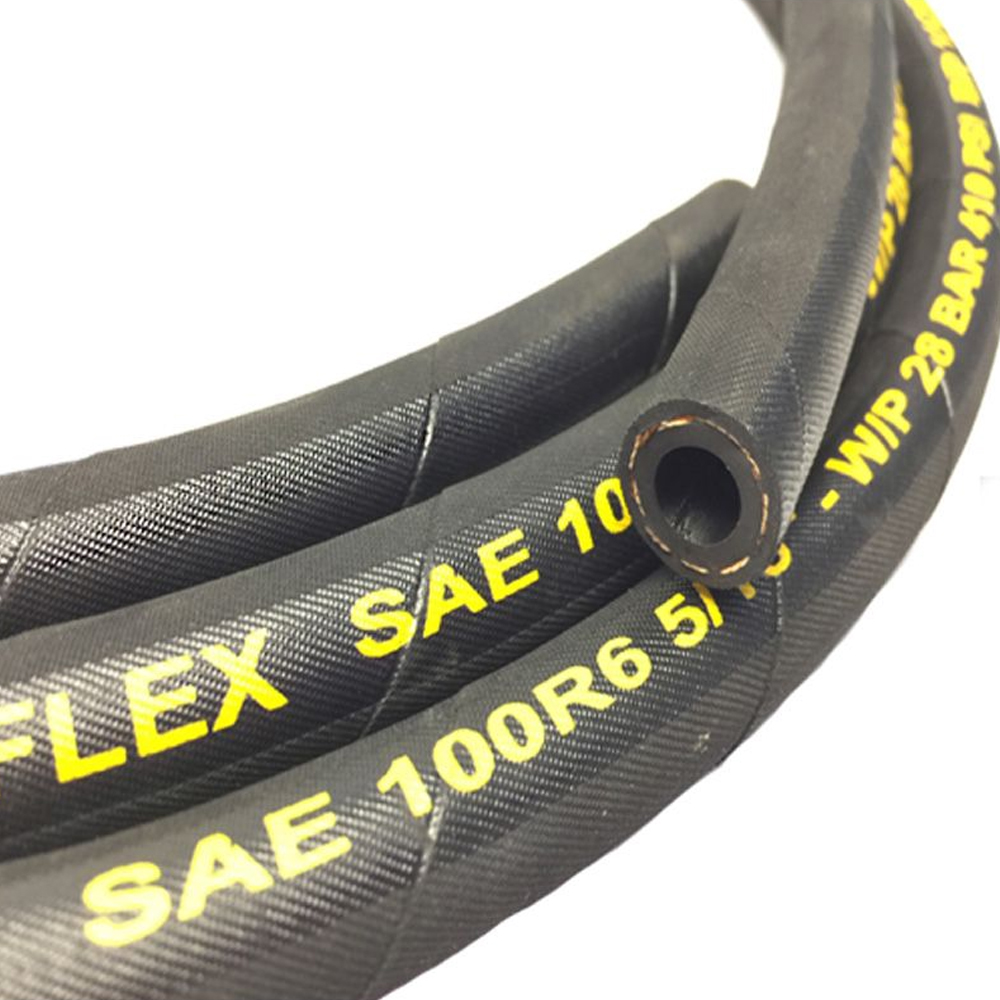

SAE 100 R6 Textile Reinforced Hydraulic Braided Hose

Description:

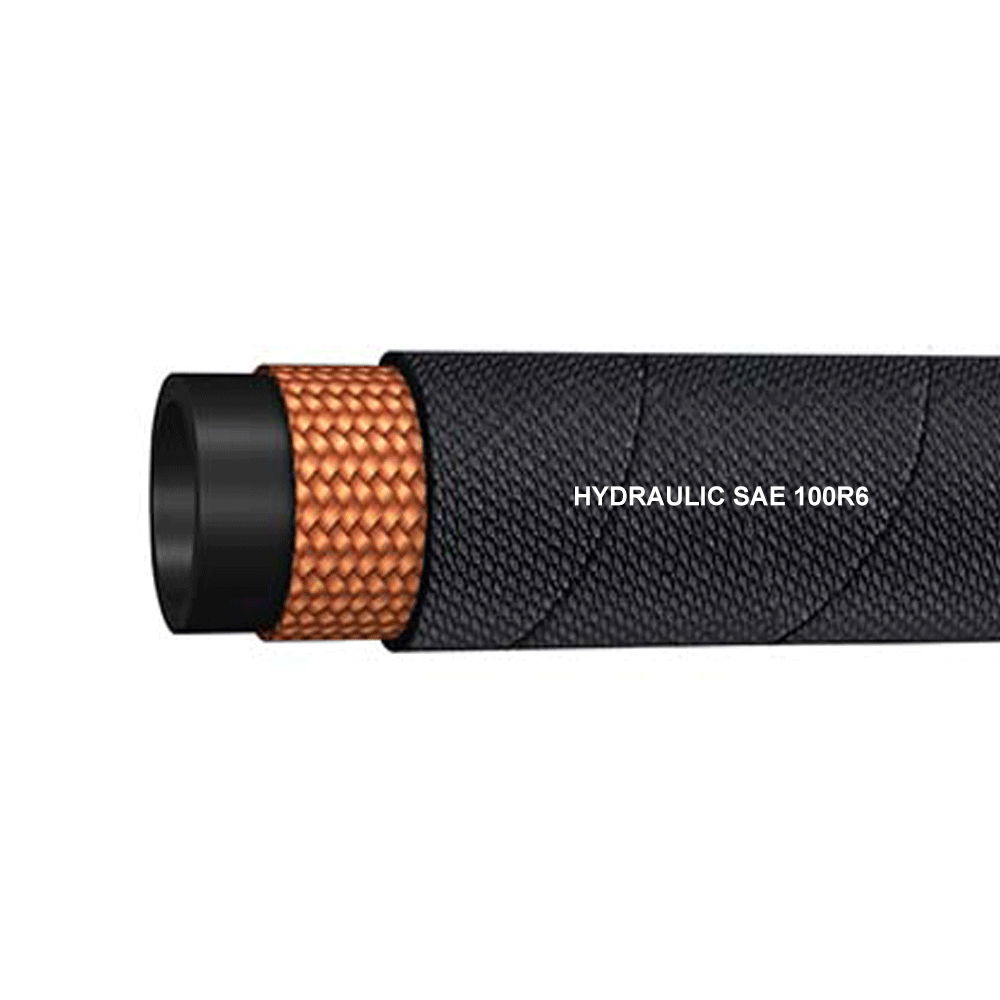

Inner Tube: Oil-resistant synthetic rubber

Reinforcement: Two high tensile textile wire braid

Outer Cover: Abrasion and weather resistant synthetic rubber

Temperature Range: -40°C to +100°C

INQUIRE NOW

"*" indicates required fields

Category: Hydraulic Hose Tags: SAE, Hydraulic Hose, 100R6
Share:
  • Description
  • Package& Shipping
Description

The SAE 100 R6 hydraulic hose features a textile-reinforced construction with an oil-resistant synthetic rubber inner layer and a durable black abrasion-resistant outer cover. Designed for hydraulic oil, petroleum fluids, and water-based liquids, it offers exceptional resistance to heat, wear, aging, ozone, sunlight, weathering, cuts, and chemical corrosion.

HOSE PART NO. DN DASH HOSE I.D. HOSE O.D. Working-pressure Burst- pressure Bend Radius
mm inch mm mm bar bar mm
100R6-03 5 3/16 -3 4.8 11.6 34 136 50
100R6-04 6.3 1/4 -4 6.4 13 28 112 65
100R6-05 8 5/16 -5 7.9 14.5 28 112 70
100R6-06 10 3/8 -6 9.5 16.7 28 112 80
100R6-08 12.5 1/2 -8 12.7 20 28 112 100
100R6-10 16 5/8 -10 15.9 23.4 24 96 125
100R6-12 19 3/4 -12 19 26.8 21 84 150
100R6-16 25 1 -16 25.4 34.5 18 72 170
100R6-20 31.5 1-1/4 -20 31.8 42.5 16 64 200
100R6-24 38 1-1/2 -24 38.1 48.5 15 60 230
100R6-32 50 2 -32 50.8 62 14 56 250
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
