Home Hose Assembly Hydraulic Hose SAE 100 R14 Stainless Steel PTFE Hoses
SAE 100 R13 Multi Spiral High Pressure Hydraulic Hose
Back to products
SAE 100 R15 Steel Wire Spiral Hydraulic Hose
Click to enlarge

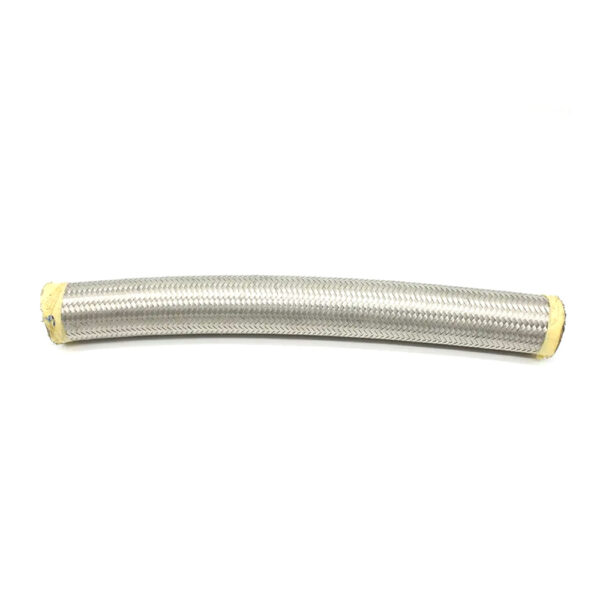

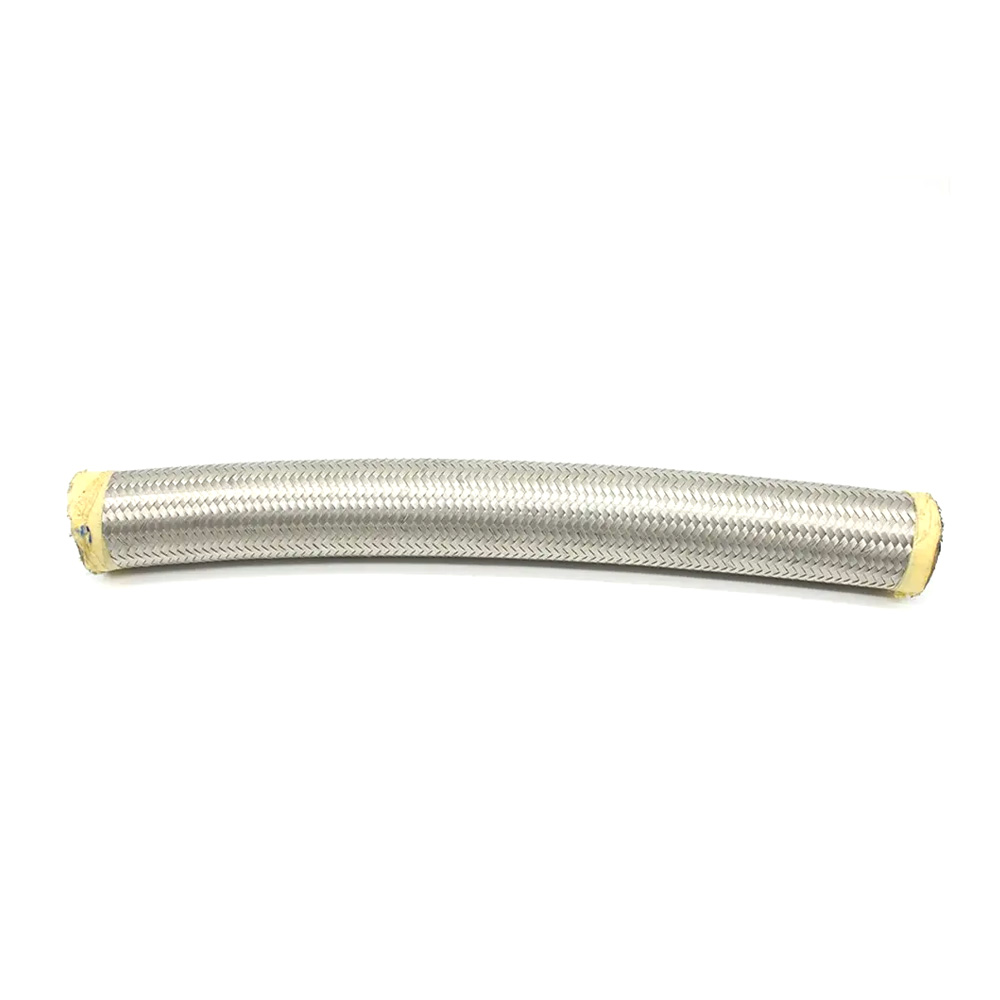

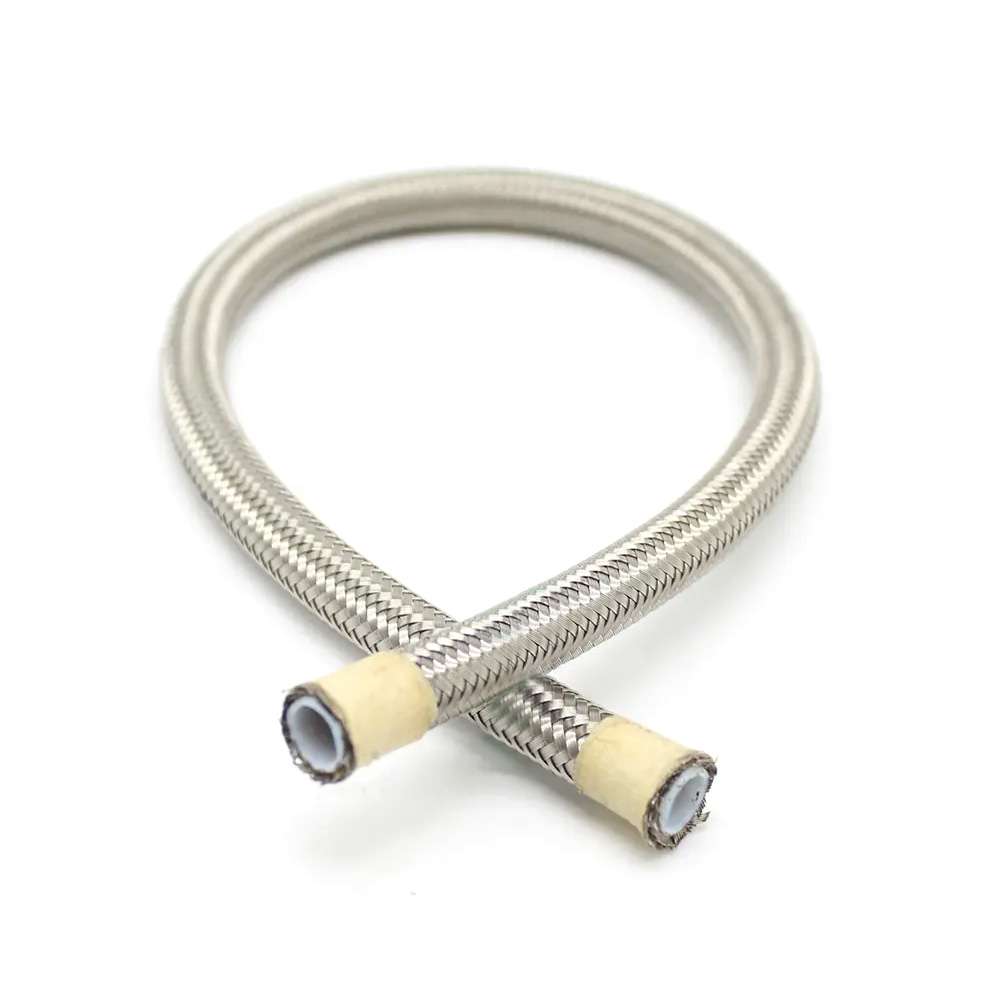

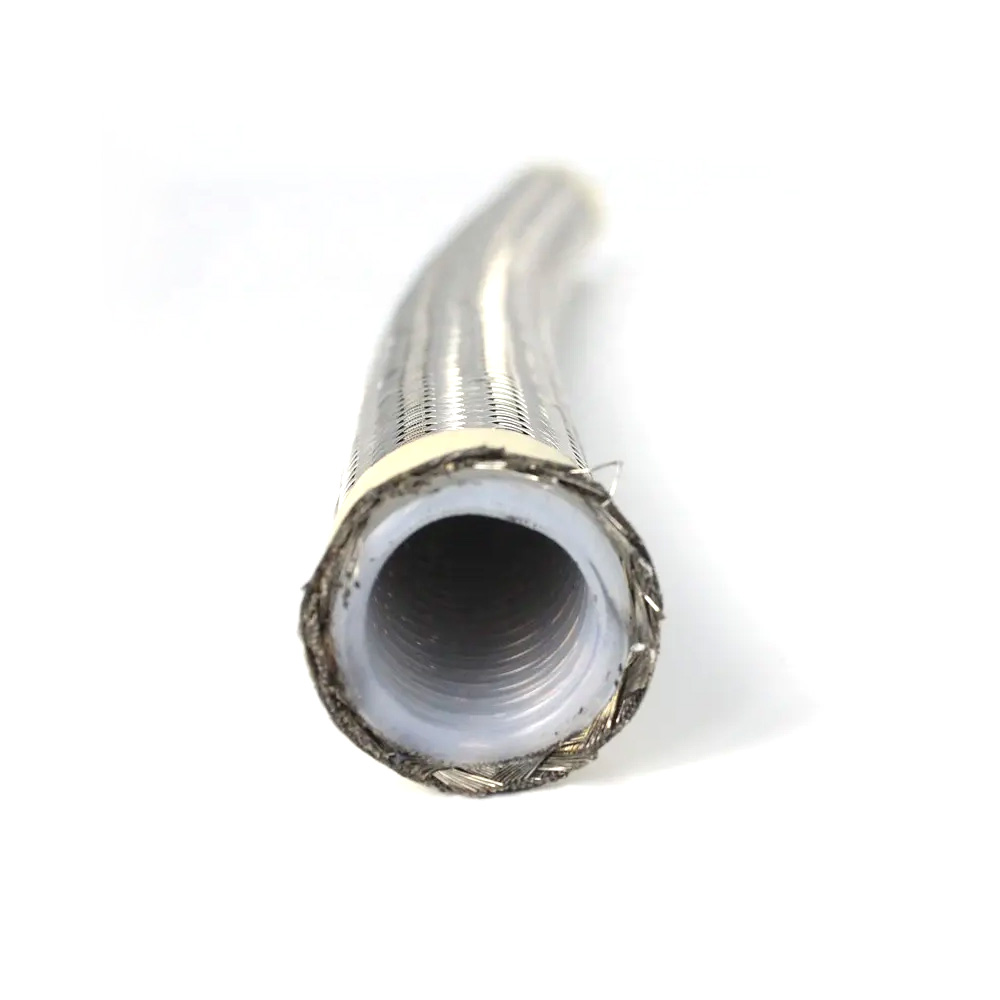

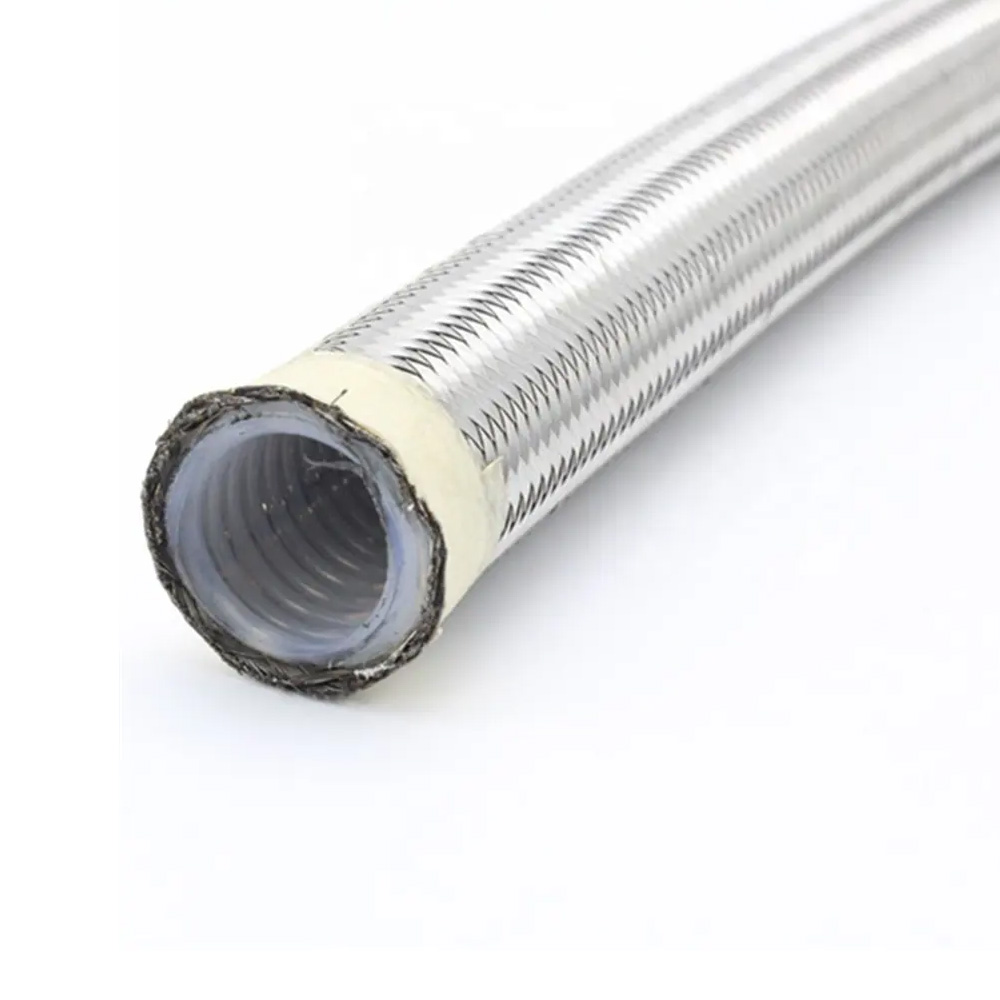

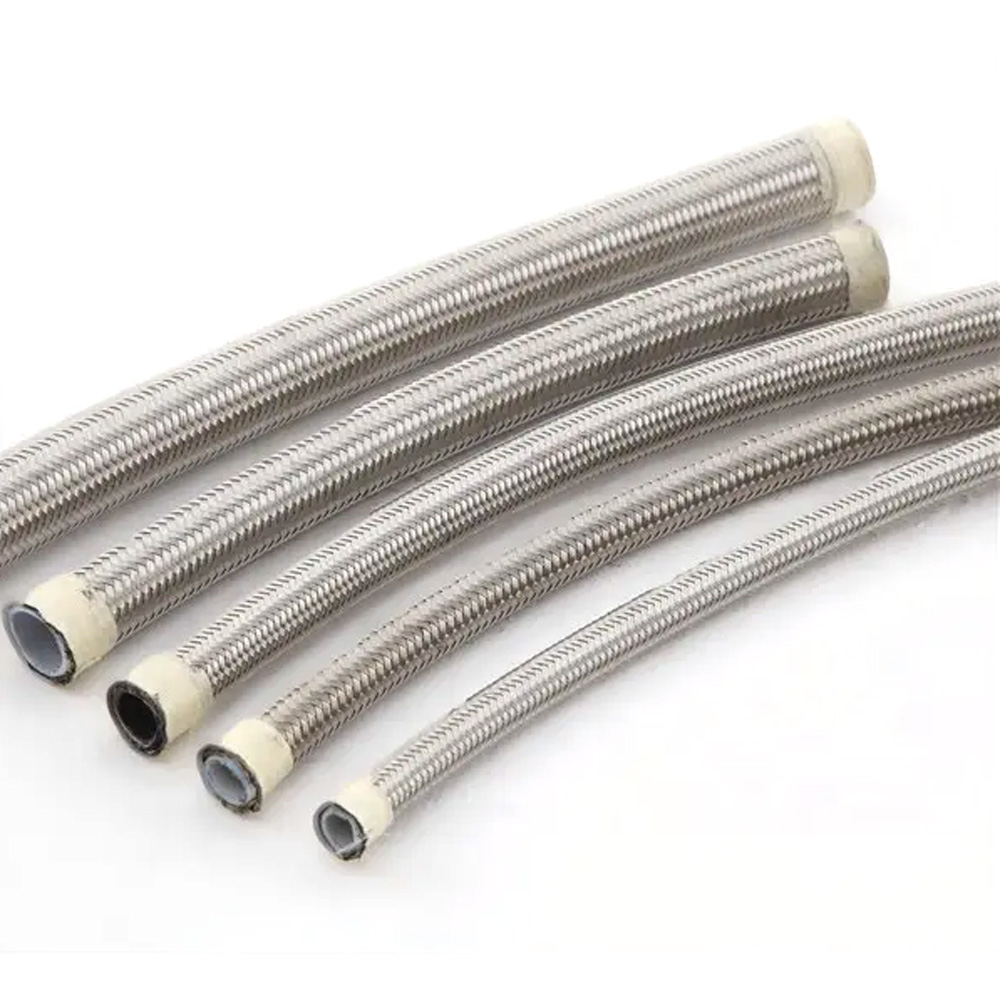

SAE 100 R14 Stainless Steel PTFE Hoses

Description:

Tube: White Extruded PTFE

Reinforcement: 1-Braid of High Tensile Stainless Steel Wire

Cover:303×× series stainless steel wire; (normal ss316)

Temperature Range: -40℃ to 260℃(-65°F to 450°F)

INQUIRE NOW

"*" indicates required fields

Category: Hydraulic Hose Tags: SAE, Hydraulic Hose, 100R14
Share:
  • Description
  • Package& Shipping
Description

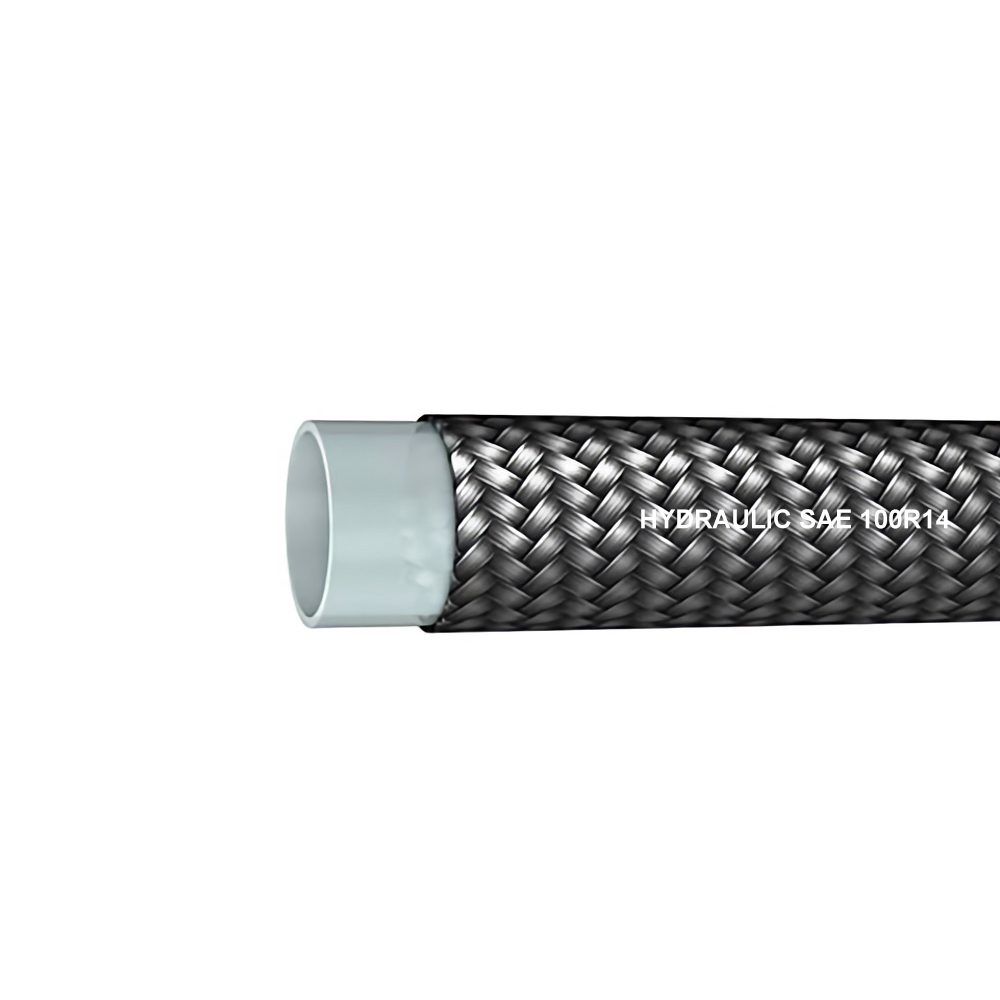

The SAE 100 R14 hydraulic hose delivers exceptional chemical resistance and thermal stability across an extensive temperature range (-65°F to 450°F/-54°C to +204°C), specifically engineered for petroleum-based and water-based hydraulic fluid transfer. Featuring an advanced construction with stainless steel PTFE core and braided stainless steel cover, this solution combines a white extruded PTFE interior with durable metal reinforcement.

Part No. Size ID OD W.P B.P B.R Length Ferrule
Dash mm Inch mm mm bar psi bar psi mm m
SAE-R14-01 R14-01 3.2 1/8″ 3.0-3.4 5.8-6.2 280 4060 840 12180 40 90-110 00TFO-02
SAE-R14-02 R14-02 4.8 3/16″ 4.6-5.0 7.6-8.2 233 3379 699 10135.5 50 90-110 00TFO-03
SAE-R14-03 R14-03 6.4 1/4″ 6.1-6.5 9.1-9.7 210 3045 630 9135 75 90-110 00TFO-04
SAE-R14-04 R14-04 7.9 5/16″ 7.9-8.3 10.9-11.5 187 2712 561 8134.5 100 90-110 00TFO-05
SAE-R14-05 R14-05 9.5 3/8″ 9.5-10 12.6-13.2 163 2364 489 7090.5 125 90-110 00TFO-06
SAE-R14-06 R14-06 10.5 13/32″ 10.0-10.5 12.9-13.5 150 2175 450 6525 165 90-110 00TFO-08
SAE-R14-07 R14-07 12.7 1/2″ 12.7-13.2 15.6-16.2 140 2030 420 6090 165 90-110 00TFO-08
SAE-R14-08 R14-08 15.9 5/8″ 15.8-16.3 18.9-19.5 117 1697 351 5089.5 200 45-55 00TFO-10
SAE-R14-09 R14-09 19.1 3/4″ 18.8-19.3 22.9-23.5 93 1349 279 4045.5 230 45-55 00TFO-12
SAE-R14-10 R14-10 22 7/8″ 21.8-22.3 26.2-26.8 82 1189 246 3567 260 45-55 00TFO-16
SAE-R14-11 R14-11 25.4 1″ 24.8-25.3 28.9-29.5 58 841 174 2523 300 45-55 00TFO-20
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
