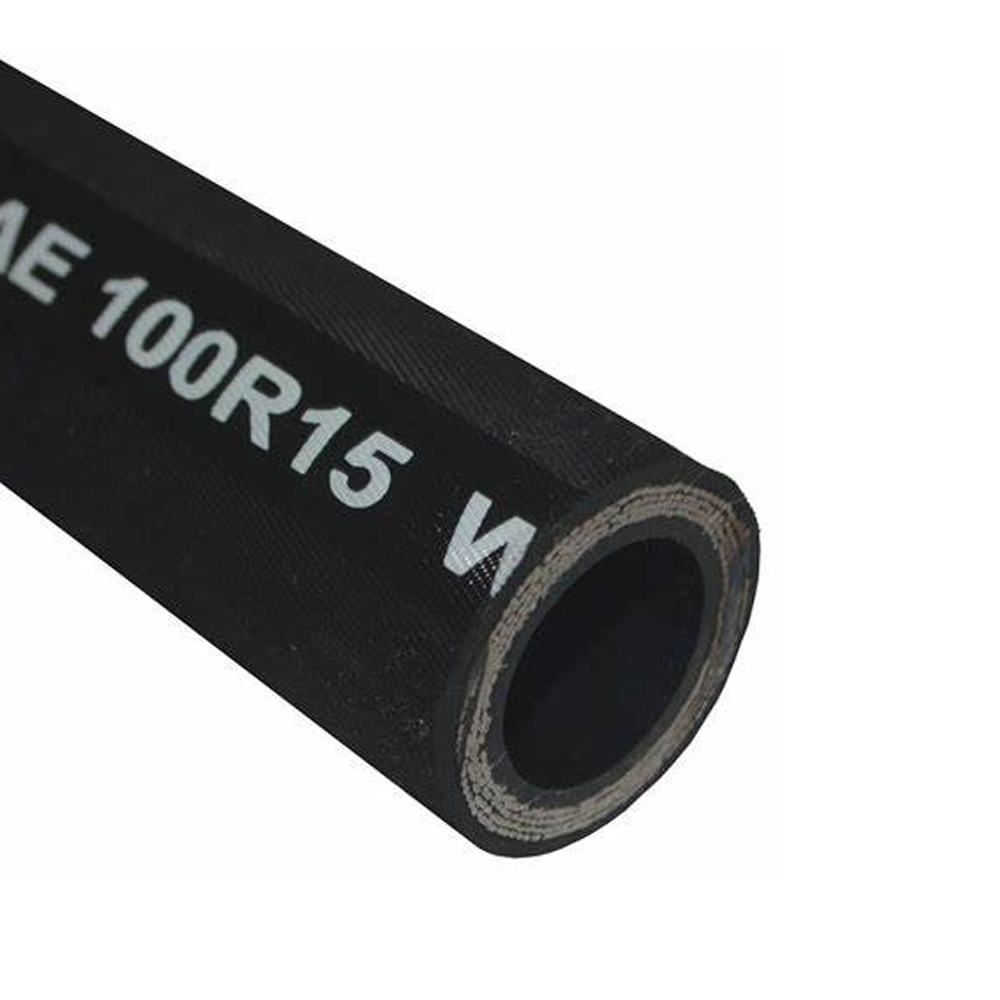

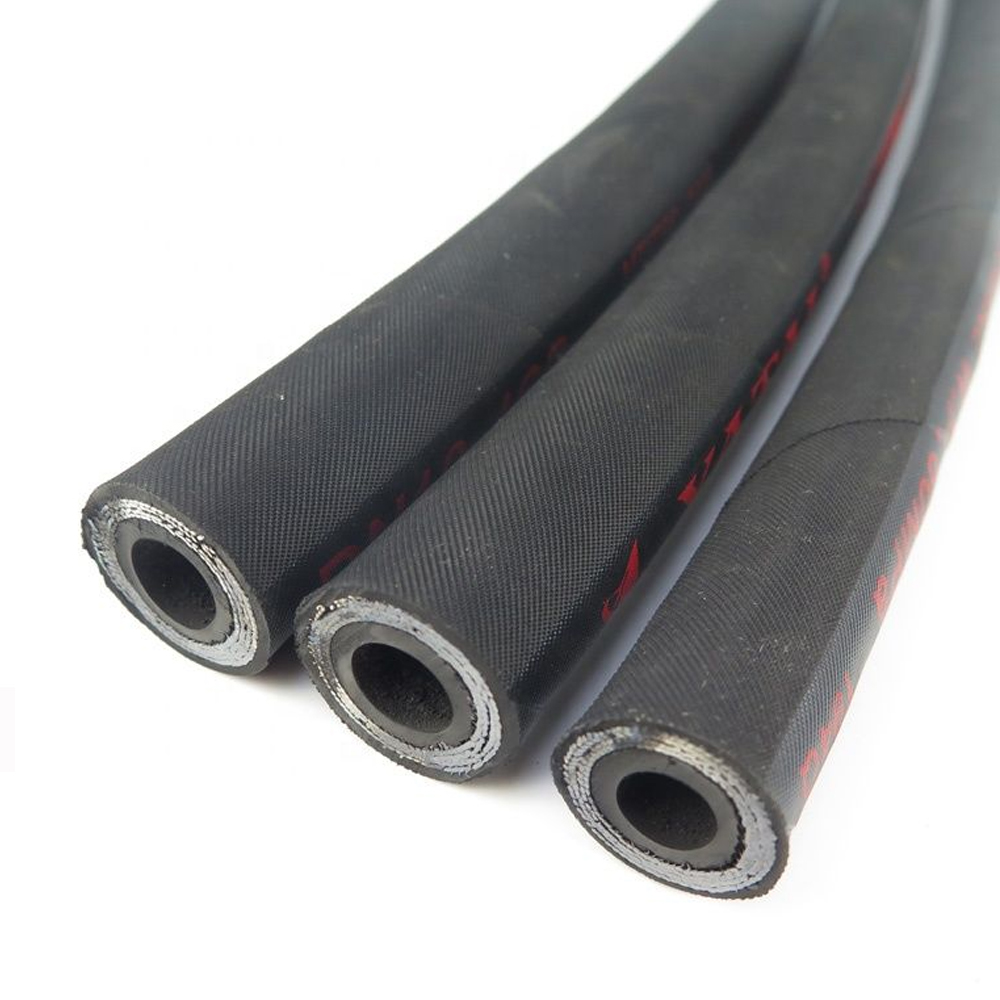

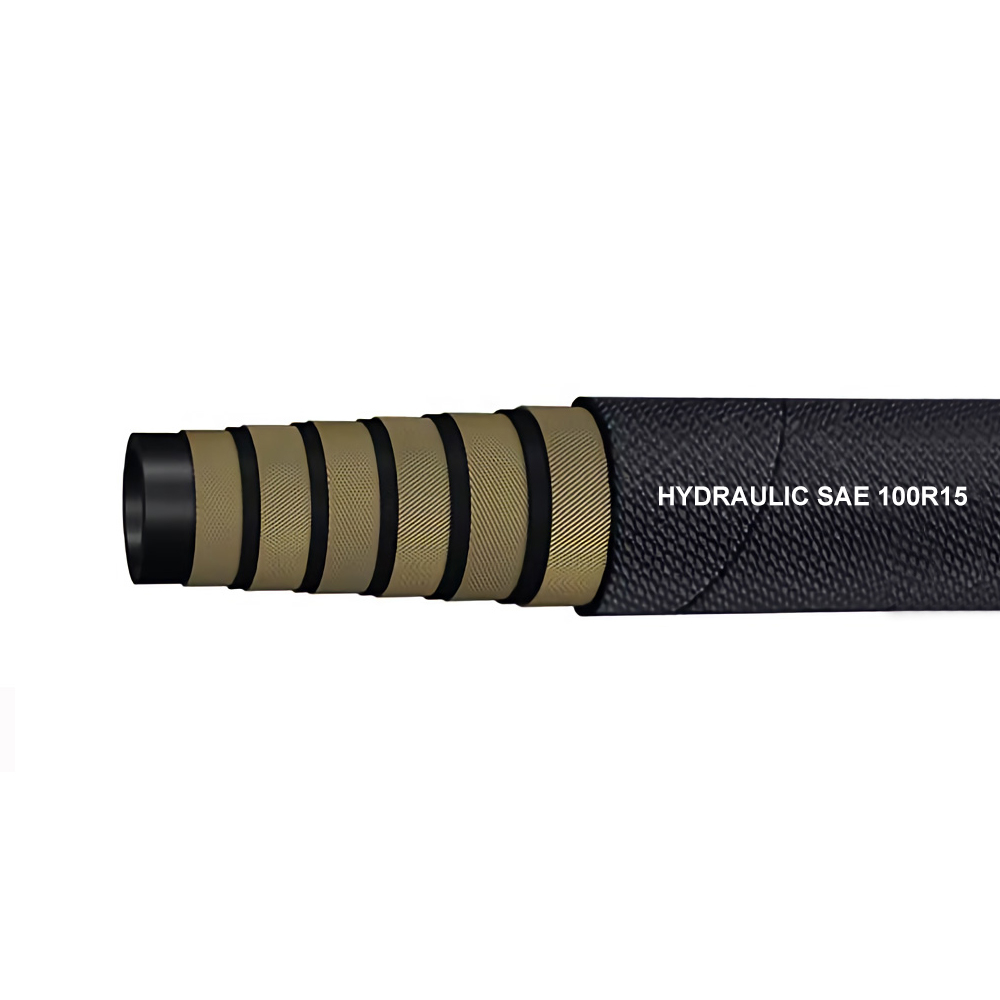

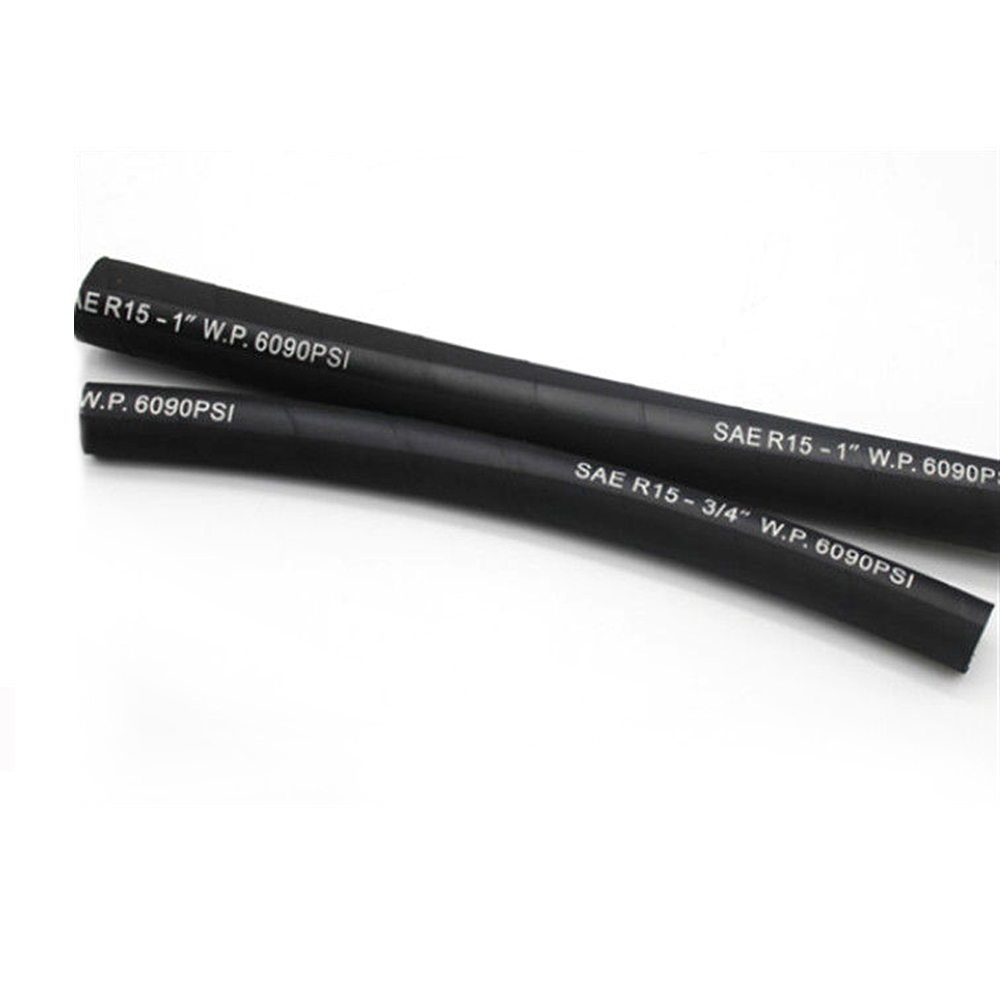

The SAE 100R15 Spiral Hydraulic Hose is a high-pressure, high-performance solution for heavy-duty machinery operating under extreme pressure and pulsating loads. Featuring a robust 4- or 6-layer spiral steel wire reinforcement, it delivers a 6000 psi working pressure and exceptional impulse resistance. Ideal for logging, construction/mining, agriculture, and oilfield applications, it reliably meets (and exceeds) requirements for 5000 psi operations.
| Part No. | Dash | I.D. | O.D. | W.P | B.P | B.R | ||
| Inch | mm | mm | MPa | PSI | MPa | PSI | mm | |
| SAE100R15-12 | 3/4″ | 19.1 | 31.8 | 42 | 6090 | 168 | 24360 | 265 |
| SAE100R15-16 | 1″ | 25.4 | 39.2 | 42 | 6090 | 168 | 24360 | 330 |
| SAE100R15-20 | 1 | 31.8 | 50 | 42 | 6090 | 168 | 24360 | 445 |
| SAE100R15-24 | 1 | 38.1 | 58.2 | 42 | 6090 | 168 | 24360 | 530 |
| SAE100R15-32 | 2″ | 50.8 | 72 | 35 | 5100 | 140 | 20300 | 640 |
