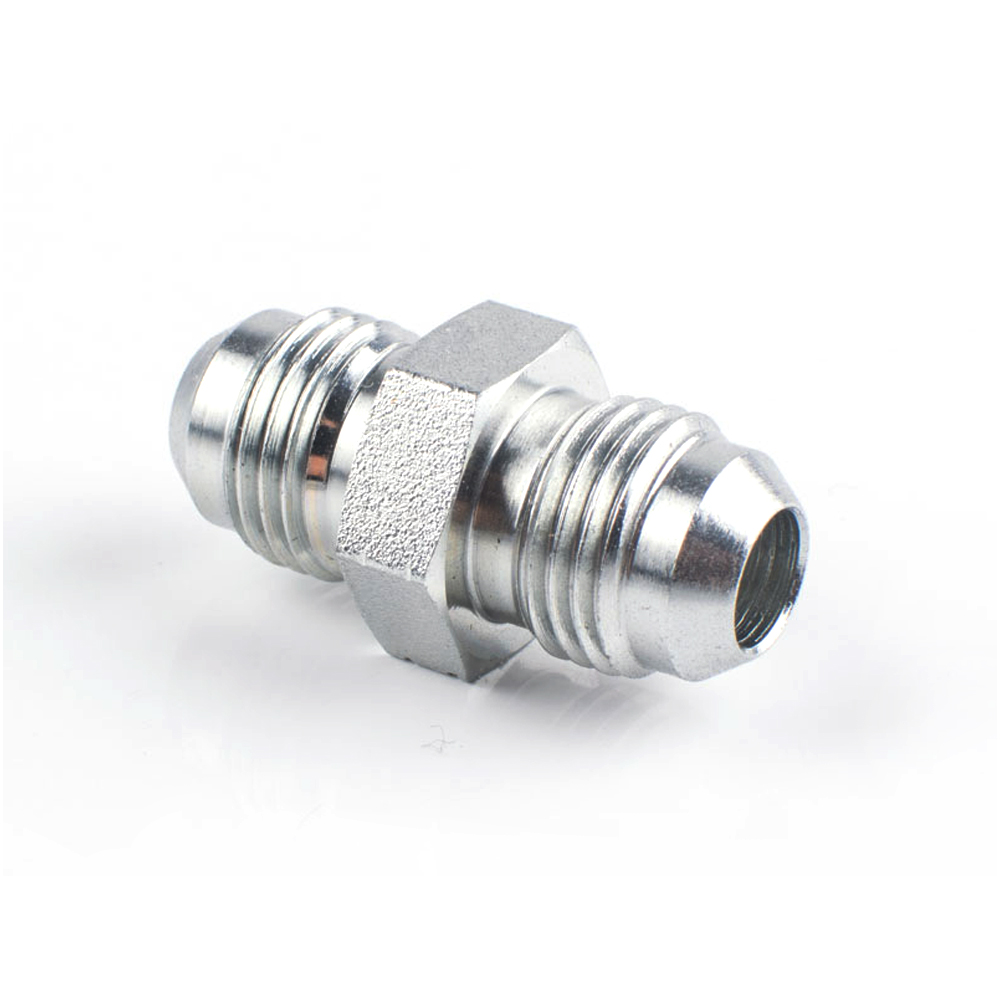

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

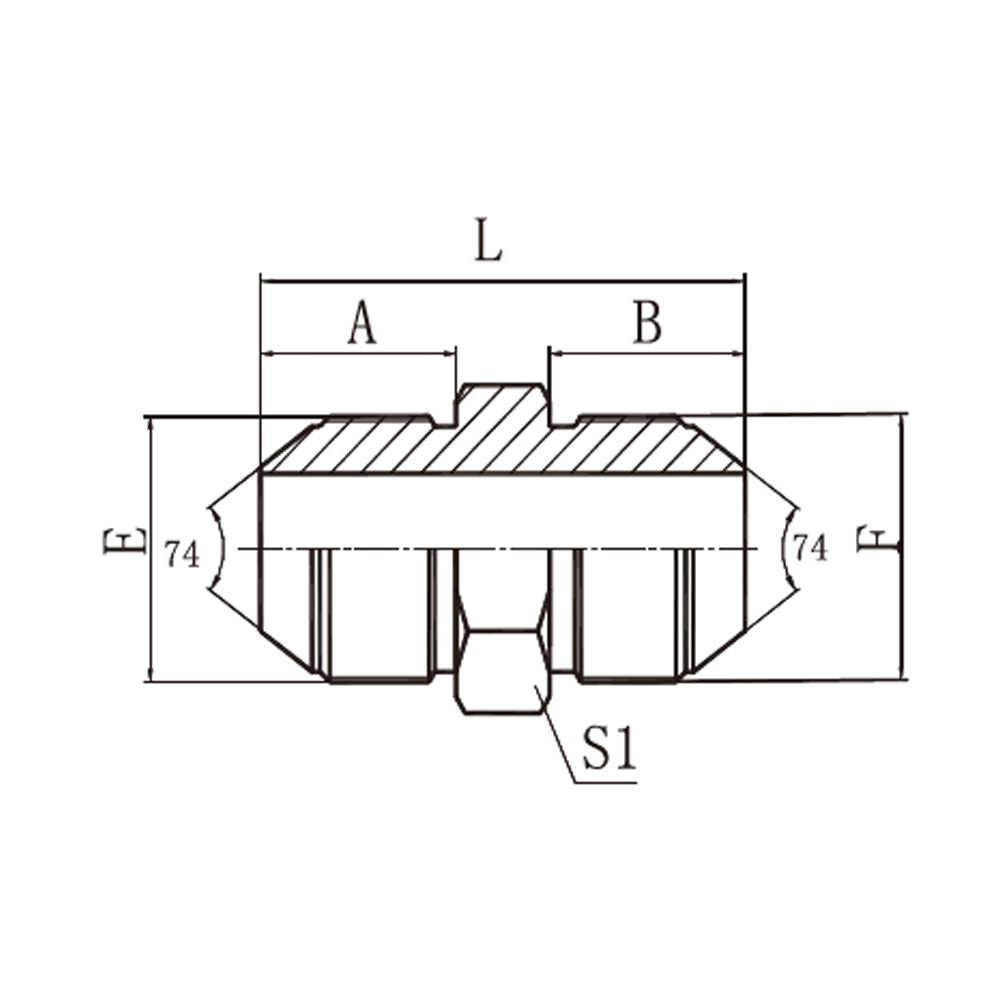

| PART NO. | THREAD | TUBE O.D. | DIMENSIONS | |||||
| E | F | D1,D2 | A | B | L | S1 | S2,S3 | |
| 1Q-10 | M10X1 | M10X1 | 5 | 12 | 12 | 30 | 12 | 14 |
| 1Q-12 | M12X1.5 | M12X1.5 | 6 | 15.7 | 15.7 | 37.5 | 14 | 14 |
| 1Q-14 | M14X1.5 | M14X1.5 | 8 | 17 | 17 | 40 | 17 | 17 |
| 1Q-16 | M16X1.5 | M16X1.5 | 10 | 18 | 18 | 42 | 17 | 22 |
| 1Q-18 | M18X1.5 | M18X1.5 | 12 | 18 | 18 | 42 | 19 | 24 |
| 1Q-22 | M22X1.5 | M22X1.5 | 14 | 19.5 | 19.5 | 47 | 24 | 27 |
| 1Q-24 | M24X1.5 | M24X1.5 | 16 | 20 | 20 | 50 | 27 | 30 |
| 1Q-27 | M27X1.5 | M27X1.5 | 18 | 20 | 20 | 50 | 30 | 32 |
| 1Q-30 | M30X1.5 | M30X1.5 | 20 | 23 | 23 | 57 | 32 | 36 |
| 1Q-30E | M30X2 | M30X2 | 20 | 26 | 26 | 63 | 32 | 36 |
| 1Q-33 | M33X2 | M33X2 | 22 | 26 | 26 | 63 | 36 | 38 |
| 1Q-36 | M36X2 | M36X2 | 25 | 26 | 26 | 63 | 38 | 41 |
| 1Q-39 | M39X2 | M39X2 | 28 | 26 | 26 | 65 | 41 | 46 |
| 1Q-42 | M42X2 | M42X2 | 32 | 28.5 | 28.5 | 70 | 46 | 50 |
| 1Q-45 | M45X2 | M45X2 | 34 | 28.5 | 28.5 | 70 | 46 | 55 |
