6B-LN BSP Bulkhead Hydraulic Adapter

Description:

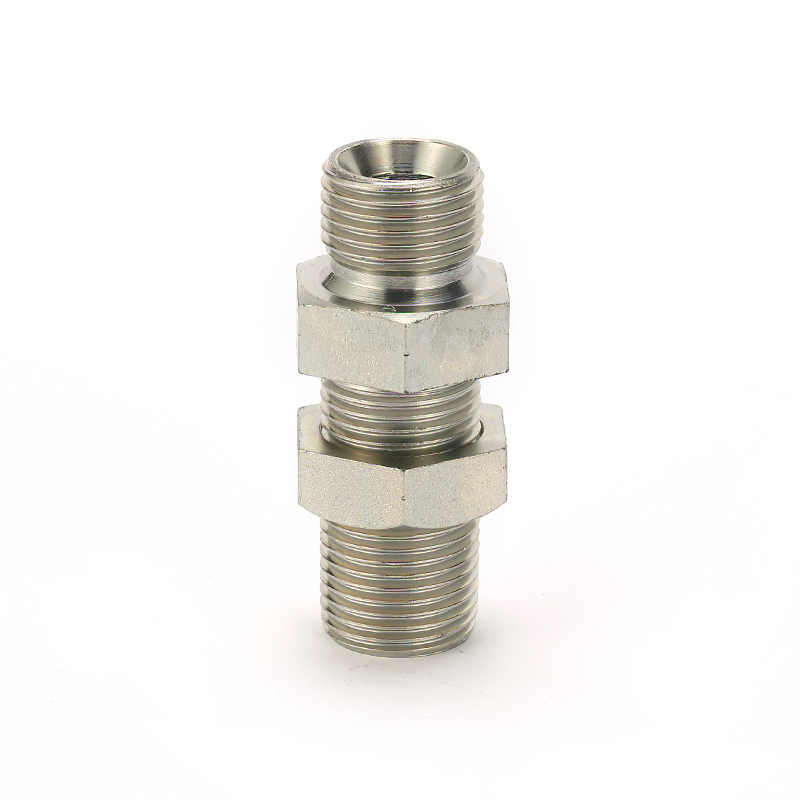

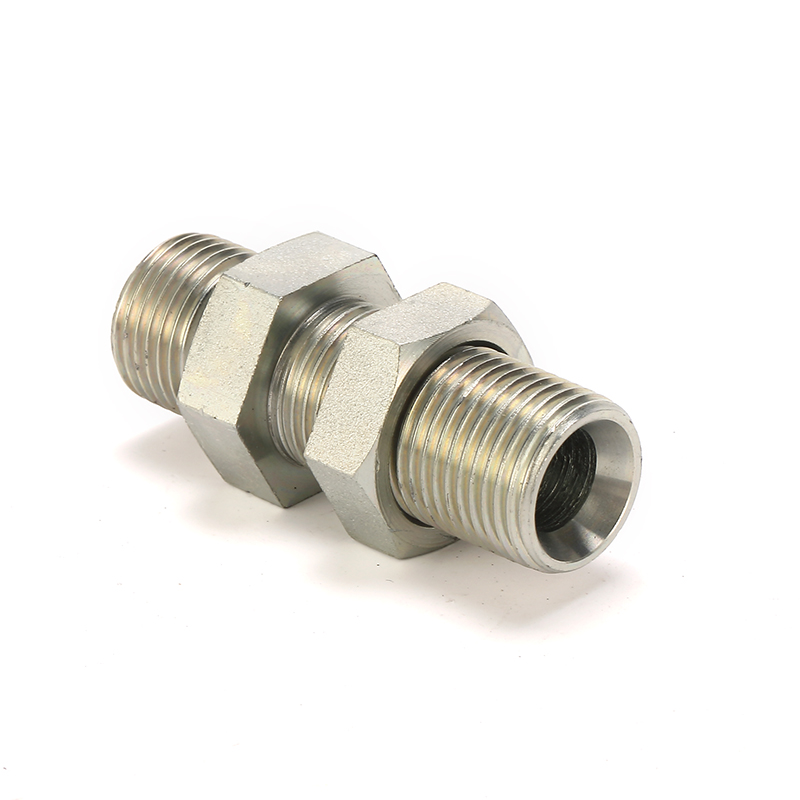

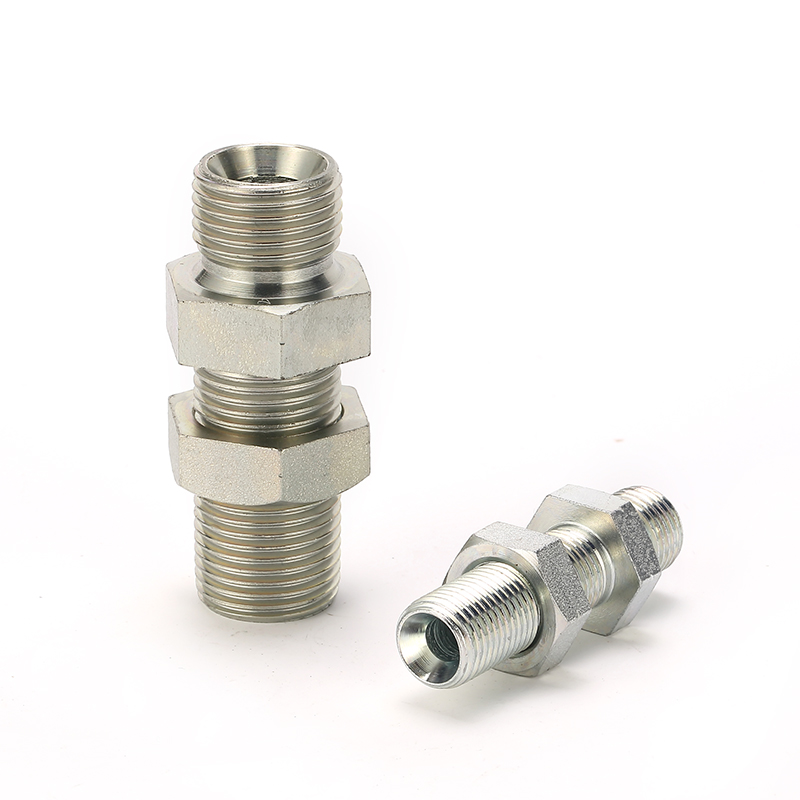

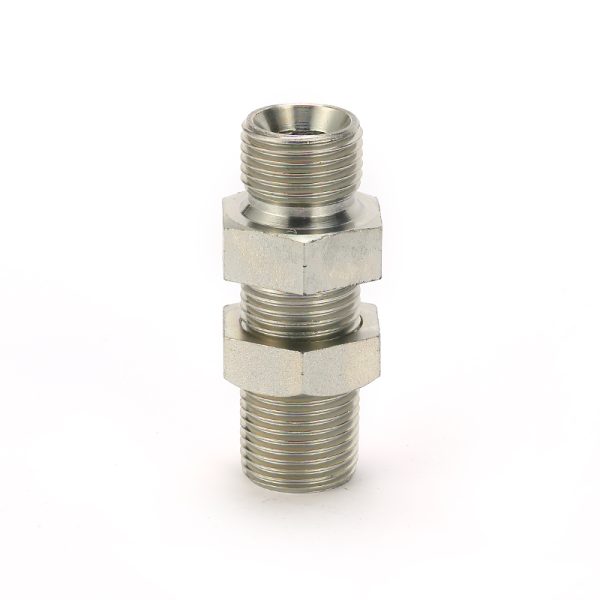

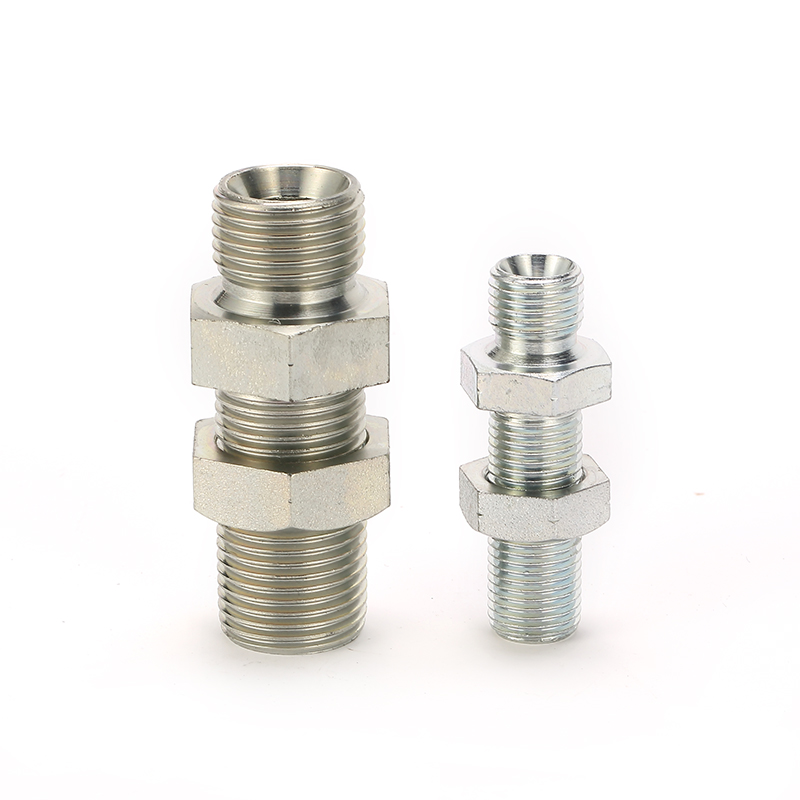

6B-LN BSP bulkhead hydraulic fitting is the male bulkhead fitting with two 60-degree cone seats. It can be applied in many hydraulic fluid systems.

"*" indicates required fields

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

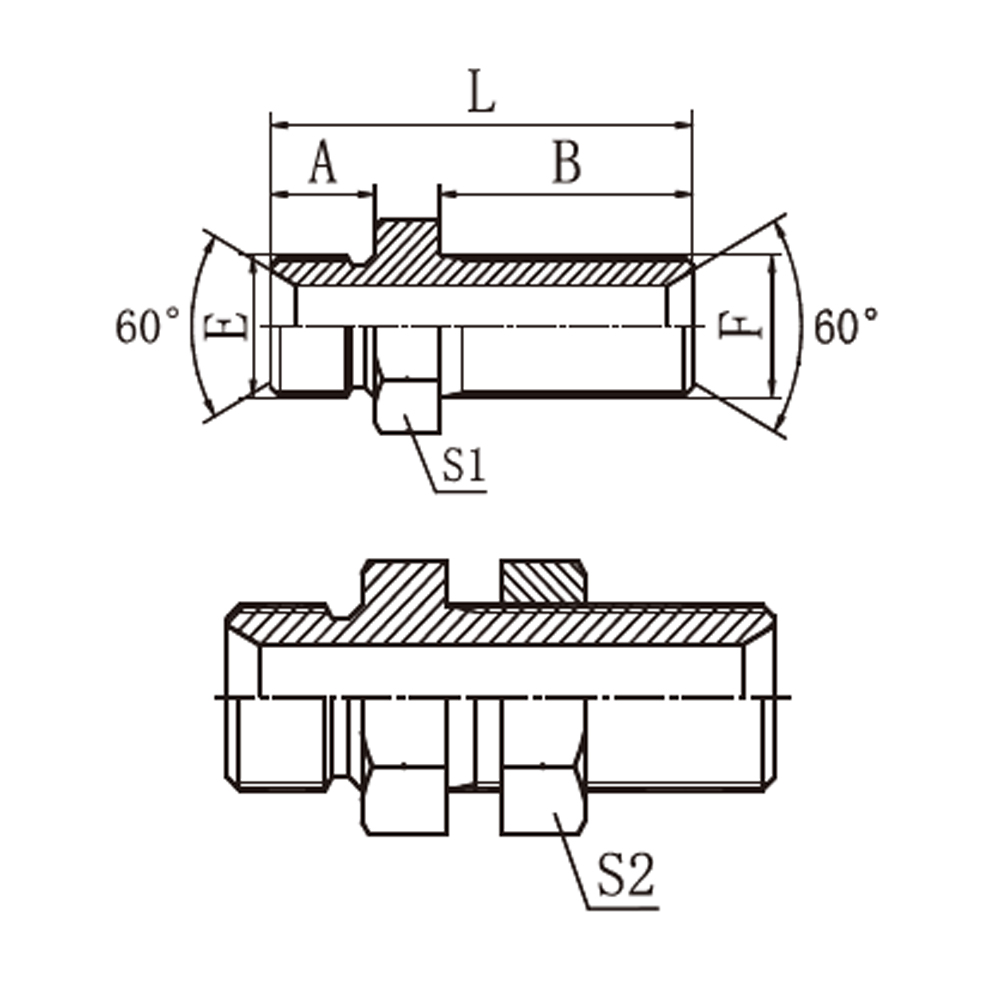

PART NO.	THREAD		DIMENSIONS
PART NO.	E	F	A	B	L	S1	S2
6B-02	G1/8″X28	G1/8″X28	10	33	49	14	14
6B-04	G1/4″X19	G1/4″X19	12	35	53	19	19
6B-04-06	G1/4″X19	G3/8″X19	12	35	55	22	22
6B-06	G3/8″X19	G3/8″X19	13.5	35	56.5	22	22
6B-06-08	G3/8″X19	G1/2″X14	13.5	39	62.5	27	27
6B-08	G1/2″X14	G1/2″X14	16	39	65	27	27
6B-08-06	G1/2″X14	G3/8″X19	16	35	61	27	22
6B-08-16	G1/2″X14	G1″X11	16	50	79	41	41
6B-10	G5/8″X14	G5/8″X14	17.5	40	67.5	30	30
6B-12	G3/4″X14	G3/4″X14	18.5	42	71.5	32	32
6B-12-08	G3/4″X14	G1/2″X14	18.5	39	68.5	32	27
6B-12-16	G3/4″X14	G1″X11	18.5	50	81.5	41	41
6B-16	G1″X11	G1″X11	20.5	50	84	41	41
6B-20	G1.1/4″X11	G1.1/4″X11	20.5	52	89.5	50	50
6B-24	G1.1/2″X11	G1.1/2″X11	23	55	93	55	55
6B-32	G2″X11	G2″X11	25.5	55	97.5	70	70

Click to enlarge

Category: BSP Hydraulic Adapter Tags: BSP, 60° Cone, Bulkhead, 6B, Female

Description
Package& Shipping

Description

PART NO.	THREAD		DIMENSIONS
PART NO.	E	F	A	B	L	S1	S2
6B-02	G1/8″X28	G1/8″X28	10	33	49	14	14
6B-04	G1/4″X19	G1/4″X19	12	35	53	19	19
6B-04-06	G1/4″X19	G3/8″X19	12	35	55	22	22
6B-06	G3/8″X19	G3/8″X19	13.5	35	56.5	22	22
6B-06-08	G3/8″X19	G1/2″X14	13.5	39	62.5	27	27
6B-08	G1/2″X14	G1/2″X14	16	39	65	27	27
6B-08-06	G1/2″X14	G3/8″X19	16	35	61	27	22
6B-08-16	G1/2″X14	G1″X11	16	50	79	41	41
6B-10	G5/8″X14	G5/8″X14	17.5	40	67.5	30	30
6B-12	G3/4″X14	G3/4″X14	18.5	42	71.5	32	32
6B-12-08	G3/4″X14	G1/2″X14	18.5	39	68.5	32	27
6B-12-16	G3/4″X14	G1″X11	18.5	50	81.5	41	41
6B-16	G1″X11	G1″X11	20.5	50	84	41	41
6B-20	G1.1/4″X11	G1.1/4″X11	20.5	52	89.5	50	50
6B-24	G1.1/2″X11	G1.1/2″X11	23	55	93	55	55
6B-32	G2″X11	G2″X11	25.5	55	97.5	70	70

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
