Home Hydraulic Hose Fittings Metric Hose Fittings 20611-T Metric Thread Female 60° Cone Hose Fitting
20291-T Metric Female 90° Flat Seat Hydraulic Hose Fittings
Back to products
10611-T Metric Thread Mmale 60° Cone Seat Hose Fitting
Click to enlarge

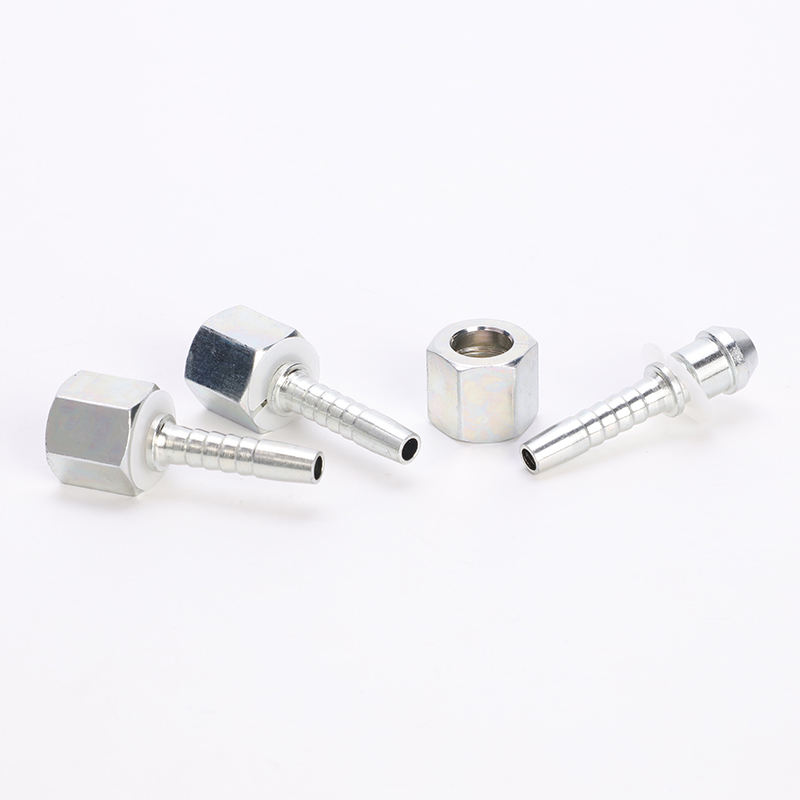

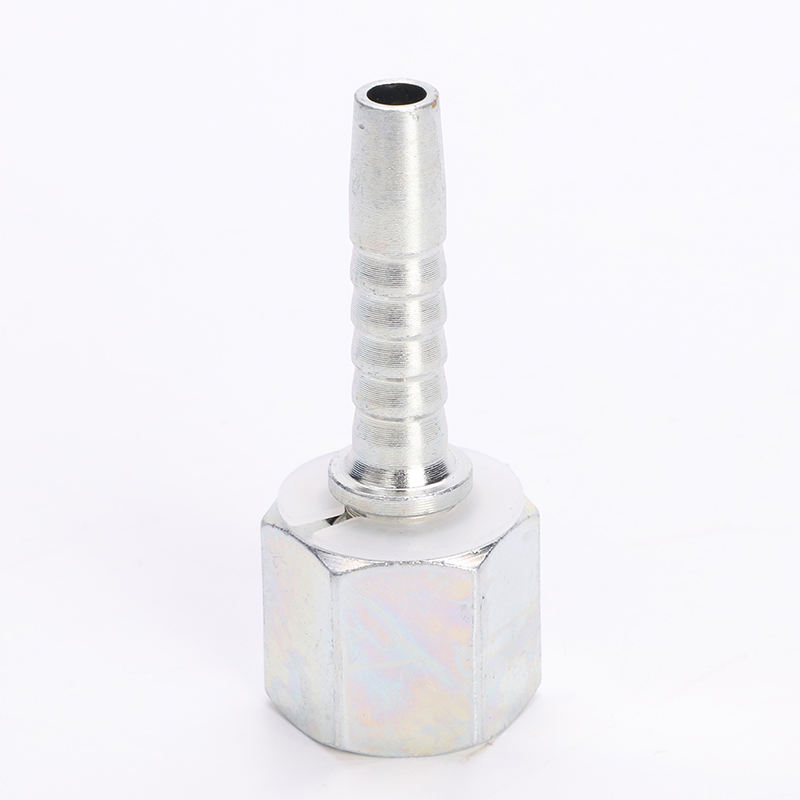

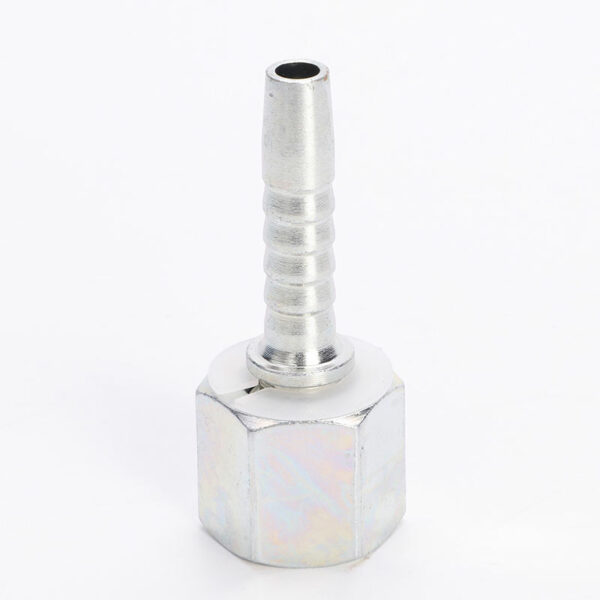

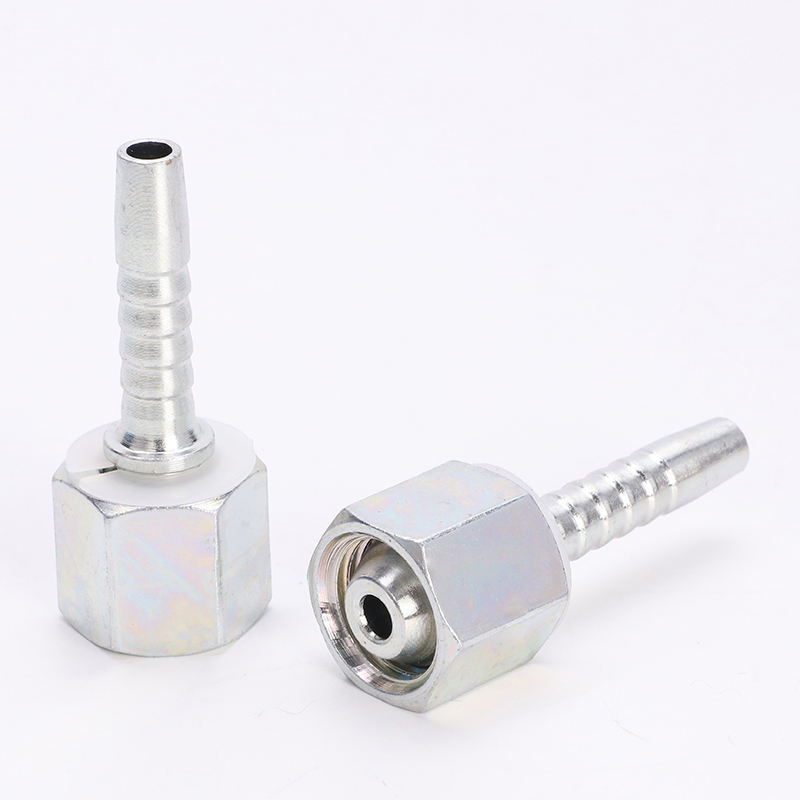

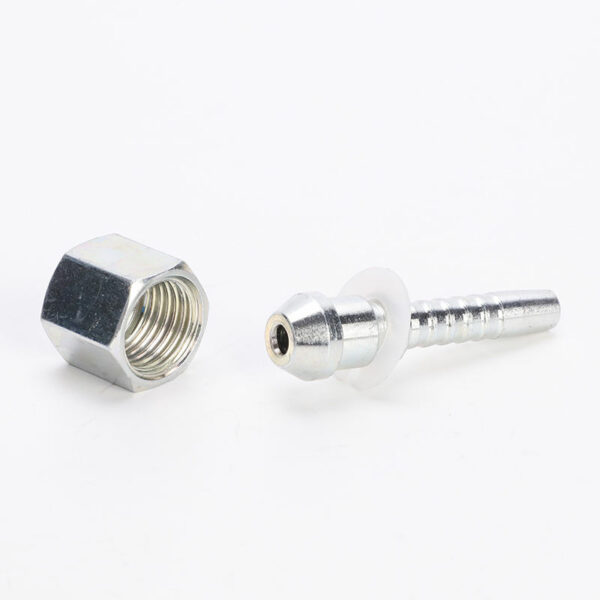

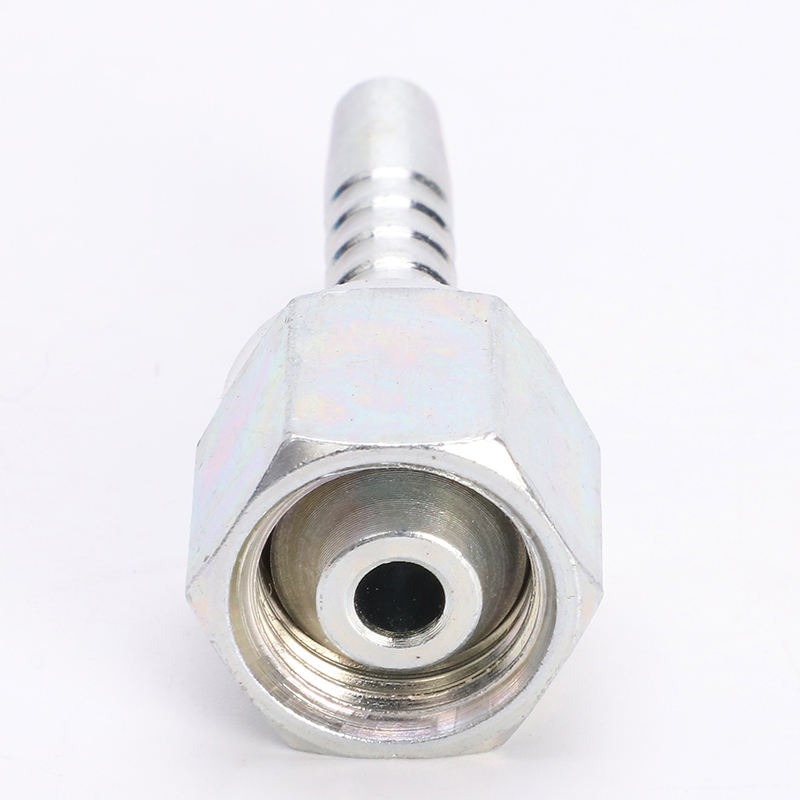

20611-T Metric Thread Female 60° Cone Hose Fitting

Description:

The 20611 female hydraulic metric thread hose fitting is designed with a 60-degree cone metric thread, enabling it to connect with a male thread of the same angle. This configuration allows the 60-degree cone seat fittings to form a secure seal between the tapered surfaces, effectively preventing leaks and ensuring the efficient operation of the hydraulic system.

INQUIRE NOW

"*" indicates required fields

Category: Metric Hose Fittings Tags: Carbon Steel, Metric hose fitting, Female
Share:
  • Description
  • Package& Shipping
Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

PART NO. THREAD  E HOSE BORE   DIMENSIONS
DN DASH A C S2
20611-14-04 M14X1.5 6 04 18 5.5 19
20611-16-05 M16X1.5 8 05 19 5.5 22
20611-16-06 M16X1.5 10 06 19 5.5 22
20611-18-06 M18X1.5 10 06 20 5.5 24
20611-20-08 M20X1.5 12 08 22 6.5 27
20611-22-08 M22X1.5 12 08 22.5 6 27
20611-24-10 M24X1.5 16 10 24.5 6.5 30
20611-26-10 M26X1.5 16 10 25.5 6 32
20611-27-10DT M27X1.5 16 10 25.5 6 32
20611-27-10T M27X2 16 10 25.5 6 32
20611-30-10D M30X1.5 16 10 26.5 6 36
20611-30-12D M30X1.5 20 12 26.5 6 36
20611-30-12 M30X2 20 12 26.5 6 36
20611-36-16 M36X2 25 16 30 6.5 41
20611-39-16T M39X2 25 16 30 6.5 46
20611-45-20T M45X2 32 20 31 8.5 55
20611-52-24T M52X2 40 24 32 10 60
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
