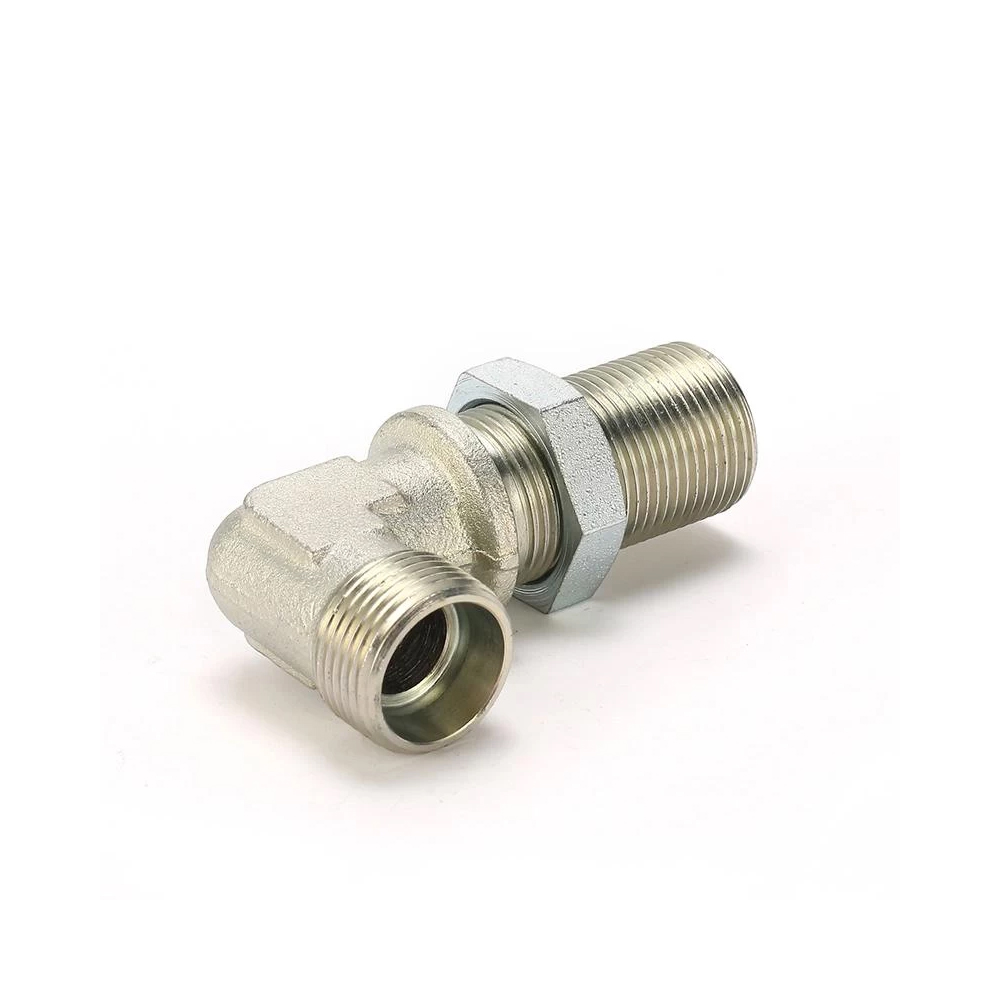

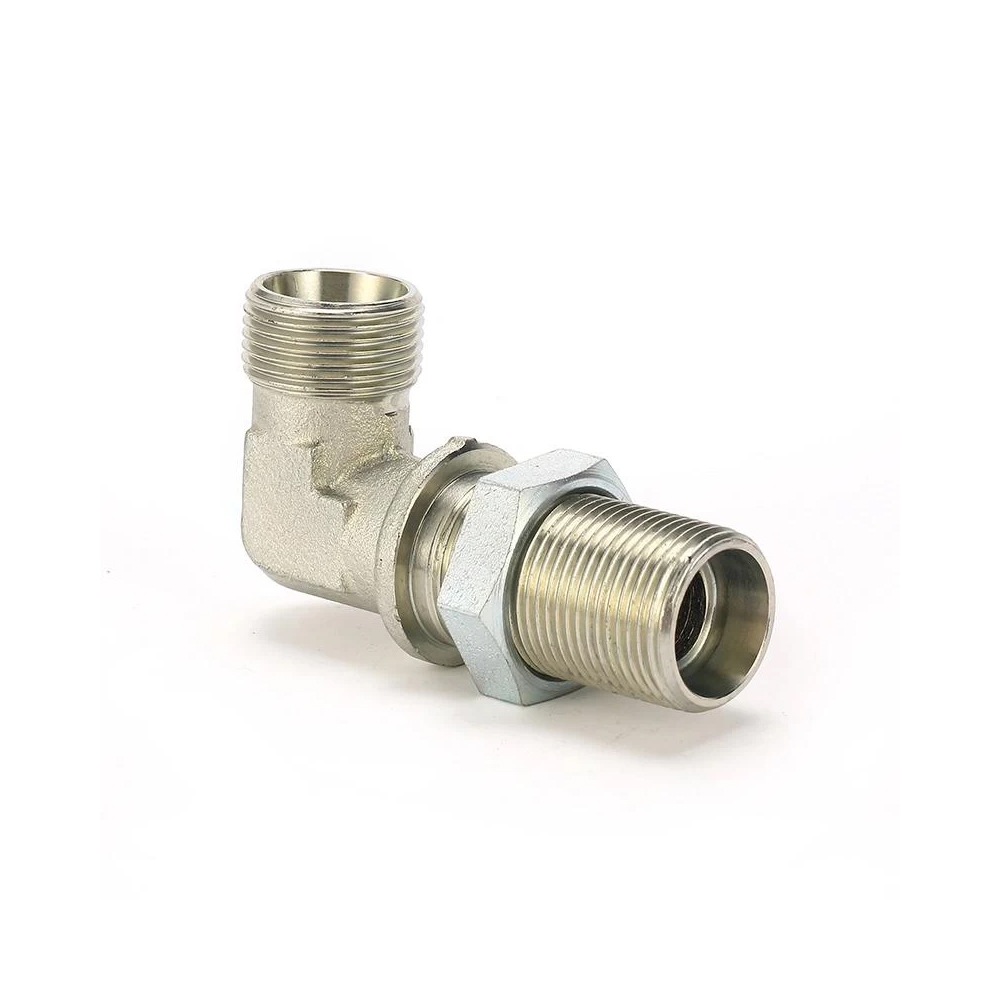

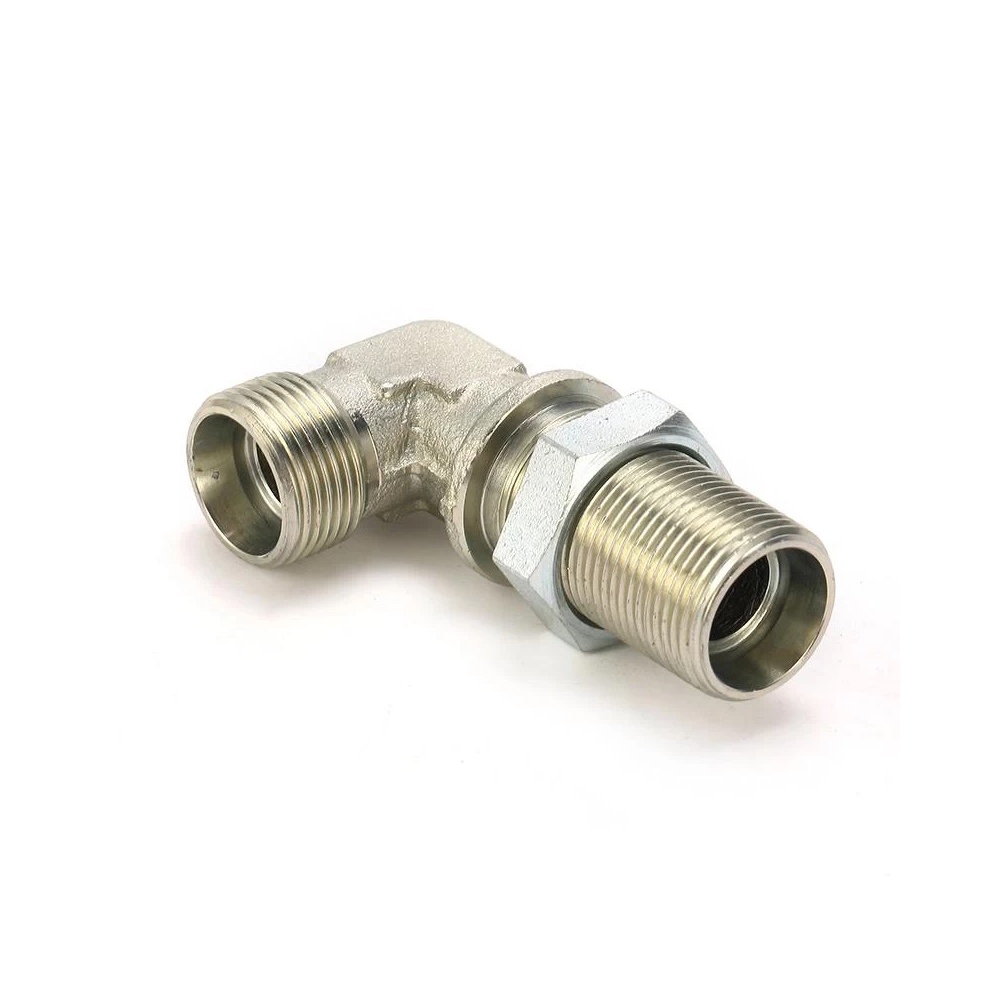

6B9-LN BSP Bulkhead 90 Elbow Adapter

Description:

6B9-LN BSP 90° elbow bulkhead hydraulic fitting is the male bulkhead fitting with two 60-degree cone seats. It can be applied in many hydraulic fluid systems.

Category: BSP Hydraulic Adapter Tags: Female, BSP, 60° Cone, Bulkhead, 6B9

Description
Package& Shipping

Description

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

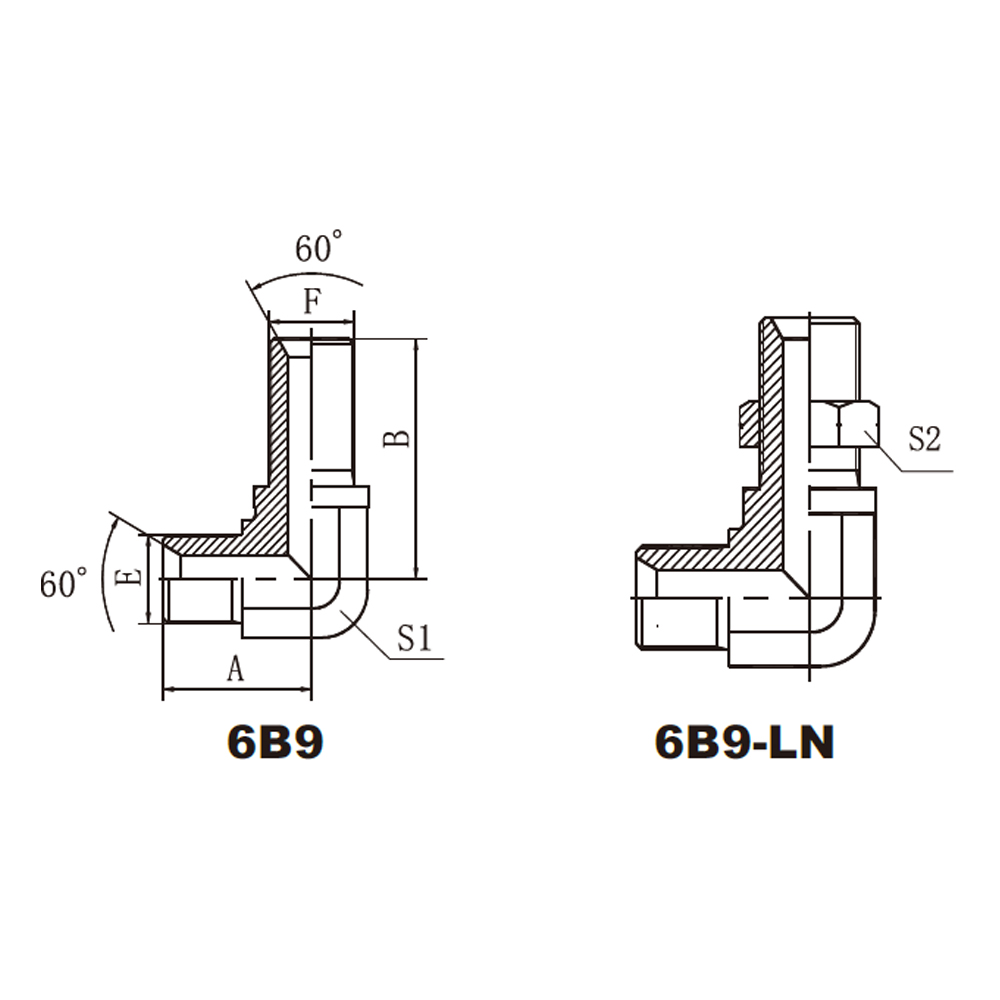

PAPT NO.	THREAD		DIMENSIONS
PAPT NO.	E	F	A	B	S1	S2
6B9-04	G1/4″X19	G1/4″X19	25	51	16	19
6B9-06	G3/8″X19	G3/8″X19	29	53.5	19	22
6B9-08	G1/2″X14	G1/2″X14	34.5	58.5	22	27
6B9-12	G3/4″X14	G3/4″X14	41	64	30	32
6B9-16	G1″X11	G1″X11	47.5	71	33	41

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

6B9-LN BSP Bulkhead 90 Elbow Adapter

Package:

Delivery Time:
