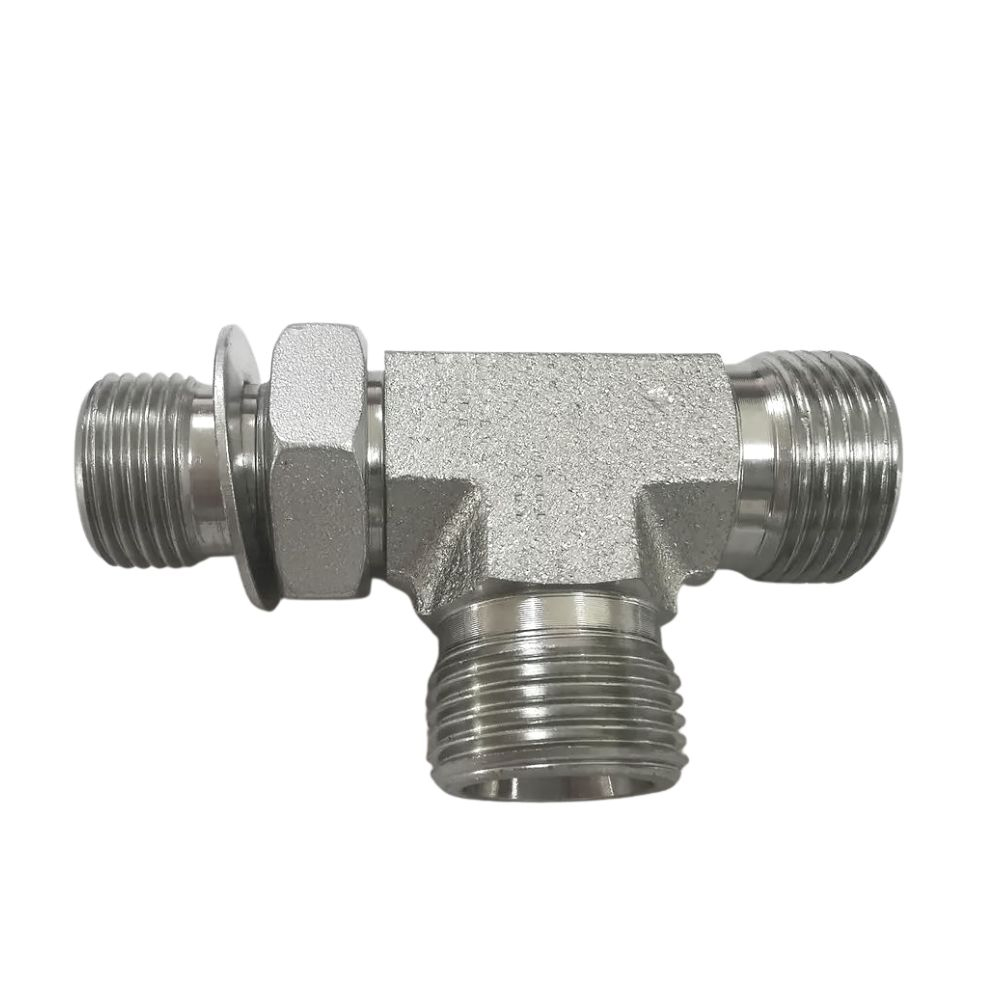

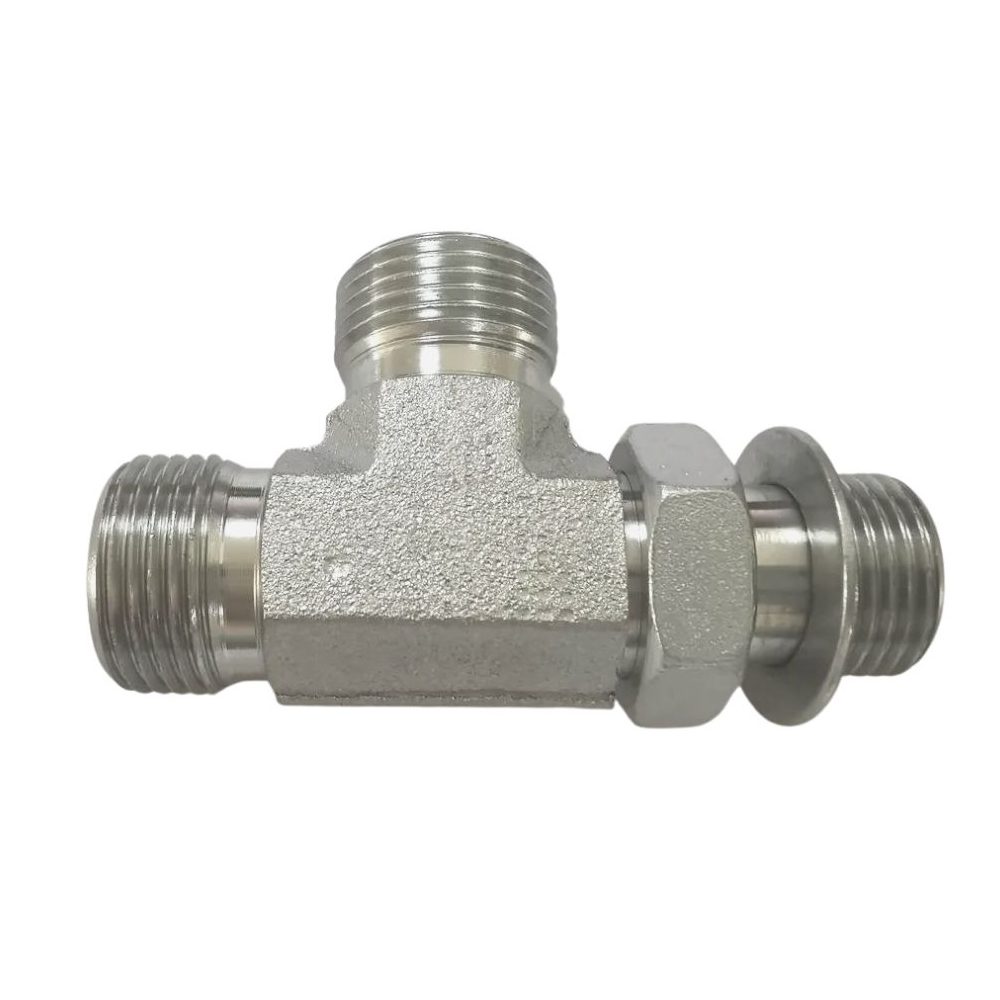

ACCG-OG/ADDG-OG Metric BSP O-ring Run Tee

Description:

ACCG-OG/ADDG-OG metric BSP adapters are hydraulic tee adapters that have male 24-degree cone metric threads, and a 60-degree cone BSP thread.

"*" indicates required fields

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

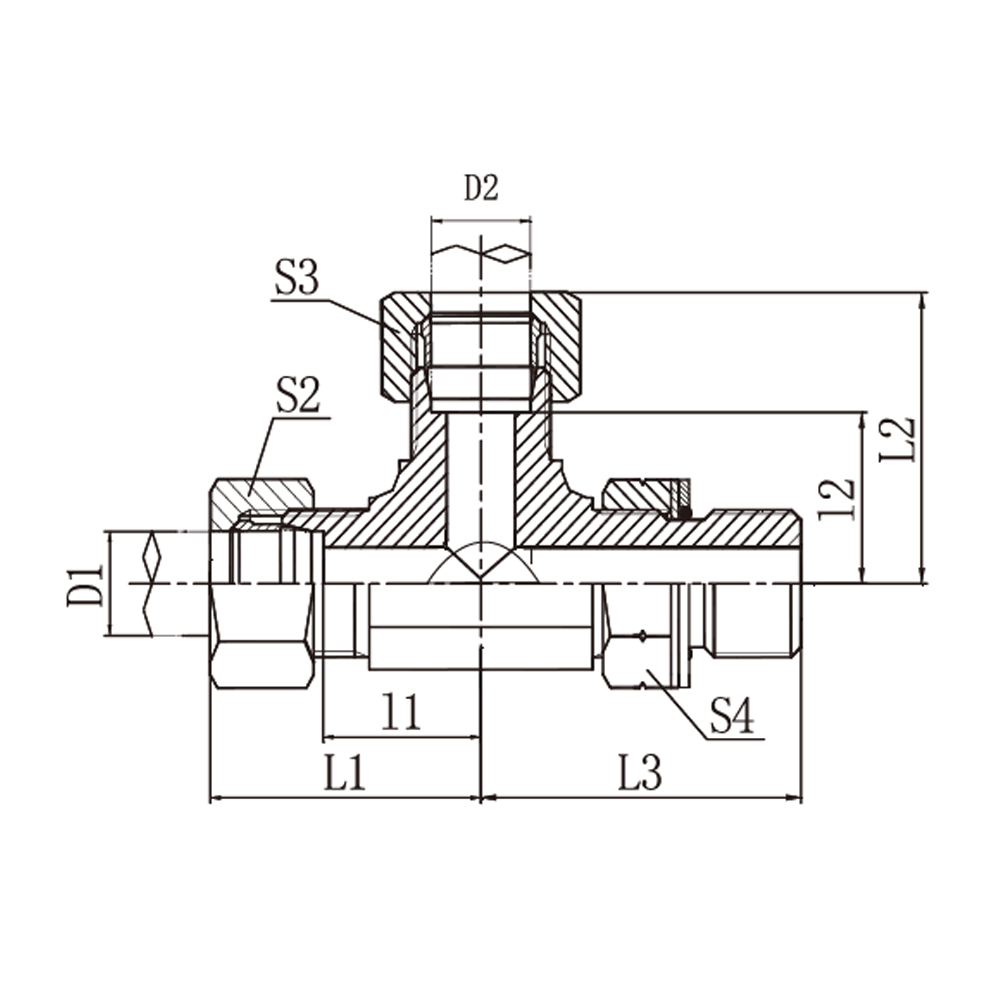

PART NO.	THREAD		TUBE O.D.	DIMENSIONS						MPa
PART NO.	E, F	G	D1, D2	11,12	L1,L2	L3	S1	S2,S3	S4	MPa
ACCG-12-12-020G	M12X1.5	G1/8″X28	6	13	28	27	11	14	14	31.5 L series
ACCG-14-14-04OG	M14X1.5	G1/4″X19	8	15.5	30.5	31.3	14	17	19
ACCG-16-16-04OG	M16X1.5	G1/4″X19	10	17.5	32.5	32.5	16	19	19
ACCG-18-18-06OG	M18X1.5	G3/8″X19	12	19	34	37	19	22	22
ACCG-22-22-08OG	M22X1.5	G1/2″X14	15	22	37	43.2	22	27	27
ACCG-26-26-08OG	M26X1.5	G1/2″X14	18	25.5	42	46	27	32	27
ACCG-30-30-12OG	M30X2	G3/4″X14	22	29.3	45.8	52	30	36	32	16 L series
ACCG-36-36-16OG	M36X2	G1″X11	28	33.3	49.8	56	36	41	41
ACCG-45-45-20OG	M45X2	G1.1/4″X11	35	39	60.7	63	48	50	50
ADDG-14-14-040G	M14X1.5	G1/4″X19	6	17.5	32.5	31.3	14	17	19	63 S series
ADDG-16-16-04OG	M16X1.5	G1/4″X19	8	18.5	33.7	32.5	16	19	19
ADDG-18-18-06OG	M18X1.5	G3/8″X19	10	19.5	36	36.8	19	22	22
ADDG-20-20-06OG	M20X1.5	G3/8″X19	12	19.5	36	36.8	19	24	22
ADDG-22-22-080G	M22X1.5	G1/2″X14	14	23	41	43.2	22	27	27
ADDG-24-24-080G	M24X1.5	G1/2″X14	16	24	42.5	44	24	30	27	40 S series
ADDG-30-30-120G	M30X2	G3/4″X14	20	28.3	49.8	52	30	36	32
ADDG-36-36-16OG	M36X2	G1″X11	25	32.8	56.8	56	36	46	41
ADDG-42-42-200G	M42X2	G1.1/4″X11	30	36.2	62.7	58	41	50	50

Click to enlarge

Category: DIN Hose Adapters Tags: Carbon Steel, O-ring, Metric, Tee, ACCG

Description
Package& Shipping

Description

PART NO.	THREAD		TUBE O.D.	DIMENSIONS						MPa
PART NO.	E, F	G	D1, D2	11,12	L1,L2	L3	S1	S2,S3	S4	MPa
ACCG-12-12-020G	M12X1.5	G1/8″X28	6	13	28	27	11	14	14	31.5 L series
ACCG-14-14-04OG	M14X1.5	G1/4″X19	8	15.5	30.5	31.3	14	17	19
ACCG-16-16-04OG	M16X1.5	G1/4″X19	10	17.5	32.5	32.5	16	19	19
ACCG-18-18-06OG	M18X1.5	G3/8″X19	12	19	34	37	19	22	22
ACCG-22-22-08OG	M22X1.5	G1/2″X14	15	22	37	43.2	22	27	27
ACCG-26-26-08OG	M26X1.5	G1/2″X14	18	25.5	42	46	27	32	27
ACCG-30-30-12OG	M30X2	G3/4″X14	22	29.3	45.8	52	30	36	32	16 L series
ACCG-36-36-16OG	M36X2	G1″X11	28	33.3	49.8	56	36	41	41
ACCG-45-45-20OG	M45X2	G1.1/4″X11	35	39	60.7	63	48	50	50
ADDG-14-14-040G	M14X1.5	G1/4″X19	6	17.5	32.5	31.3	14	17	19	63 S series
ADDG-16-16-04OG	M16X1.5	G1/4″X19	8	18.5	33.7	32.5	16	19	19
ADDG-18-18-06OG	M18X1.5	G3/8″X19	10	19.5	36	36.8	19	22	22
ADDG-20-20-06OG	M20X1.5	G3/8″X19	12	19.5	36	36.8	19	24	22
ADDG-22-22-080G	M22X1.5	G1/2″X14	14	23	41	43.2	22	27	27
ADDG-24-24-080G	M24X1.5	G1/2″X14	16	24	42.5	44	24	30	27	40 S series
ADDG-30-30-120G	M30X2	G3/4″X14	20	28.3	49.8	52	30	36	32
ADDG-36-36-16OG	M36X2	G1″X11	25	32.8	56.8	56	36	46	41
ADDG-42-42-200G	M42X2	G1.1/4″X11	30	36.2	62.7	58	41	50	50

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

ACCG-OG/ADDG-OG Metric BSP O-ring Run Tee

Package:

Delivery Time:
