Description:
The 87642 hydraulic Code62 SAE 9000PSI flange, being a 45-degree elbow flange fitting, is designed following the SAE J516 standard. Such a flange is suitable for utilization with either one or two-wire hoses.
"*" indicates required fields
SAE flanges are a dependable replacement for standard pipe and tube connectors. The maximum working pressure is 3000 PSI or 6000 PSI. Topol Power hydraulic flange fittings product line ensures you’ll find the perfect solution for any hydraulic application.

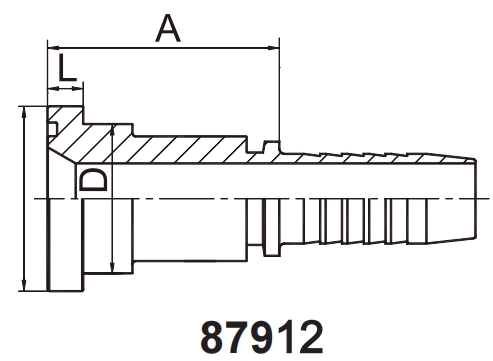

| PART NO | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | D | L | H | ||
| 87942-12-12KT | 3/4″ | 20 | 12 | 85.3 | 41.3 | 31 | 14.3 | 35.5 |
| 87942-16-16KT | 1″ | 25 | 16 | 94 | 47.6 | 37 | 14.3 | 37.5 |
| 87942-20-20KT | 1-1/4″ | 32 | 20 | 105 | 54 | 42 | 14.3 | 42 |
| 87942-24-20KT | 1-1/2″ | 32 | 20 | 106 | 63.5 | 49 | 14.3 | 43 |
We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.
It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
