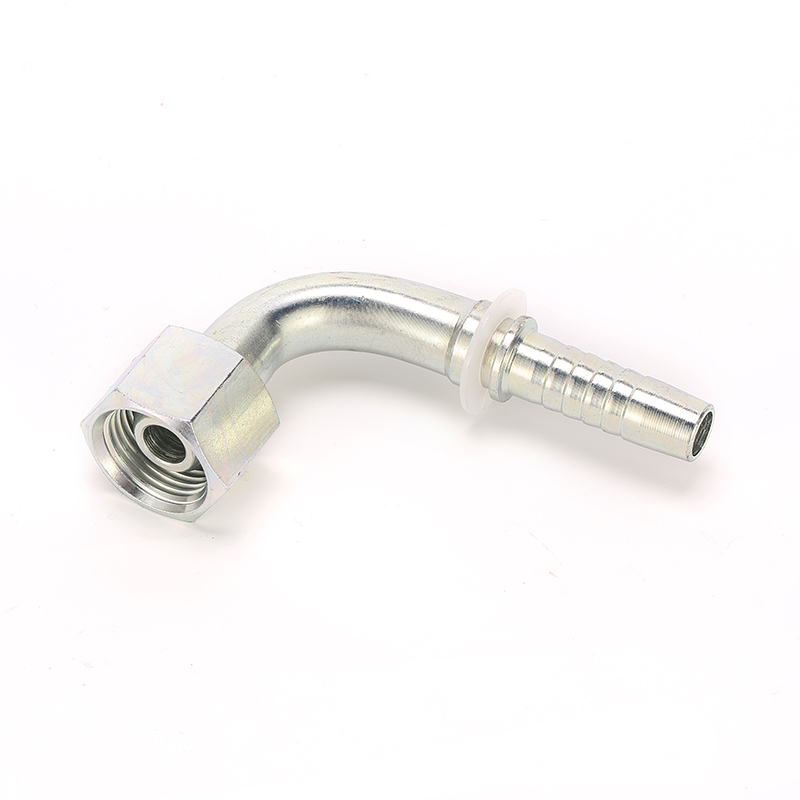

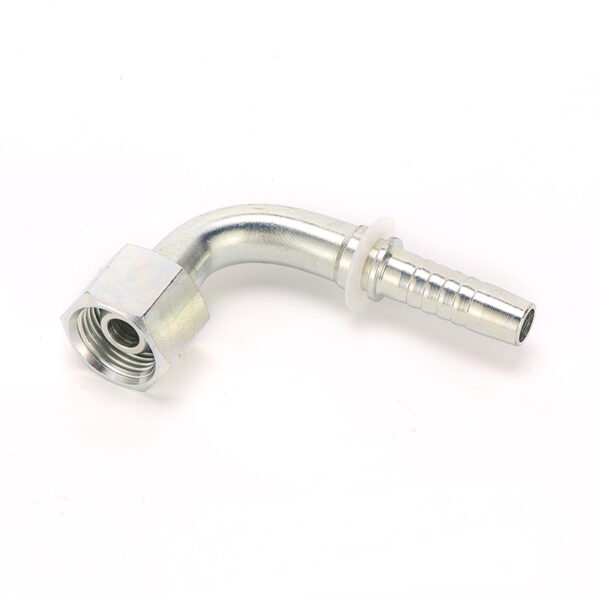

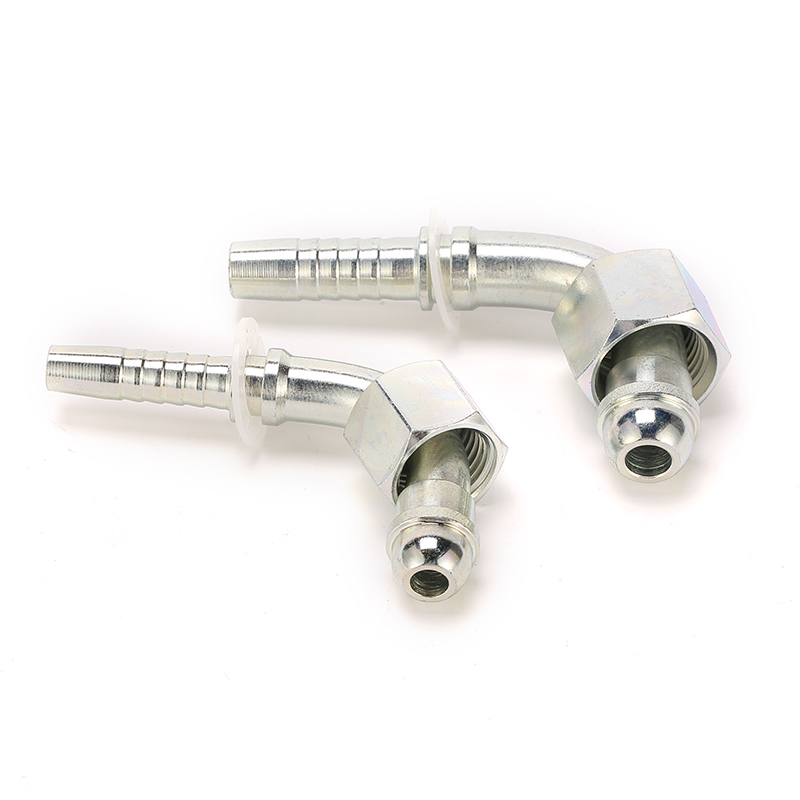

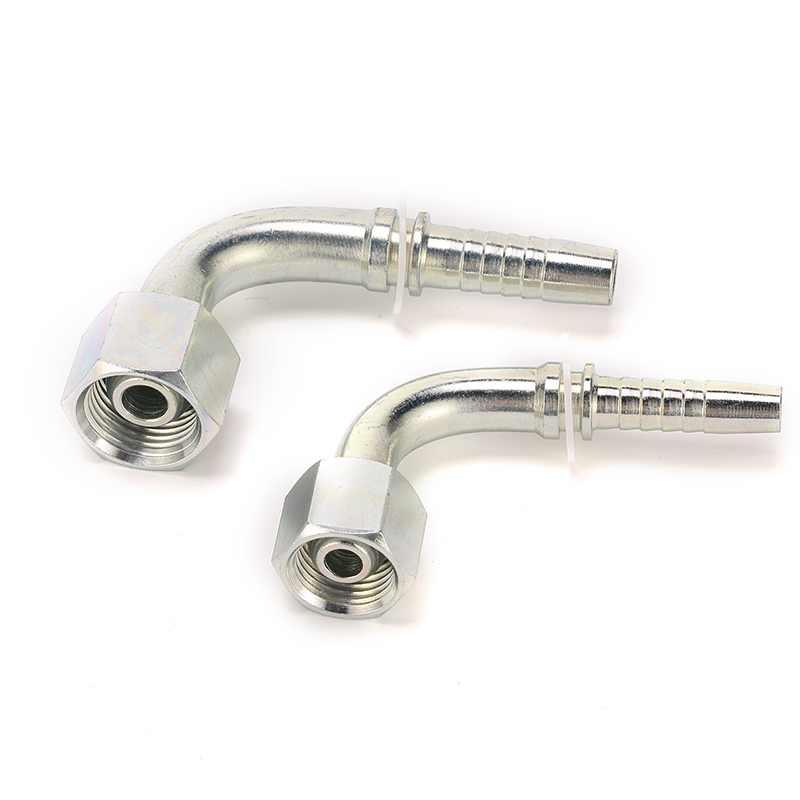

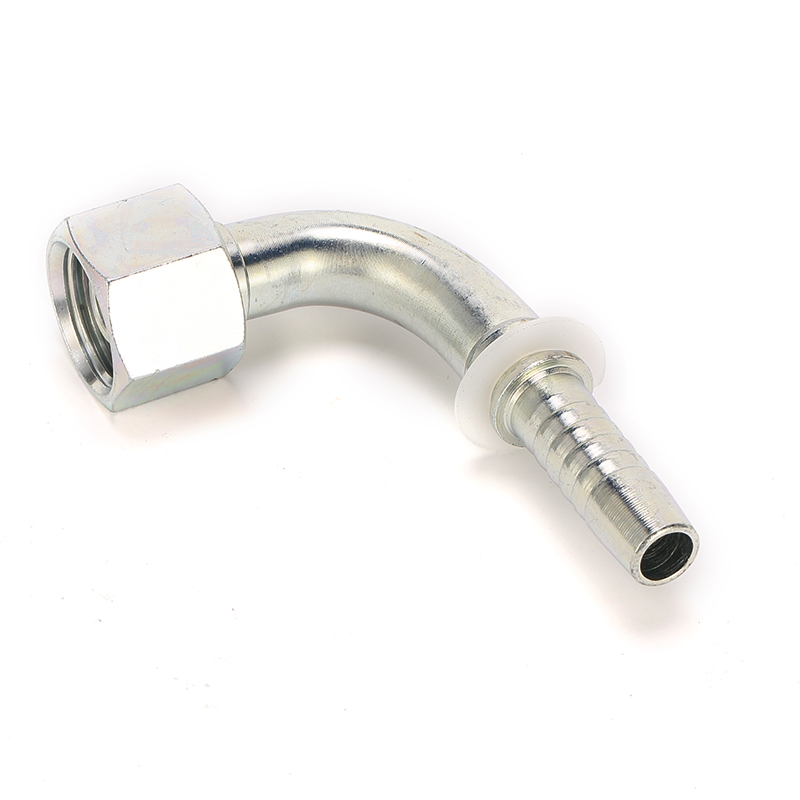

20591C-T 90 Elbow Metric Female 24° Multiseal H.T. Fittings

Description:

The 20591C The metric multiseal hose fitting features various types of seals that provide a robust barrier against leaks. Female multi-seal metric hose fittings are specifically designed to connect hydraulic hoses to fluid systems.

"*" indicates required fields

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

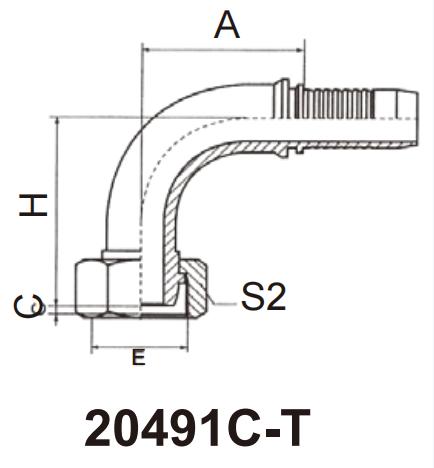

PART NO.	THREAD E	HOSE BORE		TUBEO.D	O RING	DIMENSIONS
PART NO.	THREAD E	DN	DASH	TUBEO.D	O RING	A	C	H	S2
20591-14-04W	M16X1.5	6	4	6	4.5X1.5	30	1.1	30.5	17
20591-16-04	M16X1.5	6	04	8	6.5X1.5	30	1.5	48	22
20591-16-04T	M16X1.5	6	4	8	6.5X1.5	30	1.8	31	19
20591-16-05	M16X1.5	8	05	8	6.5X1.5	33	1.5	51	22
20591-16-05	M16X1.5	8	5	8	6.5X1.5	30	1.5	31	19
20591-18-04T	M18X1.5	6	04	10	8.5X1.5	30	2	39.5	22
20591-18-05T	M18X1.5	8	05	10	8.5X1.5	33	2	41.5	22
20591-18-06	M18X1.5	10	06	10	8.5X1.5	35.3	2	52.8	24
20591-18-06T	M18X1.5	10	6	10	8.0X1.5	37	1.5	35	22
20591-20-04T	M20X1.5	6	04	12	10.5X1.5	30	2.5	41	24
20591-20-05T	M20X1.5	8	05	12	10.5X1.5	33.5	2.5	44	24
20591-20-06T	M20X1.5	10	06	12	10.5X1.5	35.8	2.5	46.3	24
20591-20-08	M20X1.5	12	08	12	10.5X1.5	41	2.5	61	27
20591-20-08W	M20X1.5	12	8	12	10.0X1.5	38	2.5	38	24
20591-22-06T	M22X1.5	10	06	14	12.0X2.0	35.3	2.5	46.8	27
20591-22-08	M22X1.5	12	08	14	12.0X2.0	41	2.5	61	27
20591-22-08T	M22X1.5	12	8	14	11.0X2.0	42	2.5	42.5	27
20591-24-06T	M24X1.5	10	06	16	13.0X2.0	35.3	3	46.3	30
20591-24-08T	M24X1.5	12	08	16	13.0X2.0	41	3	53	30
20591-24-10	M24X1.5	16	10	16	13.0X2.0	56.5	2.5	67.5	30
20591-24-10W	M24X1.5	16	10	16	13.0X2.0	45	3	45.5	30
20591-30-10T	M30X2	16	10	20	16.3X2.4	56.5	3	60.5	36
20591-30-12	M30X2	20	12	20	16.3X2.4	65.5	3	81	36
20591-36-12T	M36X2	20	12	25	20.3X2.4	66.2	3	70	41
20591-36-14T	M36X2	22	14	25	20.3X2.4	71.2	3	71	41
20591-36-16	M36X2	25	16	25	20.3X2.4	78	3	88	41
20591-42-16T	M42X2	25	16	30	25.3X2.4	78	5	77.5	50
20591-42-20	M42X2	32	20	30	25.3X2.4	91.5	5	101.5	50
20591-52-20T	M52X2	32	20	38	33.3X2.4	93	6.5	89	60
20591-52-24T	M52X2	40	24	38	33.3X2.4	109.4	6.5	102.5	60

Click to enlarge

Category: Metric Hose Fittings Tags: Metric hose fitting, Female, Carbon Steel, hydraulic

Description
Package& Shipping

Description

PART NO.	THREAD E	HOSE BORE		TUBEO.D	O RING	DIMENSIONS
PART NO.	THREAD E	DN	DASH	TUBEO.D	O RING	A	C	H	S2
20591-14-04W	M16X1.5	6	4	6	4.5X1.5	30	1.1	30.5	17
20591-16-04	M16X1.5	6	04	8	6.5X1.5	30	1.5	48	22
20591-16-04T	M16X1.5	6	4	8	6.5X1.5	30	1.8	31	19
20591-16-05	M16X1.5	8	05	8	6.5X1.5	33	1.5	51	22
20591-16-05	M16X1.5	8	5	8	6.5X1.5	30	1.5	31	19
20591-18-04T	M18X1.5	6	04	10	8.5X1.5	30	2	39.5	22
20591-18-05T	M18X1.5	8	05	10	8.5X1.5	33	2	41.5	22
20591-18-06	M18X1.5	10	06	10	8.5X1.5	35.3	2	52.8	24
20591-18-06T	M18X1.5	10	6	10	8.0X1.5	37	1.5	35	22
20591-20-04T	M20X1.5	6	04	12	10.5X1.5	30	2.5	41	24
20591-20-05T	M20X1.5	8	05	12	10.5X1.5	33.5	2.5	44	24
20591-20-06T	M20X1.5	10	06	12	10.5X1.5	35.8	2.5	46.3	24
20591-20-08	M20X1.5	12	08	12	10.5X1.5	41	2.5	61	27
20591-20-08W	M20X1.5	12	8	12	10.0X1.5	38	2.5	38	24
20591-22-06T	M22X1.5	10	06	14	12.0X2.0	35.3	2.5	46.8	27
20591-22-08	M22X1.5	12	08	14	12.0X2.0	41	2.5	61	27
20591-22-08T	M22X1.5	12	8	14	11.0X2.0	42	2.5	42.5	27
20591-24-06T	M24X1.5	10	06	16	13.0X2.0	35.3	3	46.3	30
20591-24-08T	M24X1.5	12	08	16	13.0X2.0	41	3	53	30
20591-24-10	M24X1.5	16	10	16	13.0X2.0	56.5	2.5	67.5	30
20591-24-10W	M24X1.5	16	10	16	13.0X2.0	45	3	45.5	30
20591-30-10T	M30X2	16	10	20	16.3X2.4	56.5	3	60.5	36
20591-30-12	M30X2	20	12	20	16.3X2.4	65.5	3	81	36
20591-36-12T	M36X2	20	12	25	20.3X2.4	66.2	3	70	41
20591-36-14T	M36X2	22	14	25	20.3X2.4	71.2	3	71	41
20591-36-16	M36X2	25	16	25	20.3X2.4	78	3	88	41
20591-42-16T	M42X2	25	16	30	25.3X2.4	78	5	77.5	50
20591-42-20	M42X2	32	20	30	25.3X2.4	91.5	5	101.5	50
20591-52-20T	M52X2	32	20	38	33.3X2.4	93	6.5	89	60
20591-52-24T	M52X2	40	24	38	33.3X2.4	109.4	6.5	102.5	60

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

20591C-T 90 Elbow Metric Female 24° Multiseal H.T. Fittings

Package:

Delivery Time:
