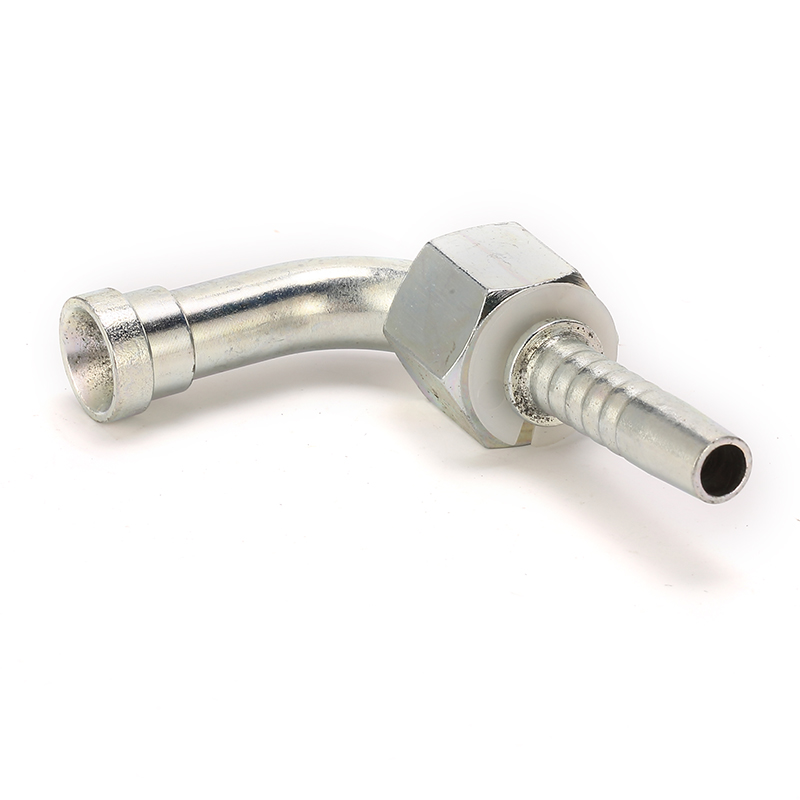

Metric female multi-seal threaded fittings, available in straight, 45°, and 90°types. Topol Power hose fitting can be applied in many hydraulic fluid applications, they are usually available in standard thread sizes such as 1/4″, 3/8″, and 1/2″.

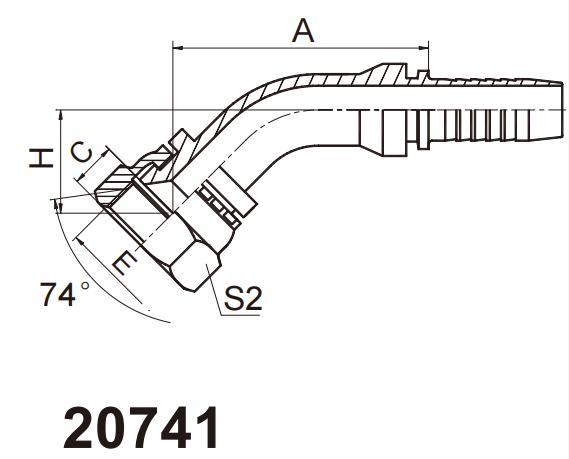

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||
| 20741-14-04 | M14X1.5 | 6 | 04 | 40.5 | 8.5 | 18.5 | 19 |
| 20741-16-05 | M16X1.5 | 8 | 05 | 44.4 | 8 | 20 | 22 |
| 20741-18-06 | M18X1.5 | 10 | 06 | 45.7 | 10 | 21.4 | 24 |
| 20741-22-08 | M22X1.5 | 12 | 08 | 58.9 | 10 | 24 | 27 |
| 20741-27-10 | M27X1.5 | 16 | 10 | 70.7 | 11 | 26.4 | 32 |
| 20741-30-12 | M30X1.5 | 20 | 12 | 78.1 | 11 | 30 | 36 |
| 20741-33-12 | M33X2 | 20 | 12 | 77.4 | 13 | 30 | 41 |
| 20741-33-16 | M33X2 | 25 | 16 | 85 | 13 | 30.8 | 41 |
| 20741-36-14 | M36X2 | 22 | 14 | 79.8 | 14 | 29.6 | 41 |
| 20741-36-16 | M36X2 | 25 | 16 | 85.7 | 14 | 31.5 | 41 |
| 20741-39-16 | M39X2 | 25 | 16 | 86.1 | 14 | 31.8 | 46 |
| 20741-45-20W | M45X2 | 32 | 20 | 97 | 15 | 36.2 | 55 |
| 20741-52-24W | M52X2 | 40 | 24 | 115.3 | 17 | 40.9 | 60 |
