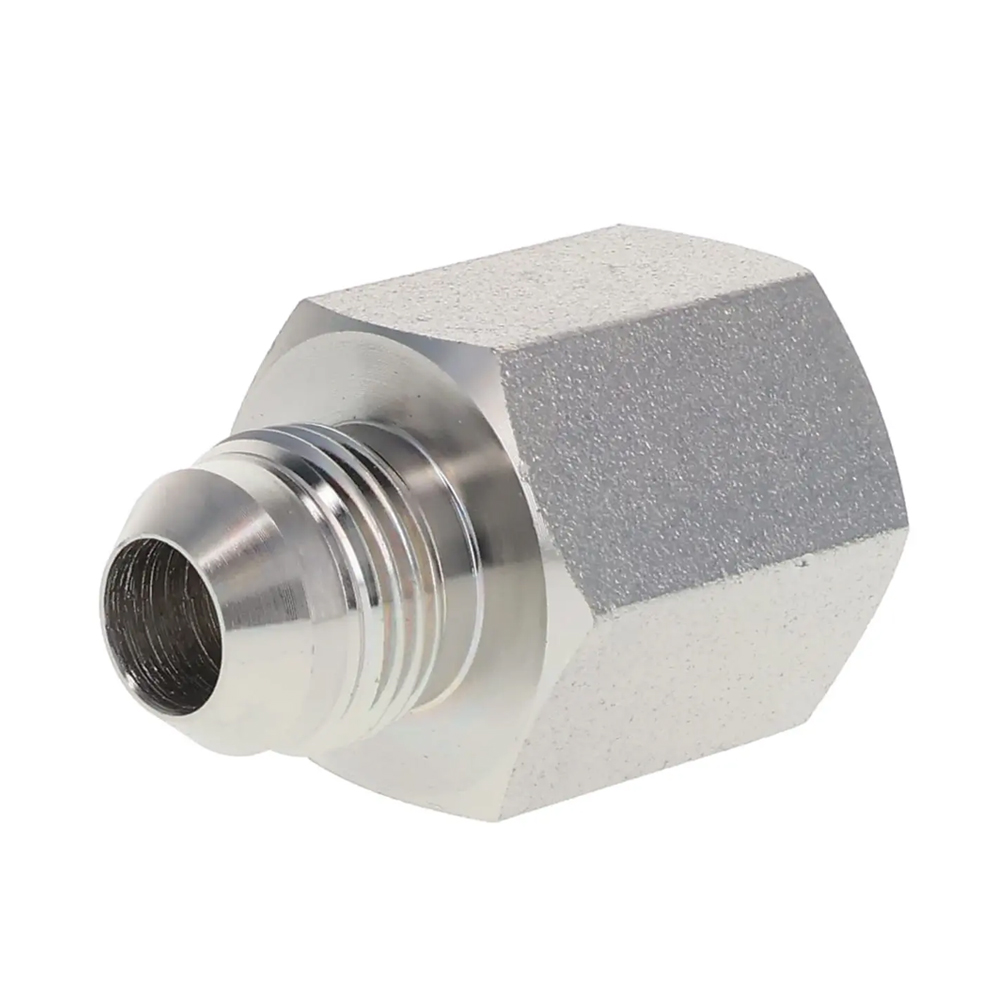

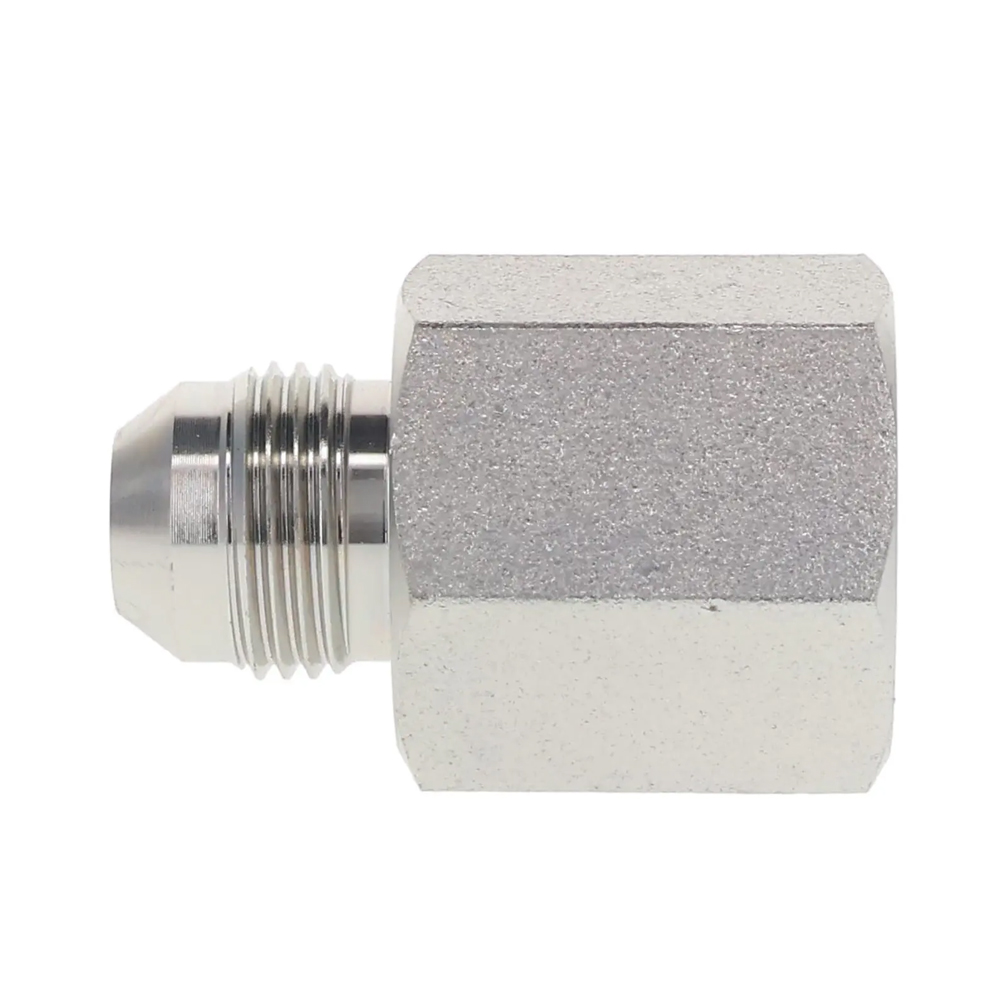

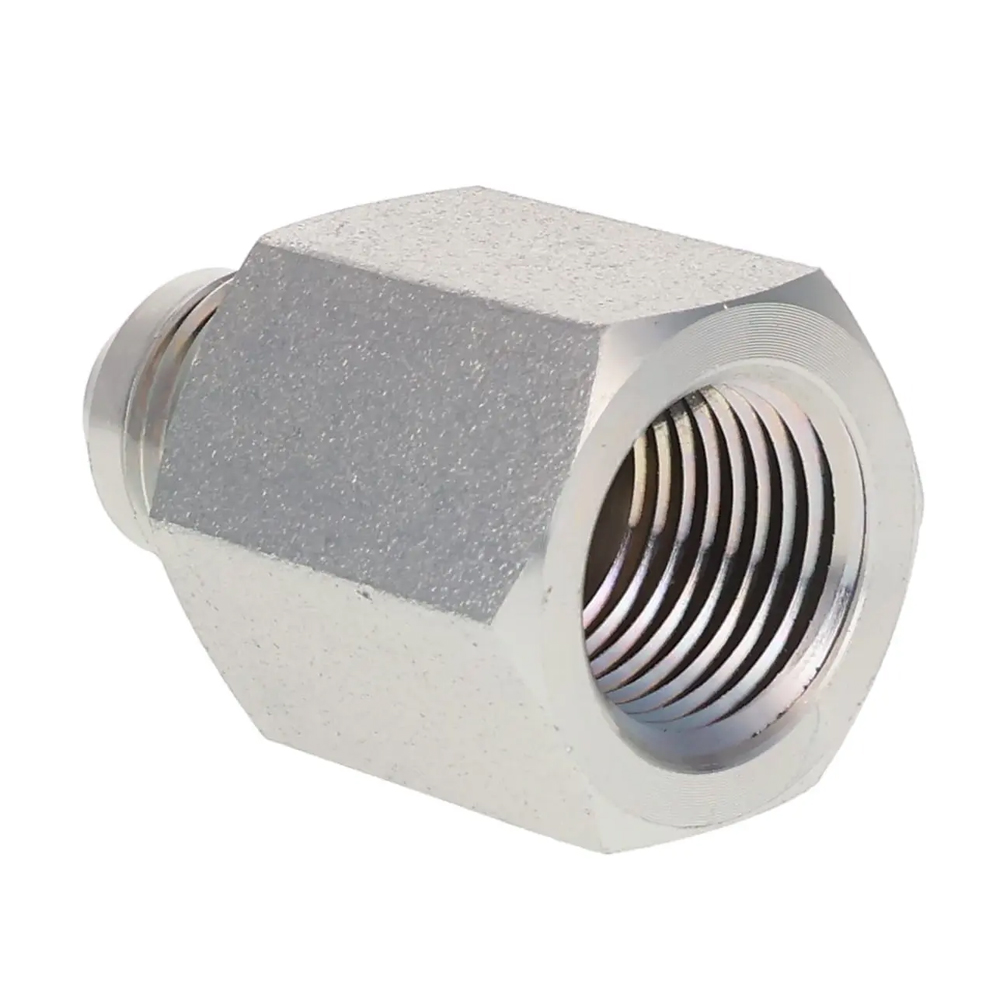

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

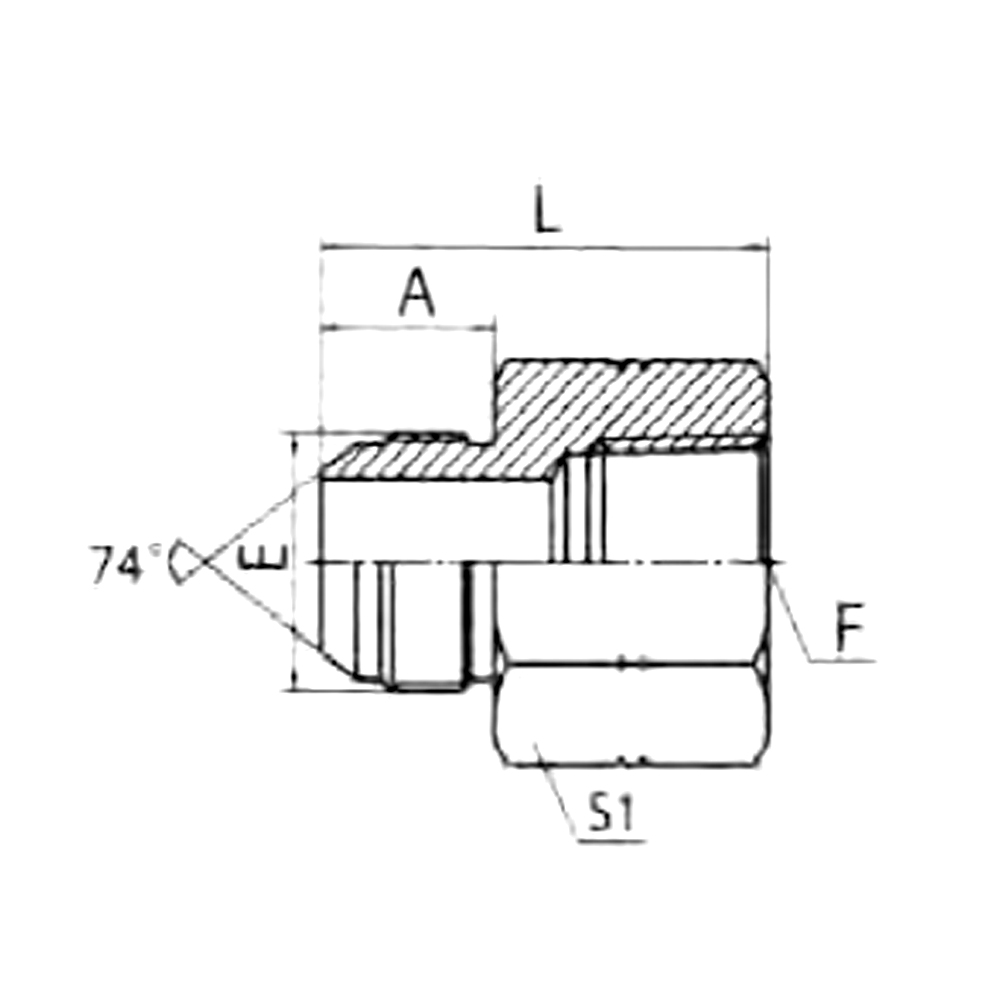

| PART NO. | THREAD | DIMENSIONS | |||
| E | F | A | L | S1 | |
| 5JT-04-02 | 7/16″X20 | Rc1/8″X28 | 14 | 30 | 14 |
| 5JT-04 | 7/16″X20 | Rc1/4″X19 | 14 | 35.5 | 19 |
| 5JT-06-04 | 9/16″X18 | Rc1/4″X19 | 14.1 | 35.5 | 19 |
| 5JT-06 | 9/16″X18 | Rc3/8″X19 | 14.1 | 36.5 | 22 |
| 5JT-08-06 | 3/4″X16 | Rc3/8″X19 | 16.7 | 39.5 | 22 |
| 5JT-08 | 3/4″X16 | Rc1/2″X14 | 16.7 | 45.5 | 27 |
| 5JT-10-08 | 7/8″X14 | Rc1/2″X14 | 19.3 | 48 | 27 |
| 5JT-12 | 1.1/16″X12 | Rc3/4″X14 | 21.9 | 52.5 | 36 |
| 5JT-16 | 1.5/16″X12 | Rc1″X11 | 23.1 | 59.5 | 41 |
