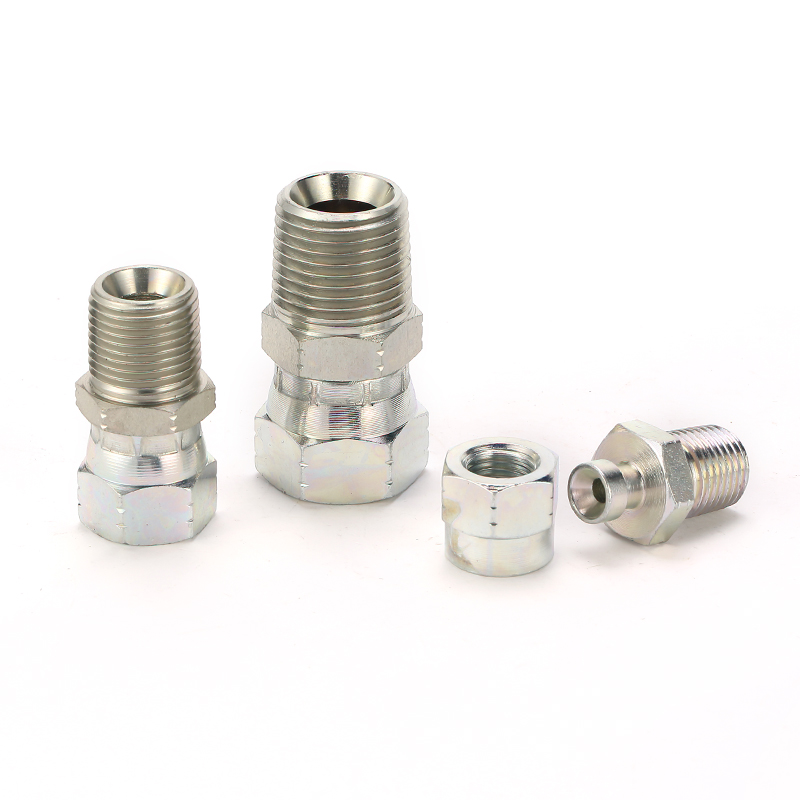

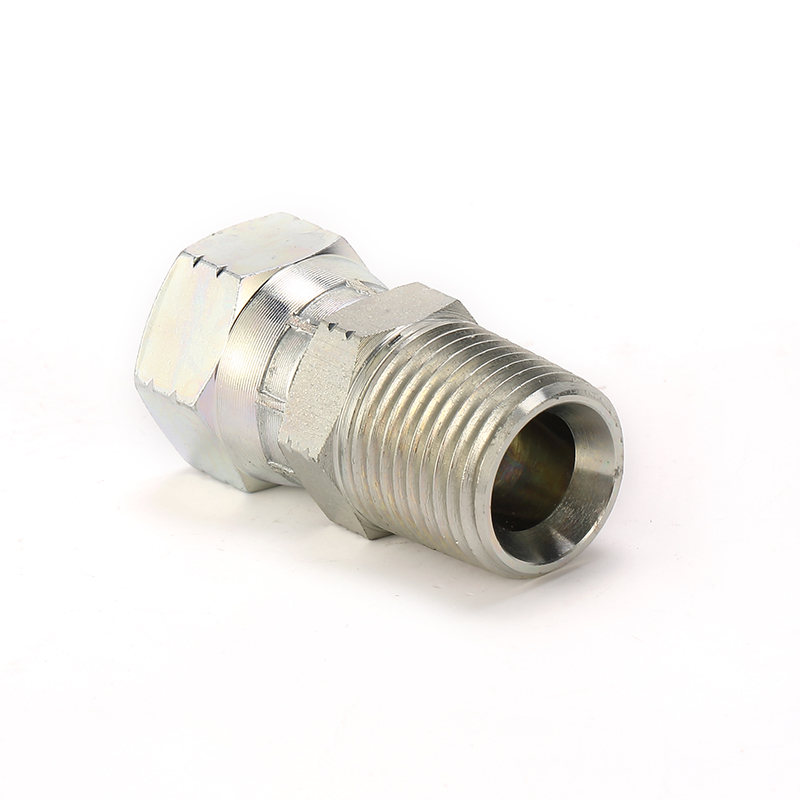

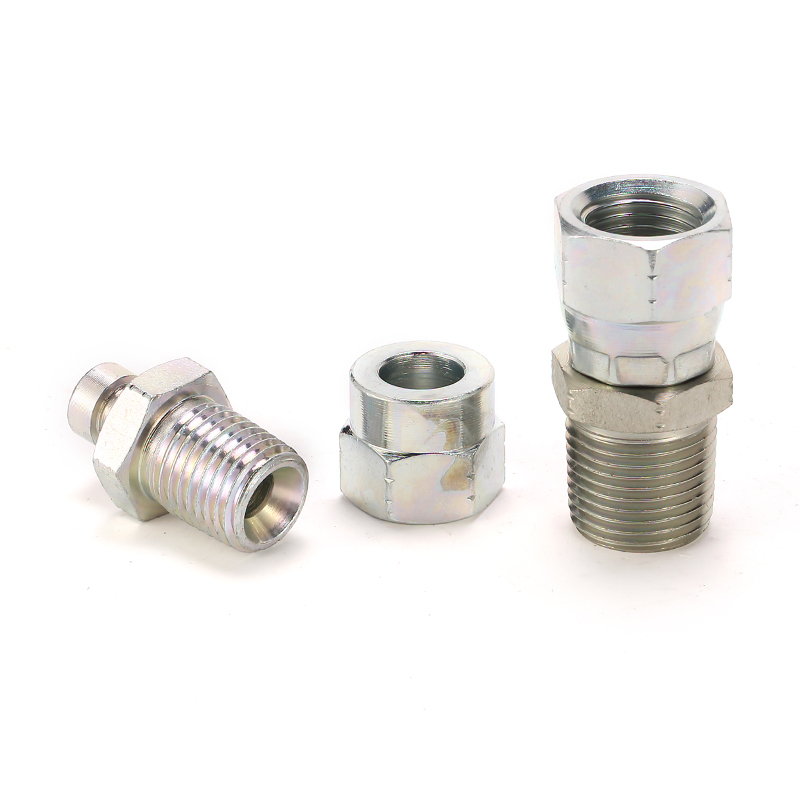

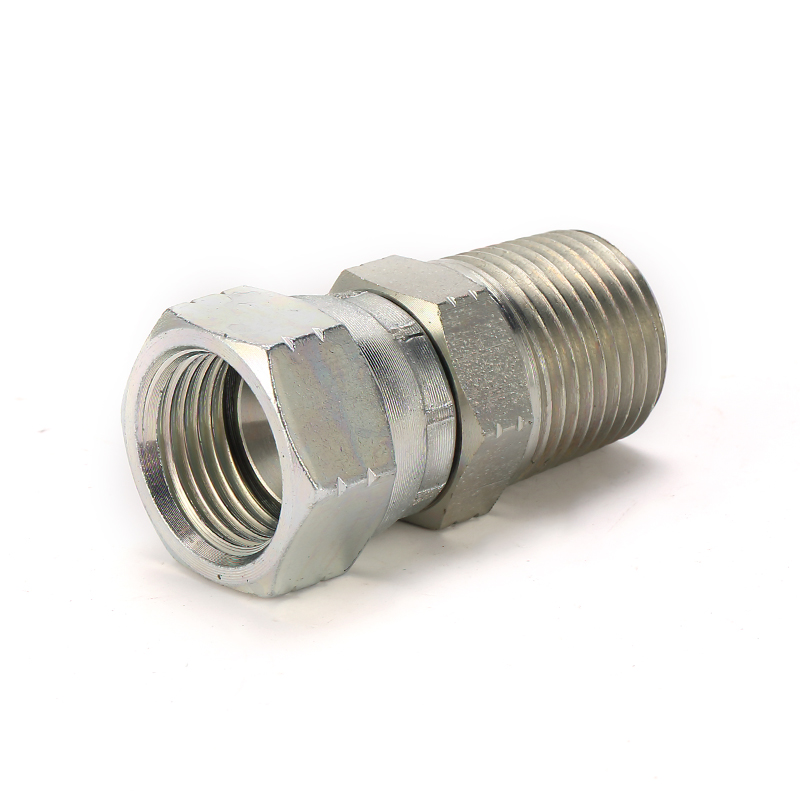

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

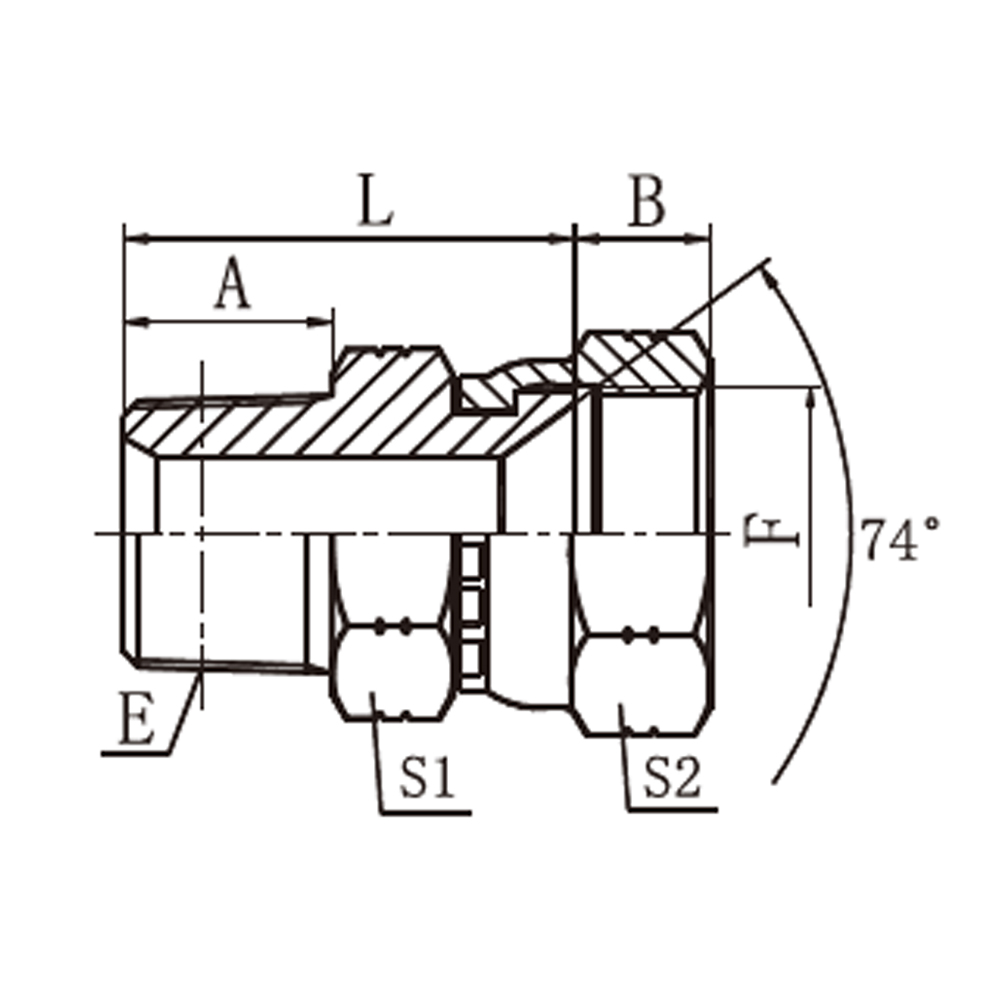

| PART NO. | THREAD | DIMENSIONS | |||||
| E | F | A | B | L | S1 | S2 | |
| 2TJ-02-04SP | R1/8″X28 | 7/16″X20 | 10 | 9.5 | 24 | 12 | 17 |
| 2TJ-04SP | R1/4″X19 | 7/16″X20 | 14.5 | 9.5 | 28.5 | 14 | 17 |
| 2TJ-04-05SP | R1/4″X19 | 1/2″X20 | 14.5 | 9 | 29 | 14 | 19 |
| 2TJ-04-06SP | R1/4″X19 | 9/16″X18 | 14.5 | 9.5 | 29.5 | 14 | 19 |
| 2TJ-06-05SP | R3/8″X19 | 1/2″X20 | 15 | 9 | 29.5 | 19 | 19 |
| 2TJ-06SP | R3/8″X19 | 9/16″X18 | 15 | 9.5 | 30.5 | 19 | 19 |
| 2TJ-06-08SP | R3/8″X19 | 3/4″X16 | 15 | 10.8 | 31.5 | 19 | 24 |
| 2TJ-08SP | R1/2″X14 | 3/4″X16 | 20 | 10.8 | 37.5 | 22 | 24 |
| 2TJ-08-10SP | R1/2″X14 | 7/8″X14 | 20 | 12 | 38.5 | 24 | 27 |
| 2TJ-08-12SP | R1/2″X14 | 1.1/16″X12 | 20 | 13 | 41.5 | 27 | 32 |
| 2TJ-12SP | R3/4″X14 | 1.1/16″X12 | 20 | 13 | 41.5 | 30 | 32 |
| 2TJ-12-16SP | R3/4″X14 | 1.5/16″X12 | 20 | 14 | 43.5 | 32 | 41 |
| 2TJ-16SP | R1″X11 | 1.5/16″X12 | 25.5 | 14 | 48.5 | 36 | 41 |
| 2TJ-20SP | R1.1/4″X11 | 1.5/8″X12 | 26.5 | 15 | 55 | 46 | 50 |
| 2TJ-24SP | R1.1/2″X11 | 1.7/8″X12 | 26.5 | 19 | 59.5 | 50 | 55 |
