JIS hydraulic fitting dimensions define these fittings’ size and wall thickness according to Japanese standards. Topol Power can offer various types of JIS fittings with tapered and parallel threads.

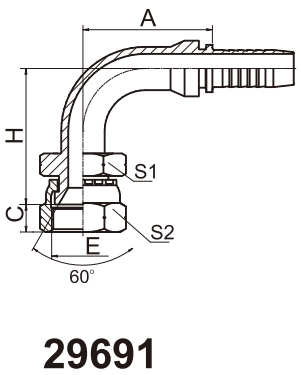

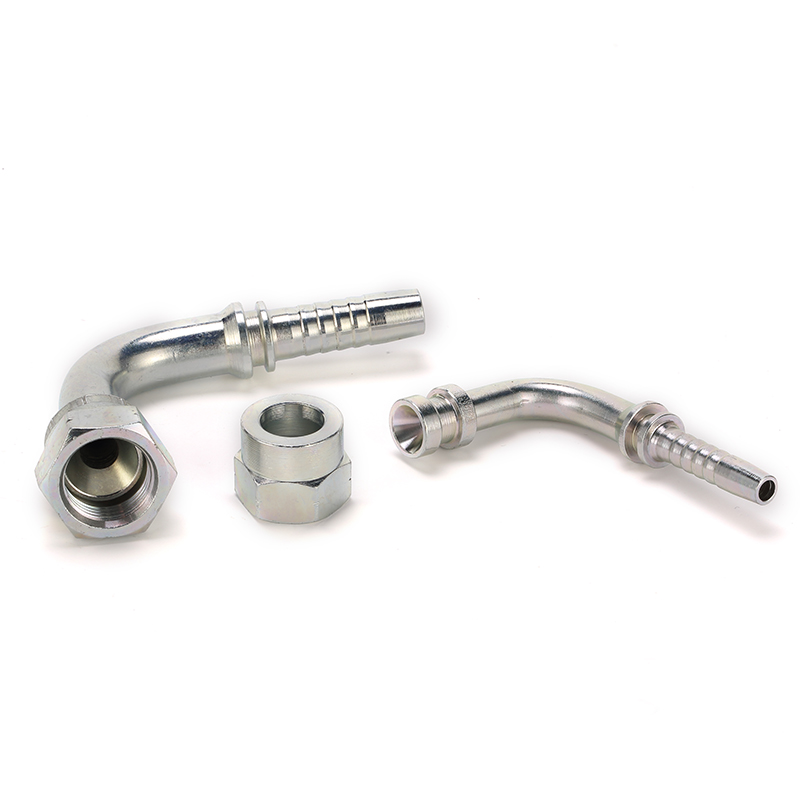

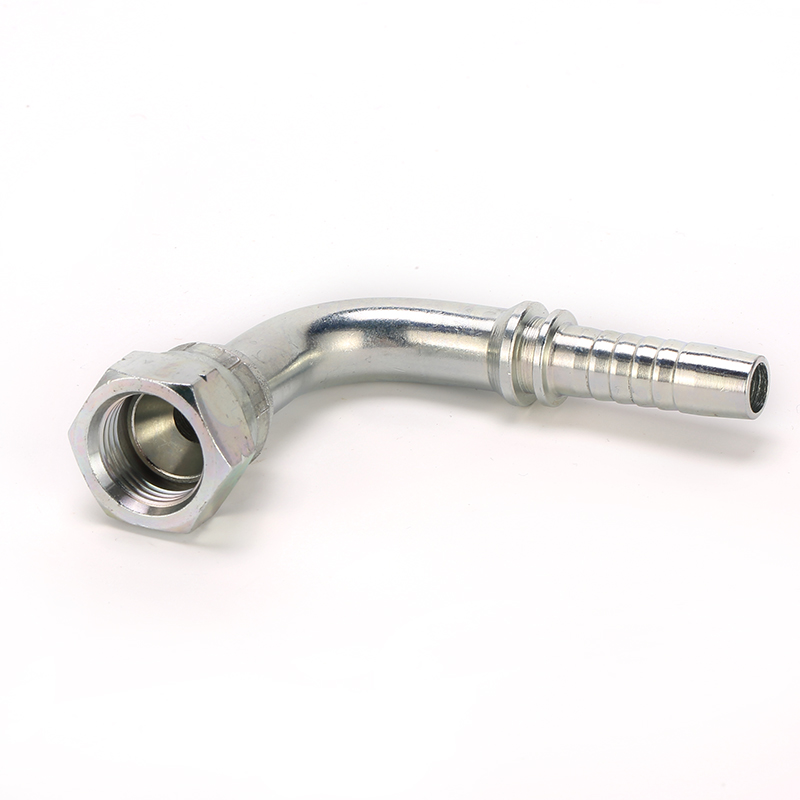

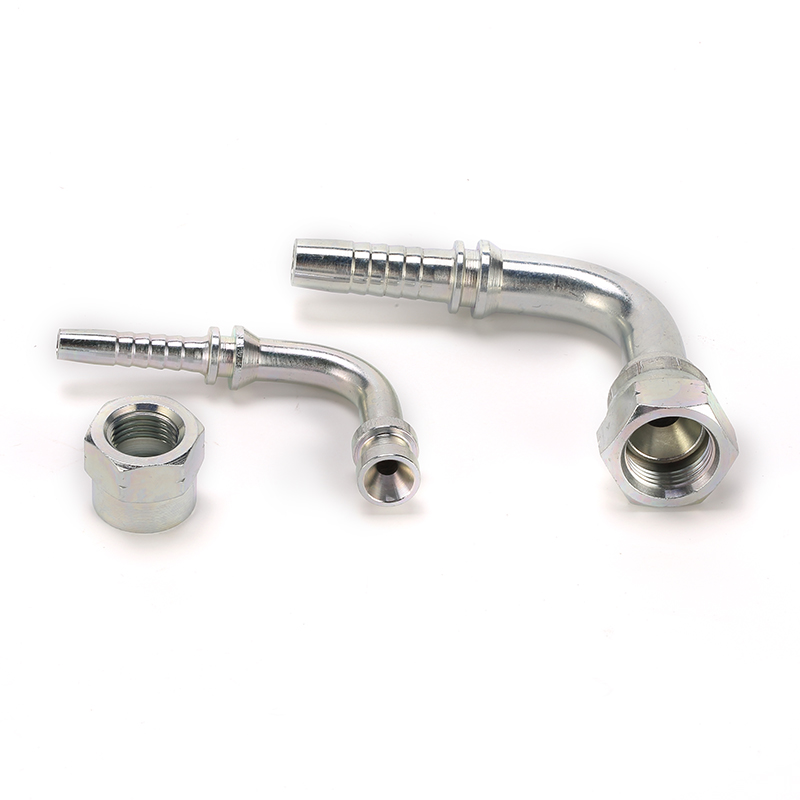

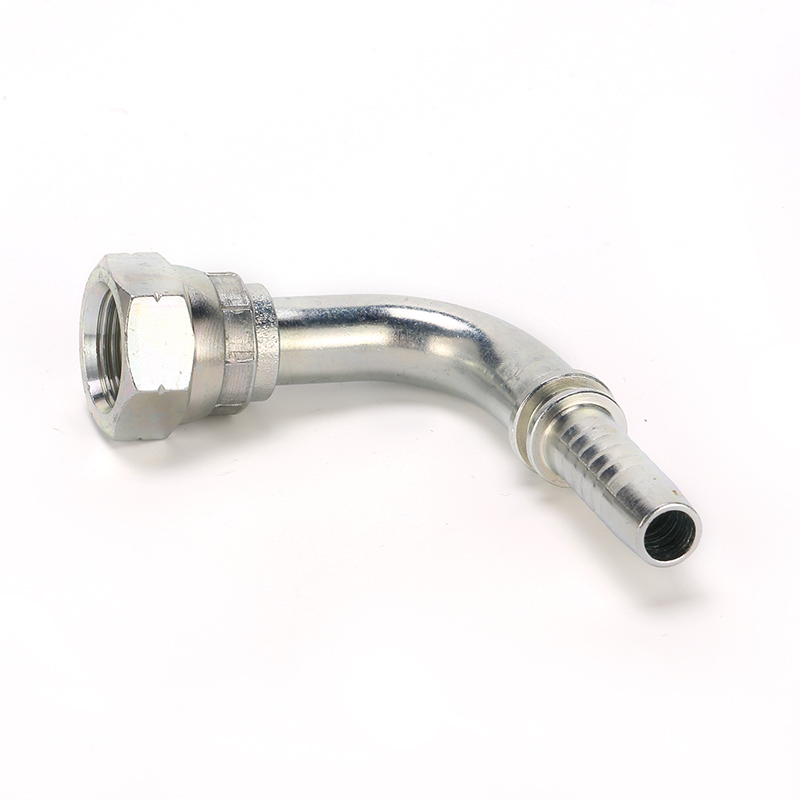

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | H | S1 | S2 | ||
| 29691-04-04 | G1/4″x19 | 6 | 4 | 30 | 8 | 38 | 19 | 19 |
| 29691-04-05 | G1/4″x19 | 8 | 5 | 33 | 8 | 41 | 19 | 19 |
| 29691-06-06 | G3/8″x19 | 10 | 6 | 35.3 | 9 | 45.8 | 22 | 22 |
| 29691-08-08 | G1/2″x14 | 12 | 8 | 41 | 12 | 53 | 27 | 27 |
| 29691-10-10 | G5/8″x14 | 16 | 10 | 56.5 | 11.5 | 61 | 30 | 30 |
| 29691-12-12 | G3/4″x14 | 20 | 12 | 65.5 | 13.5 | 69 | 32 | 32 |
| 29691-16-16 | G1″x11 | 25 | 16 | 76.7 | 16 | 76.5 | 41 | 41 |
| 29691-20-20W | G1.1/4″x11 | 32 | 20 | 91.5 | 18.5 | 92.5 | 50 | 50 |
| 29691-24-24W | G1.1/2″x11 | 40 | 24 | 109.4 | 19 | 110.5 | 55 | 55 |
| 29691-32-32W | G2″x11 | 50 | 32 | 131.8 | 23 | 133.8 | 70 | 70 |
