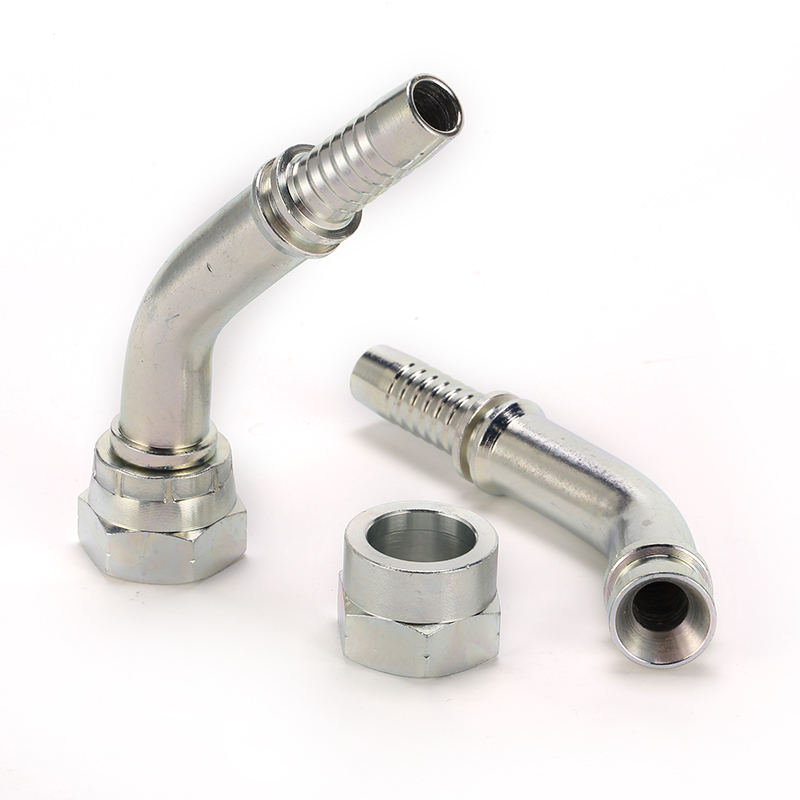

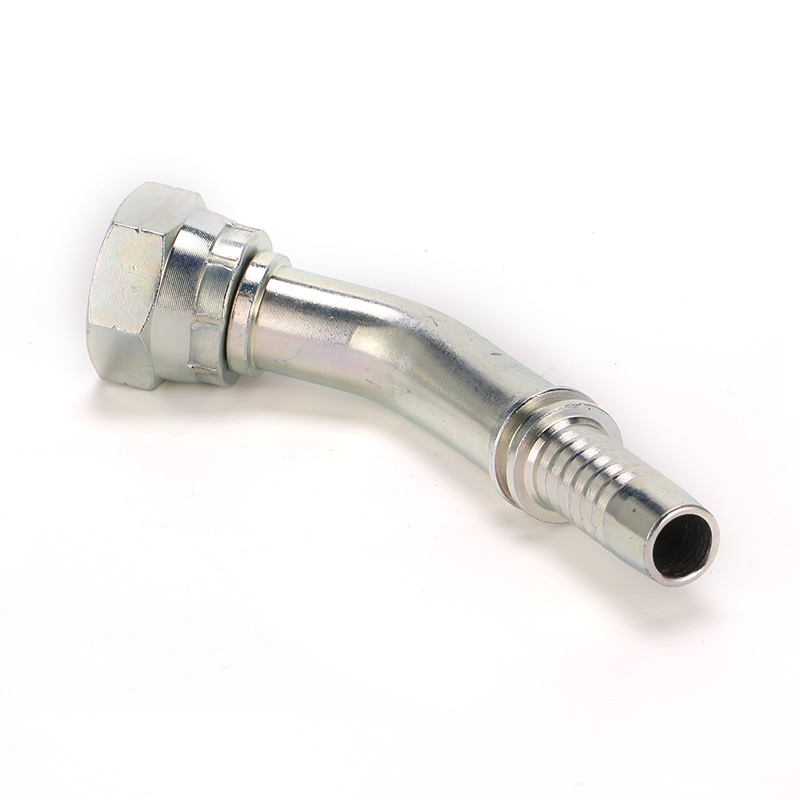

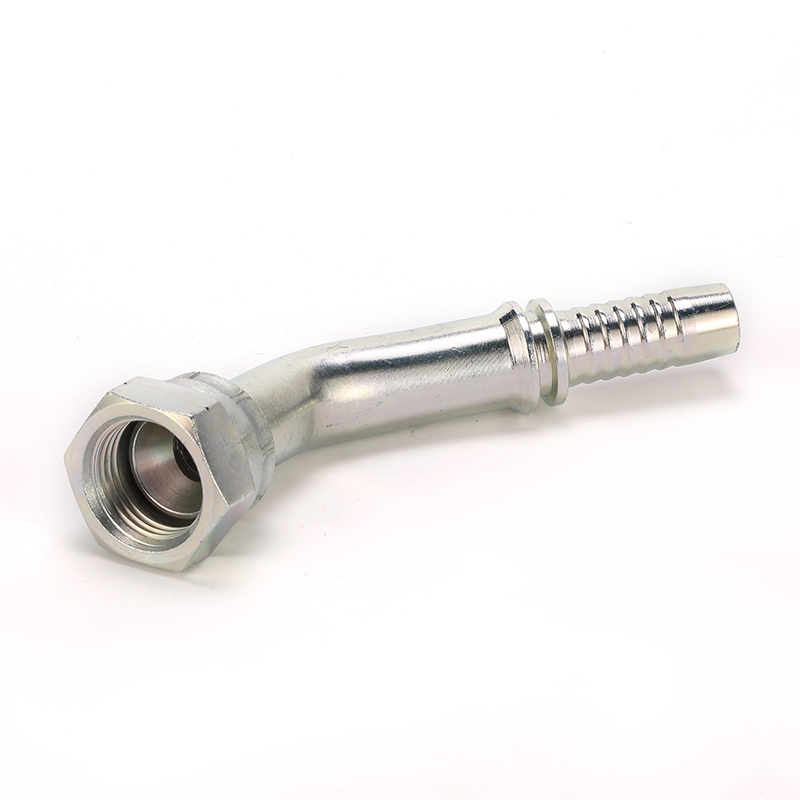

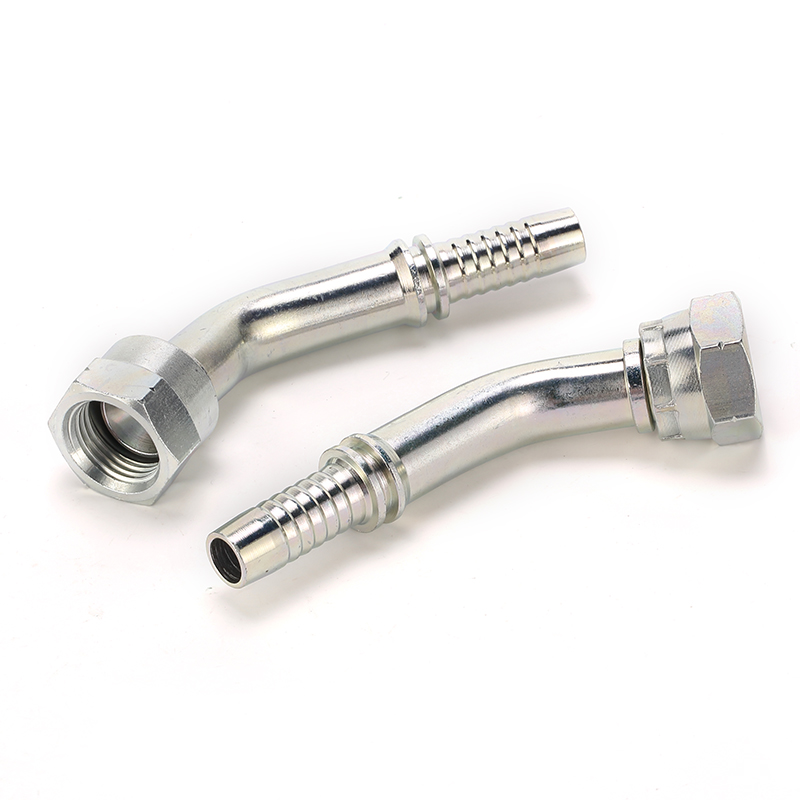

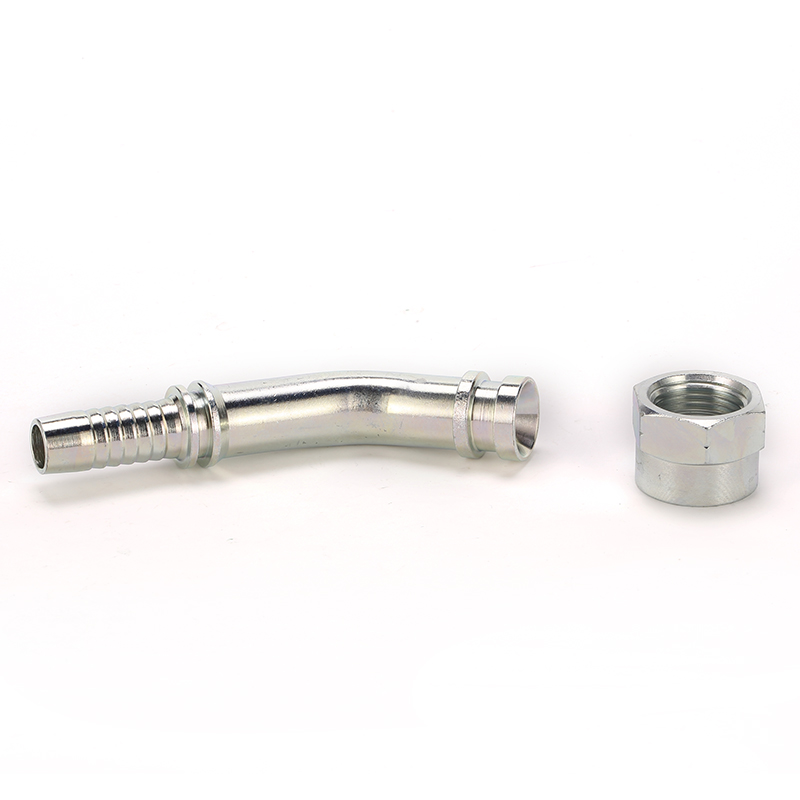

29641 45° Elbow JIS Female GAS 60° Cone Hose Fittings

Description:

The 29641/29641-W is a female JIS hose fitting which features an internal 60-degree cone seat thread and a 45-degree elbow. A JIS female hose fitting is a kind of fitting that is utilized for linking hoses in hydraulic and pneumatic systems.

Category: JIS Hose Fittings Tags: Female, Carbon Steel, O-ring, JIS

Description
Package& Shipping

Description

JIS hydraulic fitting dimensions define these fittings’ size and wall thickness according to Japanese standards. Topol Power can offer various types of JIS fittings with tapered and parallel threads.

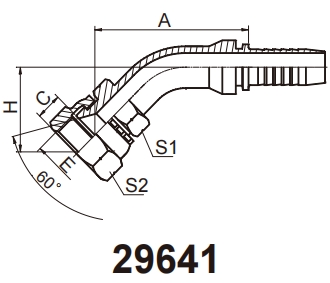

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	C	H	S1	S2
29641-04-04	G1/4″X19	6	04	43.4	8	21.3	19	19
29641-06-06	G3/8″X19	10	06	48.9	9	24.6	22	22
29641-08-08	G1/2″X14	12	08	62.5	12	27.5	27	27
29641-12-12	G3/4″X14	20	12	81.3	13.5	33.9	32	32
29641-16-16	G1″X11	25	16	87.3	16	36	41	41
29641-20-20W	G1.1/4″X11	32	20	107.3	18.5	46.5	50	50
29641-24-24W	G1.1/2″X11	40	24	122.8	19	50.8	55	55
29641-32-32W	G2″X11	50	32	143	23	60	70	70

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
