Description:

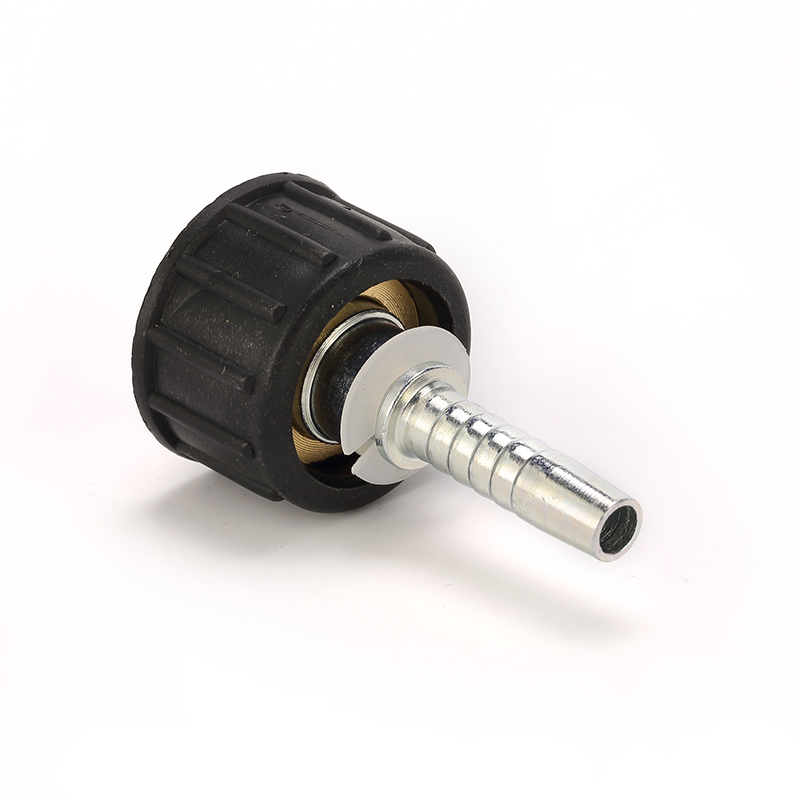

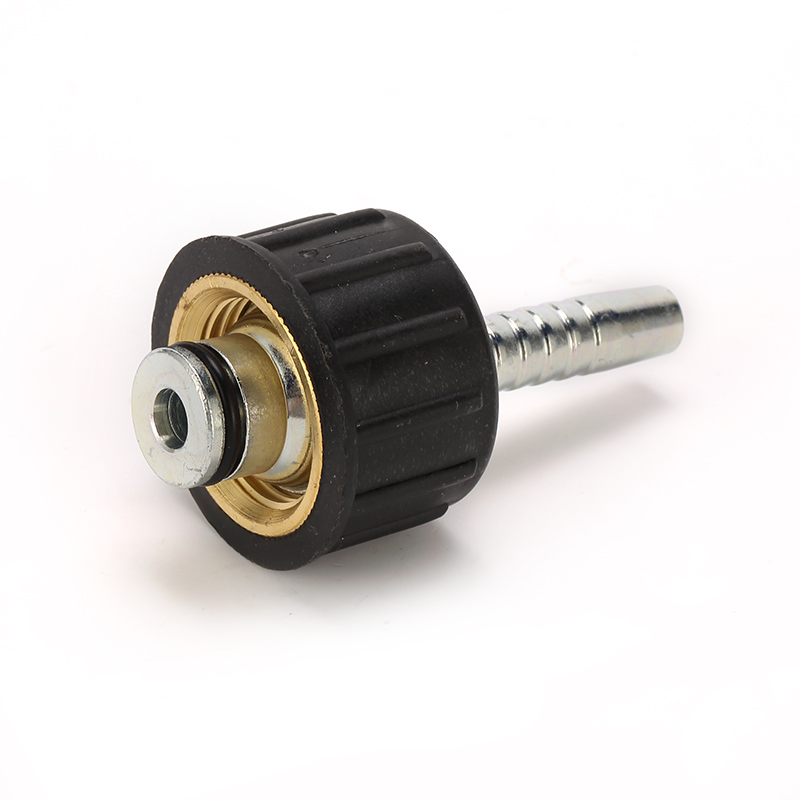

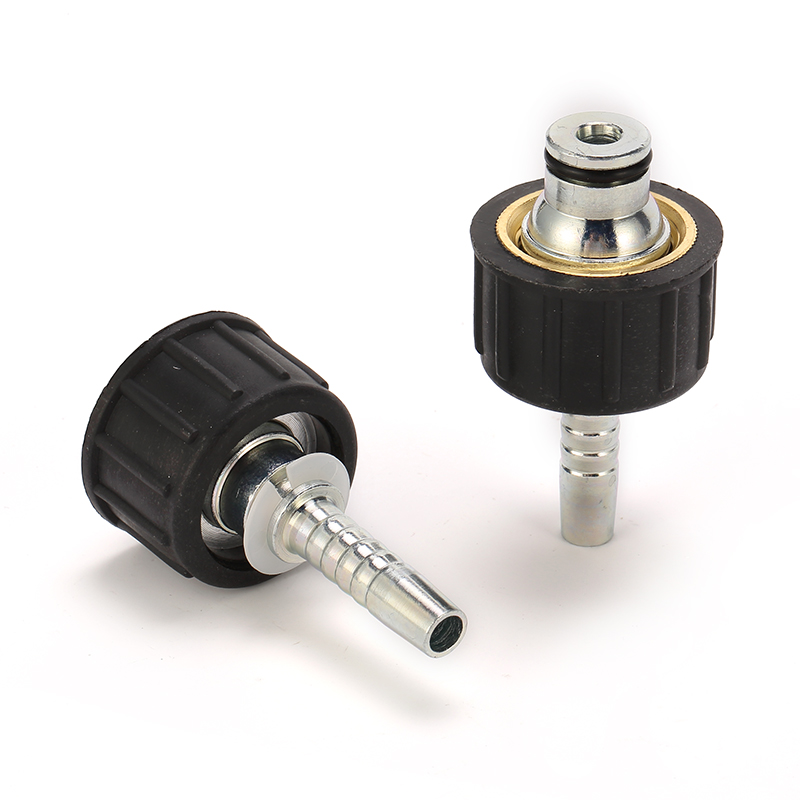

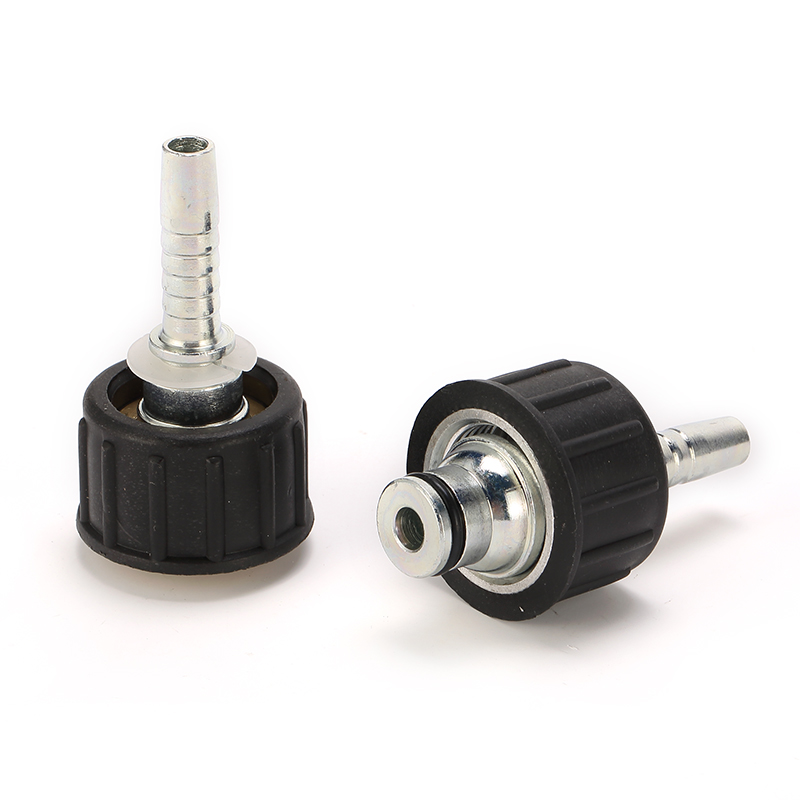

The 20011 metric female fitting is a straight fitting that has a metric thread on one end and a smooth hose tail on the other for high pressure water washing.
"*" indicates required fields
Metric female multi-seal threaded fittings, available in straight, 45°, and 90°types. Topol Power hose fitting can be applied in many hydraulic fluid applications, they are usually available in standard thread sizes such as 1/4″, 3/8″, and 1/2″.

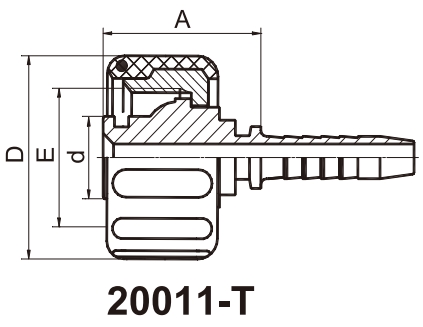

| PART NO. | THREAD E | HOSE BORE | O-RING | DIMENSIONS | |||
| DN | DASH | A | d | D | |||
| 20011-22-04T | M22X1.5 | 6 | 4 | O10.0X2.0 | 25 | 14 | 34.5 |
| 20011-22-05T | M22X1.5 | 8 | 5 | O10.0X2.0 | 32.7 | 14 | 34.5 |
| 20011-22-06T | M22X1.5 | 10 | 6 | O10.0X2.0 | 28 | 14 | 34.5 |
We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.
It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
