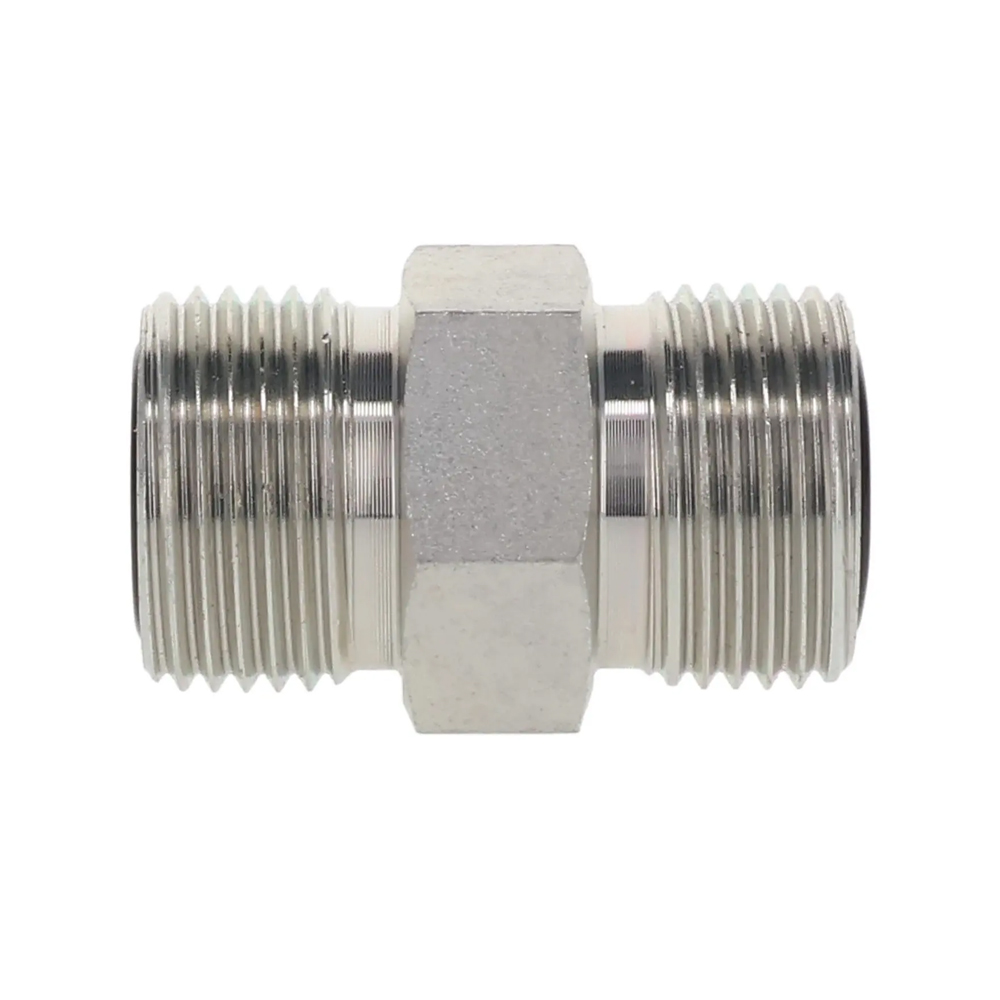

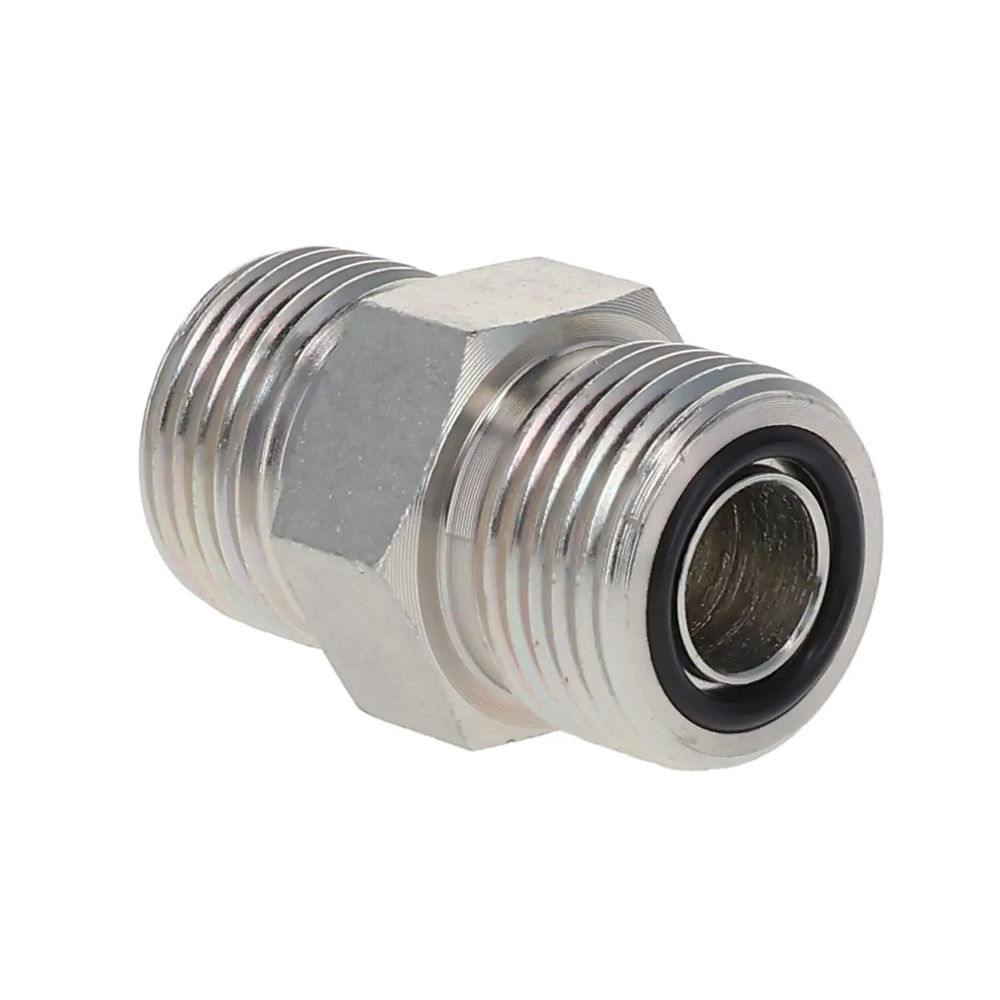

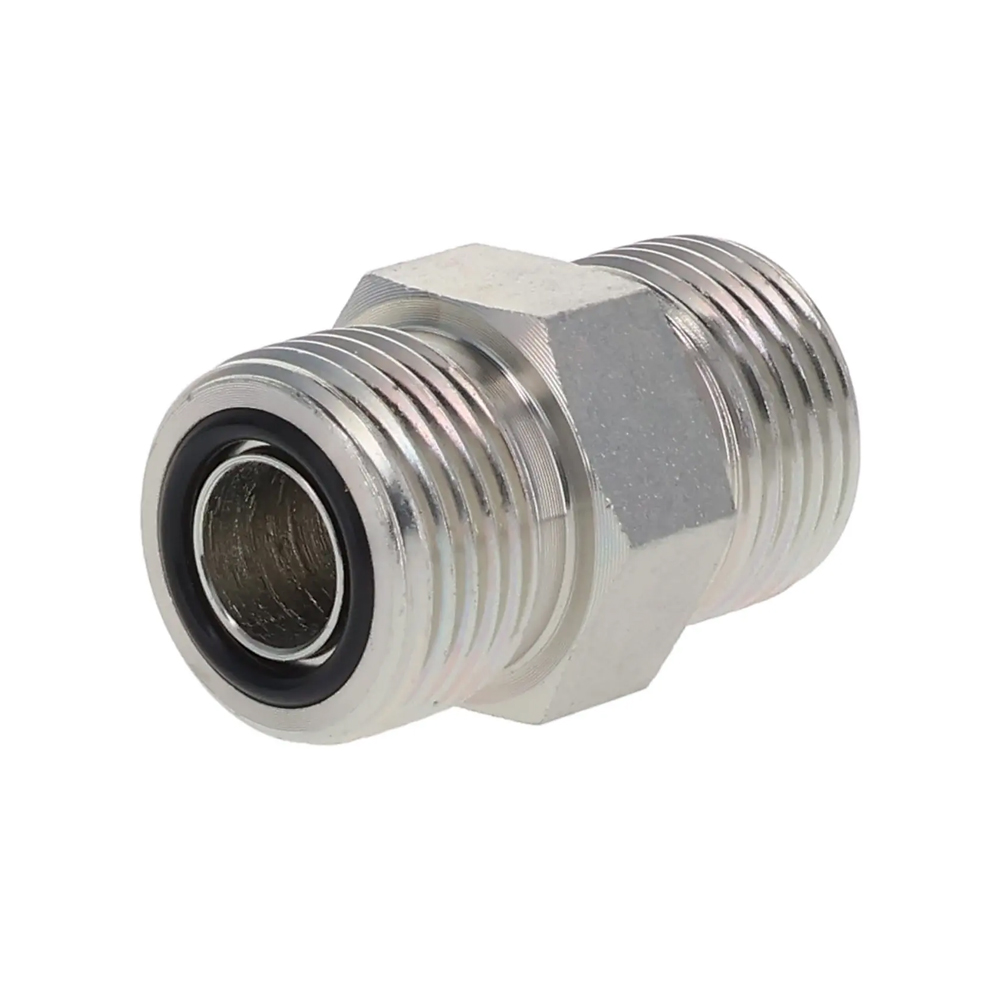

1F ORFS Male O-Ring Facel Seal Adapter

Description:

1F-O-Ring Face Seal (ORFS) Adapters are forged from high-pressure steel and treated with Carbon Zinc Trivalent for enhanced corrosion resistance.

"*" indicates required fields

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

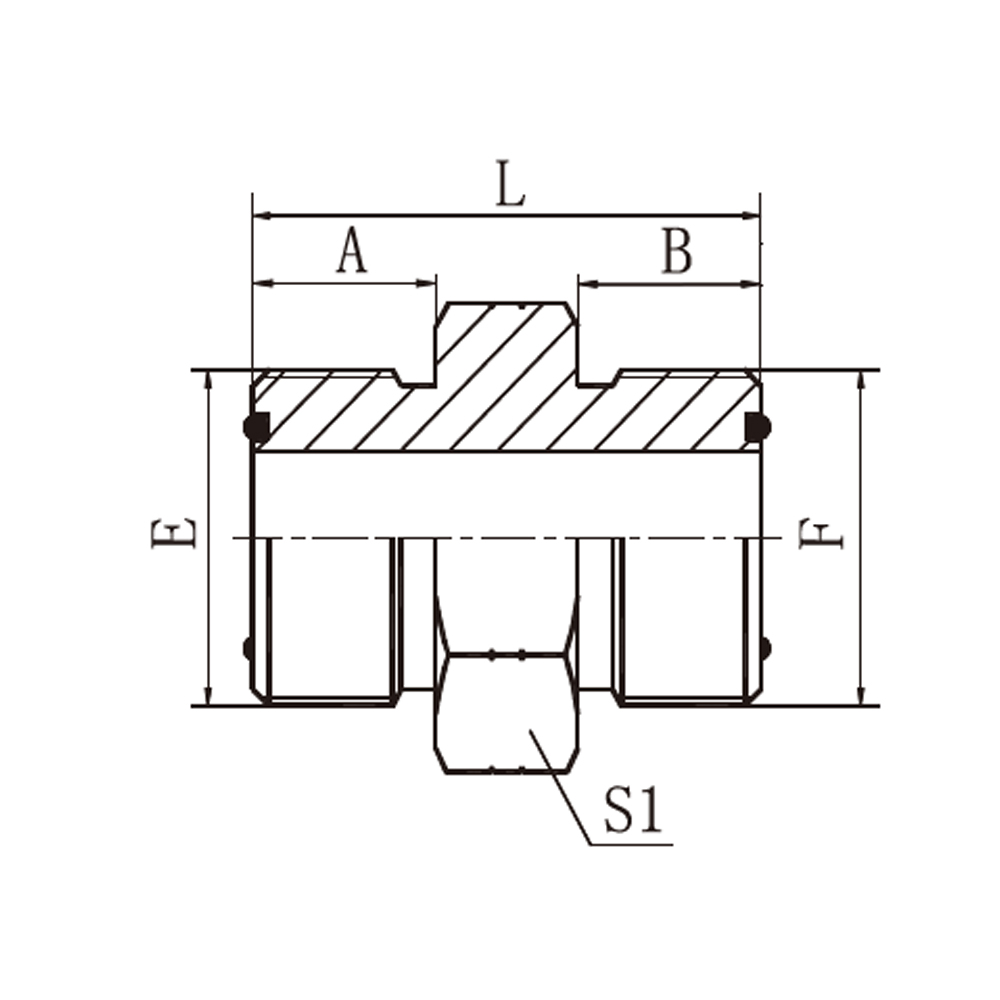

PART NO.	THREAD		O-RING		DIMENSIONS
PART NO.	E	F	E	F	A	B	L	S1
1F-04	9/16″X18	9/16″X18	O011	O011	10	10	27.5	17
1F-04-06	9/16″X18	11/16″X16	O011	O012	9.8	11.2	29.7	19
1F-04-08	9/16″X18	13/16″X16	O011	O014	9.8	12.8	32.5	22
1F-06	11/16″X16	11/16″X16	O012	O012	11.2	11.2	31.1	19
1F-06-08	11/16″X16	13/16″X16	O012	O014	11.2	12.8	33.8	22
1F-06-10	11/16″X16	1″X14	O012	O016	11.2	15.5	38	27
1F-08	13/16″X16	13/16″X16	O014	O014	13	13	35.4	22
1F-08-10	13/16″X16	1″X14	O014	O016	12.8	15.5	40	27
1F-08-12	13/16″X16	1.3/16″X12	O014	O018	12.8	17	43	32
1F-10	1″X14	1″X14	O016	O016	15.5	15.5	42.5	27
1F-10-12	1″X14	1.3/16″X12	O016	O018	15.5	17	45.5	32
1F-12	1.3/16″X12	1.3/16″X12	O018	O018	17	17	47.1	32
1F-12-16	1.3/16″X12	1.7/16″X12	O018	O021	17	17.5	45.5	38
1F-12-20	1.3/16″X12	1.11/16″X12	O018	O025	17	17.5	50.5	46
1F-16	1.7/16″X12	1.7/16″X12	O021	O021	17.5	17.5	49.3	38
1F-16-20	1.7/16″X12	1.11/16″X12	O021	O025	17.5	17.5	51.3	46
1F-16-24	1.7/16″X12	2″X12	O021	O029	17.5	17.5	53	55
1F-20	1.11/16″X12	1.11/16″X12	O025	O025	17.5	17.5	51.3	46
1F-20-24	1.11/16″X12	2″X12	O025	O029	17.5	17.5	53	55
1F-24	2″X12	2″X12	O029	O029	17.5	17.5	53	55
