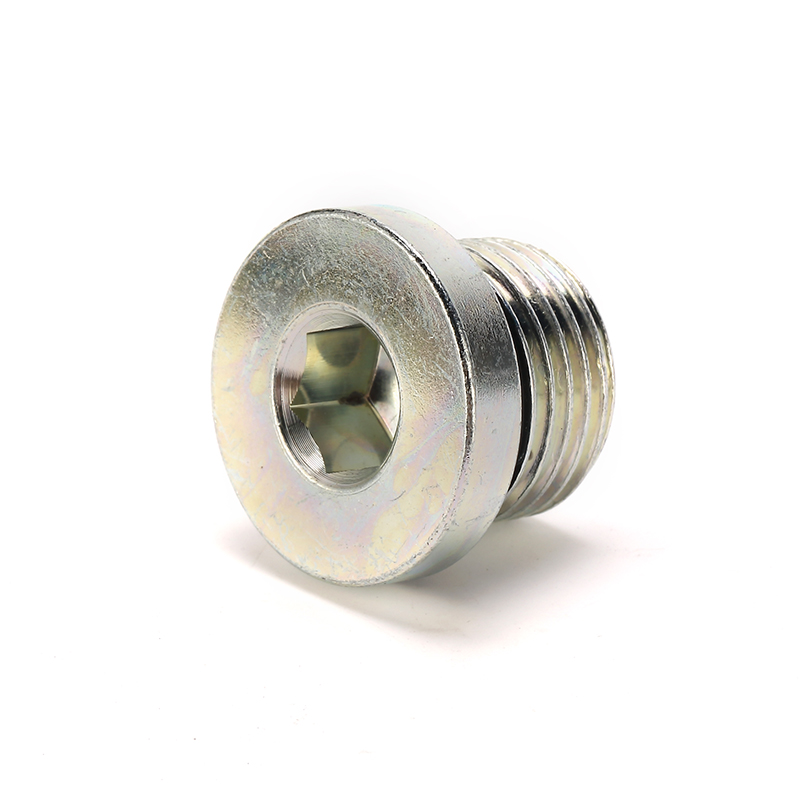

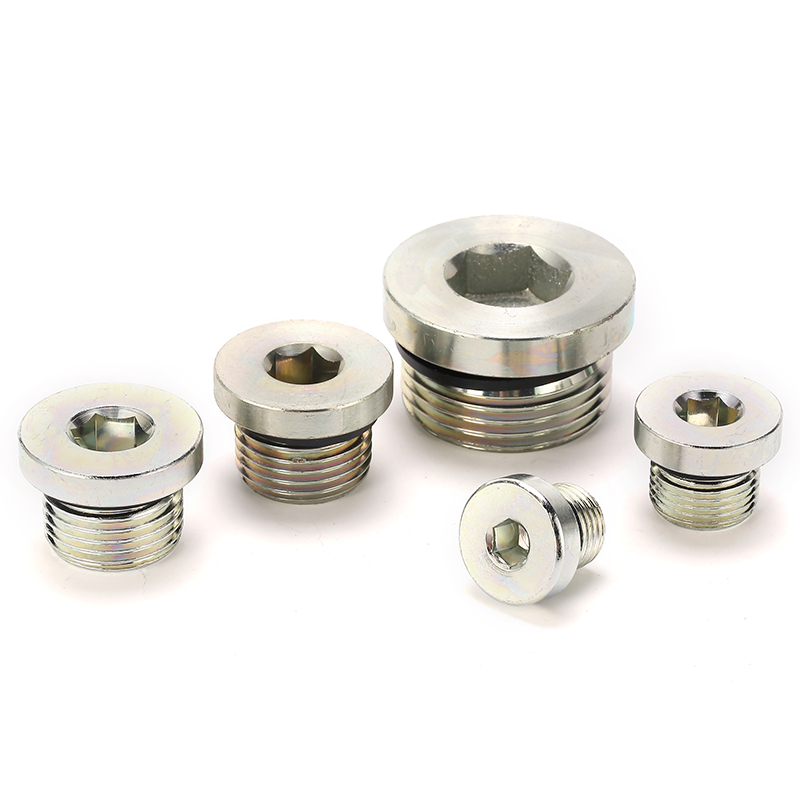

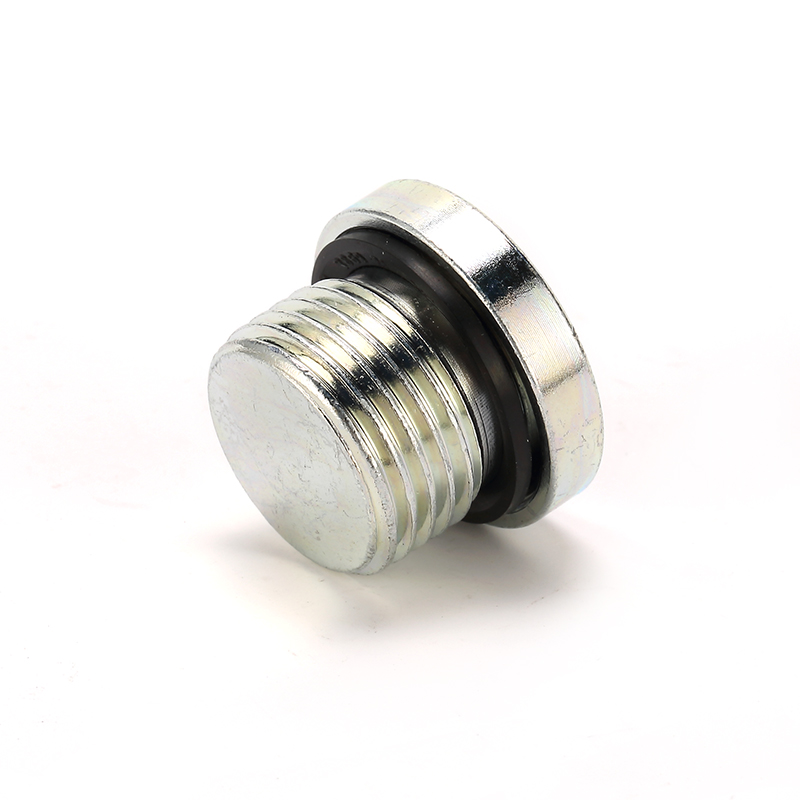

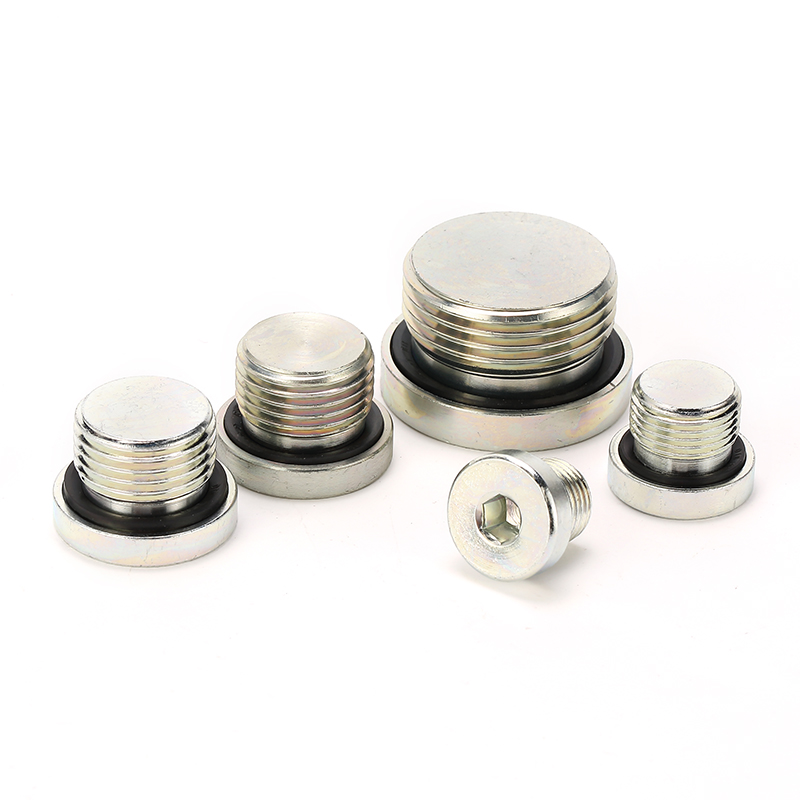

4BN-WD Captive Seal BSP Hex Plug

Description:

4BN-WD BSP plug hydraulic fitting is the male captive seal plug fitting. BSP male thread, hexagonal plug for adhesive sealing.

Category: BSP Hydraulic Adapter Tags: 4BN-WD, BSP, O-ring, Plug

Description
Package& Shipping

Description

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

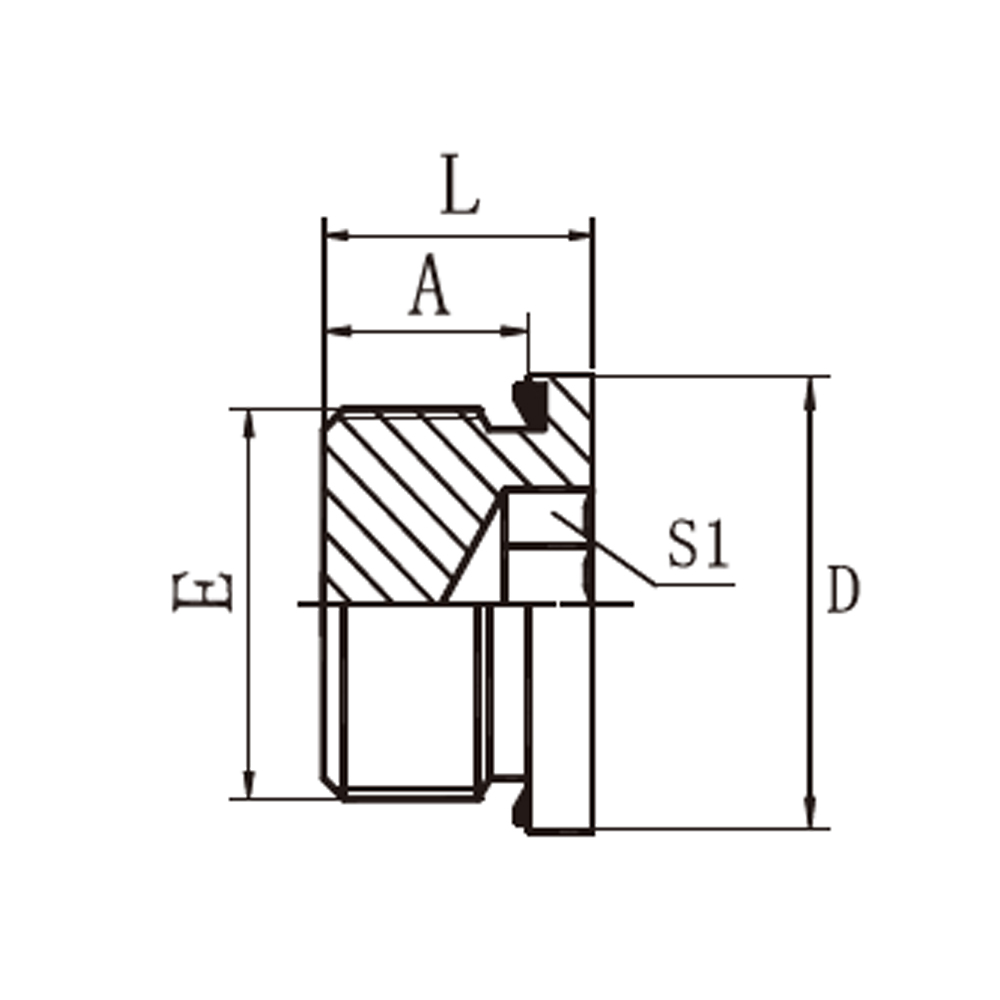

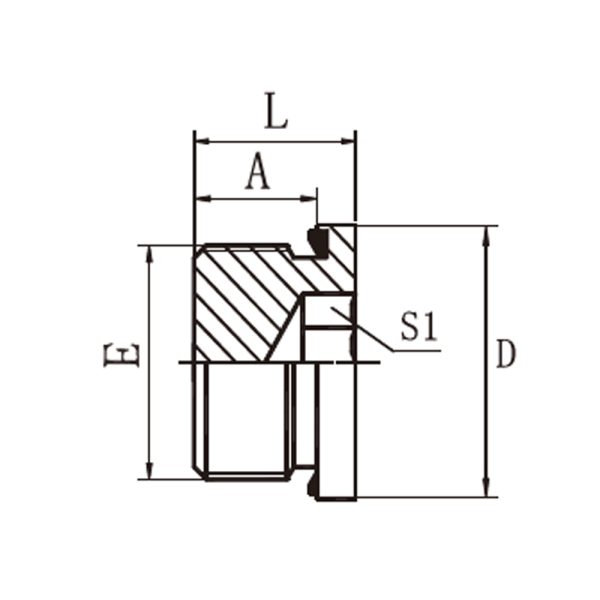

PART NO.	THREAD	CAPTIVE	DIMENSIONS
PART NO.	E	E	A	L	S1	D
4BN-02WD	G1/8″X28	WD-B02	8	12.2	5	Φ14
4BN-04WD	G1/4″X19	WD-B04	12	17.2	6	Φ18
4BN-06WD	G3/8″X19	WD-B06	12	17.2	8	Φ22
4BN-08WD	G1/2″X14	WD-B08	14	19.2	10	Φ25
4BN-12WD	G3/4″X14	WD-B12	16	21.2	12	Φ32
4BN-16WD	G1″X11	WD-B16	16	22.8	17	Φ39
4BN-20WD	G1.1/4″”X11	WD-B20	20	26.8	22	Φ49
4BN-24WD	G1.1/2″X11	WD-B24	22	28.8	24	Φ55

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
