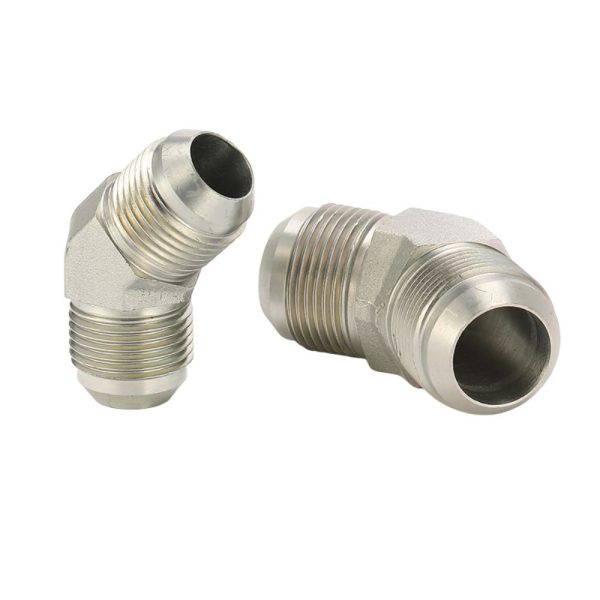

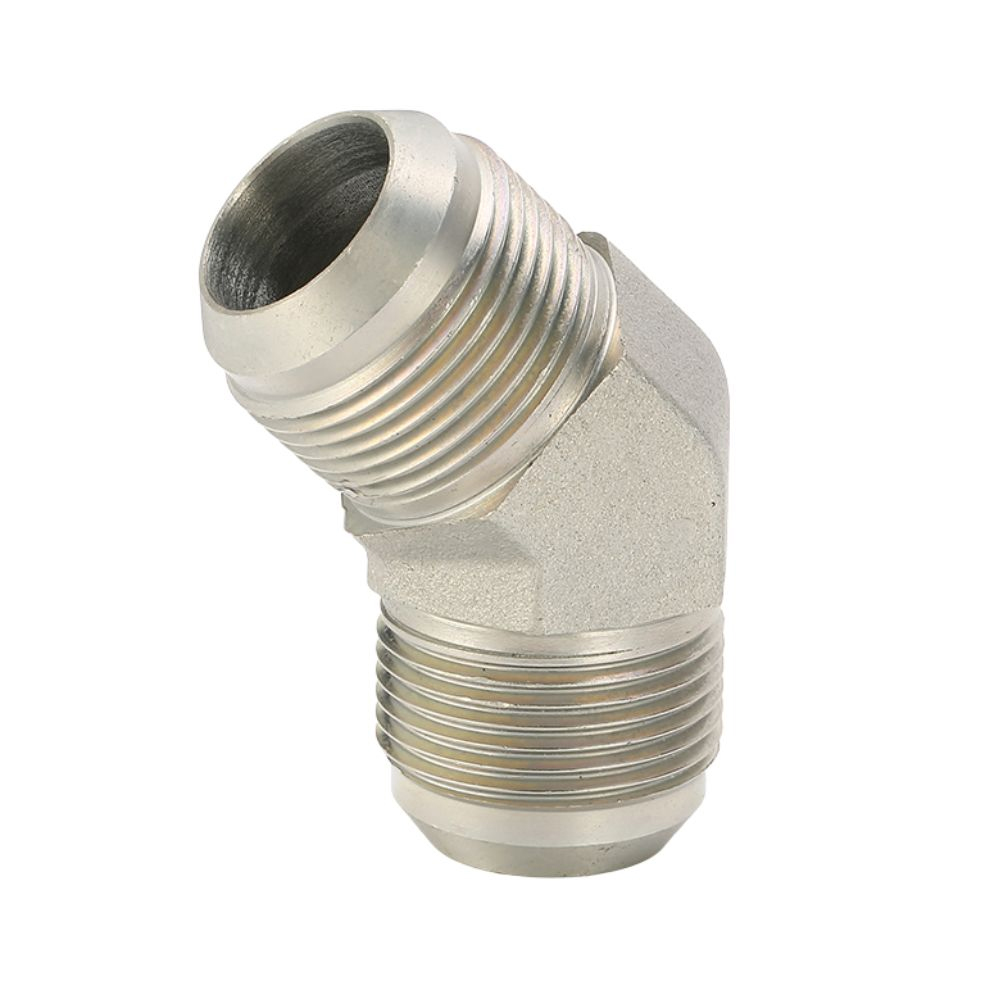

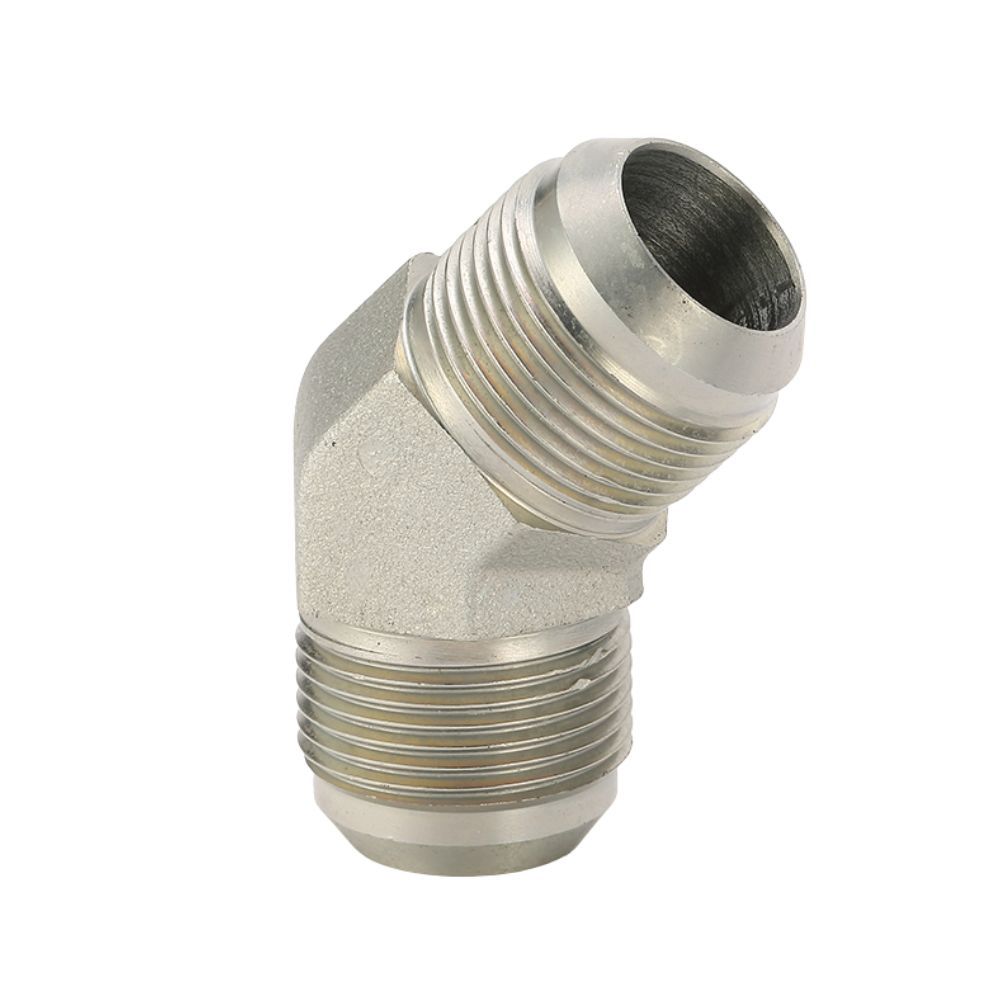

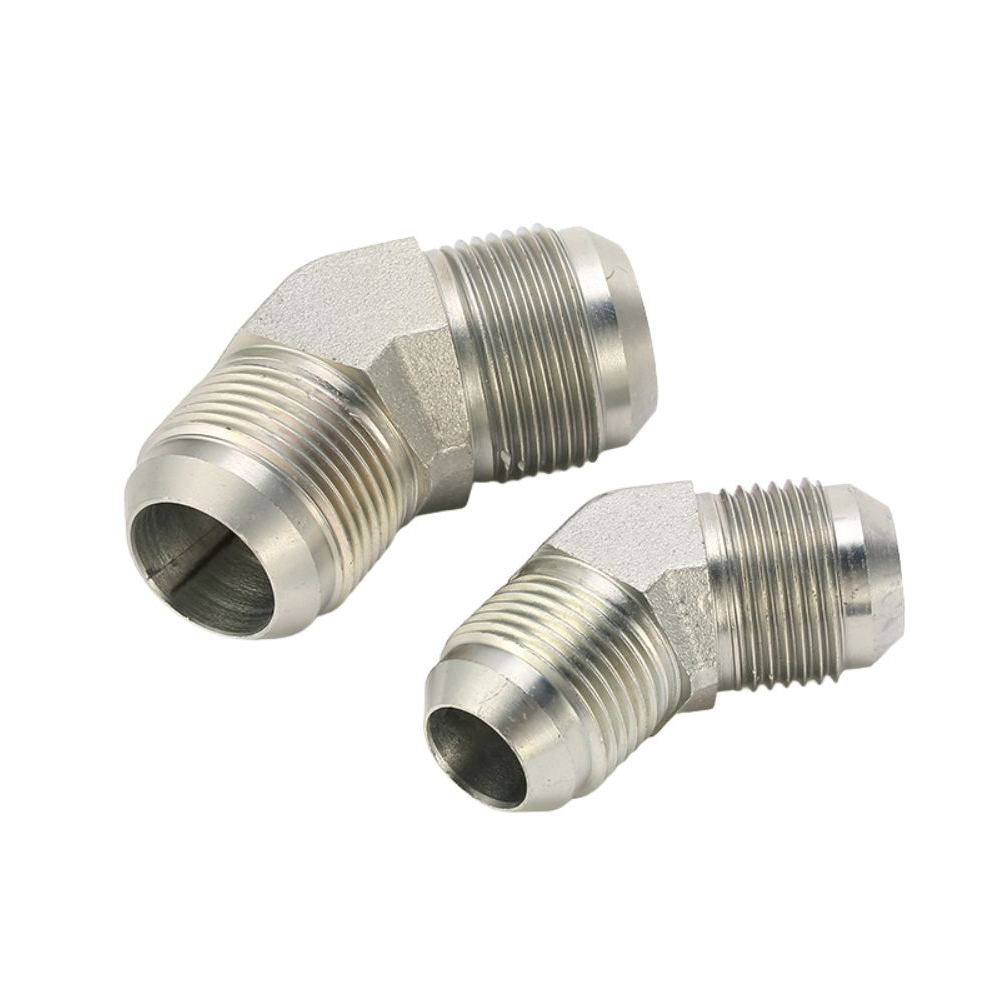

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

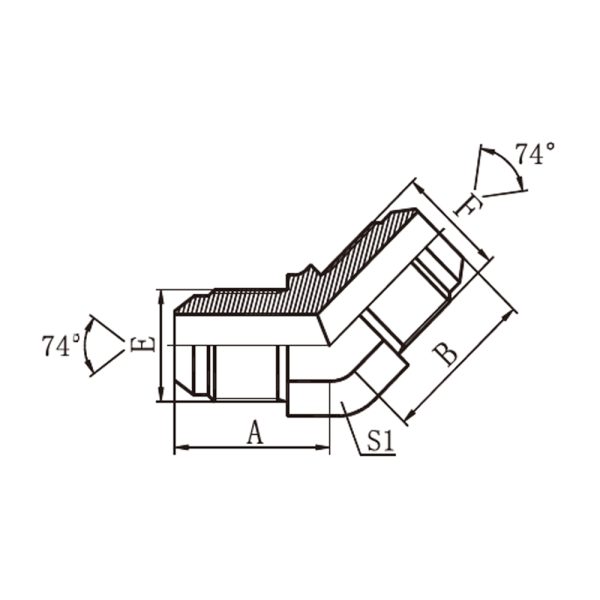

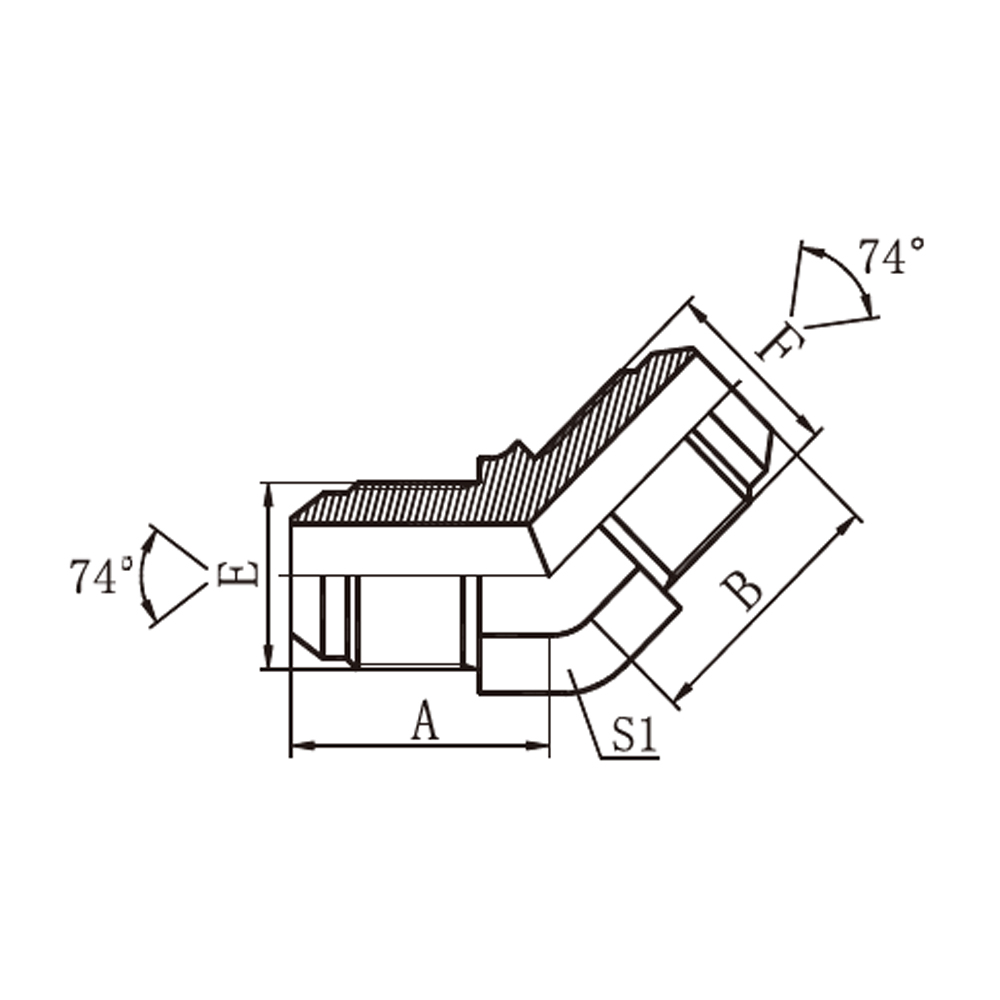

| PART NO. | THREAD | DIMENSIONS | |||
| E | F | A | B | S1 | |
| 1J4-04 | 7/16″X20 | 7/16″X20 | 21.5 | 21.5 | 11 |
| 1J4-05 | 1/2″X20 | 1/2″X20 | 23 | 23 | 14 |
| 1J4-06 | 9/16″X18 | 9/16″X18 | 22.8 | 22.8 | 14 |
| 1J4-08 | 3/4″X16 | 3/4″X16 | 26.8 | 26.8 | 19 |
| 1J4-10 | 7/8″X14 | 7/8″X14 | 31 | 31 | 22 |
| 1J4-12 | 1.1/16″X12 | 1.1/16″X12 | 35.5 | 35.5 | 27 |
| 1J4-16 | 1.5/16″X12 | 1.5/16″X12 | 38.5 | 38.5 | 33 |
