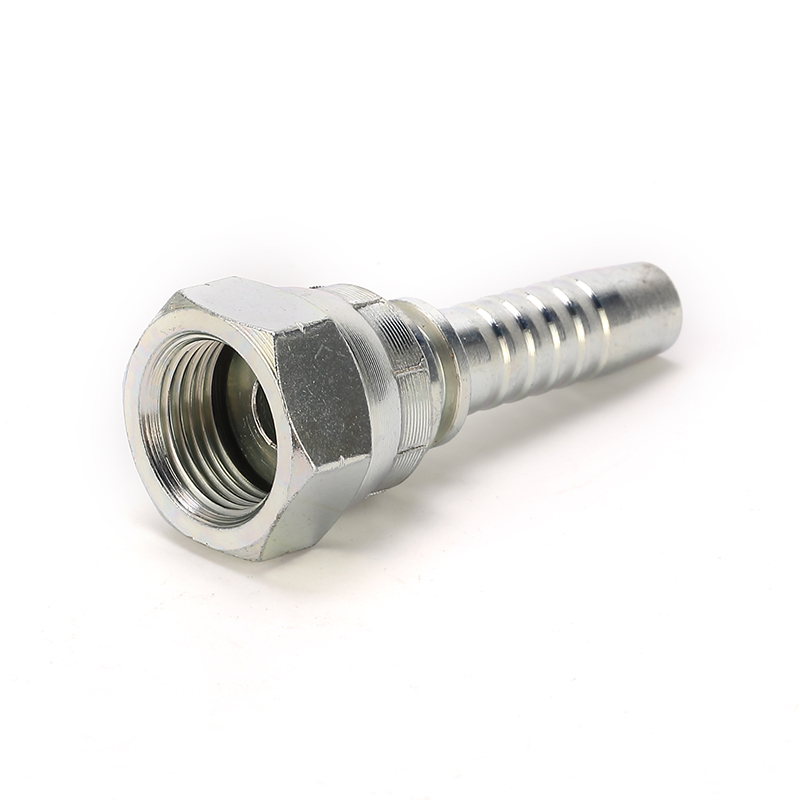

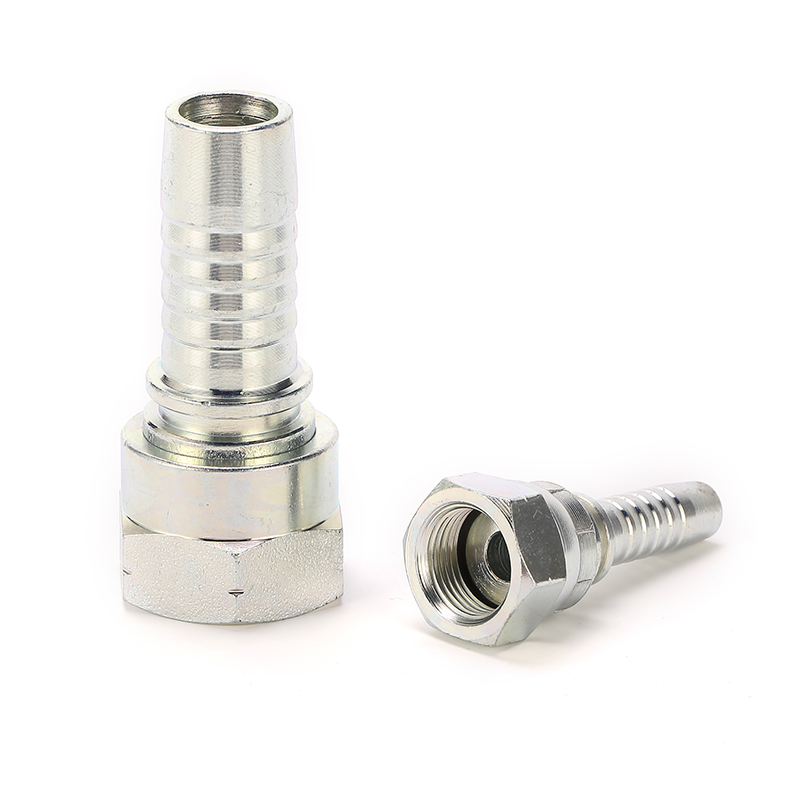

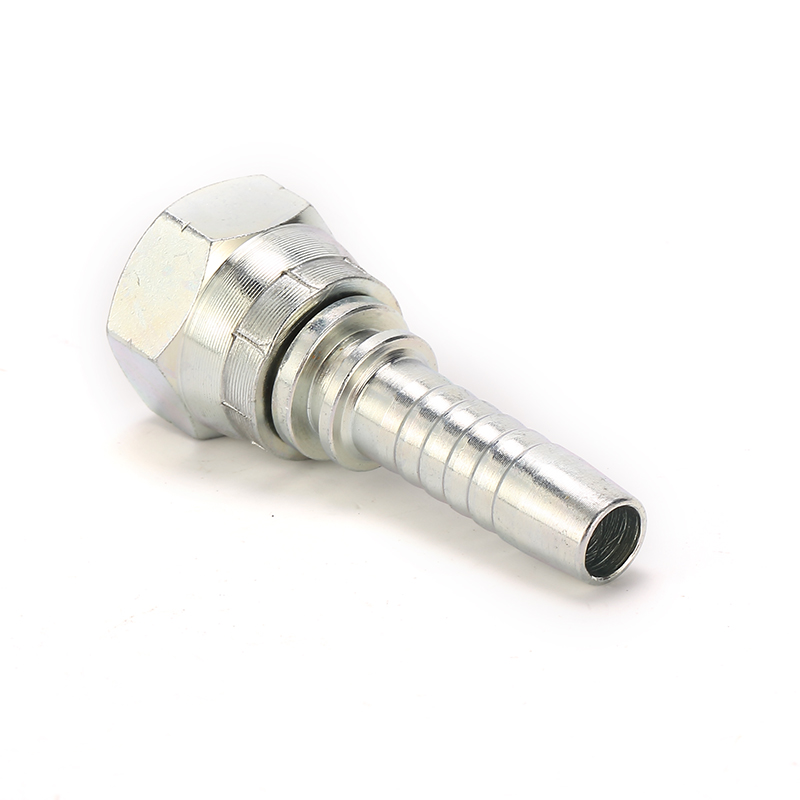

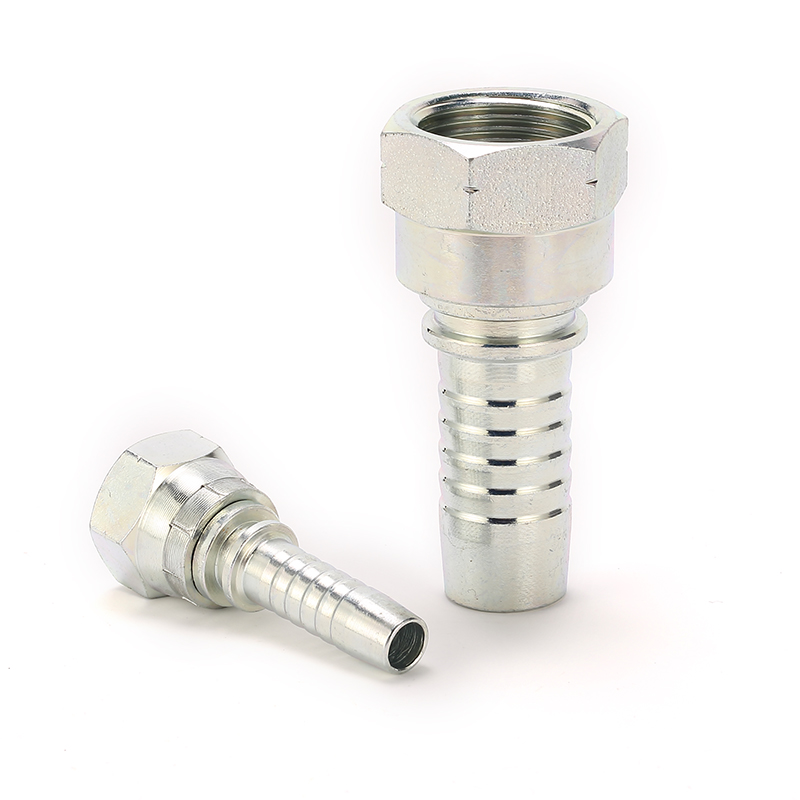

22211 BSP Female Flat Seat Hydraulic Hose And Fitting

Description:

The 22211-BSP hydraulic hose fitting is a female fitting featuring a ball seat, making it suitable for use in a variety of hydraulic fluid systems. BSP or British Standard Pipe, refers to a collection of technical standards that specify a particular type of thread. These standards are recognized globally for the interconnection and sealing of pipes and fittings.

"*" indicates required fields

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

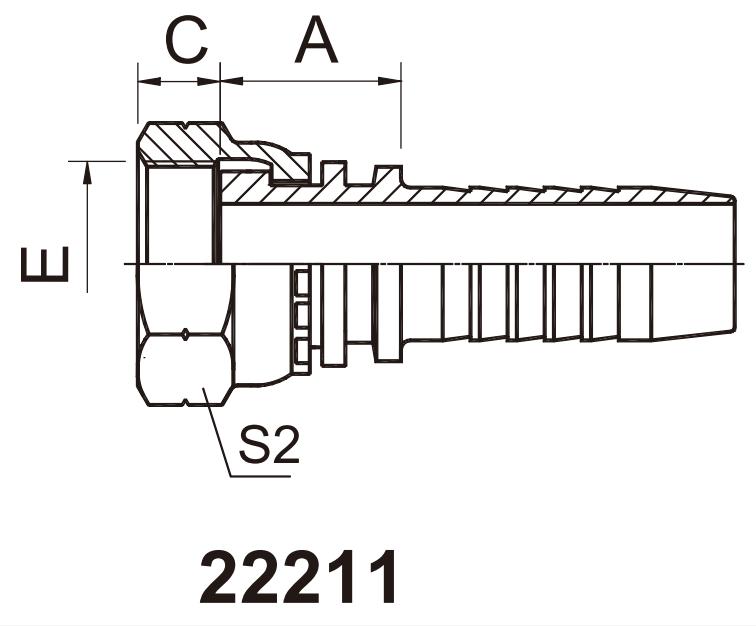

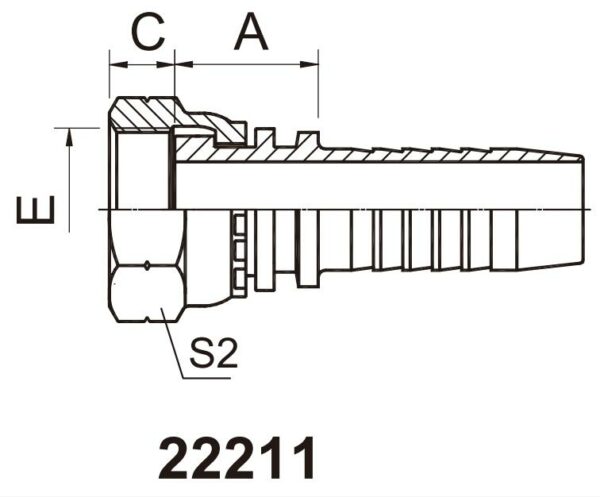

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	C	S2
22211-04-04	G1/4″X19	6	04	15.5	8	19
22211-04-06	G1/4″X19	10	06	15.5	8	19
22211-06-04	G3/8″X19	6	04	17	9	22
22211-06-05	G3/8″X19	8	05	17	9	22
22211-06-06	G3/8″X19	10	06	16.5	9	22
22211-06-08	G3/8″X19	12	08	17.5	9	22
22211-08-06T	G1/2″X14	10	06	18	10.5	27
22211-08-08	G1/2″X14	12	08	18.5	10.5	27
22211-10-08	G5/8″X14	12	08	20	12	30
22211-10-10	G5/8″X14	16	10	21	12	30
22211-12-08T	G3/4″X14	12	08	20.5	13.5	32
22211-12-10	G3/4″X14	16	10	21.5	13.5	32
22211-12-12	G3/4″X14	20	12	21.5	13.5	32
22211-16-12T	G1″X11	20	12	21.5	15.5	41
22211-16-16	G1″X11	25	16	23	15.5	41
22211-20-20W	G1.1/4″X11	32	20	26	15.5	50
22211-24-24W	G1.1/2″X11	40	24	27.5	17.5	55
22211-32-32W	G2″X11	50	32	30.5	23	70

Click to enlarge

Category: BSP Hose Fittings Tags: BSP, british pipe fittings, Female, Carbon Steel

Description
Package& Shipping

Description

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	C	S2
22211-04-04	G1/4″X19	6	04	15.5	8	19
22211-04-06	G1/4″X19	10	06	15.5	8	19
22211-06-04	G3/8″X19	6	04	17	9	22
22211-06-05	G3/8″X19	8	05	17	9	22
22211-06-06	G3/8″X19	10	06	16.5	9	22
22211-06-08	G3/8″X19	12	08	17.5	9	22
22211-08-06T	G1/2″X14	10	06	18	10.5	27
22211-08-08	G1/2″X14	12	08	18.5	10.5	27
22211-10-08	G5/8″X14	12	08	20	12	30
22211-10-10	G5/8″X14	16	10	21	12	30
22211-12-08T	G3/4″X14	12	08	20.5	13.5	32
22211-12-10	G3/4″X14	16	10	21.5	13.5	32
22211-12-12	G3/4″X14	20	12	21.5	13.5	32
22211-16-12T	G1″X11	20	12	21.5	15.5	41
22211-16-16	G1″X11	25	16	23	15.5	41
22211-20-20W	G1.1/4″X11	32	20	26	15.5	50
22211-24-24W	G1.1/2″X11	40	24	27.5	17.5	55
22211-32-32W	G2″X11	50	32	30.5	23	70

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

22211 BSP Female Flat Seat Hydraulic Hose And Fitting

Package:

Delivery Time:
