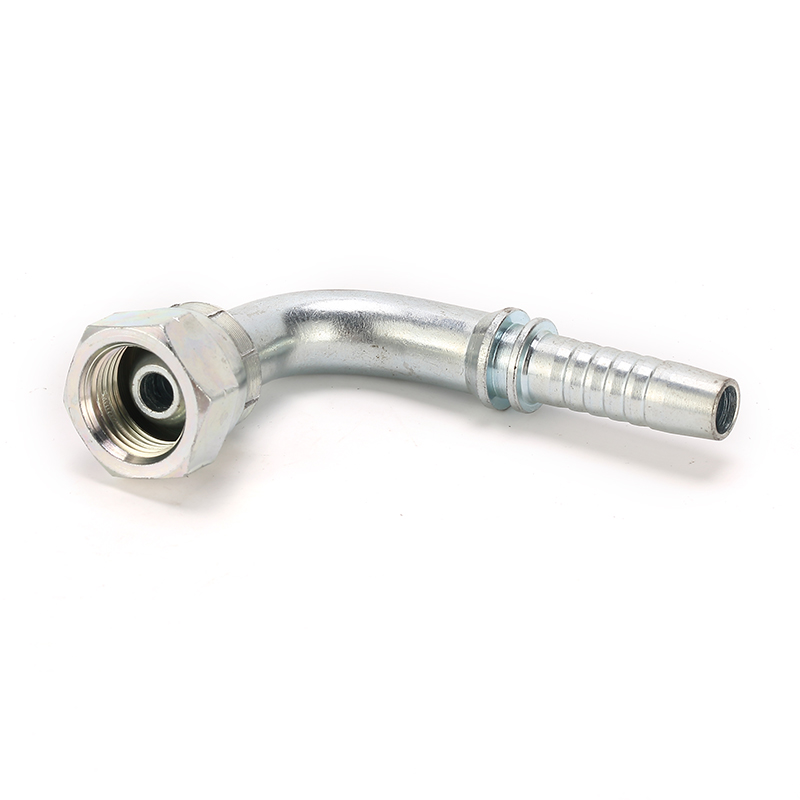

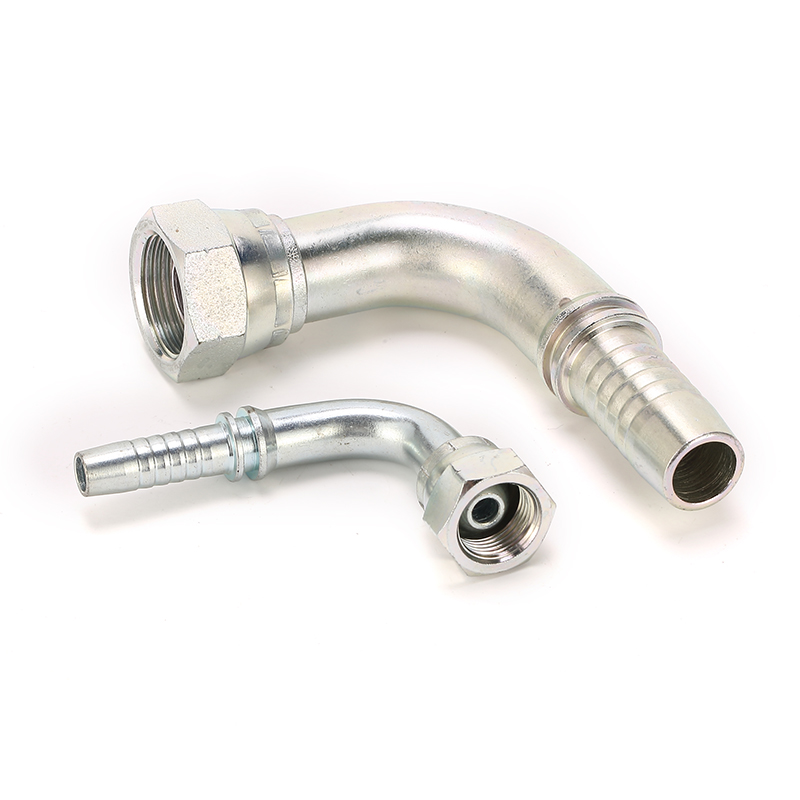

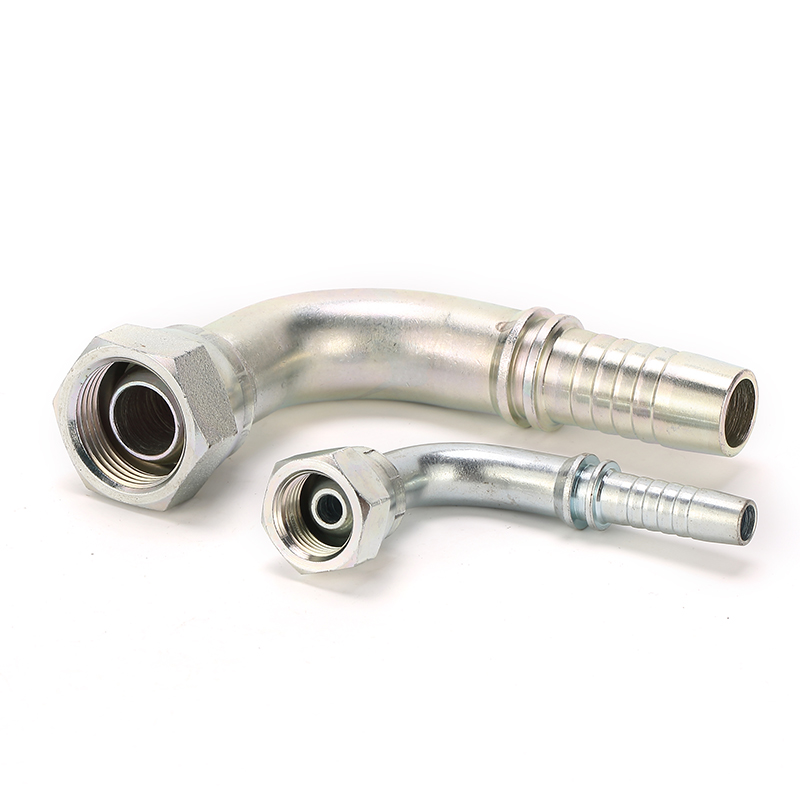

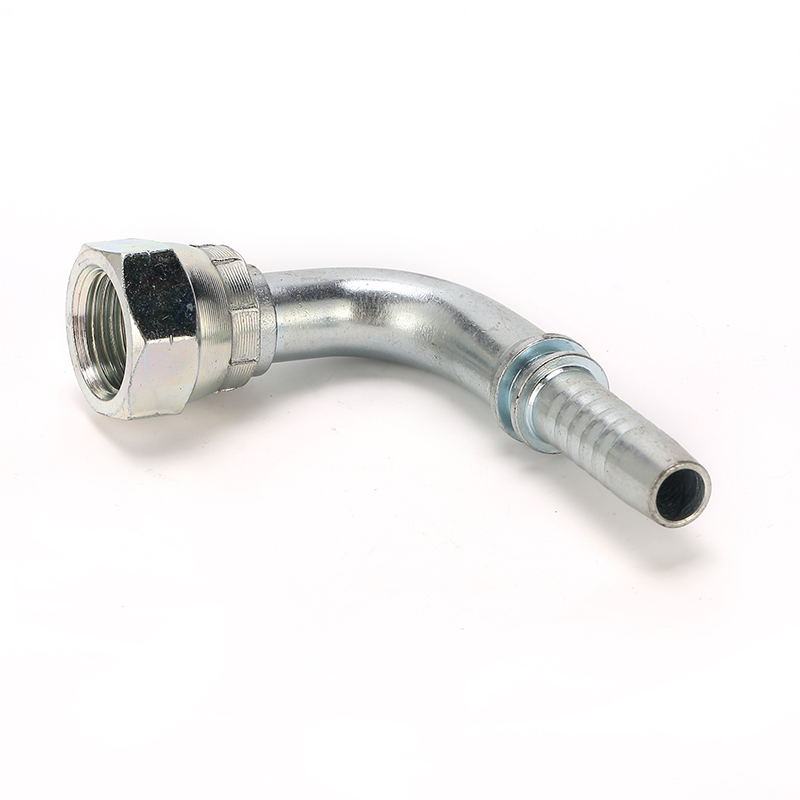

22191 90° Elbow BSP Female Hydraulic Hose Fittings

Description:

The 22191-BSP hydraulic hose fitting is a female fitting equipped with a ball seat and a 90-degree elbow, suitable for use in various hydraulic fluid systems. BSP which stands for British Standard Pipe, refers to a series of technical standards that outline a specific threading system.

"*" indicates required fields

Our BSP fittings feature high-quality stainless steel construction that can withstand strong working conditions. British Fittings are manufactured using British threads such as British Standard Pipe Parallel (BSPP) and British Standard Pipe Tapered (BSPT). Topol Power directly supplies a wide range of stainless steel BSP fittings.

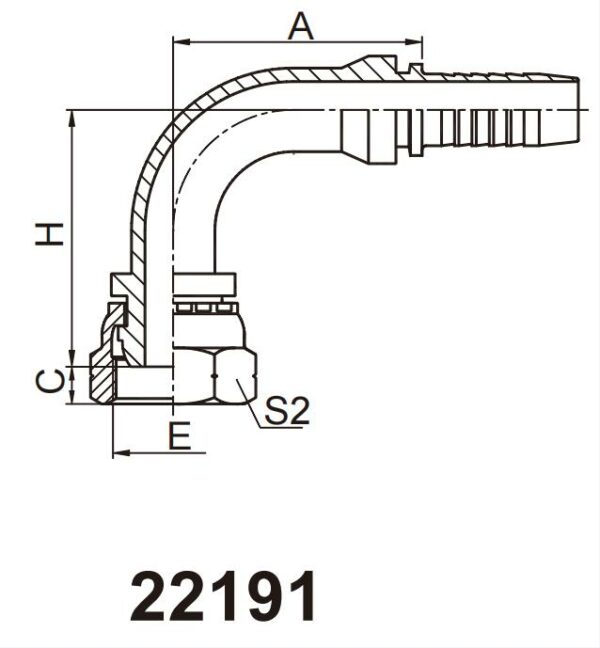

PART NO	THREAD E	HOSEBORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	C	H	S2
22191-02-04	G1/8″X28	6	04	30	2	38	14
22191-04-03	G1/4″X19	5	03	27	4	35	19
22191-04-04	G1/4″X19	6	04	30	4	38	19
22191-04-05	G1/4″X19	8	05	33	4	41.5	19
22191-06-05	G3/8″X19	8	05	33	5	42	22
22191-06-06	G3/8″X19	10	06	35.3	5	44.3	22
22191-06-08	G3/8″X19	12	08	41	5	50	22
22191-08-06T	G1/2″X14	10	06	35.3	6	46.8	27
22191-08-08	G1/2″X14	12	08	41	6	52.5	27
22191-10-10	G5/8″X14	16	10	56.5	8	57.5	30
22191-10-12	G5/8″X14	20	12	65.5	8	67	30
22191-12-08T	G3/4″X14	12	08	41	9.5	52	32
22191-12-10	G3/4″X14	16	10	56.5	9.5	58.5	32
22191-12-12	G3/4″X14	20	12	65.5	9.5	68	32
22191-16-12T	G1″X11	20	12	66.2	11	68.5	41
22191-16-14	G1″X11	22	14	71.2	11	69.5	41
22191-16-16	G1″X11	25	16	76.7	11	75	41
22191-20-16T	G1.1/4″X11	25	16	76.7	10	78	50
22191-20-20W	G1.1/4″X11	32	20	92.3	10	85.3	50
22191-24-24W	G1.1/2″X11	40	24	109.4	11.5	108	55
22191-32-32W	G2″X11	50	32	133.1	15	123.8	70

Click to enlarge

Category: BSP Hose Fittings Tags: british pipe fittings, Female, Carbon Steel, 90° Elbow, BSP

Description
Package& Shipping

Description

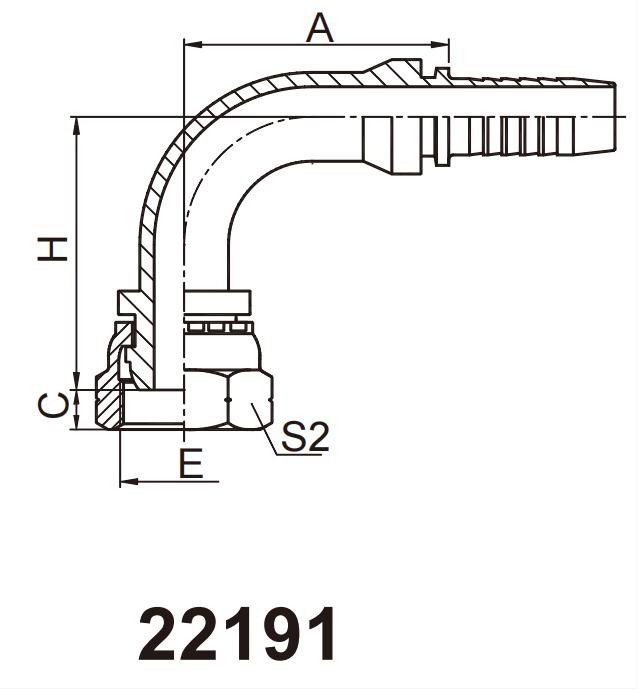

PART NO	THREAD E	HOSEBORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	C	H	S2
22191-02-04	G1/8″X28	6	04	30	2	38	14
22191-04-03	G1/4″X19	5	03	27	4	35	19
22191-04-04	G1/4″X19	6	04	30	4	38	19
22191-04-05	G1/4″X19	8	05	33	4	41.5	19
22191-06-05	G3/8″X19	8	05	33	5	42	22
22191-06-06	G3/8″X19	10	06	35.3	5	44.3	22
22191-06-08	G3/8″X19	12	08	41	5	50	22
22191-08-06T	G1/2″X14	10	06	35.3	6	46.8	27
22191-08-08	G1/2″X14	12	08	41	6	52.5	27
22191-10-10	G5/8″X14	16	10	56.5	8	57.5	30
22191-10-12	G5/8″X14	20	12	65.5	8	67	30
22191-12-08T	G3/4″X14	12	08	41	9.5	52	32
22191-12-10	G3/4″X14	16	10	56.5	9.5	58.5	32
22191-12-12	G3/4″X14	20	12	65.5	9.5	68	32
22191-16-12T	G1″X11	20	12	66.2	11	68.5	41
22191-16-14	G1″X11	22	14	71.2	11	69.5	41
22191-16-16	G1″X11	25	16	76.7	11	75	41
22191-20-16T	G1.1/4″X11	25	16	76.7	10	78	50
22191-20-20W	G1.1/4″X11	32	20	92.3	10	85.3	50
22191-24-24W	G1.1/2″X11	40	24	109.4	11.5	108	55
22191-32-32W	G2″X11	50	32	133.1	15	123.8	70

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
