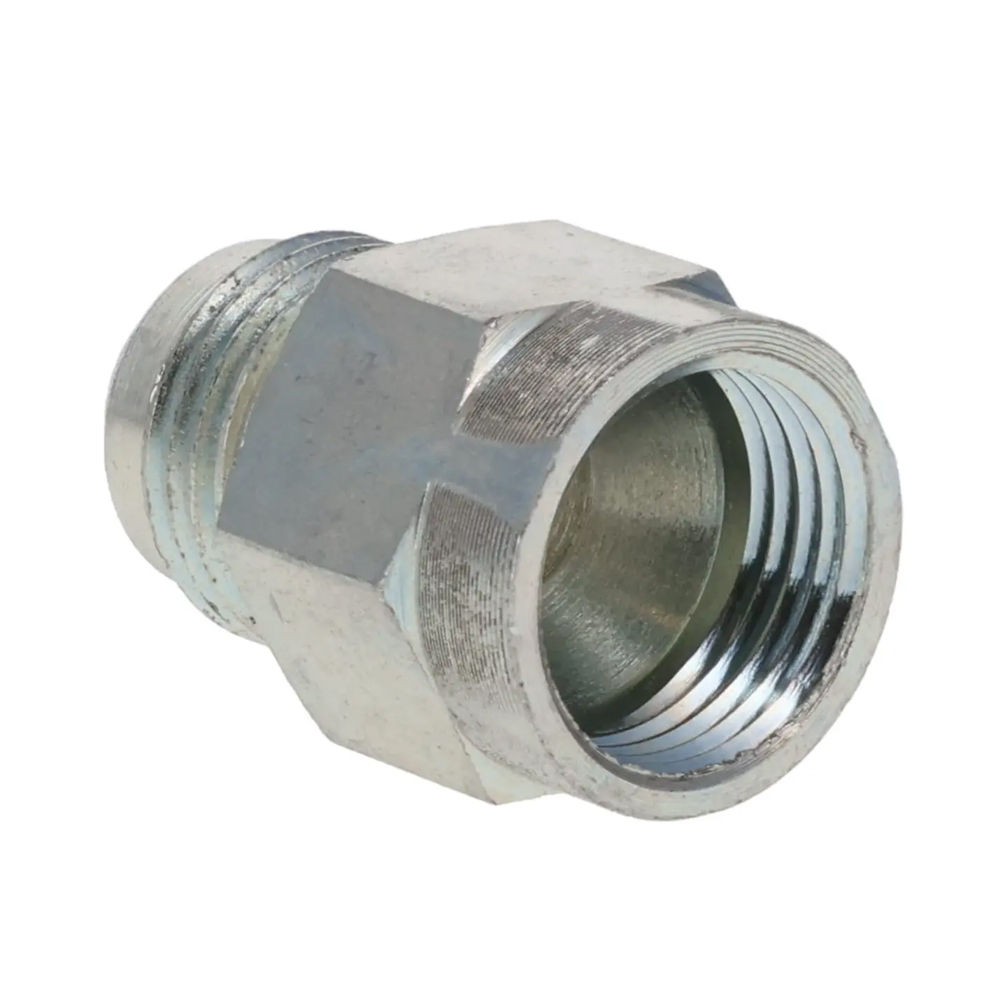

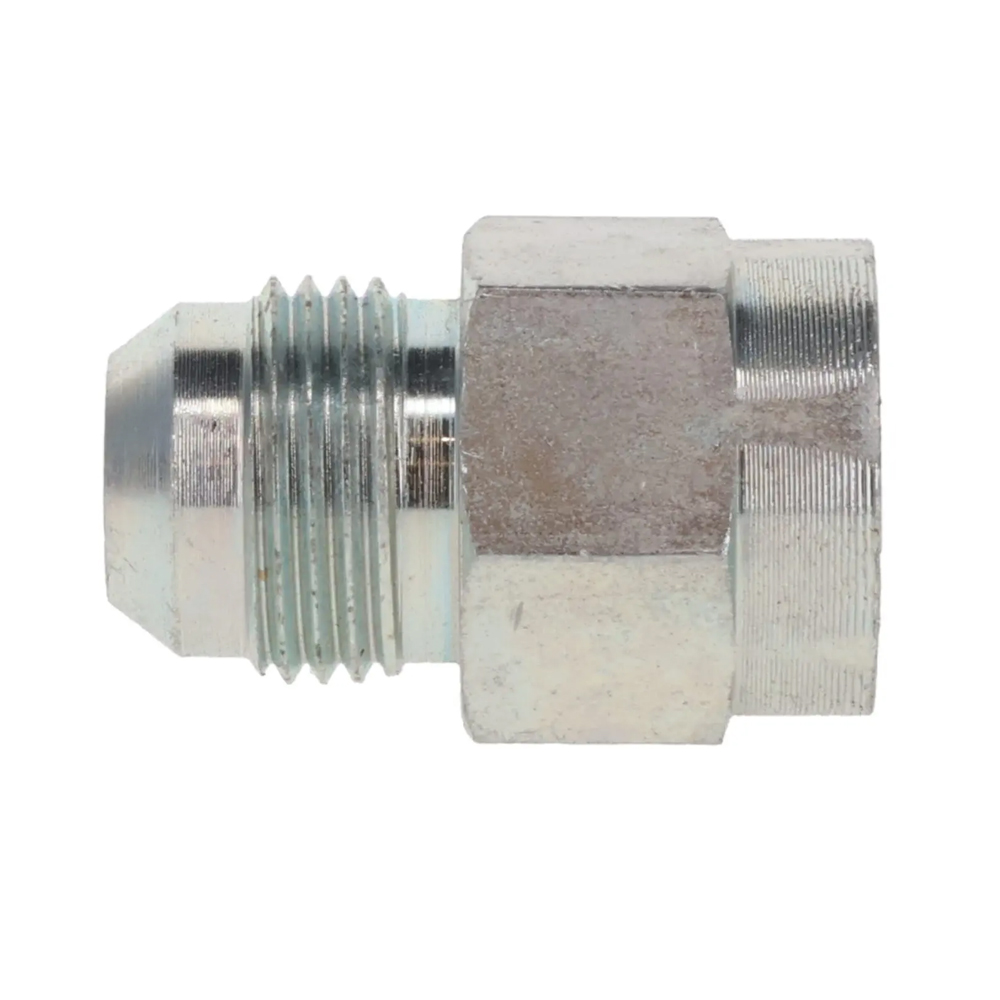

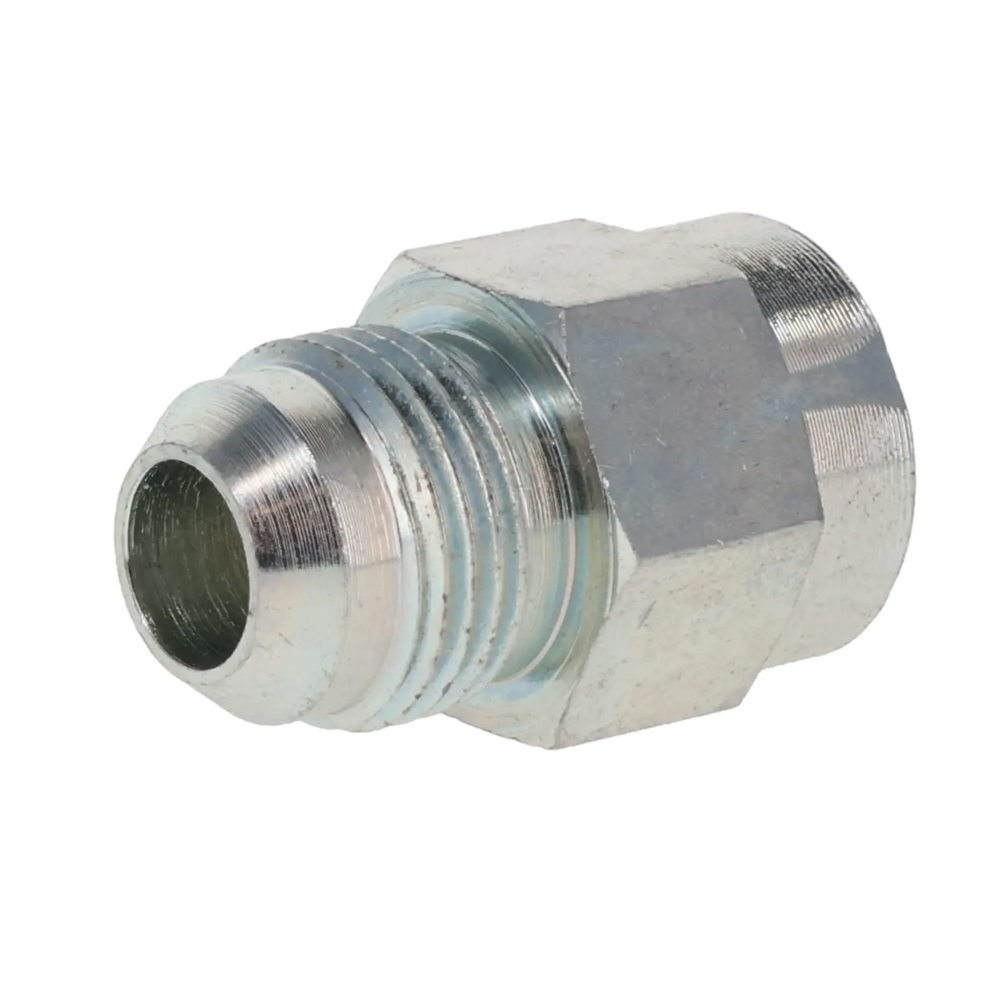

5J-S JIC Male x Female Pipe Adapter

Description:

5J-S JIC male-to-female hydraulic fitting is a 37-degree flare fitting with male and female ends. JIC fittings utilize a 37° flare connection in accordance with the SAE J514 standard.

"*" indicates required fields

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

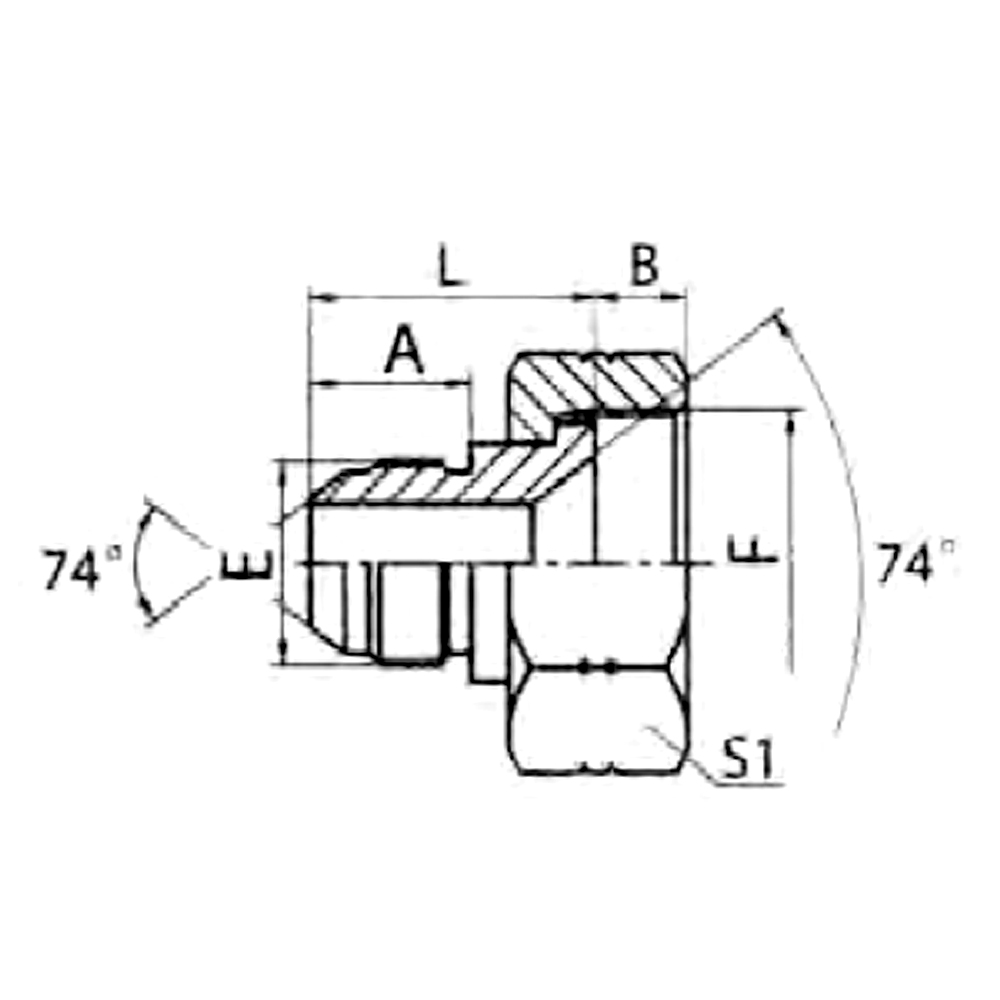

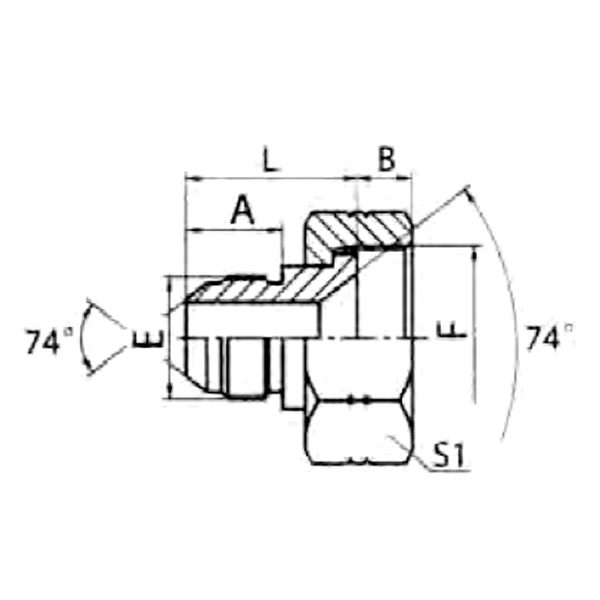

PART NO.	THREAD		DIMENSIONS
PART NO.	E	F	A	B	L	S1
5J-04-06S	7/16″X20	9/16″X18	14	10	26.2	19
5J-04-08S	7/16″x20	3/4″X16	14	11	26.2	24
5J-04-10S	7/16″X20	7/8″X14	14	12	28	27
5J-04-12S	7/16″X20	1.1/16″X12	14	13	29.8	32
5J-04-14S	7/16″X20	1.3/16″X12	14	14	32.5	36
5J-05-08S	1/2″X20	3/4″X16	14	11	26.2	24
5J-05-10S	1/2″X20	7/8″X14	14	12	28	27
5J-05-12S	1/2″X20	1.1/16″X12	14	13	29.8	32
5J-06-08S	9/16″X18	3/4″X16	14.1	11	26.3	24
5J-06-10S	9/16″X18	7/8″X14	14.1	12	28.2	27
5J-06-12S	9/16″X18	1.1/16″X12	14.1	13	30.1	32
5J-06-14S	9/16″X18	1.3/16″X12	14.1	14	32.5	36
5J-06-16S	9/16″X18	1.5/16″X12	14.1	16	33	41
5J-08-12S	3/4″X16	1.1/16″X12	16.7	13	33.3	32
5J-08-14S	3/4″X16	1.3/16″X12	16.7	14	35	36
5J-08-16S	3/4″X16	1.5/16″X12	16.7	16	35.6	41
5J-08-20S	3/4″X16	1.5/8″X12	16.7	15	35.5	50
5J-10-16S	7/8″X14	1.5/16″X12	19.3	16	37.5	41
5J-10-20S	7/8″X14	1.5/8″X12	19.3	15	37.9	50
5J-10-24S	7/8″X14	1.7/8″X12	19.3	19	42	55
5J-12-16S	1.1/16″X12	1.5/16″X12	21.9	16	40.2	41
5J-12-20S	1.1/16″X12	1.5/8″X12	21.9	15	40.6	50
5J-12-24S	1.1/16″X12	1.7/8″X12	21.9	19	42	55
5J-16-20S	1.5/16″X12	1.5/8″X12	23.1	15	41.8	50
5J-16-24S	1.5/16″X12	1.7/8″X12	23.1	19	43.2	55
5J-16-32S	1.5/16″X12	2.1/2″X12	23.1	24	49	75
5J-20-24S	1.5/8″X12	1.7/8″X12	24.3	19	44.3	55
5J-20-32S	1.5/8″X12	2.1/2″X12	24.3	24	50	75
