BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

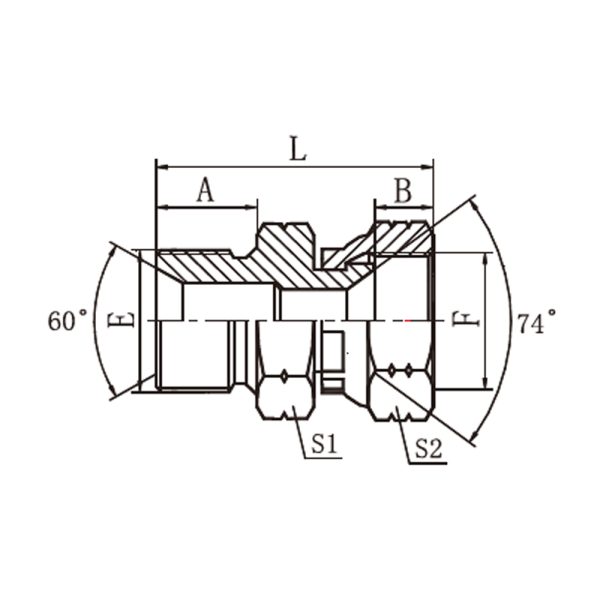

| PART NO. | THREAD | DIMENSIONS | |||||
| E | F | A | B | L | S1 | S2 | |
| 2BJ-02-04 | G1/8″X28 | 7/16″X20 | 10 | 9.5 | 24 | 14 | 17 |
| 2BJ-02-06 | G1/8″X28 | 9/16″X18 | 10 | 9.5 | 24.5 | 14 | 19 |
| 2BJ-04 | G1/4″X19 | 7/16″X20 | 12 | 9.5 | 26.5 | 19 | 17 |
| 2BJ-04-05 | G1/4″X19 | 1/2″X20 | 12 | 9 | 26.5 | 19 | 19 |
| 2BJ-04-06 | G1/4″X19 | 9/16″X18 | 12 | 9.5 | 27.5 | 19 | 19 |
| 2BJ-04-08 | G1/4″X19 | 3/4″X16 | 12 | 10.8 | 29 | 19 | 24 |
| 2BJ-06 | G3/8″X19 | 9/16″X18 | 13.5 | 9.5 | 30.5 | 22 | 19 |
| 2BJ-06-08 | G3/8″X19 | 3/4″X16 | 13.5 | 10.8 | 32.5 | 22 | 24 |
| 2BJ-06-10 | G3/8″X19 | 7/8″X14 | 13.5 | 12 | 33 | 22 | 27 |
| 2BJ-08 | G1/2″X14 | 3/4″X16 | 16 | 10.8 | 37 | 27 | 24 |
| 2BJ-08-06 | G1/2″X14 | 9/16″X18 | 16 | 9.5 | 35 | 27 | 19 |
| 2BJ-08-10 | G1/2″X14 | 7/8″X14 | 16 | 12 | 37.5 | 27 | 27 |
| 2BJ-10 | G5/8″X14 | 7/8″X14 | 17.5 | 12 | 38 | 30 | 27 |
| 2BJ-12 | G3/4″X14 | 1.1/16″X12 | 18.5 | 13 | 42 | 32 | 32 |
| 2BJ-12-08 | G3/4″X14 | 3/4″X16 | 18.5 | 10.8 | 40 | 32 | 24 |
| 2BJ-12-10 | G3/4″X14 | 7/8″X14 | 18.5 | 12 | 41 | 32 | 27 |
| 2BJ-12-16 | G3/4″X14 | 1.5/16″X12 | 18.5 | 14 | 43 | 32 | 41 |
| 2BJ-16 | G1″X11 | 1.5/16″X12 | 20.5 | 14 | 46 | 41 | 41 |
| 2BJ-16-20 | G1″X11 | 1.5/8″X12 | 20.5 | 15 | 50 | 41 | 50 |
| 2BJ-20 | G1.1/4″X11 | 1.5/8″X12 | 20.5 | 15 | 50 | 50 | 50 |
| 2BJ-20-24 | G1.1/4″X11 | 1.7/8″X12 | 20.5 | 19 | 50 | 50 | 55 |
| 2BJ-24 | G1.1/2″X11 | 1.7/8″X12 | 23 | 19 | 54.5 | 55 | 55 |
| 2BJ-32 | G2″X11 | 2.1/2″X12 | 25.5 | 23.5 | 57.5 | 70 | 75 |
