Home Hydraulic Hose Adapters DIN Hose Adapters 1EW Metric Male O-Ring Butt Weld Tube Adapter
1ET Metric To BSPT O-ring Seal Adapters
Back to products
1EZ Metric Male O-ring BSP Male Adapter
Click to enlarge

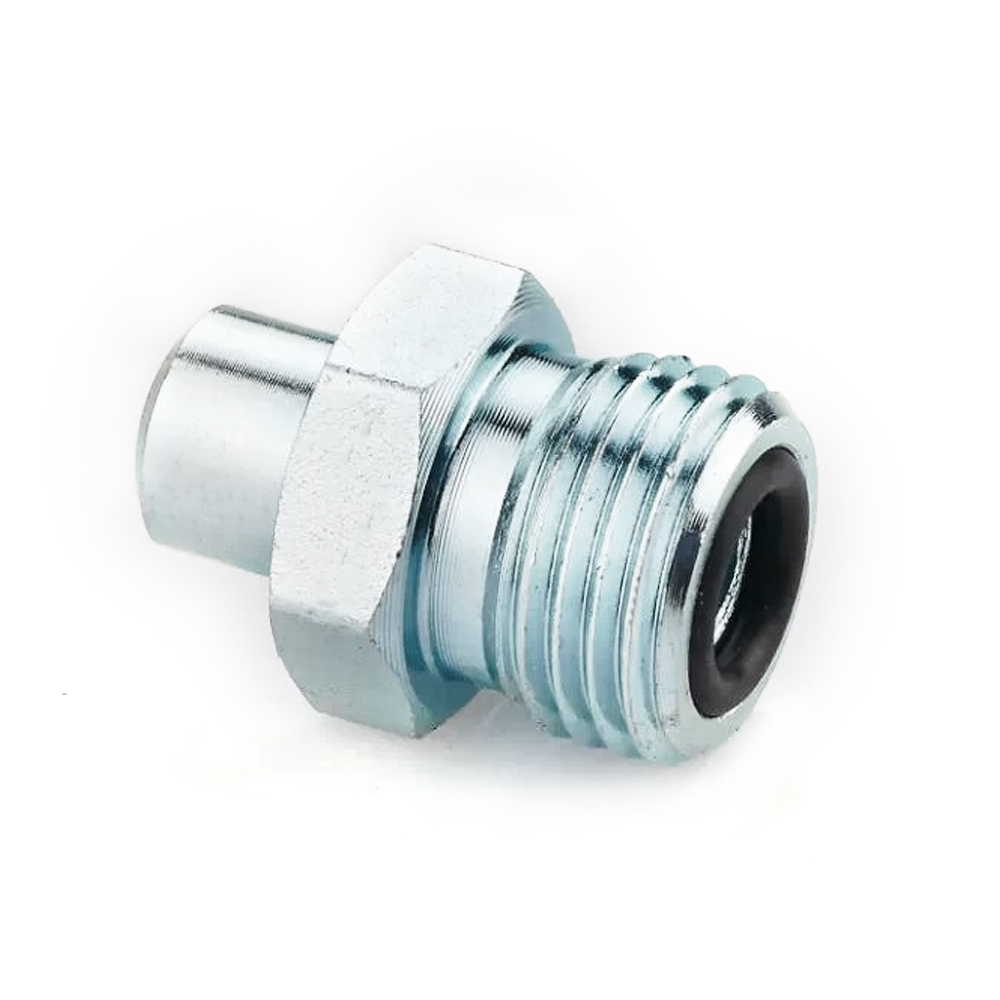

1EW Metric Male O-Ring Butt Weld Tube Adapter

Description:

1EW Male O-ring / butt-weld tube is a male adapter that has a male metric thread with an o-ring seal.

INQUIRE NOW

"*" indicates required fields

Category: DIN Hose Adapters Tags: Carbon Steel, O-ring, Metric, 1EW, Tube OD
Share:
  • Description
  • Package& Shipping
Description

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

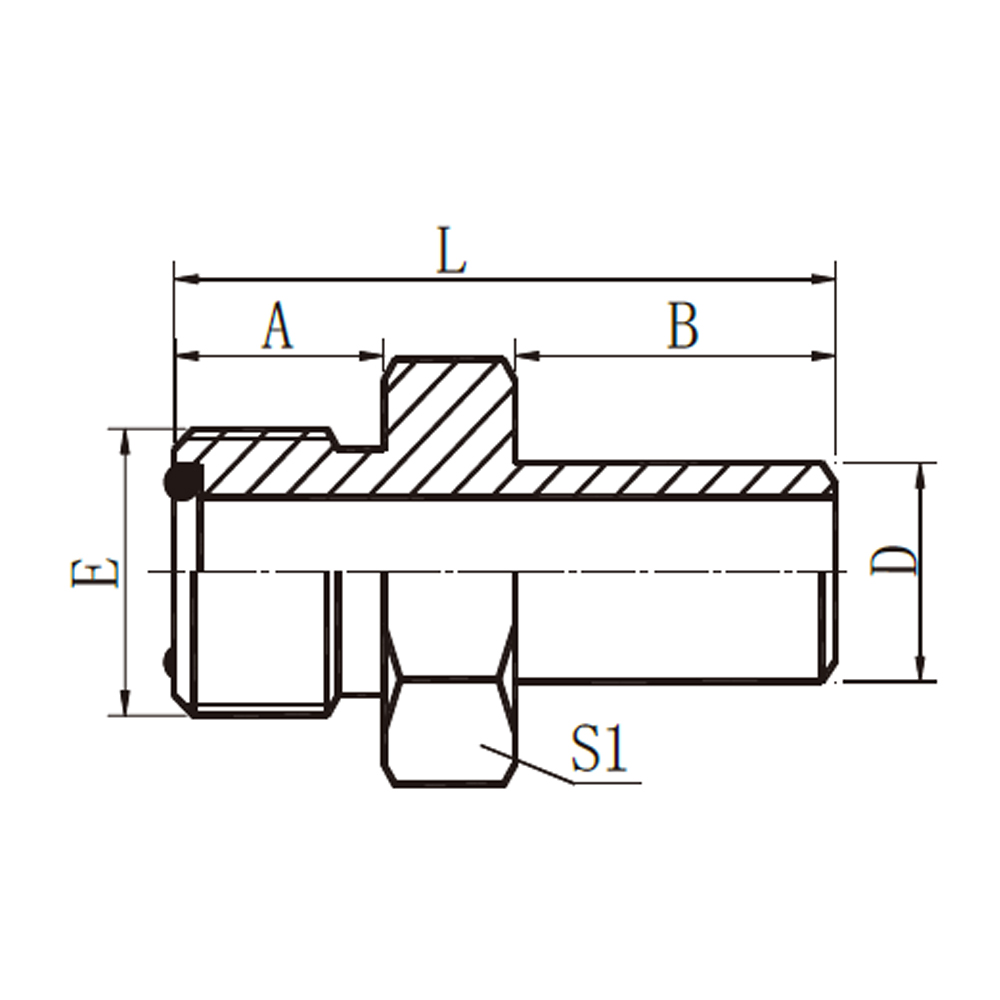

PART NO. THREAD Tube O.D. O-RING DIMENSIONS
E E A B D L S1
1EW-12-06 M12X1.25 6 8X1.9 11 8 6 24 14
1EW-14-08 M14X1.5 8 10X2 11 8 8 25 17
1EW-16-10 M16X1.5 10 11X1.9 11 8 10 25 17
1EW-18-12 M18X1.5 12 13X2.0 11 12 12 29 19
1EW-22-14 M22X1.5 14 16.1X2.4 12 12 14 32.5 24
1EW-27-18 M27X1.5 18 20.1X2.4 13 12 18 35 30
1EW-30-22 M30X1.5 22 24.1X2.4 14 14 22 39 32
1EW-36-28 M36X2 28 30X3.1 16 16 28 43 38
1EW-39-30 M39X2 30 32X3.1 18 16 30 47 41
1EW-42-34 M42X2 34 35X3.1 20 16 34 49 46
1EW-45-38 M45X2 38 38X3.1 21 18 38 51 46
1EW-52-42 M52X2 42 40X3.1 22 18 42 55 55
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
