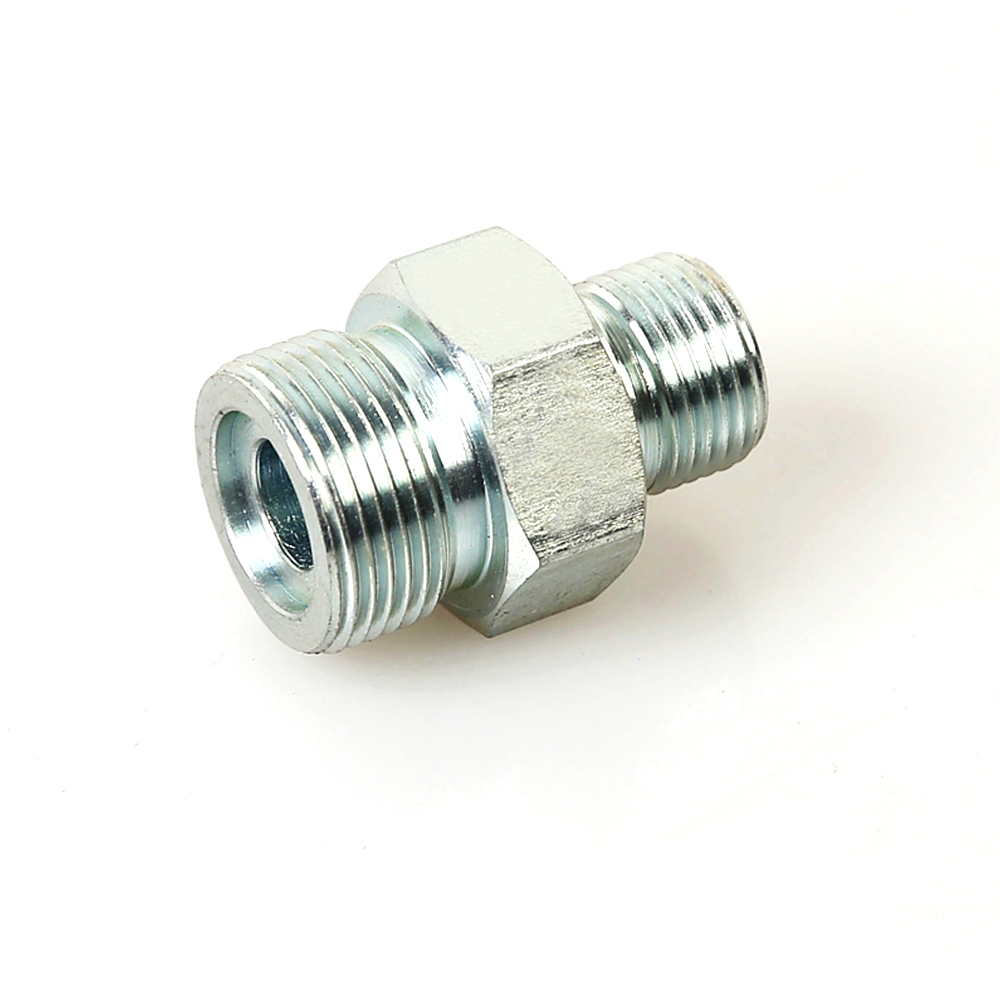

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

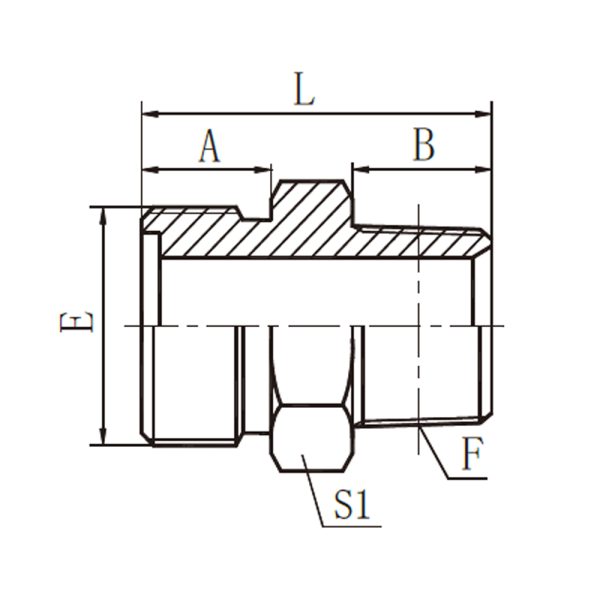

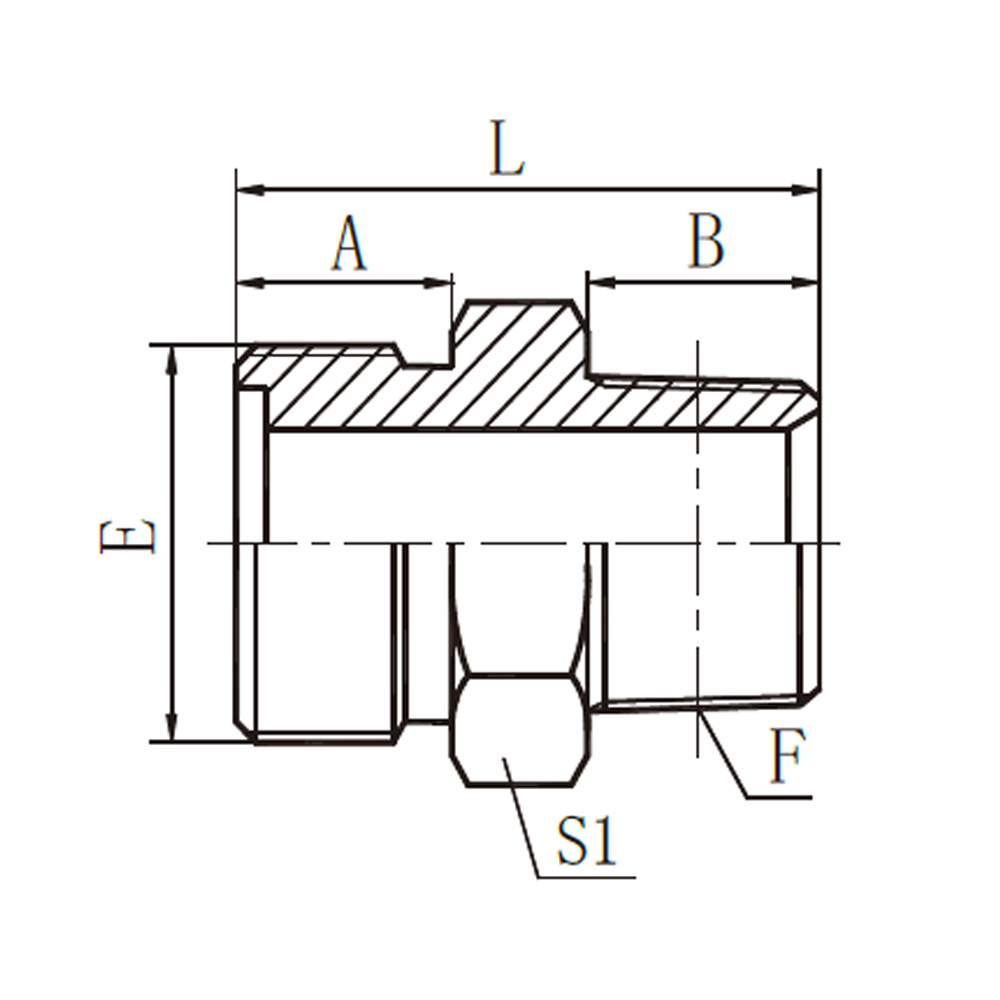

| PART NO. | THREAD | O-RING | DIMENSIONS | ||||
| E | F | E | A | B | L | S1 | |
| 1ET-14-04SP | M14X1.5 | R1/4“X18 | 10X2.0 | 11 | 14.5 | 31.5 | 14 |
| 1ET-14-06SP | M14X1.5 | R3/8“X18 | 10X2.0 | 11 | 15 | 32 | 17 |
| 1ET-16-04SP | M16X1.5 | R1/4”X18 | 11X1.9 | 11 | 14.5 | 31.5 | 17 |
| 1ET-16-06SP | M16X1.5 | R3/8“X18 | 11X1.9 | 11 | 15 | 32 | 17 |
| 1ET-18-06SP | M18X1.5 | R3/8“X18 | 13X2.0 | 11 | 15 | 32 | 19 |
| 1ET-18-08SP | M18X1.5 | R1/2“X14 | 13X2.0 | 11 | 20 | 37 | 22 |
| 1ET-22-08SP | M24X1.5 | R1/2“X14 | 16.1X2.4 | 12 | 20 | 40 | 24 |
| 1ET-22-12SP | M24X1.5 | R3/4″X14 | 16.1X2.4 | 12 | 15 | 40 | 27 |
| 1ET-24-06SP | M22X1.5 | R3/8“X18 | 18.1X2.4 | 13 | 20 | 38 | 27 |
| 1ET-24-08SP | M22X1.5 | R1/2“X14 | 18.1X2.4 | 13 | 20 | 43 | 27 |
| 1ET-27-08SP | M27X1.5 | R1/2“X14 | 20.1X2.4 | 13 | 20 | 43 | 30 |
| 1ET-27-12SP | M27X1.5 | R3/4″X14 | 20.1X2.4 | 13 | 20 | 43 | 30 |
| 1ET-30-12SP | M30X1.5 | R3/4″X14 | 24.1X2.4 | 14 | 20 | 45 | 32 |
| 1ET-36-12SP | M36X2 | R3/4″X14 | 30X3.1 | 16 | 20 | 47 | 38 |
| 1ET-36-16SP | M36X2 | R1″X11 | 30X3.1 | 16 | 25.5 | 52.5 | 38 |
| 1ET-39-16SP | M39X2 | R1″X11 | 32X3.1 | 18 | 25.5 | 56.5 | 41 |
| 1ET-39-20SP | M39X2 | R1-1/4″X11 | 32X3.1 | 18 | 26.5 | 57.5 | 46 |
| 1ET-42-20SP | M42X2 | R1-1/4″X11 | 35X3.1 | 20 | 26.5 | 59.5 | 46 |
| 1ET-45-20SP | M45X2 | R1-1/4″X11 | 38X3.1 | 21 | 26.5 | 60.5 | 46 |
| 1ET-52-24SP | M52X2 | R1-1/2″X11 | 40X3.1 | 22 | 26.5 | 63.5 | 55 |
