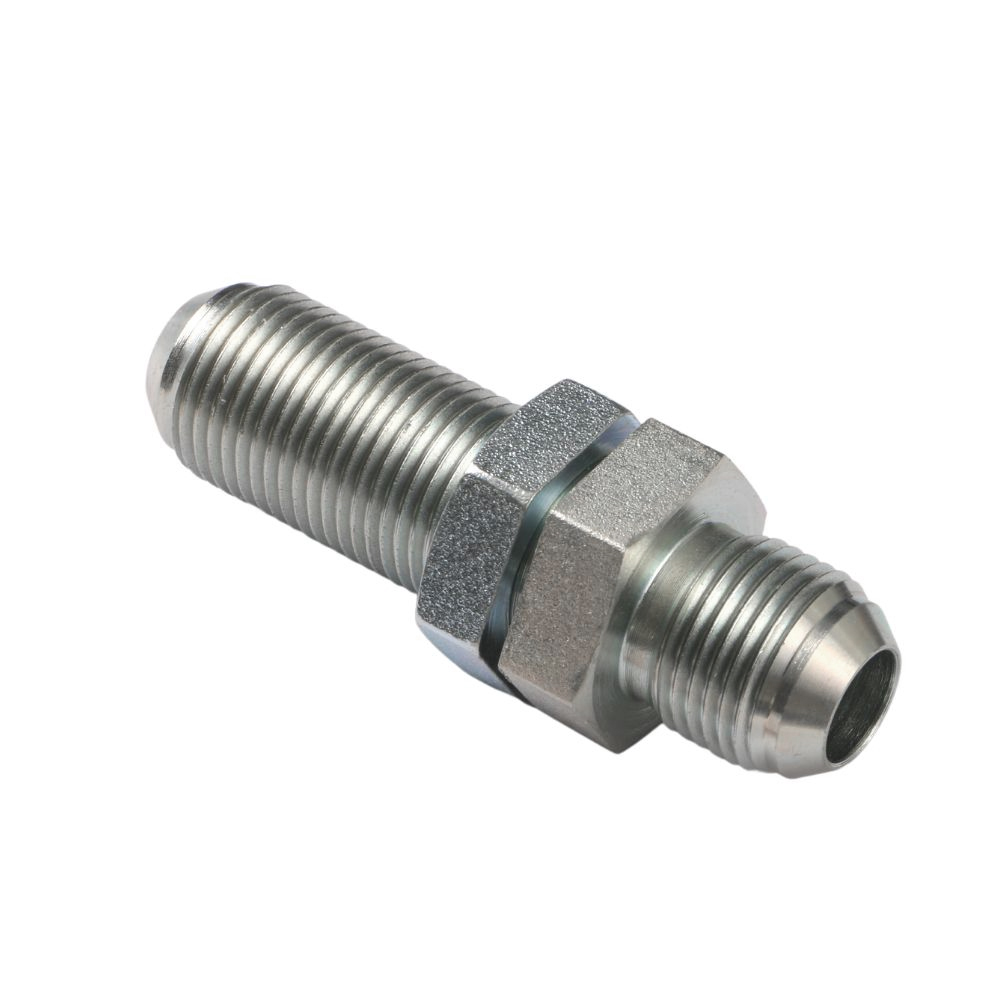

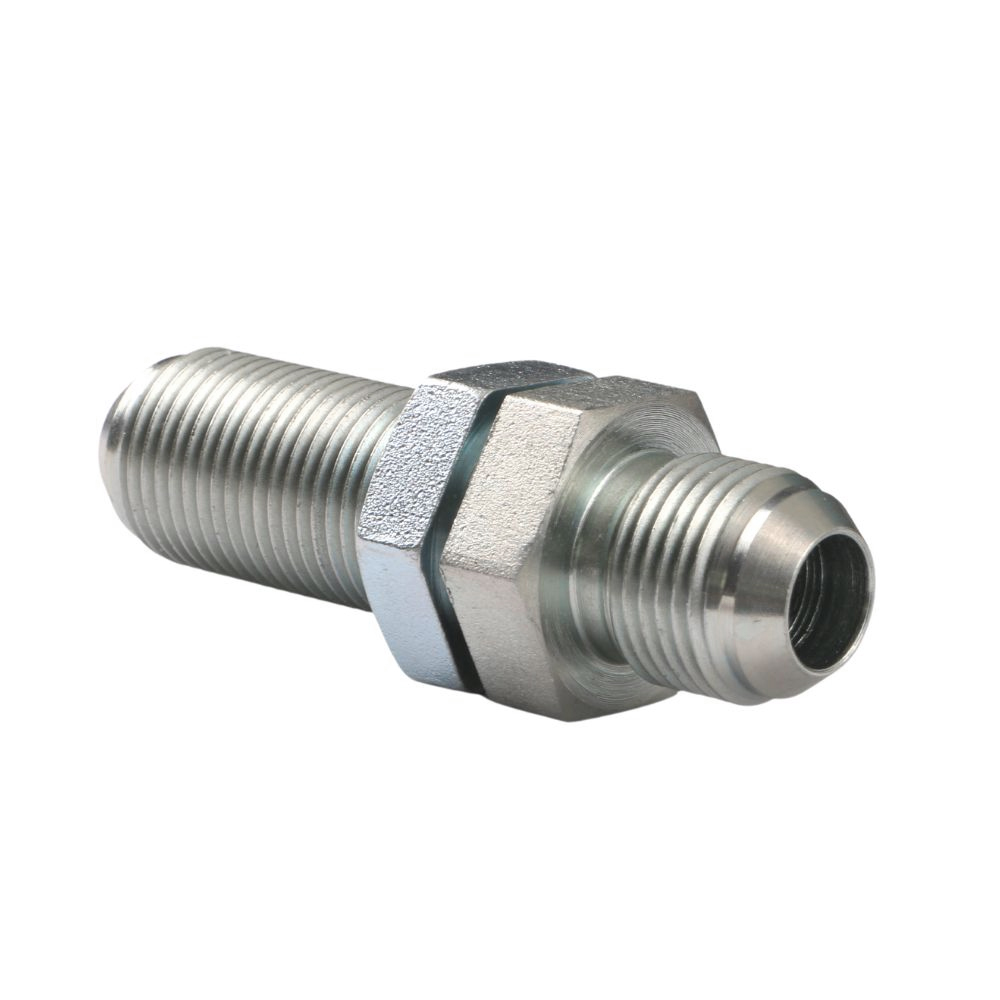

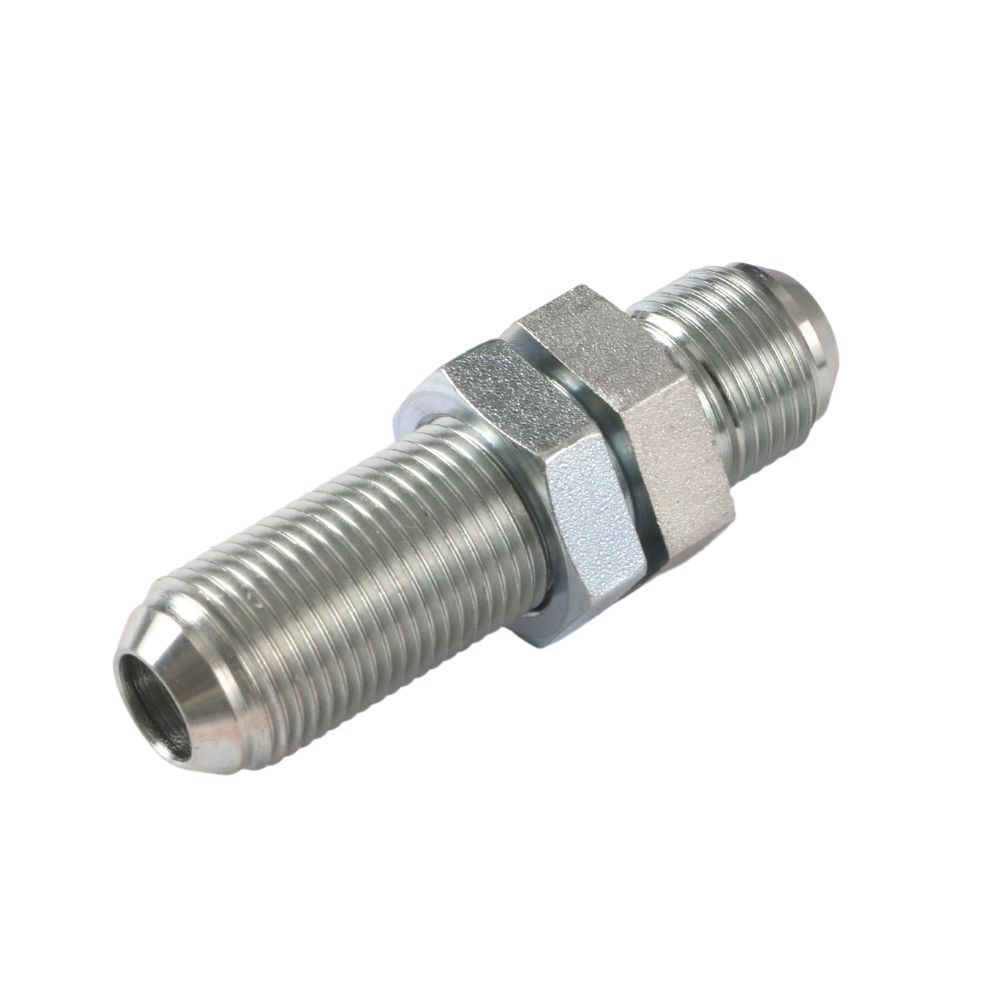

6Q Metric 74-degree Cone Bulkhead Adapter

Description:

6Q metric 74-degree cone bulkhead adapter is a straight hydraulic adapter that connects pipes or hoses through a bulkhead or panel.

"*" indicates required fields

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

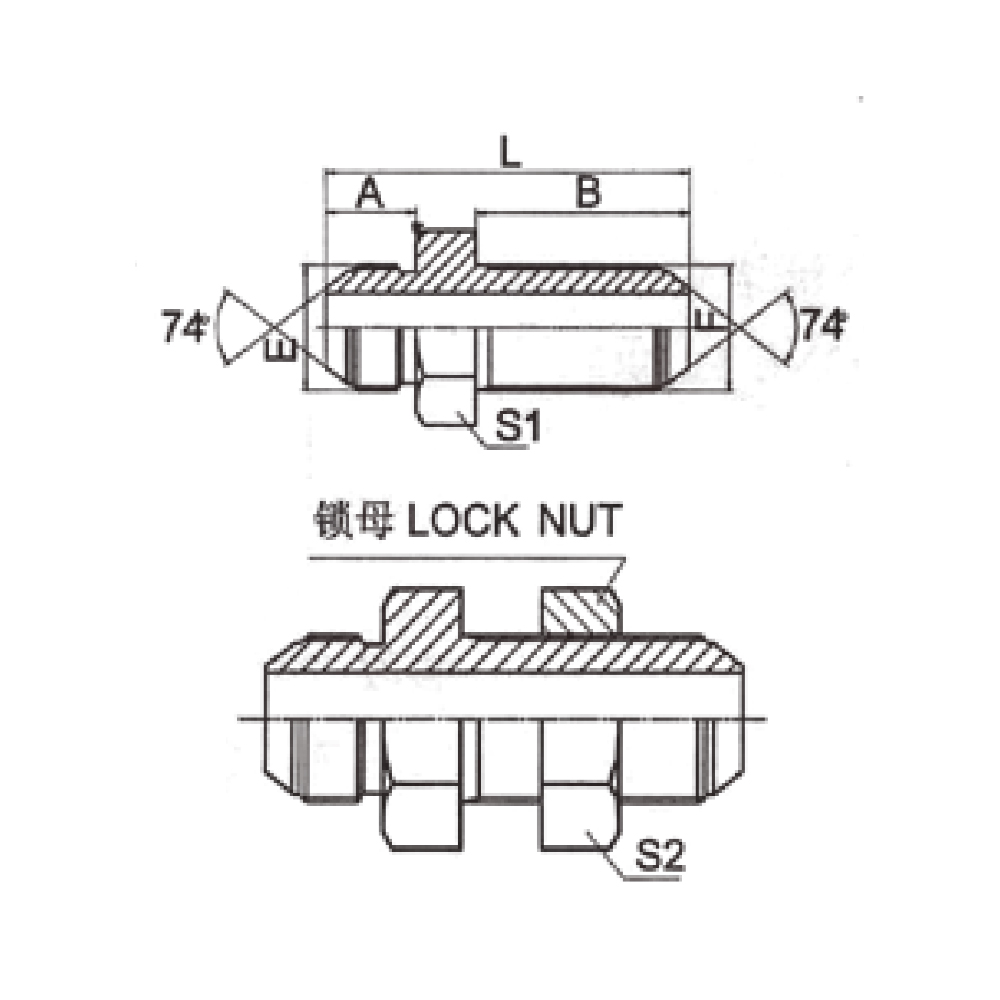

PART NO.	THREAD		TUBE O.D.	DIMENSIONS
PART NO.	E	F	D1, D2	A	B	L	S1	S2	S3,S4
6Q-10	M10X1	M10X1	5	12.5	34	52.5	14	14	14
6Q-12	M12X1.5	M12X1.5	6	15.7	38	59.7	17	17	14
6Q-14	M14X1.5	M14X1.5	8	17	40	64	19	19	17
6Q-16	M16X1.5	M16X1.5	10	18	41	65	19	22	22
6Q-18	M18X1.5	M18X1.5	12	18	43	69	24	24	24
6Q-22	M22X1.5	M22X1.5	14	19.5	44	73.5	27	27	27
6Q-24	M24X1.5	M24X1.5	16	20	45	75	27	30	30
6Q-27	M27X1.5	M27X1.5	18	20	48	78	30	32	32
6Q-30	M30X1.5	M30X1.5	20	23	53	87	34	36	36
6Q-33	M33X2	M33X2	22	26	55	92	36	41	38
6Q-36	M36X2	M36X2	25	25	56	94	41	41	41
6Q-39	M39X2	M39X2	28	26	58	97	41	46	46
6Q-42	M42X2	M42X2	32	28.5	59	102.5	50	50	50
6Q-45	M45X2	M45X2	34	28.5	60	103.5	50	55	55

Click to enlarge

Category: DIN Hose Adapters Tags: Carbon Steel, Metric, 74° Cone, 6Q
