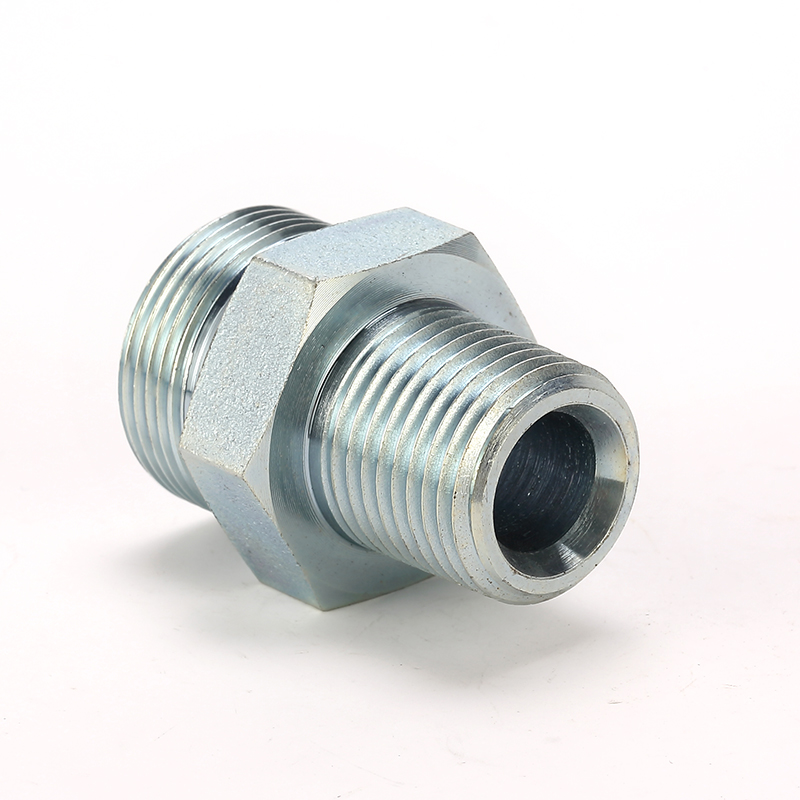

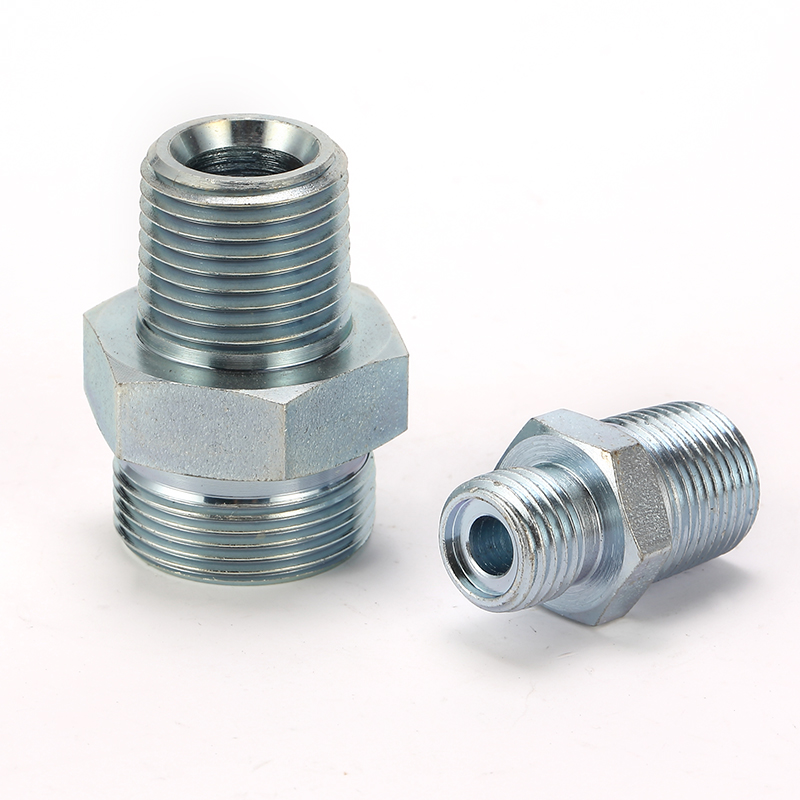

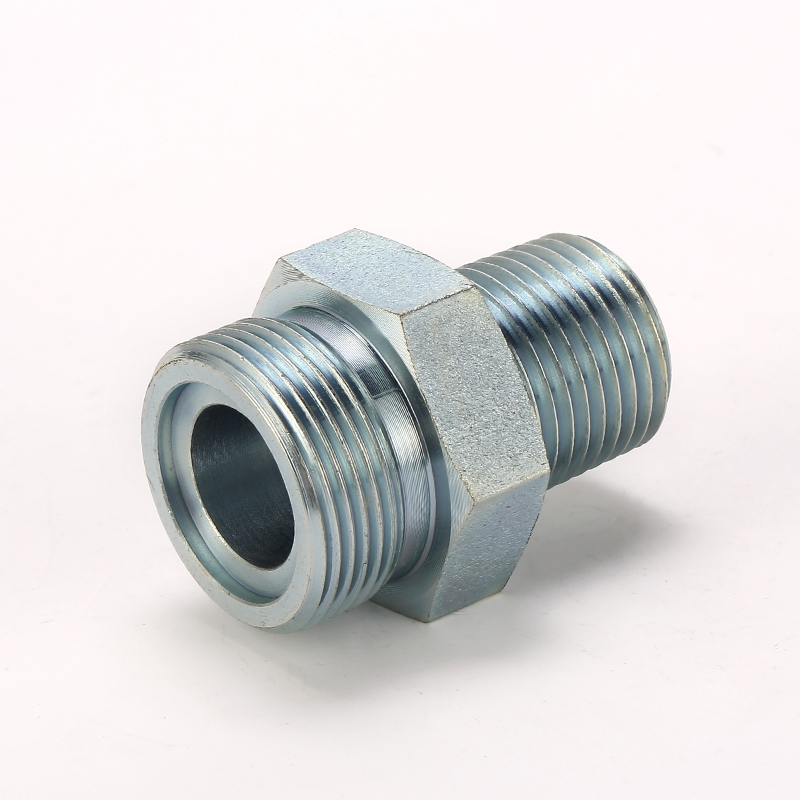

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.
| PART NO. | THREAD | O-RING | DIMENSIONS | ||||
| E | F | E | A | B | L | S1 | |
| 1EN-14-04 | M14X1.5 | Z1/4“X18 | 10X1.9 | 11 | 15 | 31 | 17 |
| 1EN-14-06 | M14X1.5 | Z3/8“X18 | 10X1.9 | 11 | 16 | 33 | 19 |
| 1EN-16-04 | M16X1.5 | Z1/4”X18 | 11X1.9 | 11 | 15 | 32 | 17 |
| 1EN-16-06 | M16X1.5 | Z3/8“X18 | 11X1.9 | 11 | 16 | 33 | 19 |
| 1EN-16-08 | M16X1.5 | Z1/2“X14 | 11X1.9 | 11 | 19.5 | 38.5 | 22 |
| 1EN-18-06 | M18X1.5 | Z3/8“X18 | 13X1.9 | 11 | 16 | 33 | 19 |
| 1EN-18-08 | M18X1.5 | Z1/2“X14 | 13X1.9 | 11 | 19.5 | 38.5 | 22 |
| 1EN-22-08 | M22X1.5 | Z1/2“X14 | 16X2.4 | 12 | 19.5 | 39.5 | 24 |
| 1EN-22-12 | M22X1.5 | Z3/4″X14 | 16X2.4 | 12 | 19.5 | 41.5 | 27 |
| 1EN-27-08 | M27X1.5 | Z1/2“X14 | 20X2.4 | 13 | 19.5 | 42.5 | 30 |
| 1EN-27-12 | M27X1.5 | Z3/4″X14 | 20X2.4 | 13 | 19.5 | 42.5 | 30 |
| 1EN-30-12 | M30X1.5 | Z3/4″X14 | 24X2.4 | 14 | 19.5 | 44.5 | 32 |
| 1EN-36-12 | M36X2 | Z3/4″X14 | 30X3.1 | 16 | 19.5 | 46.5 | 38 |
| 1EN-36-16 | M36X2 | Z1″X11.5 | 30X3.1 | 16 | 25.5 | 52.5 | 38 |
| 1EN-39-16 | M39X2 | Z1″X11.5 | 32X3.1 | 18 | 25.5 | 56.5 | 41 |
| 1EN-39-20 | M39X2 | Z1.1/4″X11.5 | 32X3.1 | 18 | 26.5 | 57.5 | 46 |
| 1EN-42-16 | M42X2 | Z1″X11.5 | 35X3.1 | 20 | 25.5 | 58.5 | 46 |
| 1EN-42-20 | M42X2 | Z1.1/4″X11.5 | 35X3.1 | 20 | 26.5 | 59.5 | 46 |
| 1EN-45-20 | M45X2 | Z1.1/4″X11.5 | 38X3.1 | 21 | 26.5 | 60.5 | 46 |
| 1EN-52-20 | M52X2 | Z1.1/4″X11.5 | 40X3.1 | 22 | 26.5 | 63.5 | 55 |
