Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

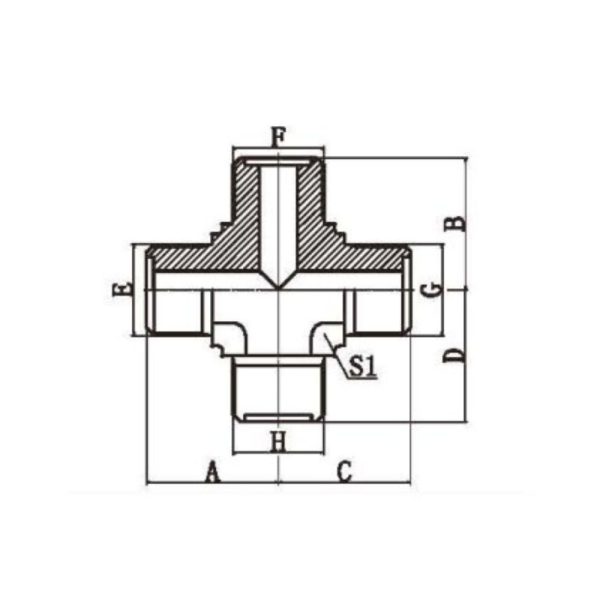

| PART NO. | THREAD | O-RING | DIMENSIONS | ||||
| E、F、G、H | E、F、G、H | A | B | C | D | S1 | |
| XE-14 | M14X1.5 | 10X1.9 | 22.5 | 22.5 | 22.5 | 22.5 | 14 |
| XE-16 | M16X1.5 | 11X1.9 | 24 | 24 | 24 | 24 | 17 |
| XE-18 | M18X1.5 | 13X1.9 | 26 | 26 | 26 | 26 | 19 |
| XE-22 | M22X1.5 | 16X2.4 | 29 | 29 | 29 | 29 | 22 |
| XE-27 | M27X1.5 | 20X2.4 | 32.5 | 32.5 | 32.5 | 32.5 | 27 |
| XE-30 | M30X1.5 | 24X2.4 | 35.5 | 35.5 | 35.5 | 35.5 | 30 |
| XE-36 | M36X2 | 30X3.1 | 42 | 42 | 42 | 42 | 36 |
| XE-39 | M39X2 | 32X3.1 | 47.5 | 47.5 | 47.5 | 47.5 | 41 |
| XE-42 | M42X2 | 35X3.1 | 49.5 | 49.5 | 49.5 | 49.5 | 41 |
| XE-45 | M45X2 | 38X3.1 | 52.5 | 52.5 | 52.5 | 52.5 | 46 |
| XE-52 | M52X2 | 40X3.1 | 57 | 57 | 57 | 57 | 50 |
