1FO9 ORFS Male x O-Ring Boss 90° Elbow

Description:

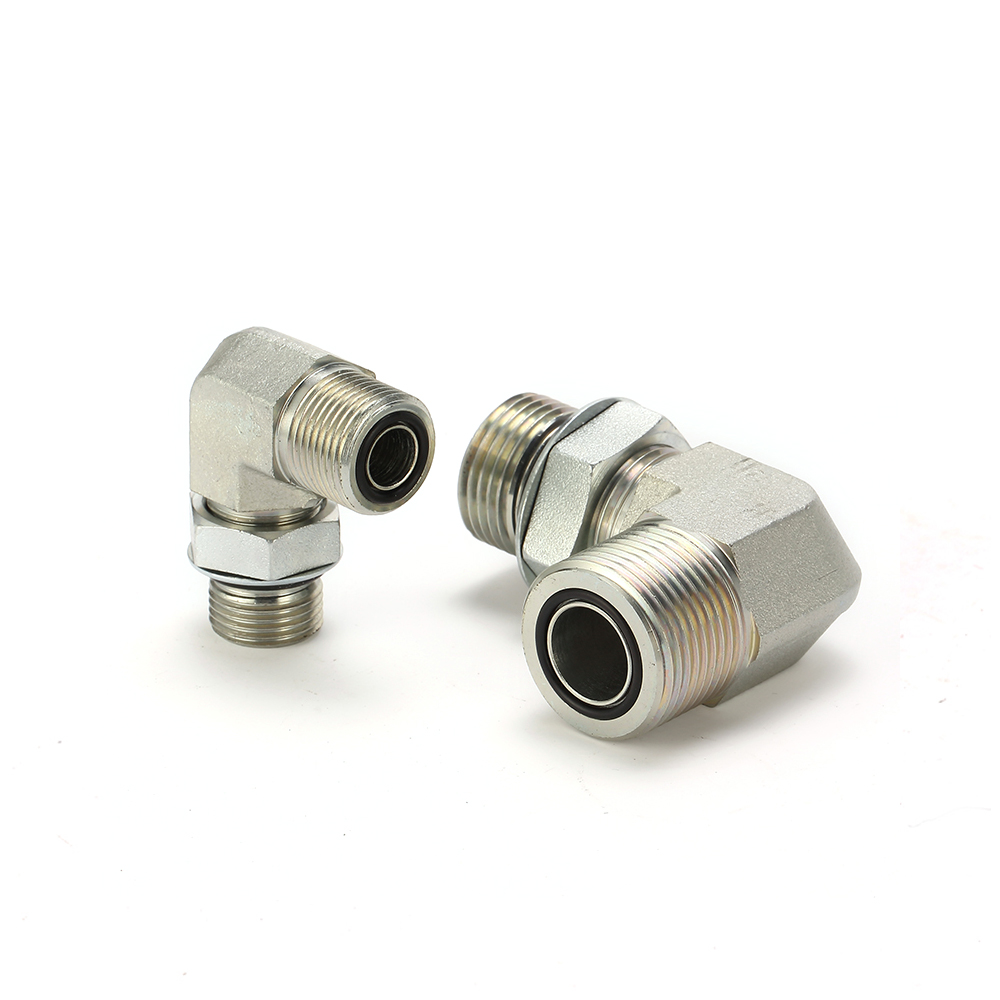

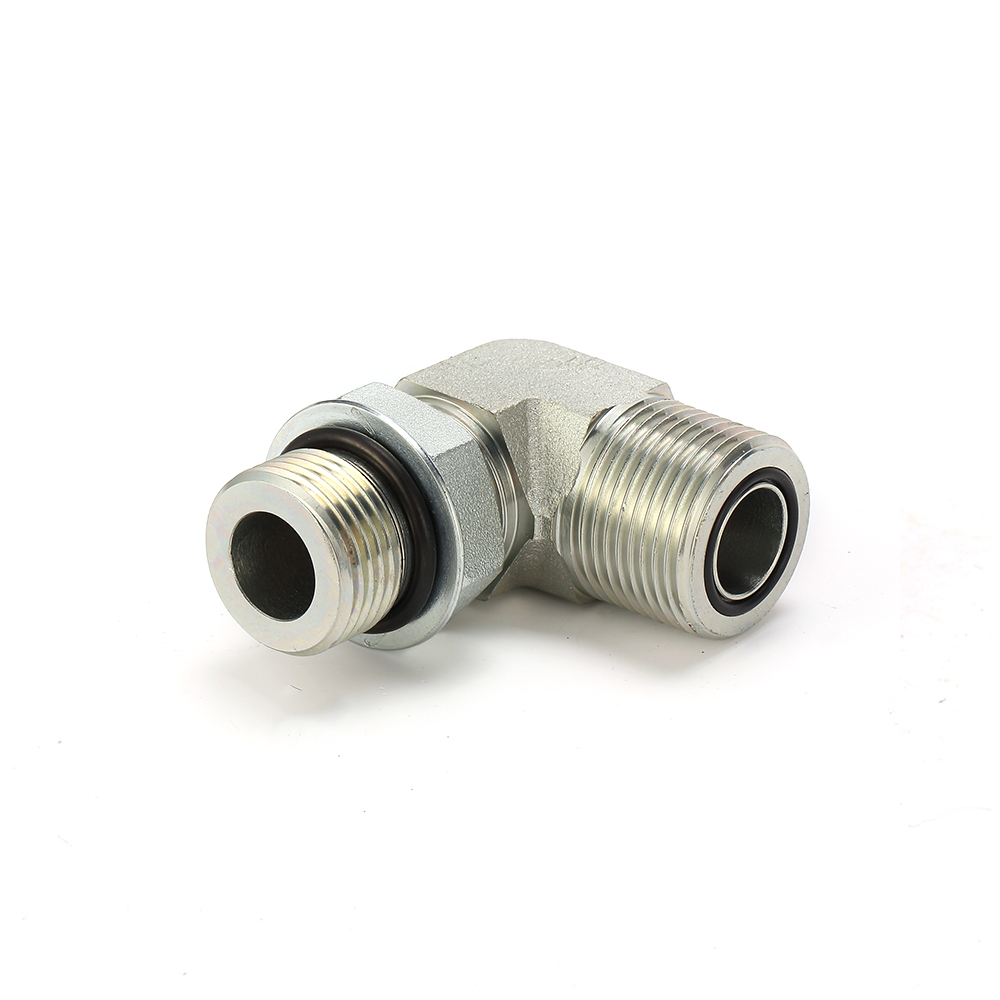

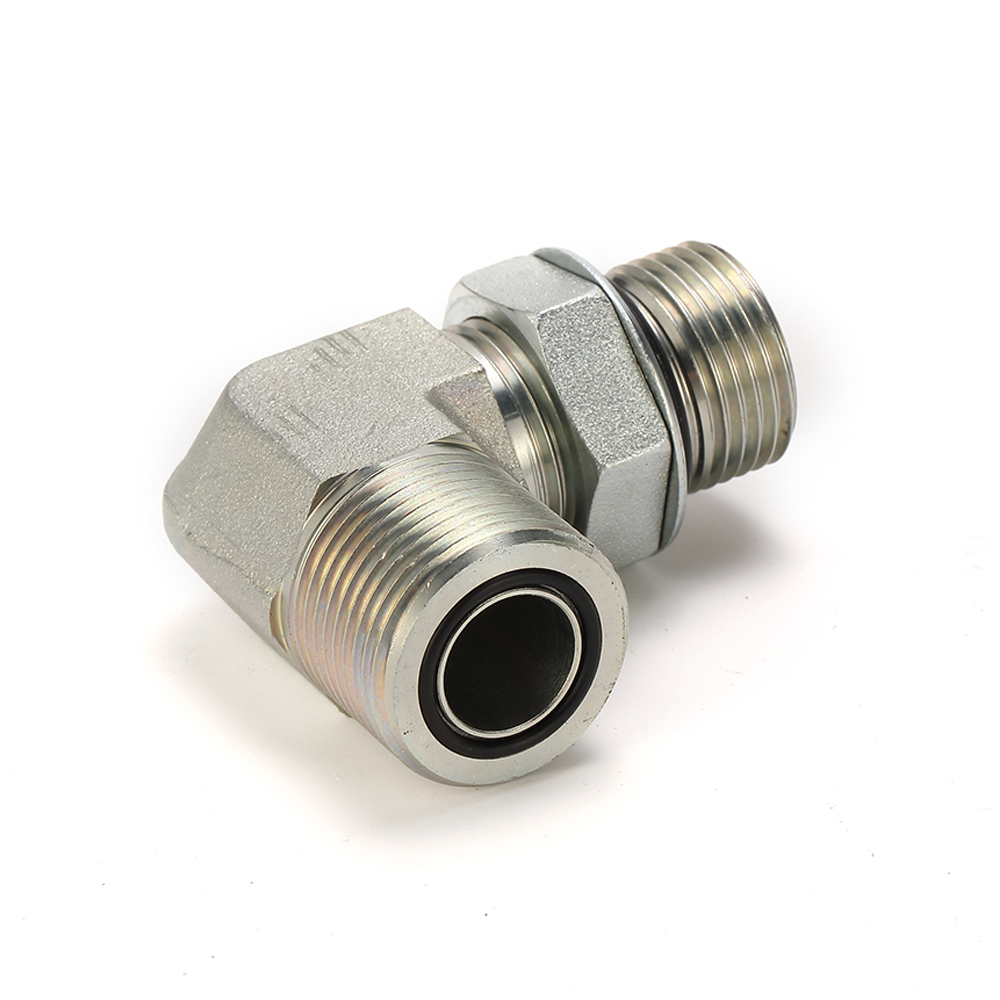

The 1FO9 ORFS hydraulic fitting is a 90° elbow male fitting that has the o-ring face seal end and SAE O-ring boss s-series thread.

"*" indicates required fields

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

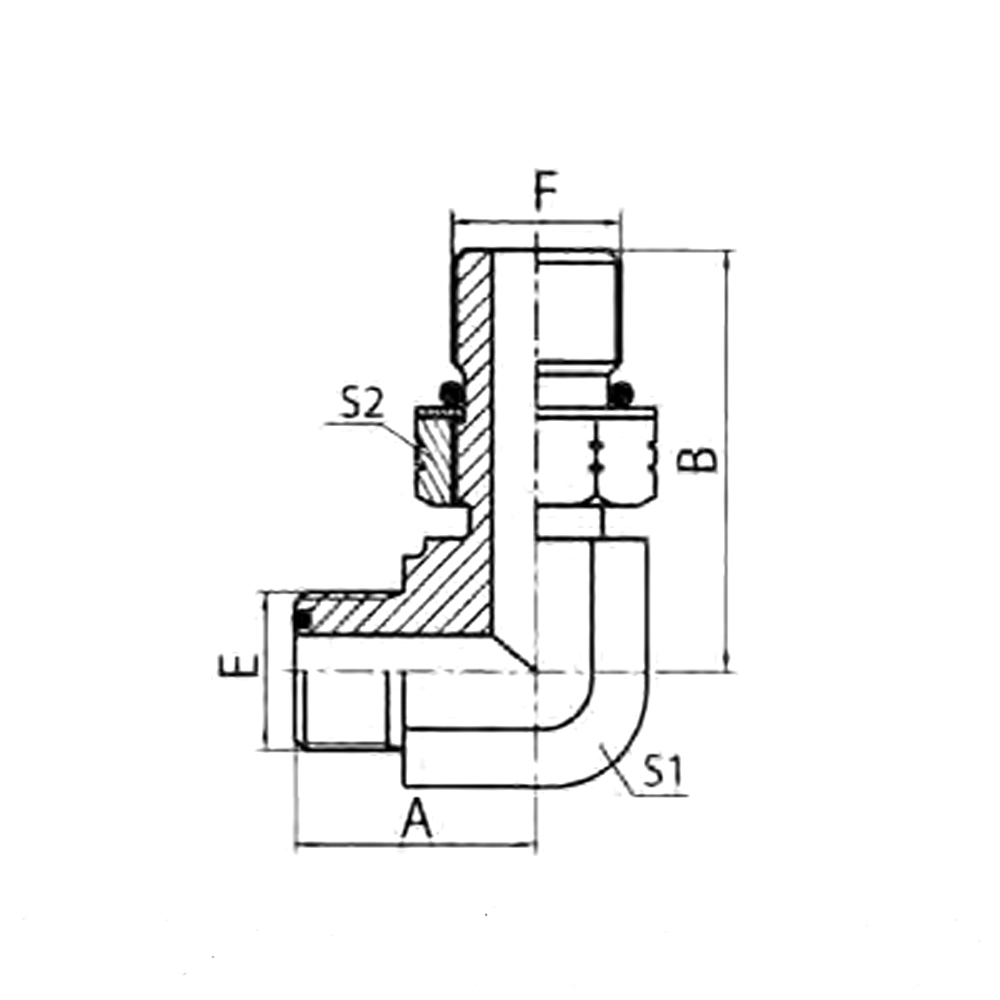

PART NO.	THREAD		O-RING		DIMENSIONS
PART NO.	E	F	E	F	A	B	S1	S2
1FO9-04OG	9/16″X18	7/16″X20	0011	O904	23	30.3	14	17
1FO9-04-06OG	9/16″X18	9/16″X18	0011	O906	23	32	14	19
1FO9-06-04OG	11/16″X16	7/16″X20	O012	O904	27.5	33.5	19	17
1FO9-06OG	11/16″X16	9/16″X18	O012	O906	27.5	34.5	19	19
1FO9-06-08OG	11/16″X16	3/4″X16	O012	O908	27.5	38	19	24
1FO9-06-10OG	11/16″X16	7/8″X14	O012	O910	29	45.3	22	27
1FO9-08-06OG	13/16″X16	9/16″X18	O014	O906	31	37	22	19
1FO9-08OG	13/16″X16	3/4″X16	O014	O908	31	40.5	22	24
1FO9-08-10OG	13/16″X16	7/8″X14	O014	O910	31	45.3	22	27
1FO9-08-12OG	13/16″X16	1.1/16″X12	O014	O912	34.5	52	27	32
1FO9-10-08OG	1″X14	3/4″X16	O016	O908	36.5	45	27	24
1FO9-10OG	1″X14	7/8″X14	O016	O910	36.5	50.8	27	27
1FO9-10-12OG	1″X14	1.1/16″X12	O016	O912	36.5	52	27	32
1FO9-12-10OG	1.3/16″X12	7/8″X14	O018	O910	41	52.8	30	27
1FO9-12OG	1.3/16″X12	1.1/16″X12	O018	O912	41	54	30	32
1FO9-12-16OG	1.3/16″X12	1.5/16″X12	O018	O916	43	55.5	33	41
1FO9-16-12OG	1.7/16″X12	1.1/16″X12	O021	O912	44.5	59	36	32
1FO9-16OG	1.7/16″X12	1.5/16″X12	O021	O916	44.5	59	36	41
1FO9-20OG	1.11/16″X12	1.5/8″X12	O025	O920	47.5	60.5	41	50
1FO9-20-24OG	1.11/16″X12	1.7/8″X12	O025	O924	51.5	66.5	48	55
1FO9-24-20OG	2″X12	1.5/8″X12	O029	O920	53.5	67.5	50	50
