1FO ORFS Male x O-Ring Boss SAE Adapter

Description:

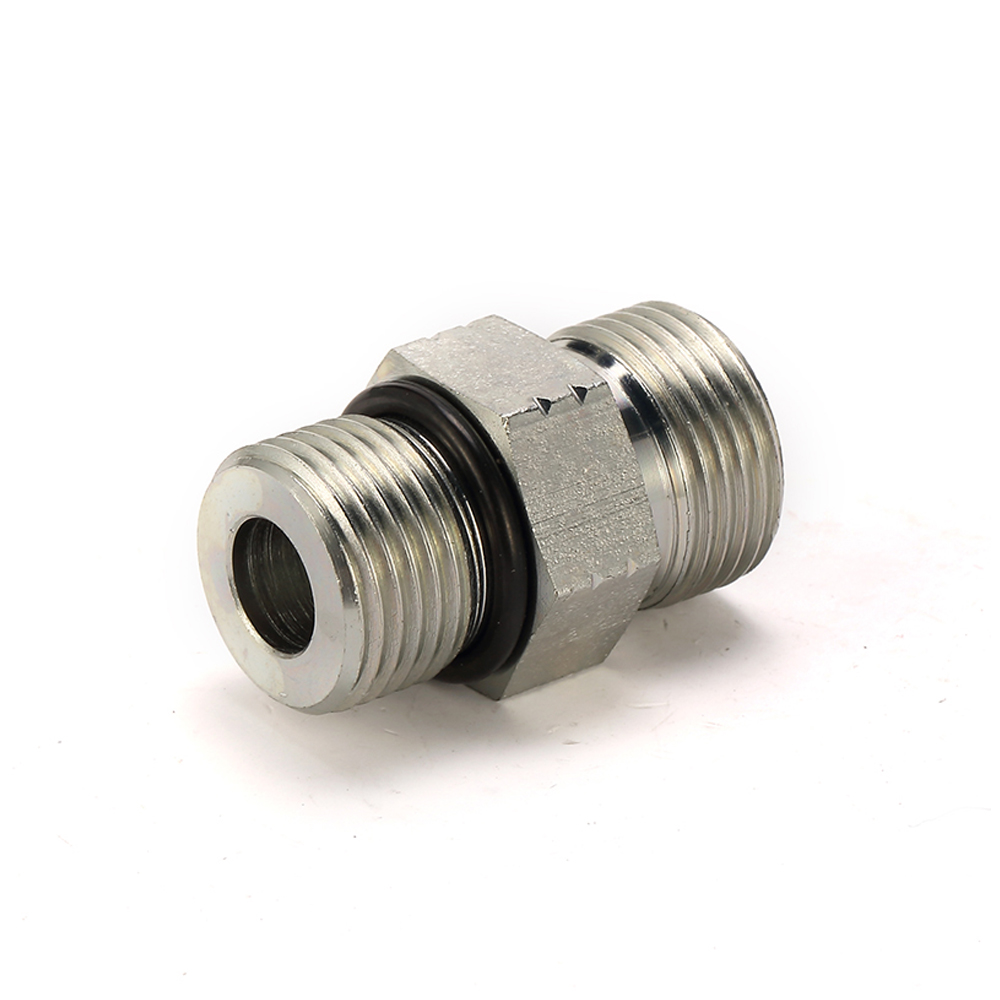

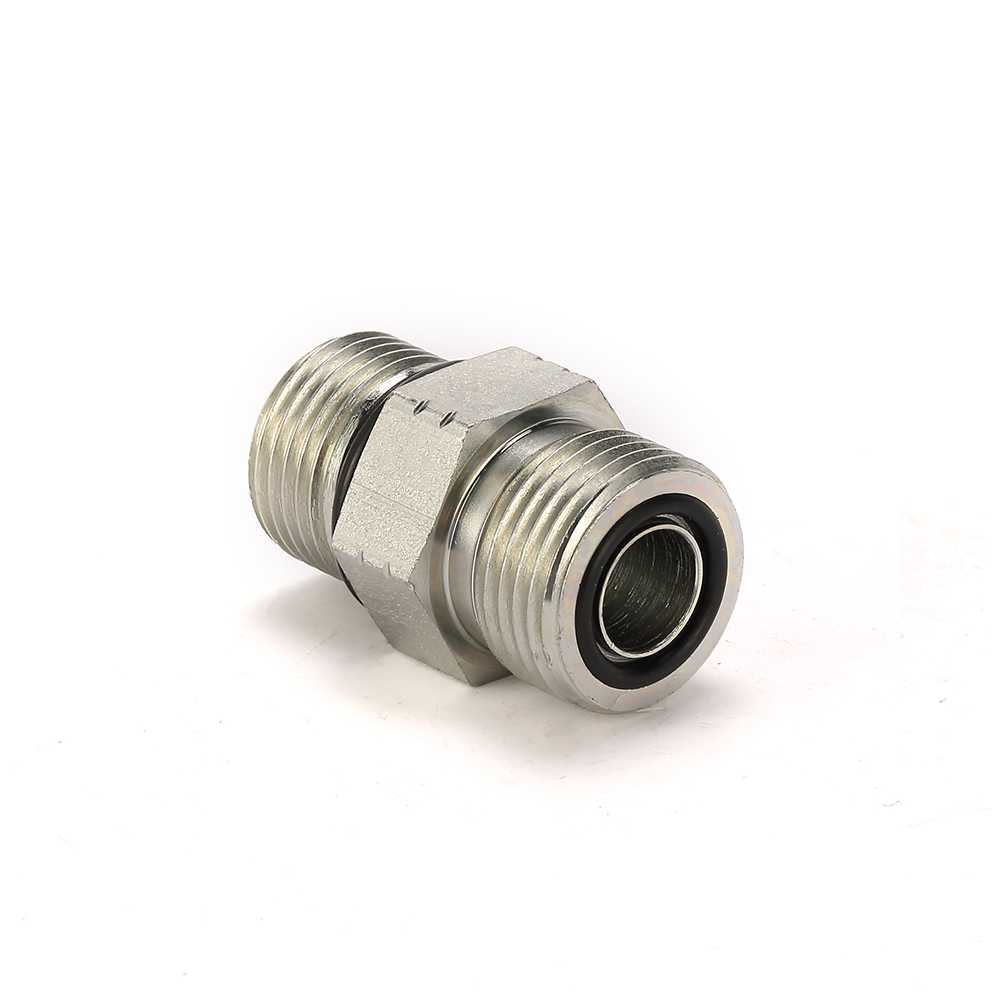

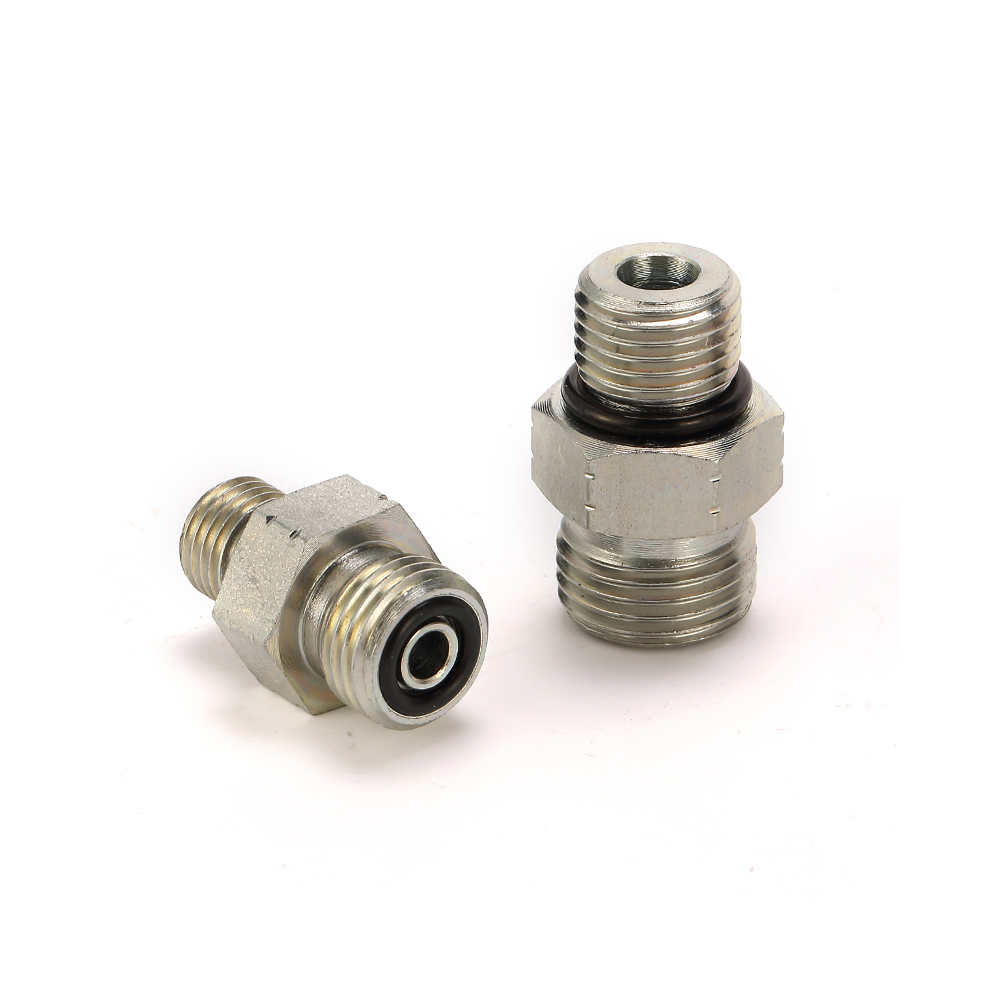

The 1FO ORFS male hydraulic fitting is a male fitting that has the o-ring face seal end and SAE O-ring boss s-series thread.

"*" indicates required fields

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

PART NO.	THREAD		O-RING		DIMENSIONS

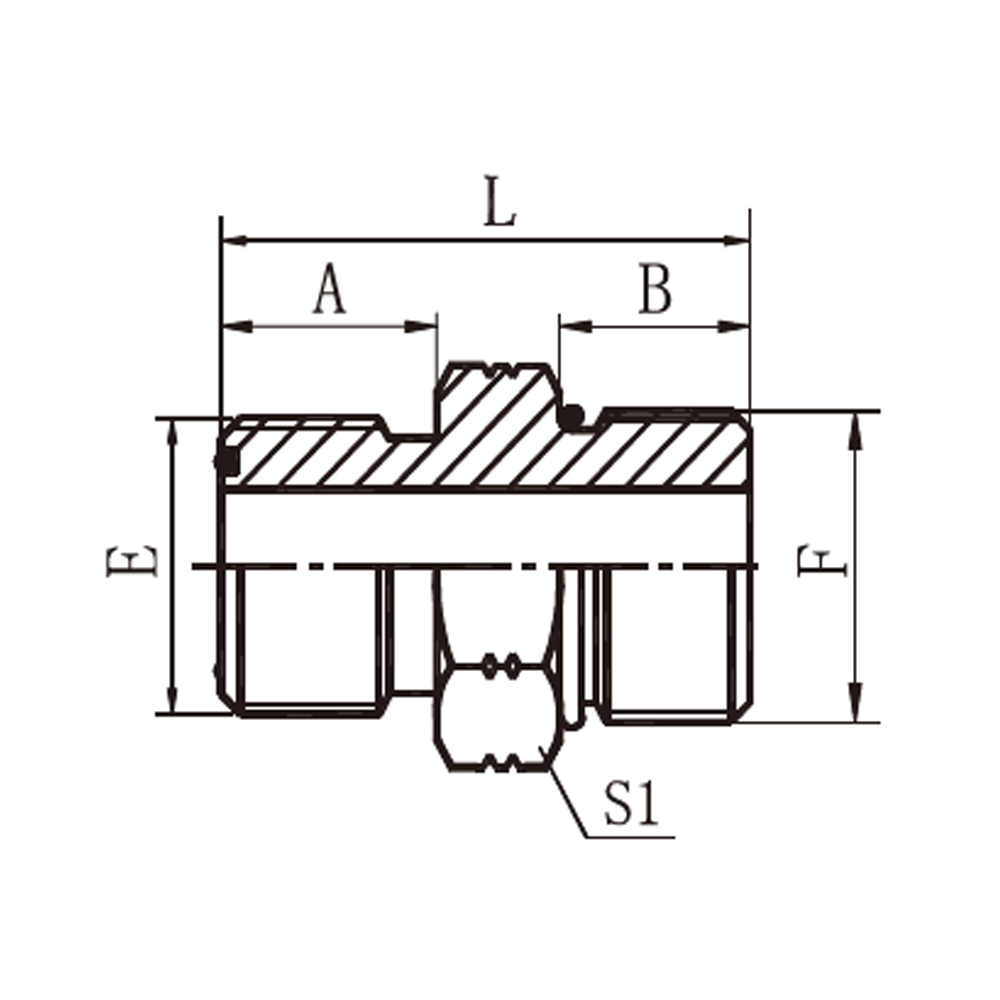

PART NO.	E	F	E	F	A	B	L	S1
1FO-04	9/16″X18	7/16″X20	O011	O904	9.8	11	28.7	17
1FO-04-05	9/16″X18	1/2″X20	O011	O905	9.8	11	28.7	17
1FO-04-06	9/16″X18	9/16″X18	O011	O906	9.8	12	29.5	17
1FO-04-08	9/16″X18	3/4″X16	O011	O908	9.8	14	33.5	22
1FO-06-04	11/16″X16	7/16″X20	O012	O904	11.2	11	31	19
1FO-06-05	11/16″X16	1/2″X20	O012	O905	11.2	11	30.9	19
1FO-06	11/16″X16	9/16″X18	O012	O906	11.2	12	31.9	19
1FO-06-08	11/16″X16	3/4″X16	O012	O908	11.2	14	35	22
1FO-06-10	11/16″X16	7/8″X14	O012	O910	11.2	16	38.5	27
1FO-08-06	13/16″X16	9/16″X18	O014	O906	12.8	12	34.5	22
1FO-08	13/16″X16	3/4″X16	O014	O908	12.8	14	36.6	22
1FO-08-10	13/16″X16	7/8″X14	O014	O910	12.8	16	40.5	27
1FO-08-12	13/16″X16	1.1/16″X12	O014	O912	12.8	18.5	44.5	32
1FO-10	1″X14	7/8″X14	O016	O910	15.5	16	43.1	27
1FO-10-08	1″X14	3/4″X16	0016	O908	15.5	14	41.1	27
1FO-10-12	1″X14	1.1/16″X12	O016	O912	15.5	18.5	47	32
1FO-12-10	1.3/16″X12	7/8″X14	O018	O910	17	16	46	32
1FO-12	1.3/16″X12	1.1/16″X12	O018	O912	17	18.5	48.6	32
1FO-12-16	1.3/16″X12	1.5/16″X12	O018	O916	17	18.5	49.8	38
1FO-16-12	1.7/16″X12	1.1/16″X12	O021	O912	17.5	18.5	50.3	38
1FO-16	1.7/16″X12	1.5/16″X12	O021	O916	17.5	18.5	50.3	38
1FO-16-20	1.7/16″X12	1.5/8″X12	O021	O920	17.5	18.5	52	50
1FO-20-16	1.11/16″X12	1.5/16″X12	O025	O916	17.5	18.5	52	46
1FO-20	1.11/16″X12	1.5/8″X12	O025	O920	17.5	18.5	52.3	50
1FO-24-20	2″X12	1.5/8″X12	O029	O920	17.5	18.5	54	55

Click to enlarge

Category: ORFS Hydraulic Adapter Tags: NPT, Male, ORFS, 1FN

Description
Package& Shipping

Description

PART NO.	THREAD		O-RING		DIMENSIONS
PART NO.	E	F	E	F	A	B	L	S1
1FO-04	9/16″X18	7/16″X20	O011	O904	9.8	11	28.7	17
1FO-04-05	9/16″X18	1/2″X20	O011	O905	9.8	11	28.7	17
1FO-04-06	9/16″X18	9/16″X18	O011	O906	9.8	12	29.5	17
1FO-04-08	9/16″X18	3/4″X16	O011	O908	9.8	14	33.5	22
1FO-06-04	11/16″X16	7/16″X20	O012	O904	11.2	11	31	19
1FO-06-05	11/16″X16	1/2″X20	O012	O905	11.2	11	30.9	19
1FO-06	11/16″X16	9/16″X18	O012	O906	11.2	12	31.9	19
1FO-06-08	11/16″X16	3/4″X16	O012	O908	11.2	14	35	22
1FO-06-10	11/16″X16	7/8″X14	O012	O910	11.2	16	38.5	27
1FO-08-06	13/16″X16	9/16″X18	O014	O906	12.8	12	34.5	22
1FO-08	13/16″X16	3/4″X16	O014	O908	12.8	14	36.6	22
1FO-08-10	13/16″X16	7/8″X14	O014	O910	12.8	16	40.5	27
1FO-08-12	13/16″X16	1.1/16″X12	O014	O912	12.8	18.5	44.5	32
1FO-10	1″X14	7/8″X14	O016	O910	15.5	16	43.1	27
1FO-10-08	1″X14	3/4″X16	0016	O908	15.5	14	41.1	27
1FO-10-12	1″X14	1.1/16″X12	O016	O912	15.5	18.5	47	32
1FO-12-10	1.3/16″X12	7/8″X14	O018	O910	17	16	46	32
1FO-12	1.3/16″X12	1.1/16″X12	O018	O912	17	18.5	48.6	32
1FO-12-16	1.3/16″X12	1.5/16″X12	O018	O916	17	18.5	49.8	38
1FO-16-12	1.7/16″X12	1.1/16″X12	O021	O912	17.5	18.5	50.3	38
1FO-16	1.7/16″X12	1.5/16″X12	O021	O916	17.5	18.5	50.3	38
1FO-16-20	1.7/16″X12	1.5/8″X12	O021	O920	17.5	18.5	52	50
1FO-20-16	1.11/16″X12	1.5/16″X12	O025	O916	17.5	18.5	52	46
1FO-20	1.11/16″X12	1.5/8″X12	O025	O920	17.5	18.5	52.3	50
1FO-24-20	2″X12	1.5/8″X12	O029	O920	17.5	18.5	54	55
