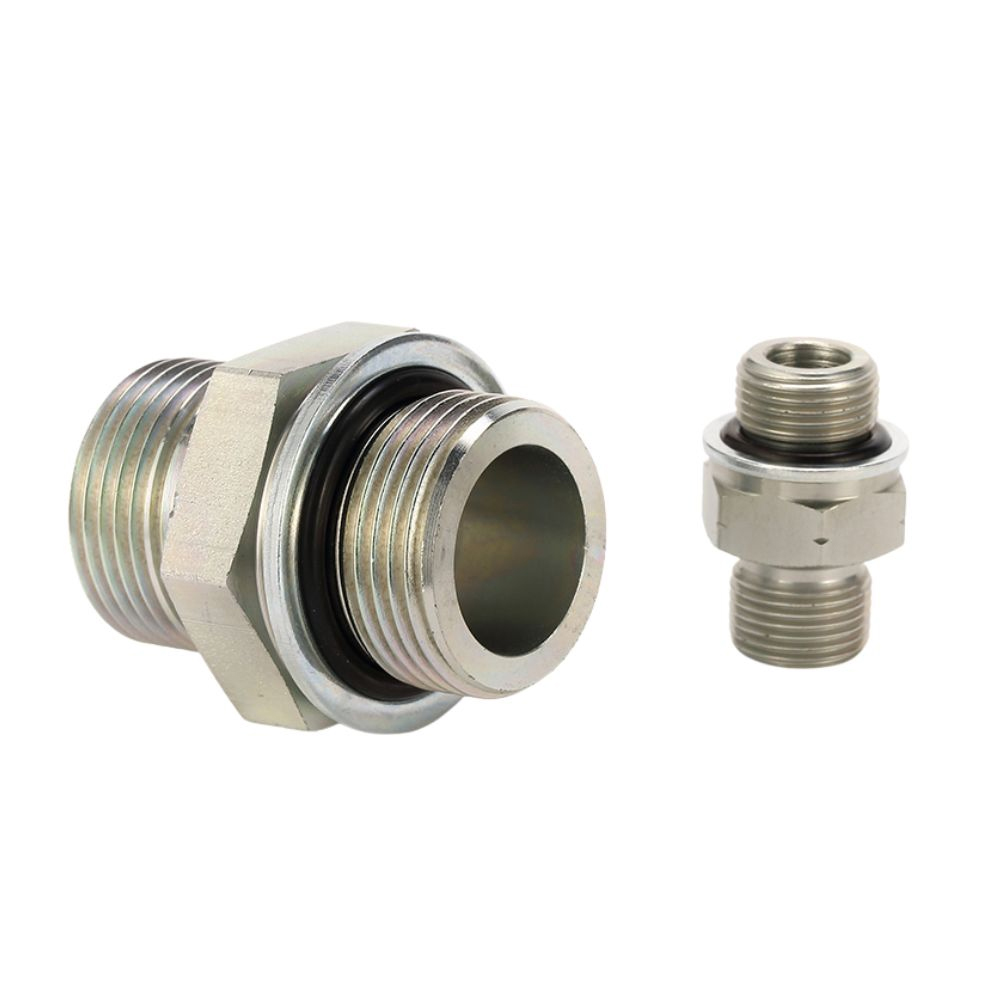

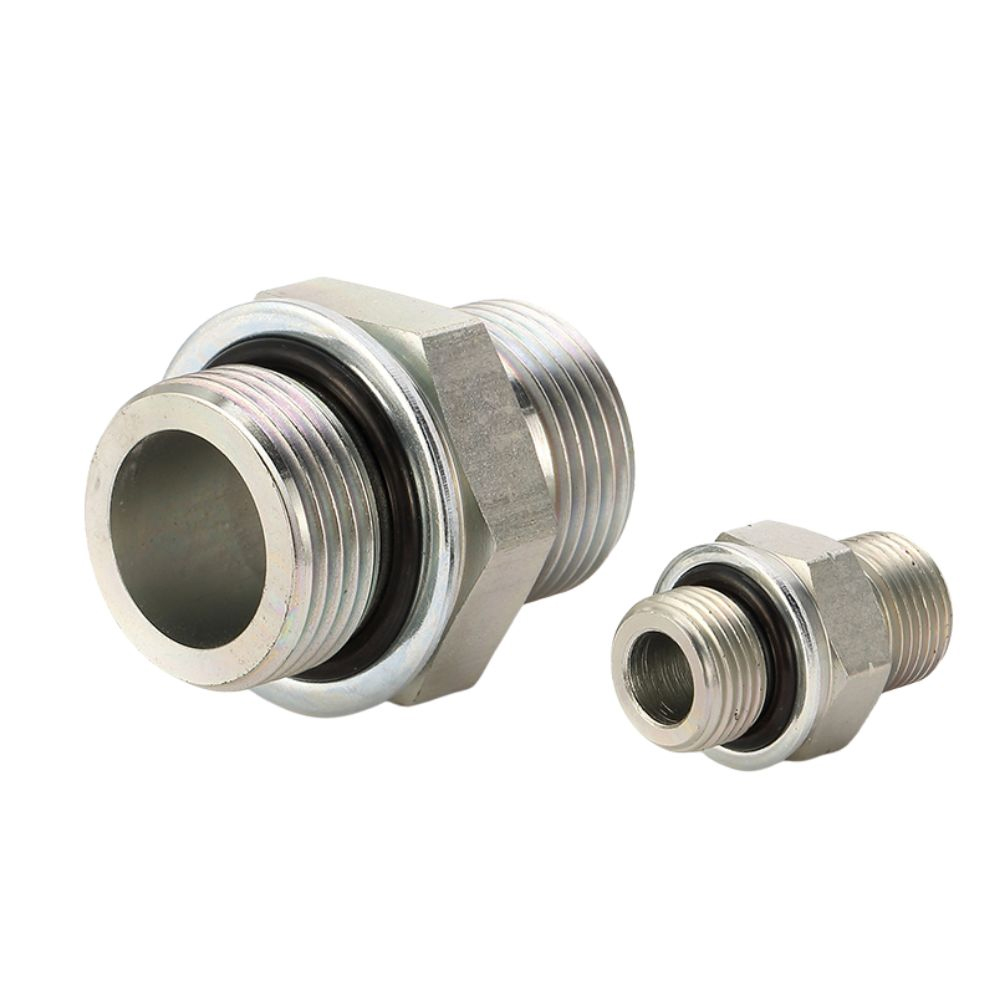

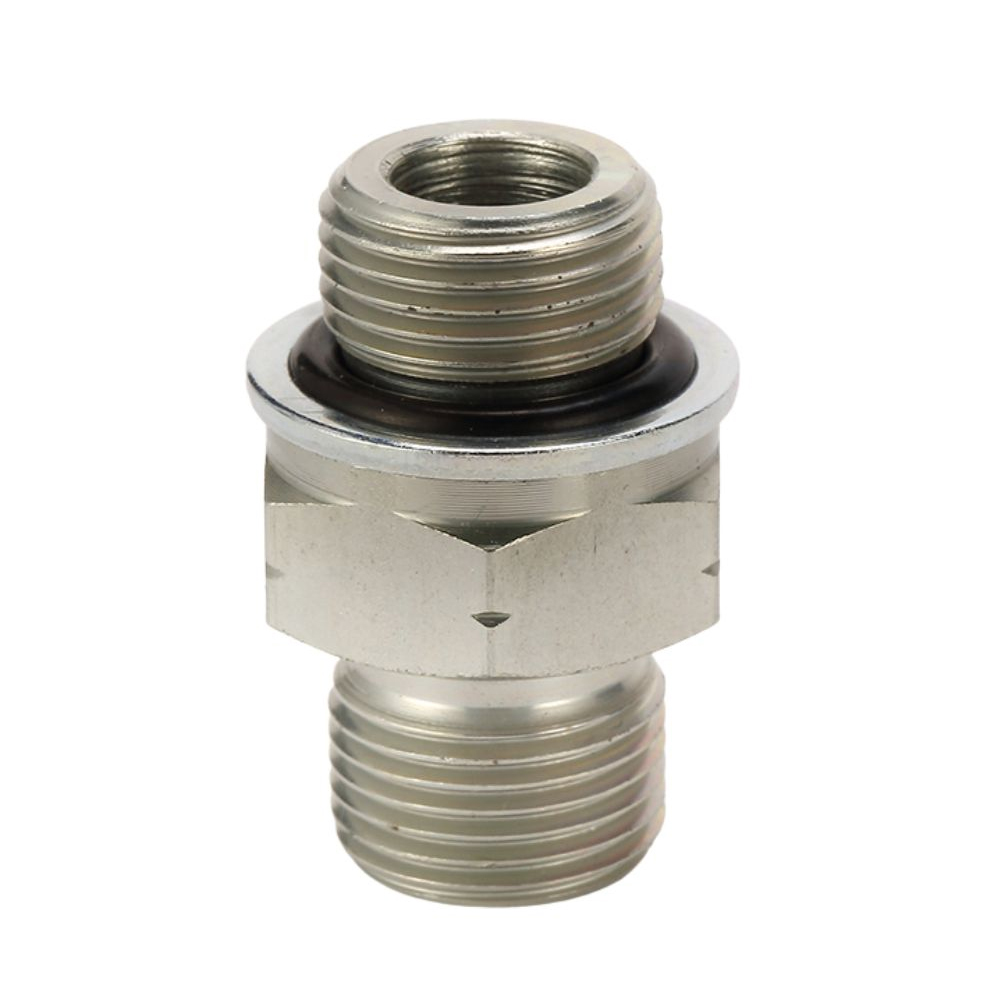

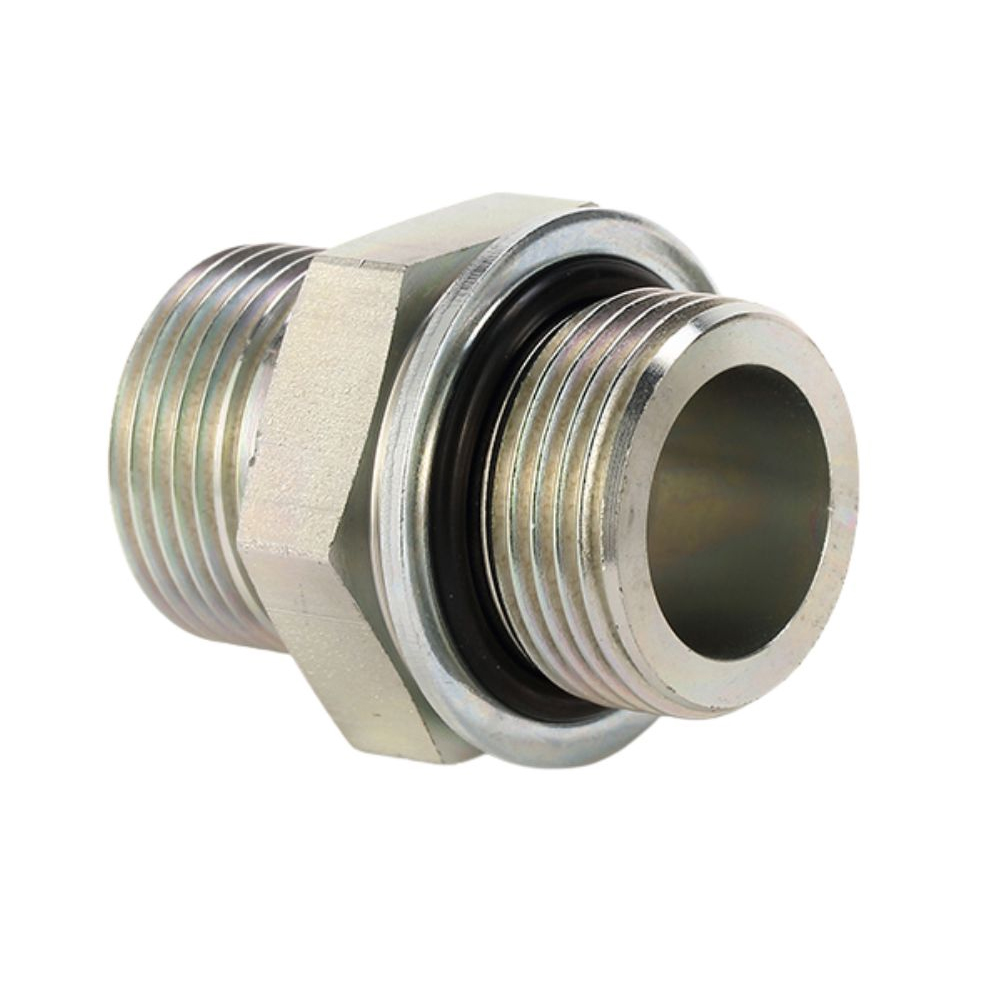

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

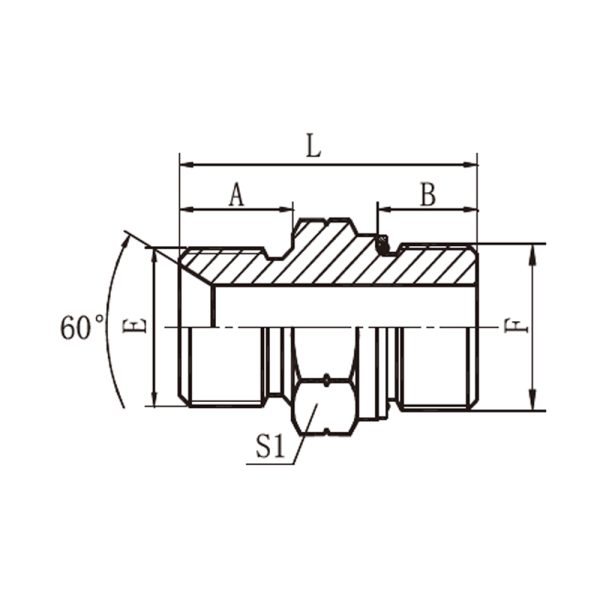

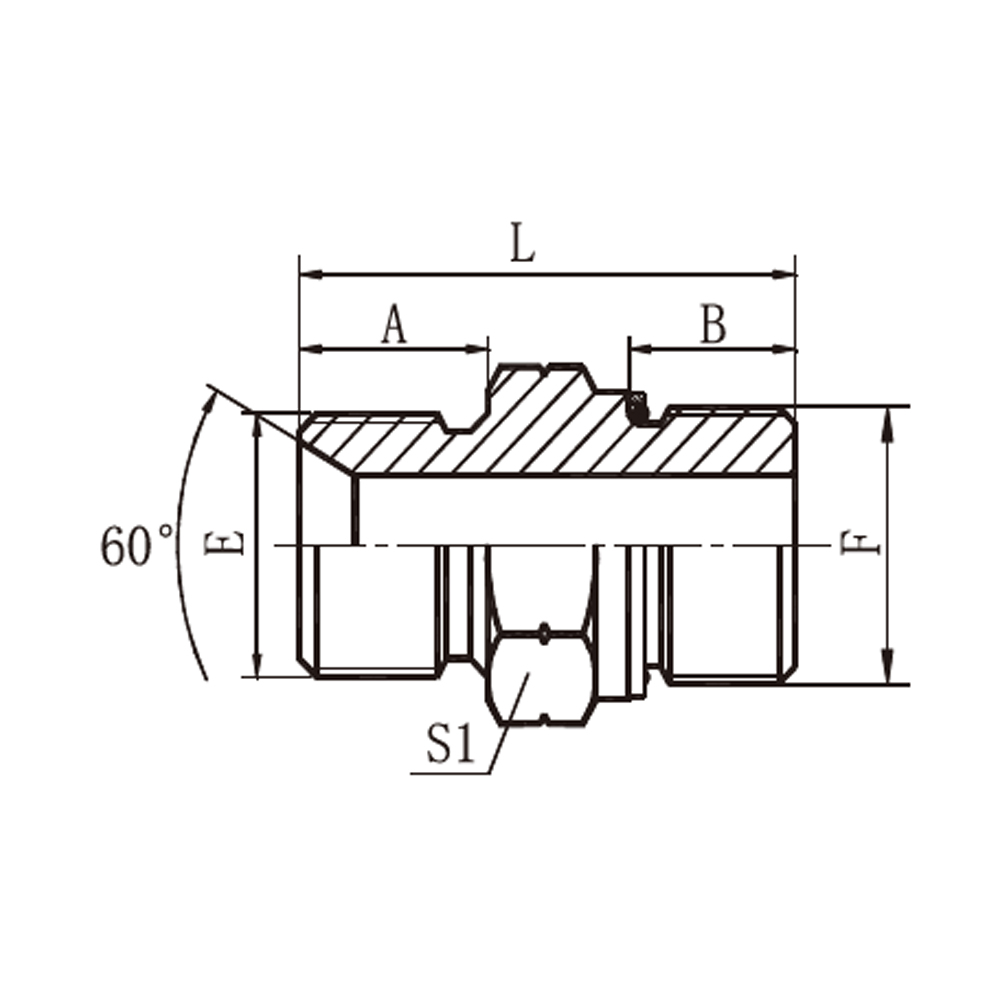

| PART NO. | THREAD | O-RING | DIMENSIONS | ||||
| E | F | F | A | B | L | S1 | |
| 1BG-02 | G1/8″X28 | G1/8″X28 | 11 | 10 | 9.5 | 27 | 14 |
| 1BG-04 | G1/4″X19 | G1/4″X19 | 111 | 12 | 11 | 31 | 19 |
| 1BG-04-06 | G1/4″X19 | G3/8″X19 | 113 | 12 | 11.5 | 32 | 22 |
| 1BG-06 | G3/8″X19 | G3/8″X19 | 113 | 13.5 | 11.5 | 35.5 | 22 |
| 1BG-06-04 | G3/8″X19 | G1/4″X19 | 111 | 13.5 | 11 | 32.5 | 22 |
| 1BG-06-08 | G3/8″X19 | G1/2″X14 | 115 | 13.5 | 14 | 38.5 | 27 |
| 1BG-08 | G1/2″X14 | G1/2″X14 | 115 | 16 | 14 | 41 | 27 |
| 1BG-08-06 | G1/2″X14 | G3/8″X19 | 113 | 16 | 11.5 | 40 | 27 |
| 1BG-08-12 | G1/2″X14 | G3/4″X14 | 119 | 16 | 15.5 | 45.5 | 32 |
| 1BG-10-08 | G5/8″X14 | G1/2″X14 | 115 | 17.5 | 14 | 44.5 | 30 |
| 1BG-12 | G3/4″X14 | G3/4″X14 | 119 | 18.5 | 15.5 | 46 | 32 |
| 1BG-12-08 | G3/4″X14 | G1/2″X14 | 115 | 18.5 | 14 | 45.5 | 32 |
| 1BG-16-08 | G1″X11 | G1/2″X14 | 115 | 20.5 | 14 | 50.5 | 41 |
| 1BG-16 | G1″X11 | G1″X11 | 217 | 20.5 | 18 | 53 | 41 |
| 1BG-16-12 | G1″X11 | G3/4″X14 | 119 | 20.5 | 15.5 | 52 | 41 |
| 1BG-20 | G1.1/4″X11 | G1.1/4″X11 | 222 | 20.5 | 20 | 58.5 | 50 |
| 1BG-24 | G1.1/2″X11 | G1.1/2″X11 | 224 | 23 | 21.5 | 62.5 | 55 |
