Push-lock couplings are available for SAE, BSP, DIN, ORFS, and other hydraulic hose sizes and in brass, stainless steel, and other materials. Push lock fittings are usually used on socketless or rubber hoses. Topol Power offers a wide range of push lock fittings which can be tightly connected to a wide range of hose systems.

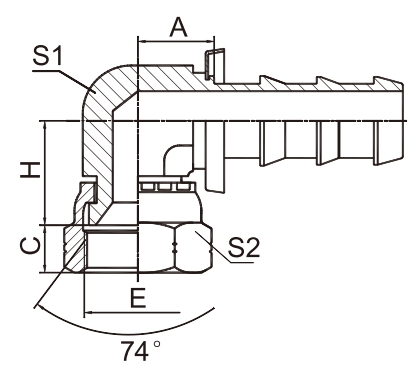

| PART NO | THREAD E | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | H | S1 | S2 | ||
| 26791K-04-04PO | 7/16″X20 | 6 | 04 | 11.7 | 9 | 18 | 11 | 17 |
| 26791K-06-04PO | 9/16″X18 | 6 | 04 | 14.2 | 10.5 | 20.5 | 14 | 19 |
| 26791K-06-06PO | 9/16″X18 | 10 | 06 | 15.5 | 10.5 | 21 | 16 | 19 |
| 26791K-08-06PO | 3/4″X16 | 10 | 06 | 16 | 11 | 22.5 | 16 | 24 |
| 26791K-08-08PO | 3/4″X16 | 12 | 08 | 15.7 | 11 | 22.5 | 19 | 24 |
| 26791K-10-10PO | 7/8″X14 | 16 | 10 | 18.5 | 12 | 27.5 | 22 | 27 |
| 26791K-12-12PO | 1.1/16″X12 | 20 | 12 | 21.5 | 15 | 30 | 27 | 32 |
