Home Hydraulic Hose Fittings One Piece Fittings 16711PK JIC MALE 74° Cone Hose Fittings
16011PK SAE Male One Piece Fittings
Back to products
21611PK NPSM Female 60° Cone Hose Fittings
Click to enlarge

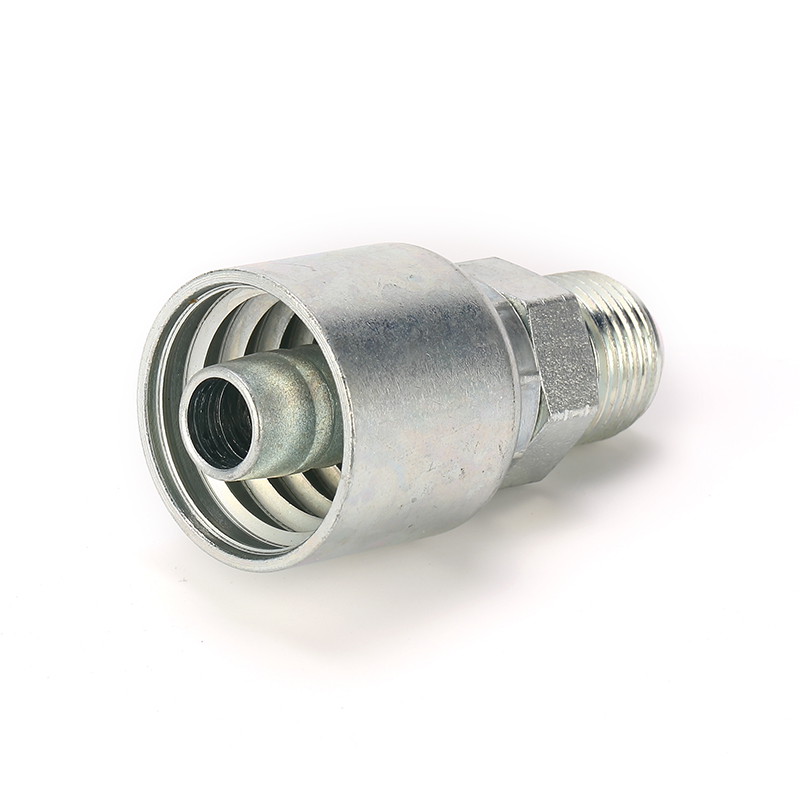

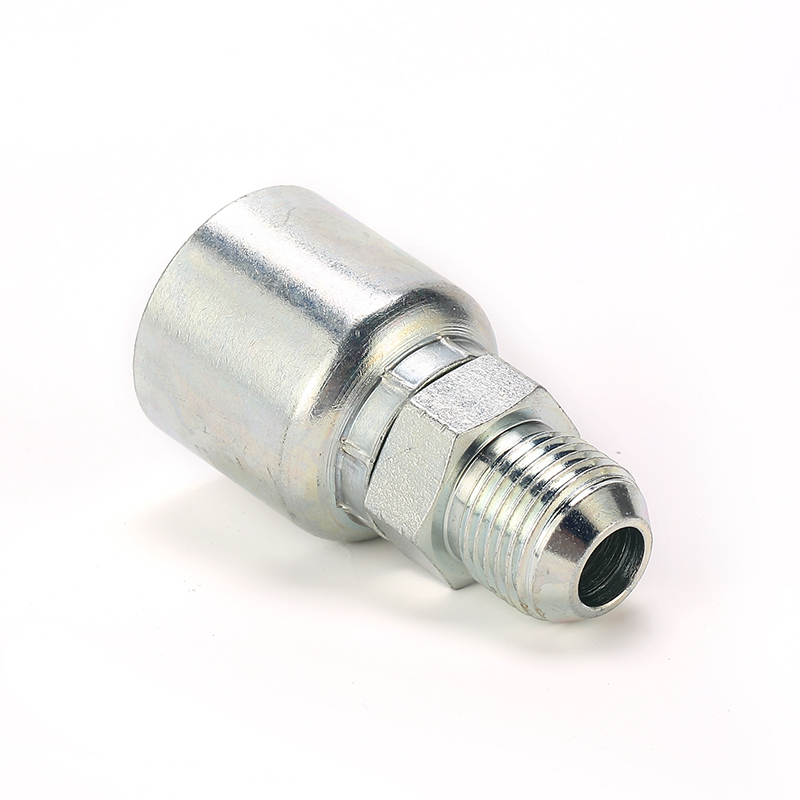

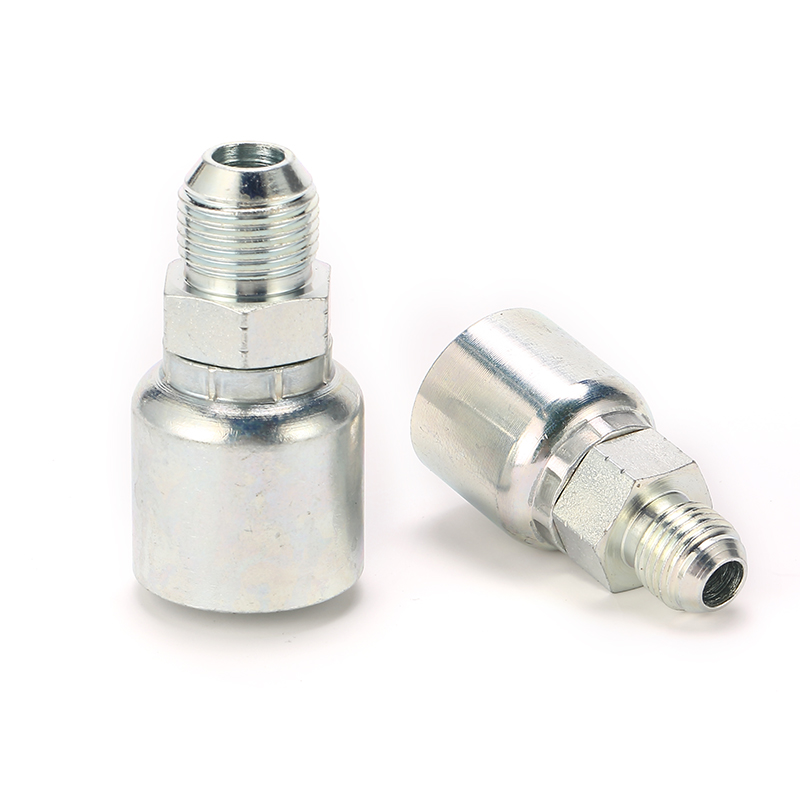

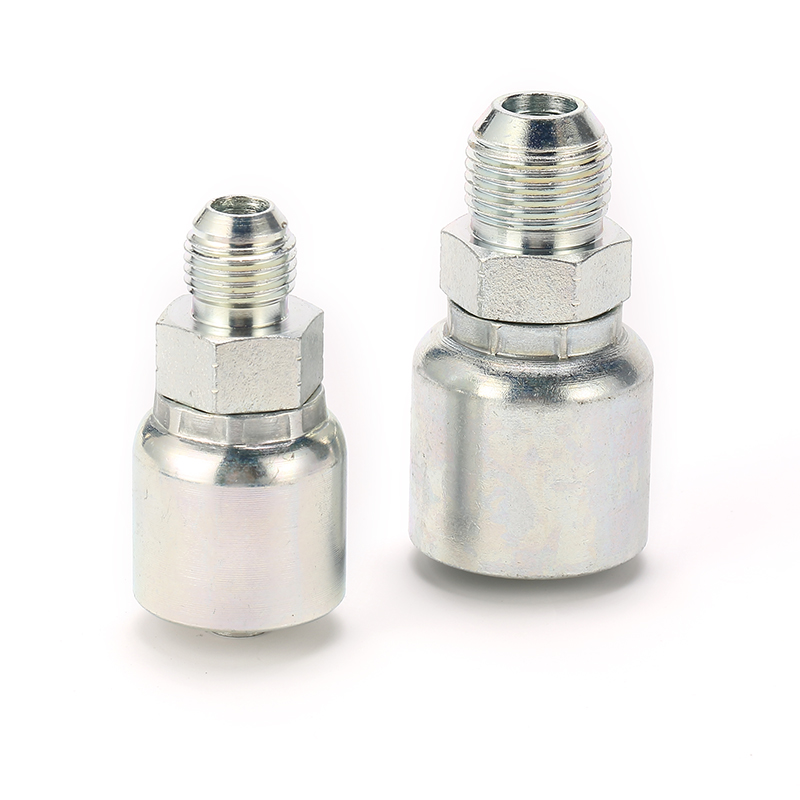

16711PK JIC MALE 74° Cone Hose Fittings

Description:

The 16711pk Male JIC 37° cone fittings are available in one-piece construction for applications ranging from hydraulic industry standards, constant working pressure, high temperature, and low temperature. Our fittings can suit with different standard hoses,such as Parker, Eaton, Gates hydraulic hose, and so on.

INQUIRE NOW

"*" indicates required fields

Category: One Piece Fittings Tags: Carbon Steel, JIC 37°, Male, One Piece
Share:
  • Description
  • Package& Shipping
Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

PART  NO THREAD  E HOSE  BORE DIMENSIONS
DN DASH A C S1
16711-04-04PKAST 7/16″X20 6 04 51 29 14.29
16711-06-06PKAST 9/16″X18 10 06 60 31.5 19
16711-08-06PKAST 3/4″X16 10 06 58 29.5 22.22
16711-08-08PKAST 3/4″X16 12 08 68 34 22.22
16711-10-10PKAST 7/8″X14 16 10 77 38.2 24
16711-12-12PKAST 1.1/16″X12 20 12 81 41.9 28.5
16711-16-16PKAST 1.5/16″X12 25 16 92 47.2 35
16711-20-20PKAST 1.5/8″X12 32 20 101 54 47
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
