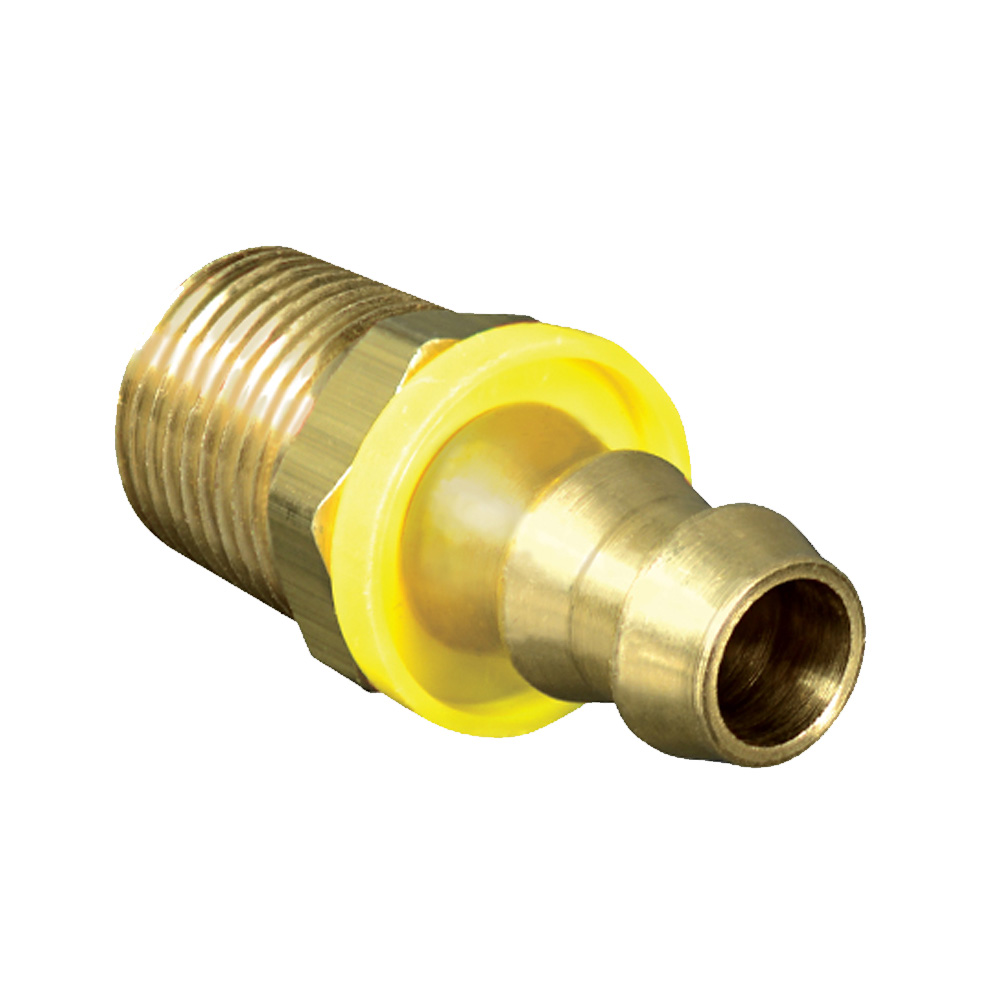

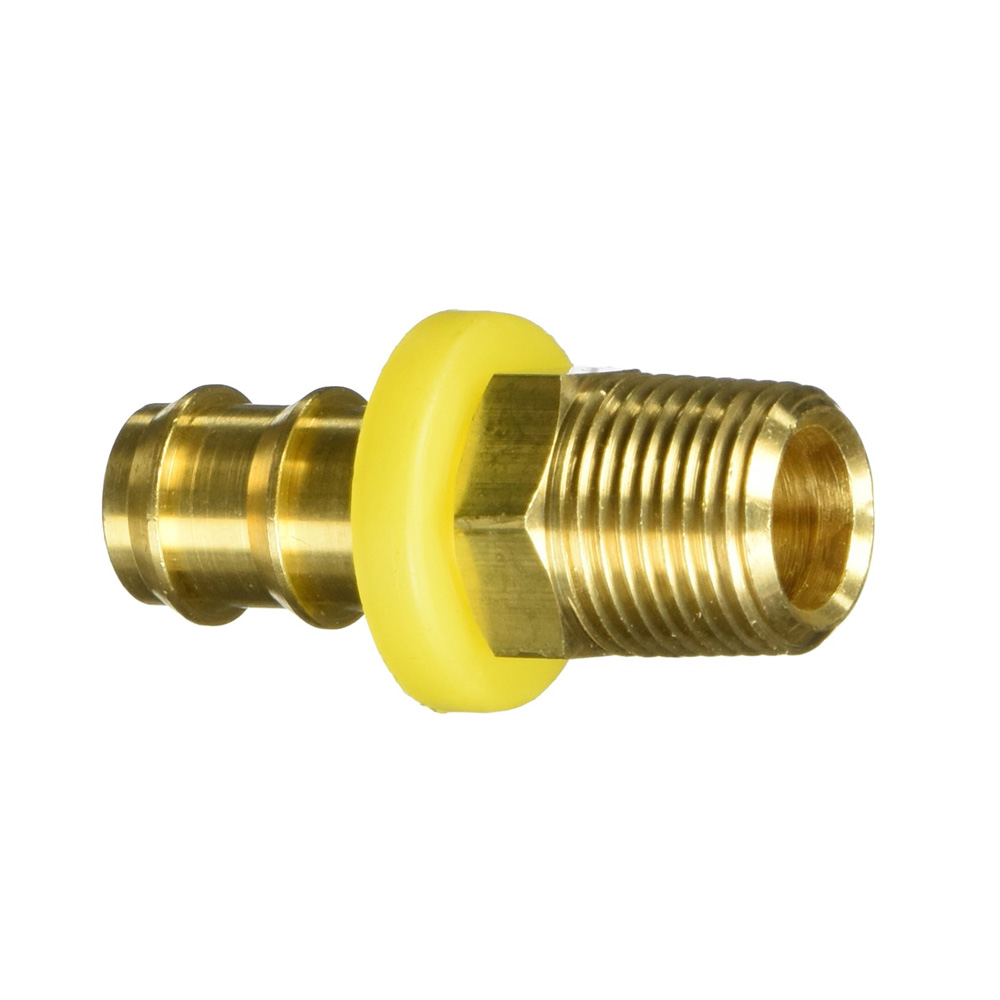

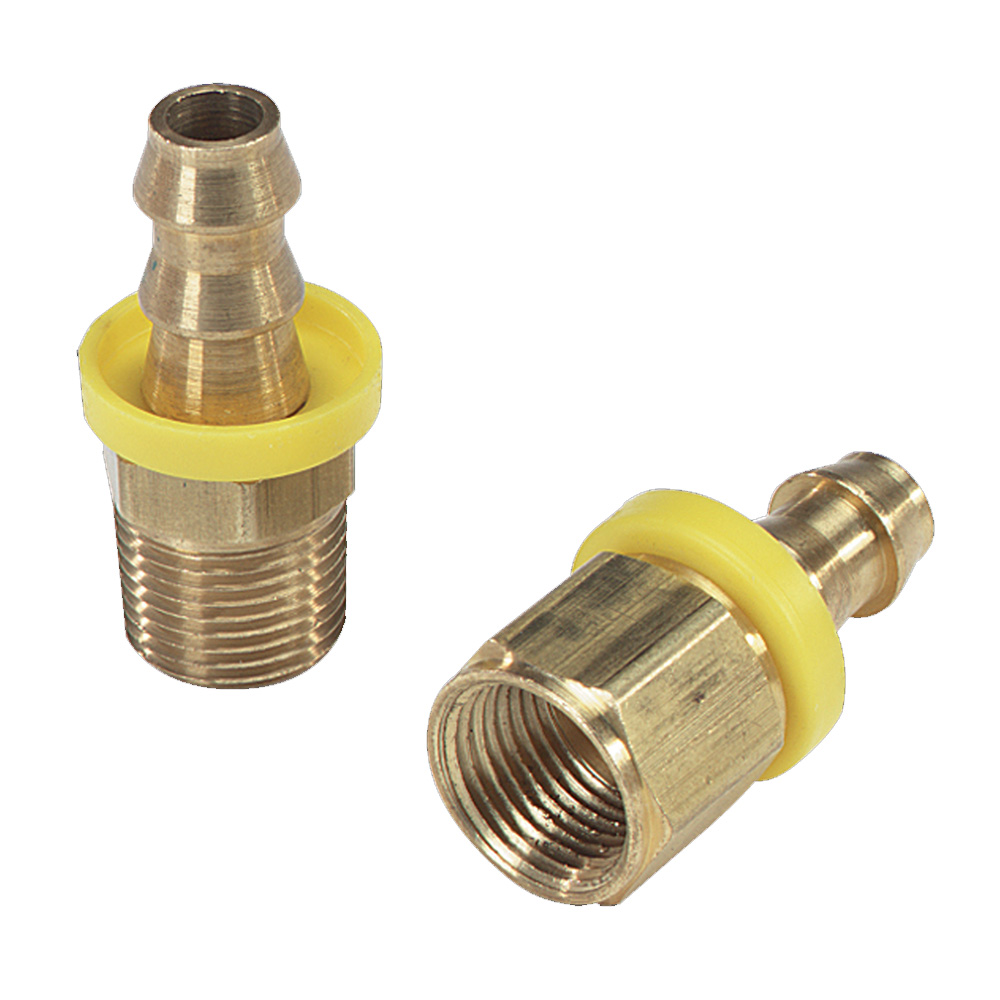

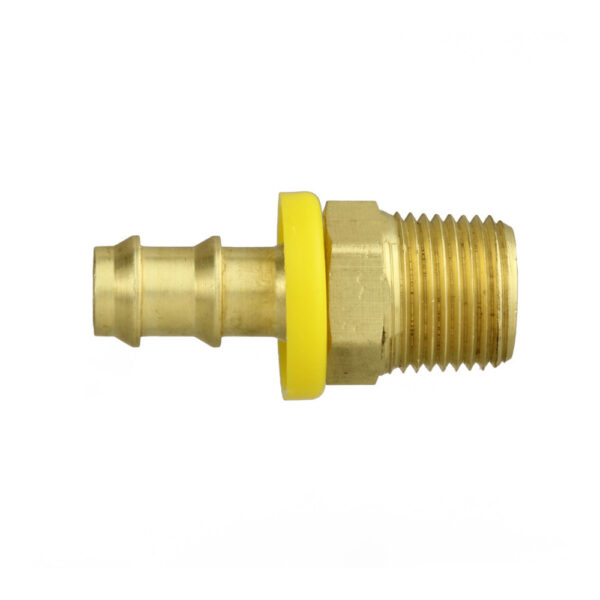

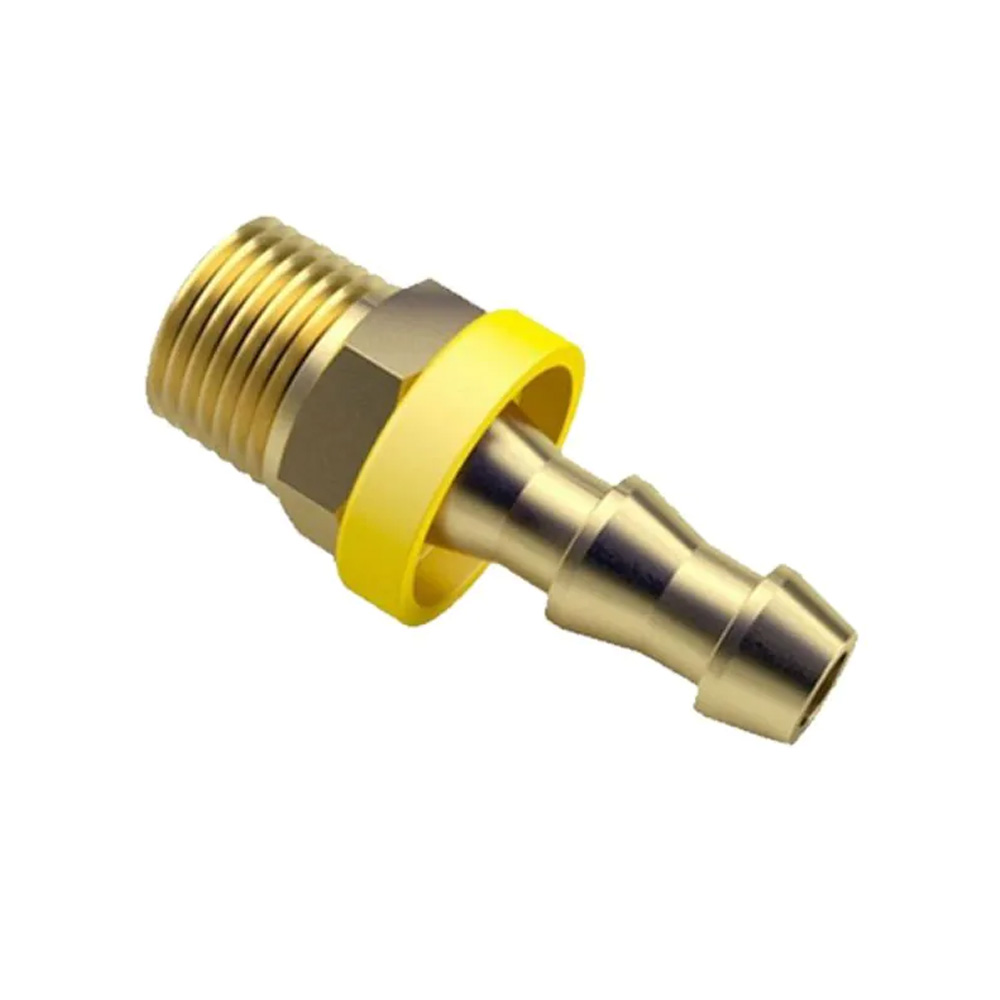

12611PO BSP Male 60° Cone Seat Fittings

Description:

The 12611PO Male BSP Socketless 60° cone seat fittings are available in hydraulic industry standards, constant working pressure, high temperature, and low temperature. Our fittings can suit with different standard hoses,such as Parker, Eaton, Gates hydraulic hose, and so on.

Category: Socketless Hose Fittings Tags: Carbon Steel, BSP, Male

Description
Package& Shipping

Description

Push-lock couplings are available for SAE, BSP, DIN, ORFS, and other hydraulic hose sizes and in brass, stainless steel, and other materials. Push lock fittings are usually used on socketless or rubber hoses. Topol Power offers a wide range of push lock fittings which can be tightly connected to a wide range of hose systems.

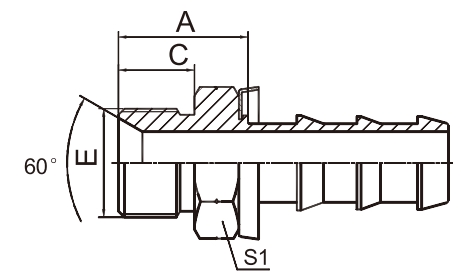

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	C	S1
12611-04-04PO	G1/4″X19	6	04	20	12	14
12611-06-06PO	G3/8″X19	10	06	22	13.5	17
12611-08-08PO	G1/2″X14	12	08	26.5	16	22
12611-10-10PO	G5/8″X14	16	10	27.5	17.5	24
12611-12-12PO	G3/4″X14	20	12	29.9	18.5	27

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
