1BT9 -SP BSPT Male Elbow Hydraulic Fitting

Description:

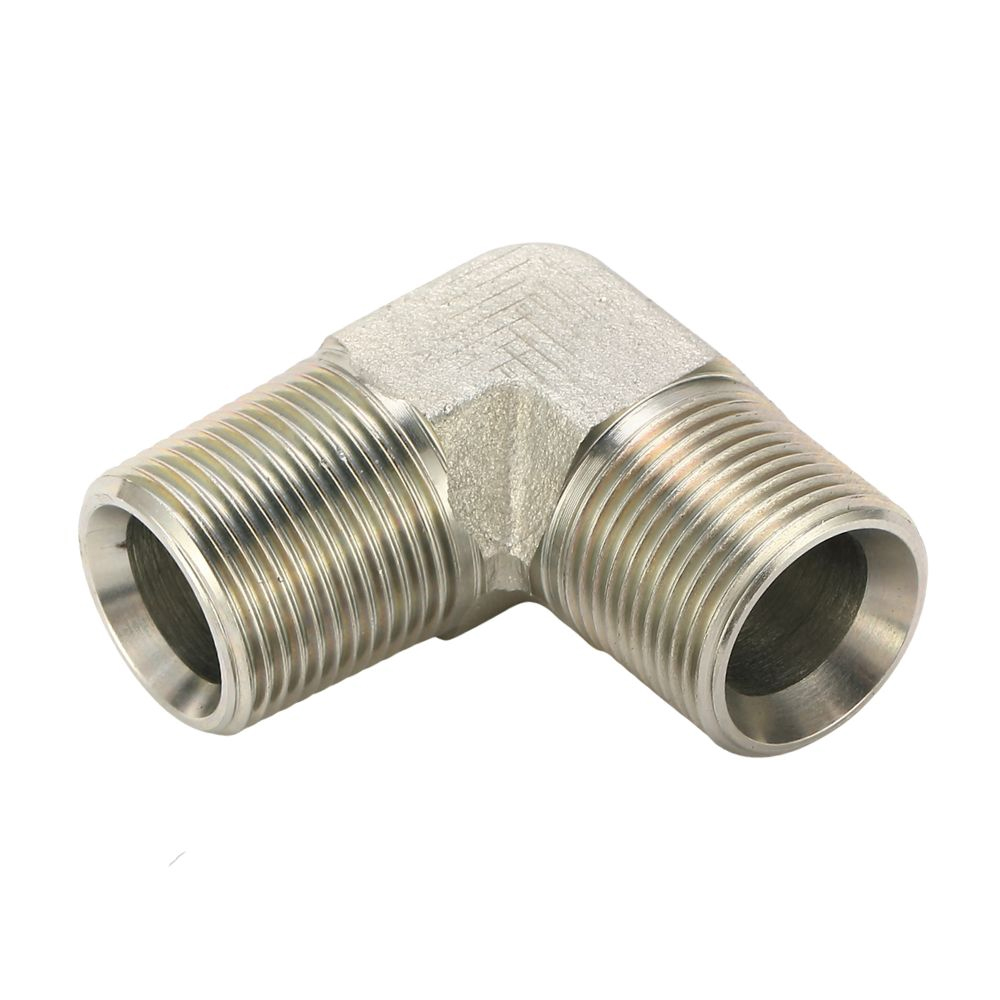

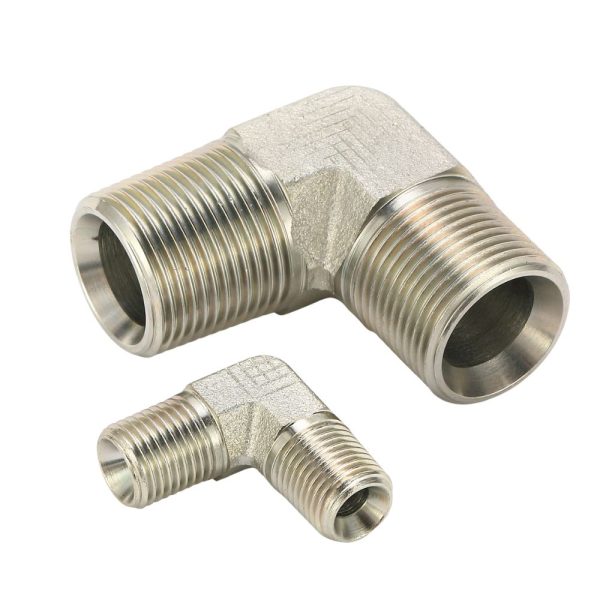

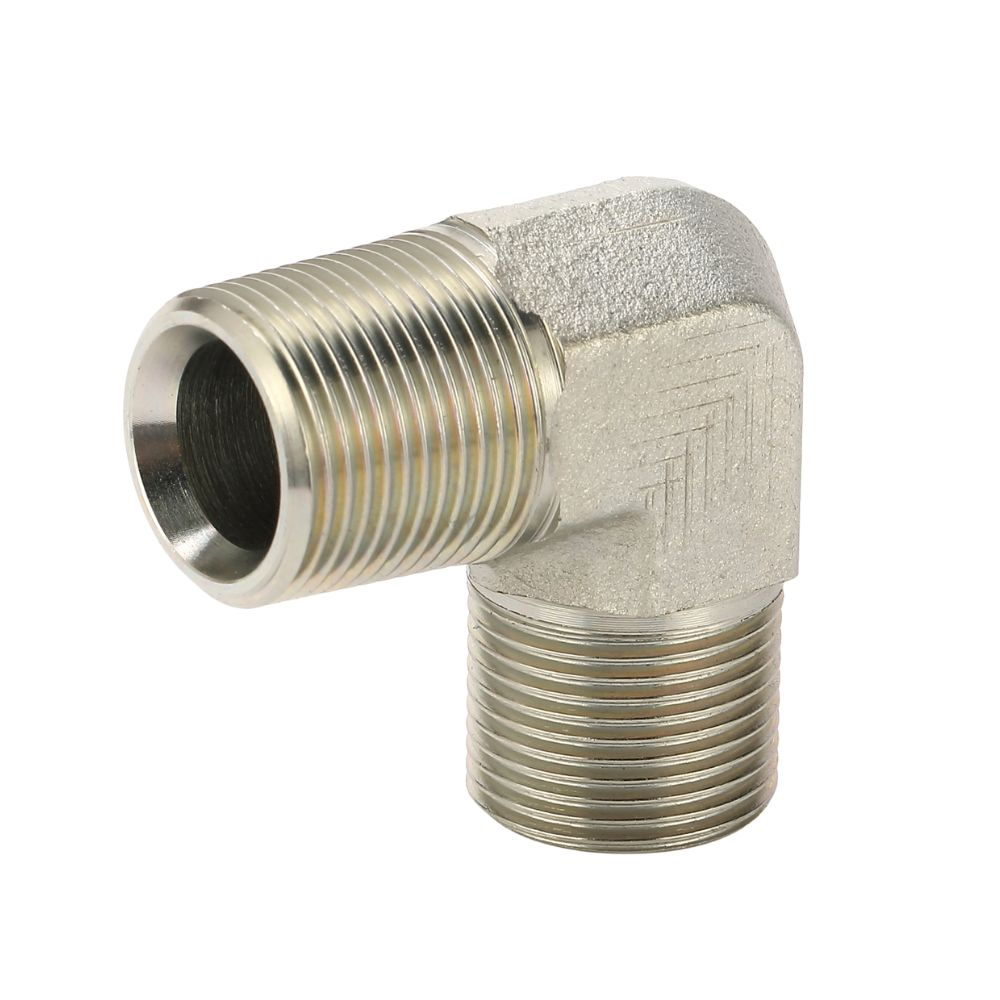

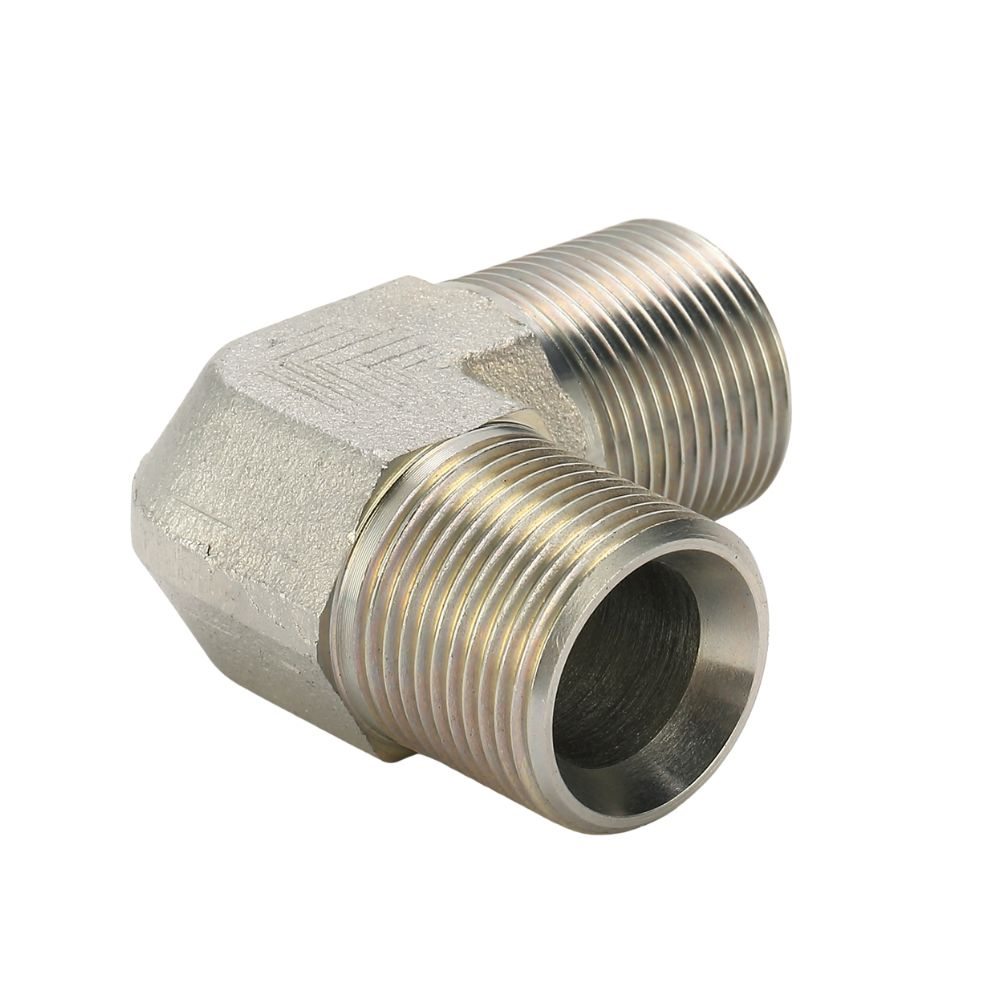

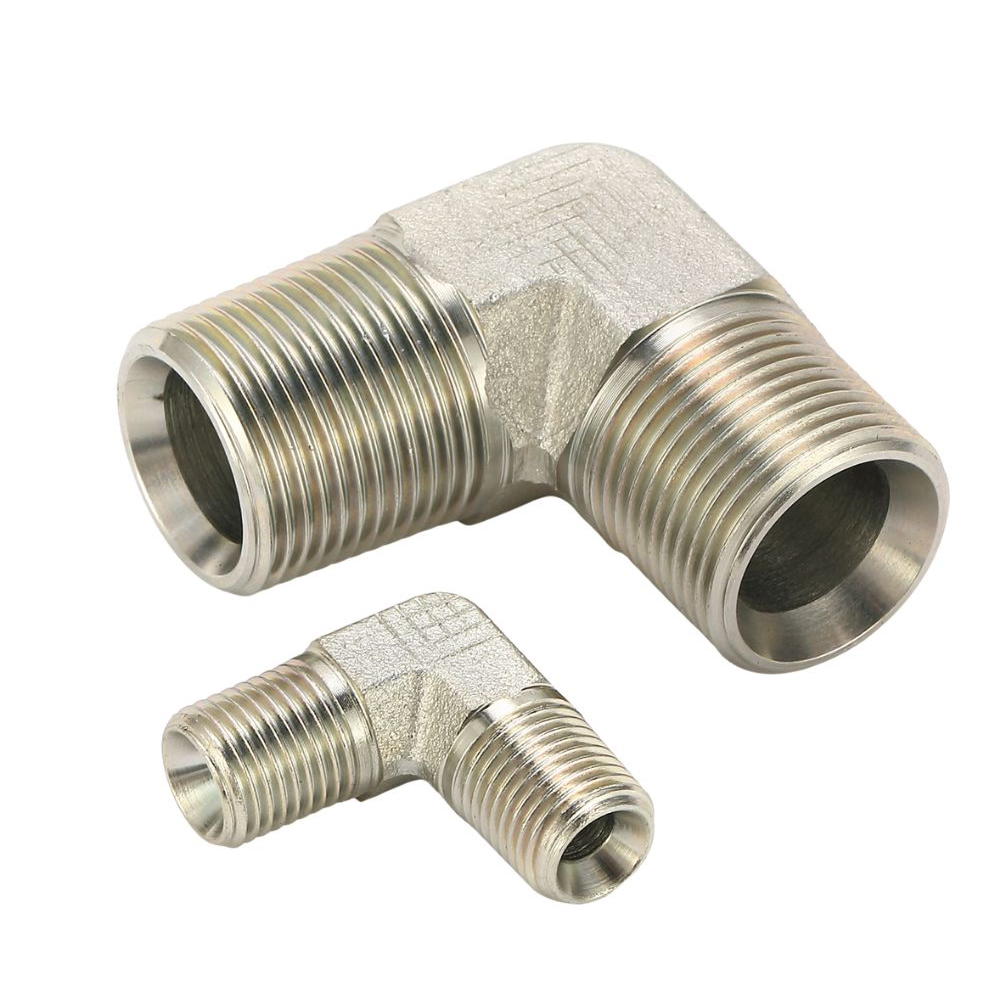

1BT9-SP BSP bend hydraulic fitting is a 90-degree elbow male bonded seal fitting with a 60-degree cone BSP thread and a BSPT thread.

"*" indicates required fields

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

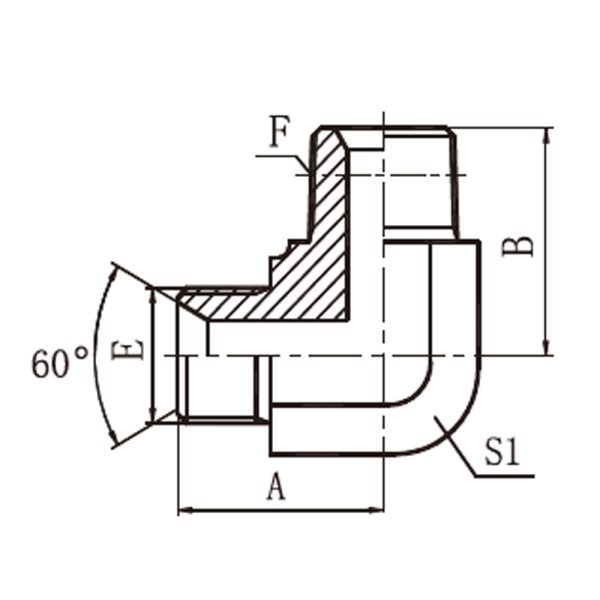

PART NO.	THREAD		DIMENSIONS
PART NO.	E	F	A	B	S1
1BT9-02SP	G1/8″X28	R1/8″X28	19.8	21	11
1BT9-02-04SP	G1/8″X28	R1/4″X19	22.3	25.5	14
1BT9-04SP	G1/4″X19	R1/4″X19	25	26	14
1BT9-04-02SP	G1/4″X19	R1/8″X28	24.5	23.5	14
1BT9-04-06SP	G1/4″X19	R3/8″X19	25	28.5	16
1BT9-04-08SP	G1/4″X19	R1/2″X14	30	36	22
1BT9-06SP	G3/8″X19	R3/8″X19	27.5	28.5	16
1BT9-06-04SP	G3/8″X19	R1/4″X19	27.5	26.5	16
1BT9-06-08SP	G3/8″X19	R1/2″X14	31	36	22
1BT9-08SP	G1/2″X14	R1/2″X14	34.5	36	22
1BT9-08-04SP	G1/2″X14	R1/4″X19	34.5	30.5	22
1BT9-08-06SP	G1/2″X14	R3/8″X19	34.5	32.5	22
1BT9-08-12SP	G1/2″X14	R3/4″X14	37.5	43.5	27
1BT9-08-16SP	G1/2″X14	R1″X11	41	50	33
1BT9-10-08SP	G5/8″X14	R1/2″X14	35	36	22
1BT9-10-12SP	G5/8″X14	R3/4″X14	39	43.5	27
1BT9-12SP	G3/4″X14	R3/4″X14	40	43	27
1BT9-12-06SP	G3/4″X14	R3/8″X19	40	36	27
1BT9-12-08SP	G3/4″X14	R1/2″X14	40	39.5	27
1BT9-12-16SP	G3/4″X14	R1″X11	43.5	50	33
1BT9-12-20SP	G3/4″X14	R1.1/4″X11	48	56.5	41
1BT9-16SP	G1″X11	R1″X11	46	50	33
1BT9-16-08SP	G1″X11	R1/2″X14	46	43	33
1BT9-16-12SP	G1″X11	R3/4″X14	46	47.5	33
1BT9-16-20SP	G1″X11	R1.1/4″X11	50.5	56.5	41
1BT9-20SP	G1.1/4″X11	R1.1/4″X11	52	59	41
1BT9-20-12SP	G1.1/4″X11	R3/4″X14	50.5	52	41
1BT9-20-16SP	G1.1/4″X11	R1″X11	50.5	56.5	41
1BT9-20-24SP	G1.1/4″X11	R1.1/2″X11	54.5	62.5	48
1BT9-24SP	G1.1/2″X11	R1.1/2″X11	57.5	62.5	48
1BT9-24-20SP	G1.1/2″X11	R1.1/4″X11	57.5	62	48
1BT9-24-32SP	G1.1/2″X11	R2″X11	65	75	63
1BT9-32SP	G2″X11	R2″X11	67	75	63
1BT9-32-24SP	G2″X11	R1.1/2″X11	67	72	63
