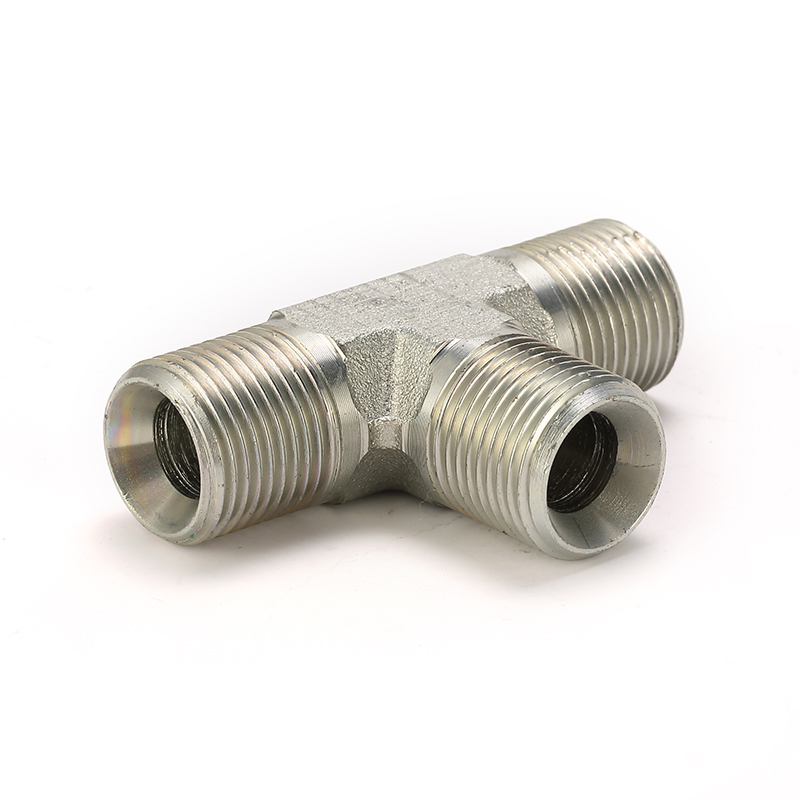

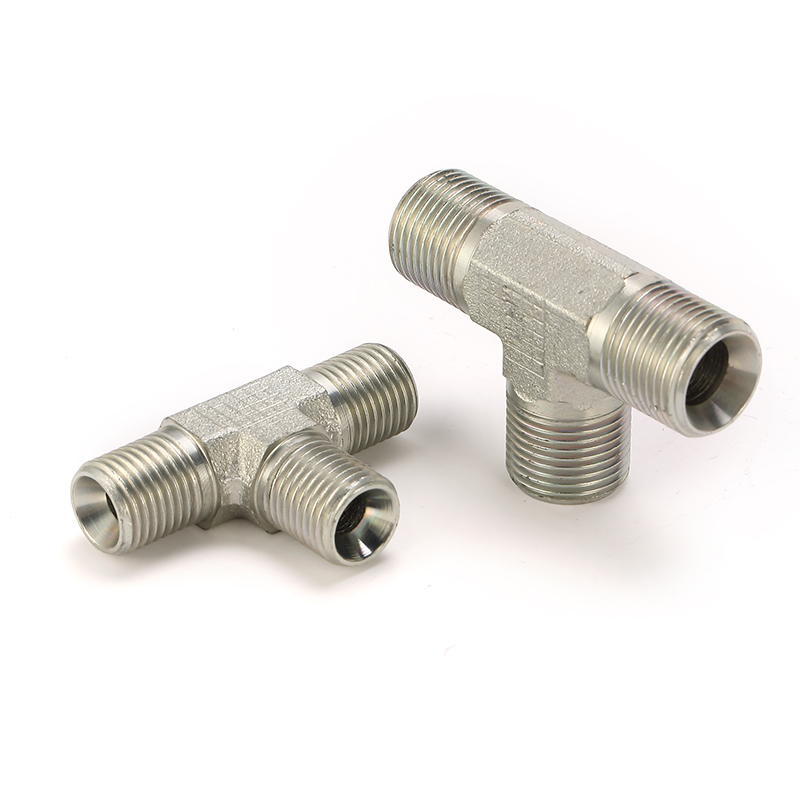

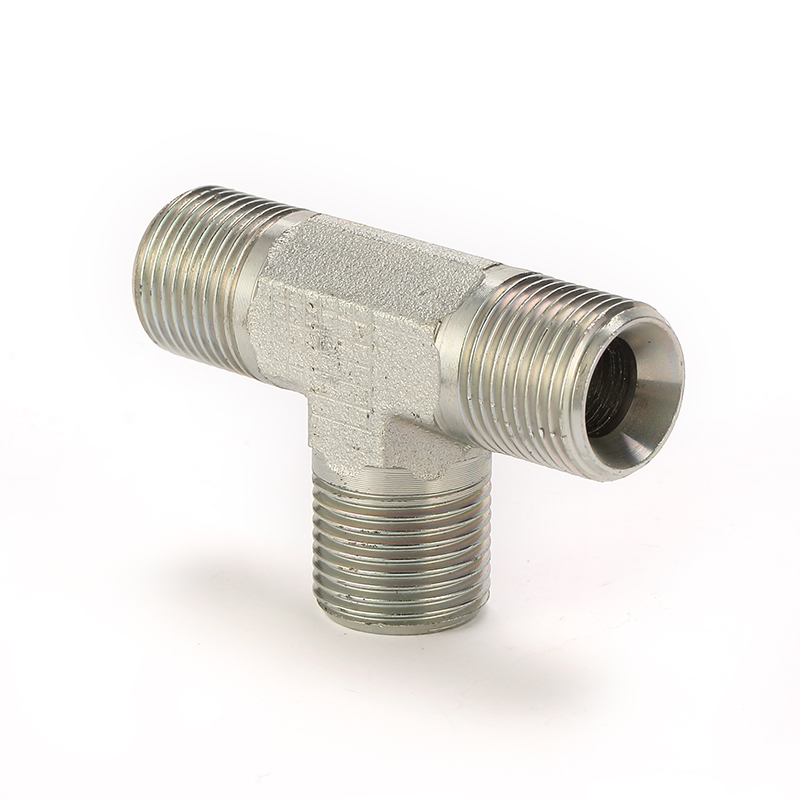

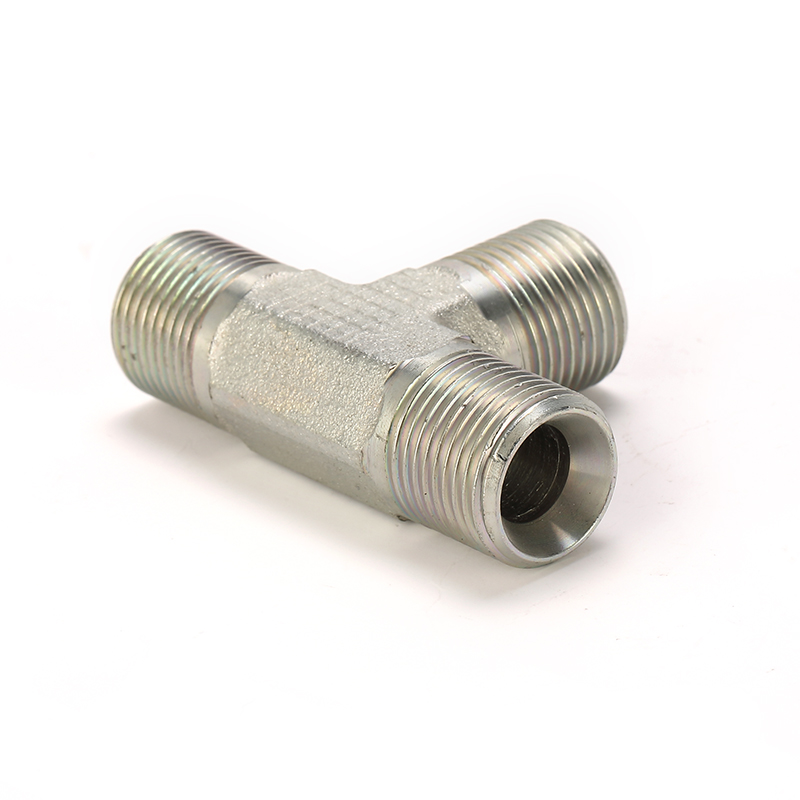

AB BSP Male Tee Hydraulic Adapter

Description:

AB-BSP hydraulic tee fitting is a 3-way male tee fitting with the 60-degree cone BSP thread.

Category: BSP Hydraulic Adapter Tags: Male, Tee, AB, BSP

Description
Package& Shipping

Description

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

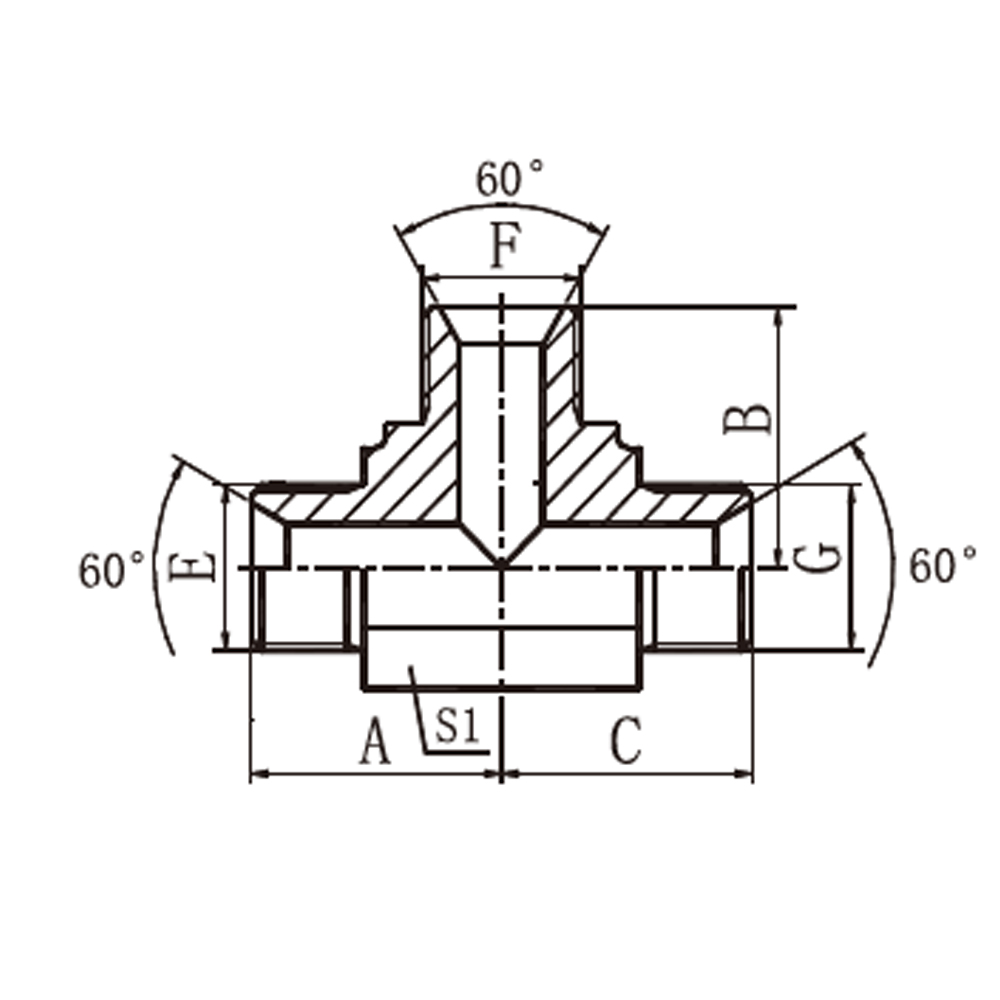

PAPT NO.	THREAD			DIMENSIONS
PAPT NO.	E	F	G	A	B	C	S1
AB-02	G1/8＂X28	G1/8＂X28	G1/8＂X28	19.8	19.8	19.8	11
AB-04	G1/4＂X19	G1/4＂X19	G1/4＂X19	24.5	24.5	24.5	14
AB-06	G3/8＂X19	G3/8＂X19	G3/8＂X19	27.5	27.5	27.5	16
AB-08	G1/2＂X14	G1/2＂X14	G1/2＂X14	34.5	34.5	34.5	22
AB-10	G5/8＂X14	G5/8＂X14	G5/8＂X14	35	35	35	22
AB-12	G3/4＂X14	G3/4＂X14	G3/4＂X14	40	40	40	27
AB-16	G1＂X11	G1＂X11	G1＂X11	46	46	46	33
AB-20	G1.1/4＂X11	G1.1/4＂X11	G1.1/4＂X11	50.5	50.5	50.5	41
AB-24	G1.1/2＂X11	G1.1/2＂X11	G1.1/2＂X11	57.5	57.5	57.5	48
AB-32	G2″X11	G2″X11	G2″X11	72.5	72.5	72.5	63

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
