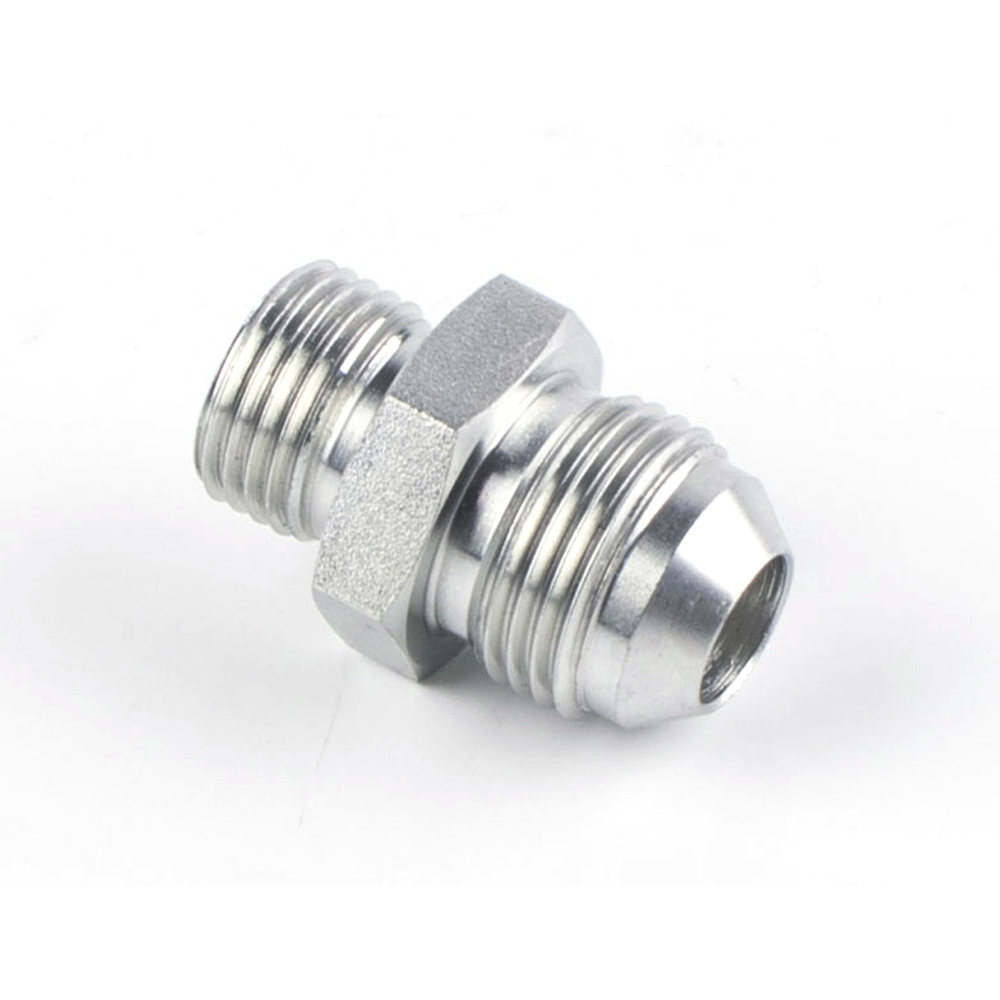

1CJ / 1DJ DIN to Male JIC Hydraulic Adapter

Description:

1CM/1DM-RN metric to BSP adapter is a male adapter that has a male 24-degree cone metric thread, and a 60-degree cone BSP thread.

"*" indicates required fields

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

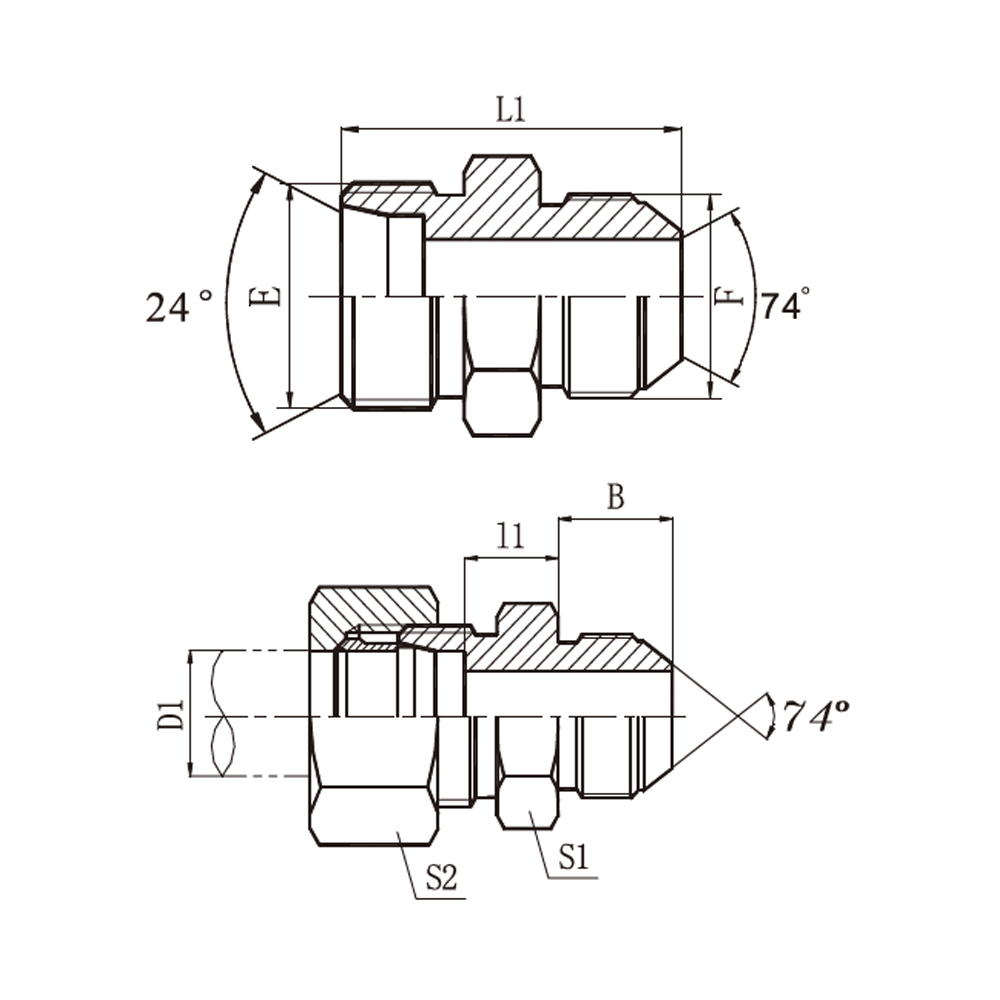

PART NO.	THREAD		TUBE O.D.	DIMENSIONS					MPa
PART NO.	E	F	D1	B	I1	L1	S1	S2	MPa
1CJ-12-04	M12X1.5	7/6″X20	6	14	8	29	12	14	31.5 L series
1CJ-14-04	M14X1.5	7/6″X20	8	14	8	29	14	17
1CJ-14-06	M14X1.5	9/16″X18	8	14.1	8	29.1	17	17
1CJ-16-06	M16X1.5	9/16″X18	10	14.1	8.9	30	17	19
1CJ-18-06	M18X1.5	9/16″X18	12	14.1	9.9	31	19	22
1CJ-18-08	M18X1.5	3/4″X16	12	16.7	10.3	34	22	22
1CJ-22-08	M22X1.5	3/4″X16	15	16.7	10.8	34.5	24	27
1CJ-22-10	M22X1.5	7/8″X14	15	19.3	11	37.3	24	27
1CJ-26-10	M26X1.5	7/8″X14	18	19.3	11.7	38.5	27	32
1CJ-26-12	M26X1.5	1.1/6″X12	18	21.9	11.6	41	30	32
1CJ-30-12	M30X2	1.1/6″X12	22	21.9	13.6	43	32	36	16 L series
1CJ-36-16	M36X2	1.5/6″X12	28	23.1	14.5	45.1	41	41
1CJ-45-20	M45X2	1.5/8″X12	35	24.3	14.7	49.5	46	50
1CJ-52-20	M52X2	1.5/8″X12	42	24.3	16	51.3	55	60
1CJ-52-24	M52X2	1.7/8″X12	42	27.5	16	54.5	55	60
1DJ-14-04	M14X1.5	7/16″X20	6	14	11	32	14	17	63 S series
1DJ-16-04	M16X1.5	7/16″X20	8	14	13	34	17	19
1DJ-16-06	M16X1.5	9/16″X18	8	14.1	12.9	34	17	19
1DJ-18-04	M18X1.5	7/16″X20	10	14	12.5	34	19	22
1DJ-18-06	M18X1.5	9/6″X18	10	14.1	12.4	34	19	22
1DJ-20-06	M20X1.5	9/6″X18	12	14.1	14.4	36	22	24
1DJ-20-08	M20X1.5	3/4″X16	12	16.7	14.3	38.5	22	24
1DJ-22-08	M22X1.5	3/4″X16	14	16.7	15.8	40.5	24	27
1DJ-24-08	M24X1.5	3/4″X16	16	16.7	15.3	40.5	27	30	40 S series
1DJ-24-10	M24X1.5	7/8″X16	16	19.3	15.2	43	27	30
1DJ-30-12	M30X2	1.1/16″X12	20	21.9	17.6	50	32	36
1DJ-36-12	M36X2	1.1/16″X12	25	21.9	20.1	54	38	46
1DJ-36-16	M36X2	1.5/16″X12	25	23.1	19.9	55	38	46
1DJ-42-20	M42X2	1.5/8″X12	30	24.3	20.2	58	46	50
1DJ-52-24	M52X2	1.7/8″X12	38	27.5	23	66.5	55	60	31.5 S series

Click to enlarge

Category: DIN Hose Adapters Tags: Carbon Steel, O-ring, Metric, 1CJ, 1DJ

Description
Package& Shipping

Description

PART NO.	THREAD		TUBE O.D.	DIMENSIONS					MPa
PART NO.	E	F	D1	B	I1	L1	S1	S2	MPa
1CJ-12-04	M12X1.5	7/6″X20	6	14	8	29	12	14	31.5 L series
1CJ-14-04	M14X1.5	7/6″X20	8	14	8	29	14	17
1CJ-14-06	M14X1.5	9/16″X18	8	14.1	8	29.1	17	17
1CJ-16-06	M16X1.5	9/16″X18	10	14.1	8.9	30	17	19
1CJ-18-06	M18X1.5	9/16″X18	12	14.1	9.9	31	19	22
1CJ-18-08	M18X1.5	3/4″X16	12	16.7	10.3	34	22	22
1CJ-22-08	M22X1.5	3/4″X16	15	16.7	10.8	34.5	24	27
1CJ-22-10	M22X1.5	7/8″X14	15	19.3	11	37.3	24	27
1CJ-26-10	M26X1.5	7/8″X14	18	19.3	11.7	38.5	27	32
1CJ-26-12	M26X1.5	1.1/6″X12	18	21.9	11.6	41	30	32
1CJ-30-12	M30X2	1.1/6″X12	22	21.9	13.6	43	32	36	16 L series
1CJ-36-16	M36X2	1.5/6″X12	28	23.1	14.5	45.1	41	41
1CJ-45-20	M45X2	1.5/8″X12	35	24.3	14.7	49.5	46	50
1CJ-52-20	M52X2	1.5/8″X12	42	24.3	16	51.3	55	60
1CJ-52-24	M52X2	1.7/8″X12	42	27.5	16	54.5	55	60
1DJ-14-04	M14X1.5	7/16″X20	6	14	11	32	14	17	63 S series
1DJ-16-04	M16X1.5	7/16″X20	8	14	13	34	17	19
1DJ-16-06	M16X1.5	9/16″X18	8	14.1	12.9	34	17	19
1DJ-18-04	M18X1.5	7/16″X20	10	14	12.5	34	19	22
1DJ-18-06	M18X1.5	9/6″X18	10	14.1	12.4	34	19	22
1DJ-20-06	M20X1.5	9/6″X18	12	14.1	14.4	36	22	24
1DJ-20-08	M20X1.5	3/4″X16	12	16.7	14.3	38.5	22	24
1DJ-22-08	M22X1.5	3/4″X16	14	16.7	15.8	40.5	24	27
1DJ-24-08	M24X1.5	3/4″X16	16	16.7	15.3	40.5	27	30	40 S series
1DJ-24-10	M24X1.5	7/8″X16	16	19.3	15.2	43	27	30
1DJ-30-12	M30X2	1.1/16″X12	20	21.9	17.6	50	32	36
1DJ-36-12	M36X2	1.1/16″X12	25	21.9	20.1	54	38	46
1DJ-36-16	M36X2	1.5/16″X12	25	23.1	19.9	55	38	46
1DJ-42-20	M42X2	1.5/8″X12	30	24.3	20.2	58	46	50
1DJ-52-24	M52X2	1.7/8″X12	38	27.5	23	66.5	55	60	31.5 S series

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
