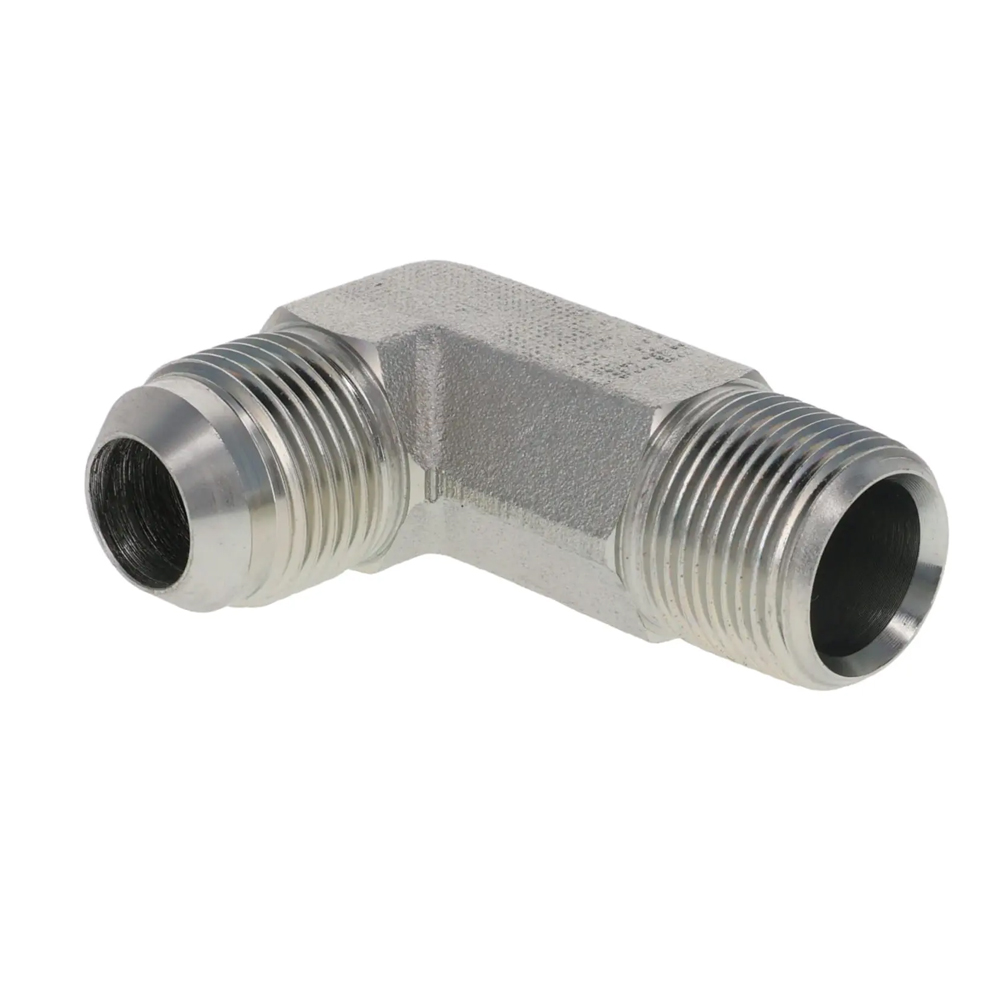

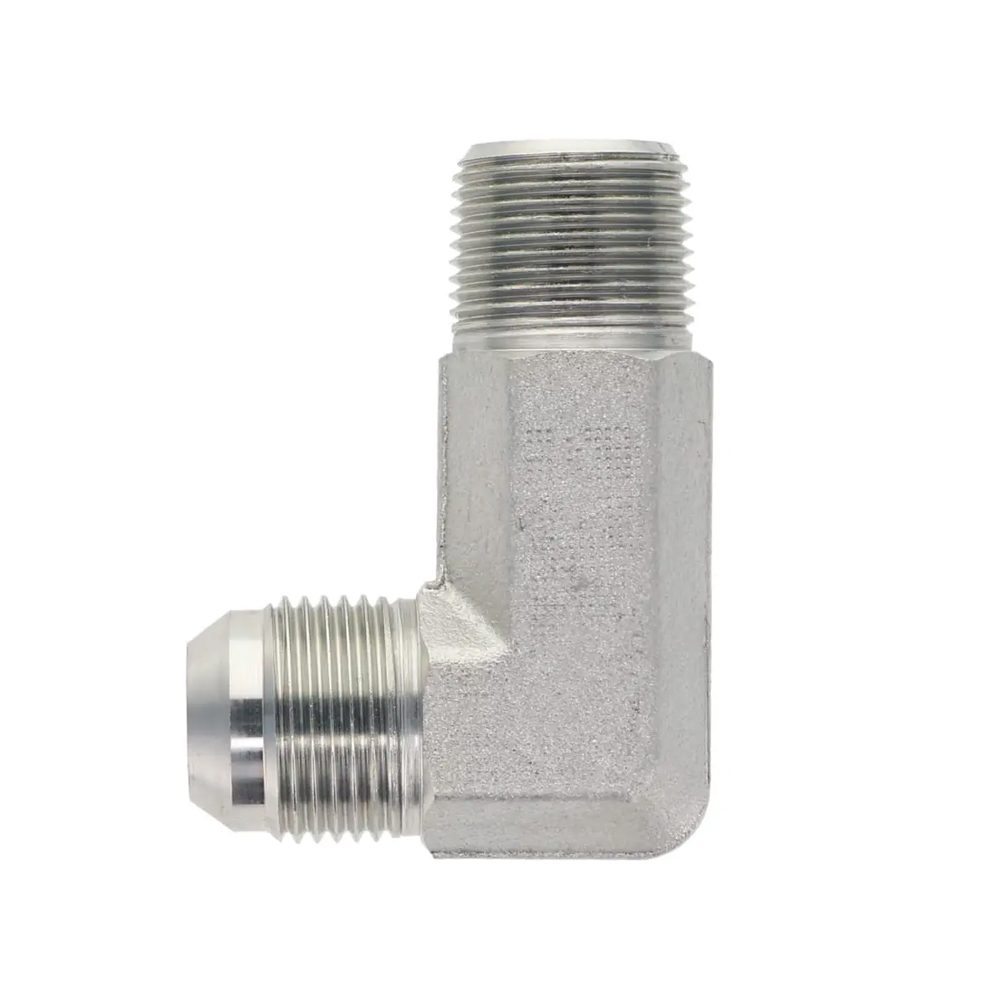

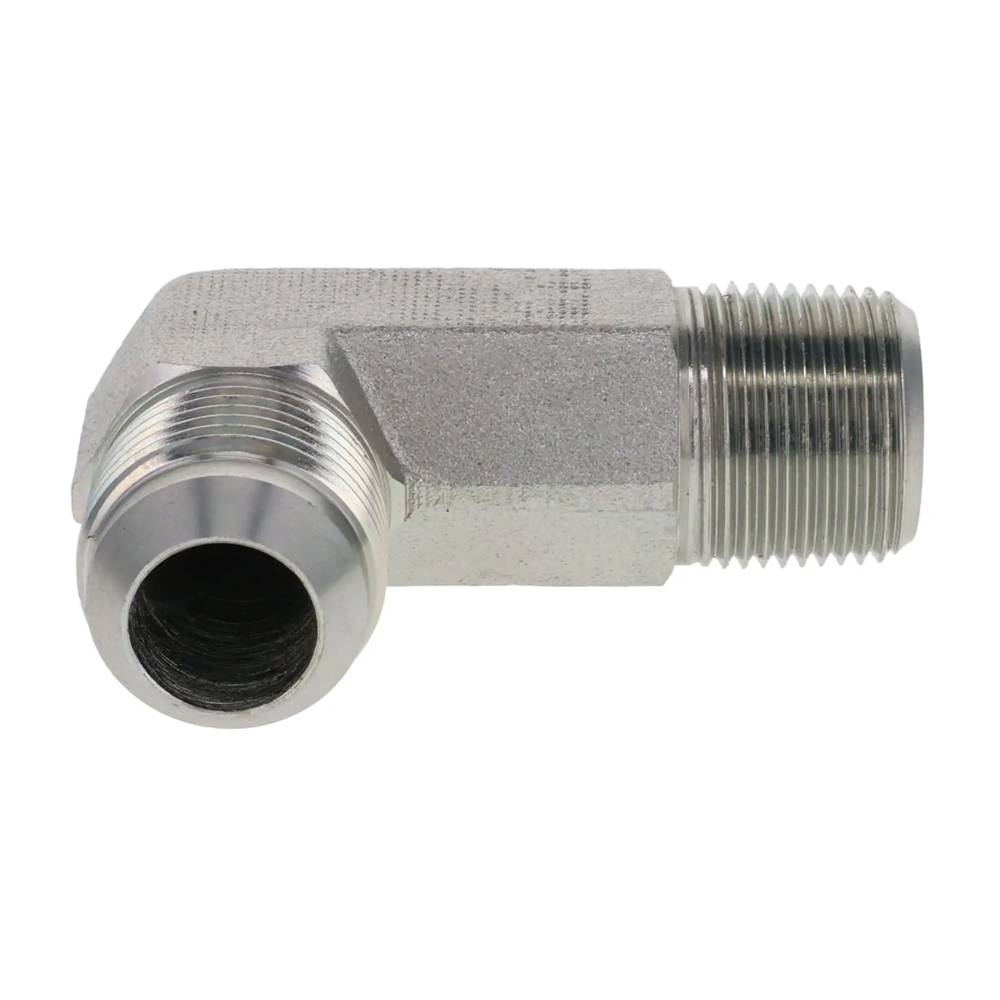

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

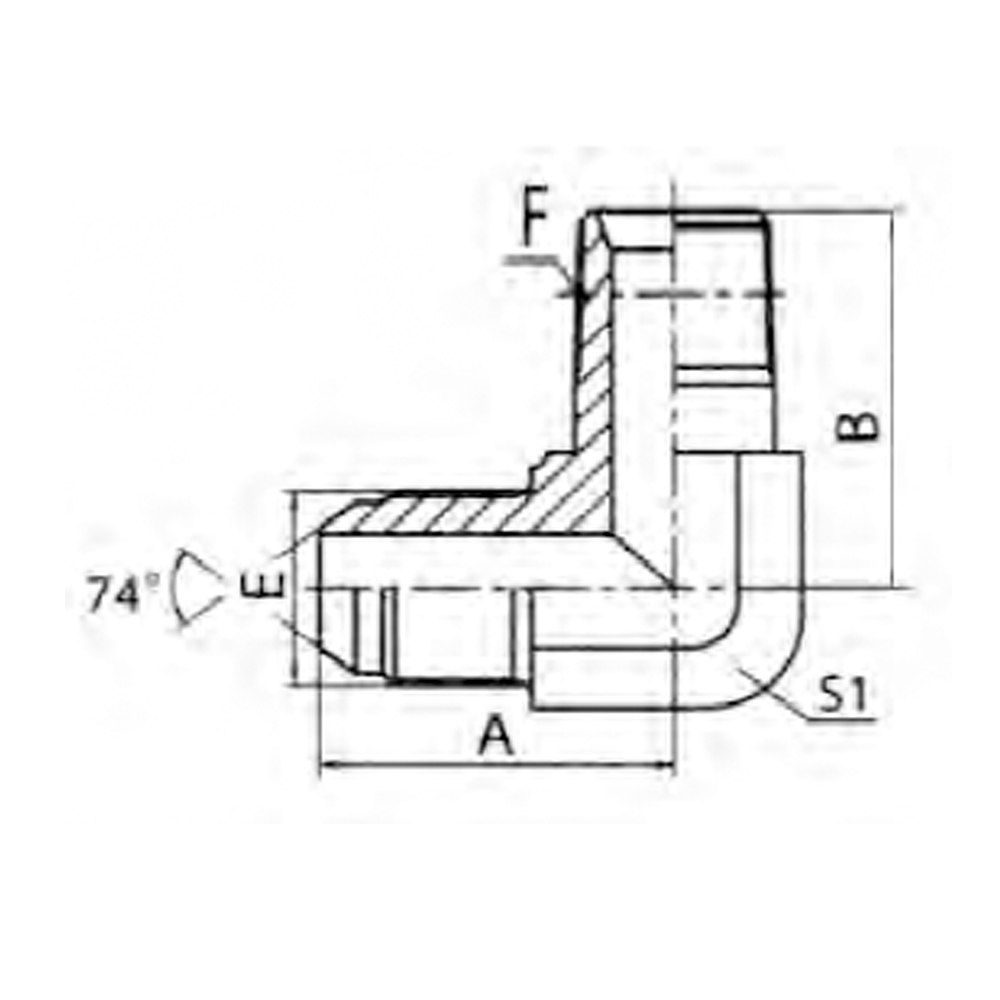

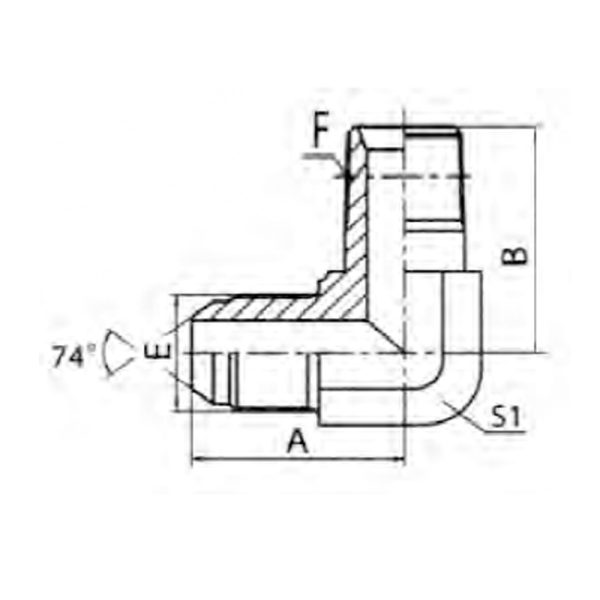

| PART NO. | THREAD | DIMENSIONS | |||
| E | F | A | B | S1 | |
| 1JN9-04-02L | 7/16″X20 | Z1/8″X27 | 24.5 | 30 | 11 |
| 1JN9-04L | 7/16″X20 | Z1/4″X18 | 26.6 | 40.1 | 14 |
| 1JN9-05-02L | 1/2″X20 | Z1/8″X27 | 26.6 | 31 | 14 |
| 1JN9-05-04L | 1/2″X20 | Z1/4″X18 | 26.6 | 40.1 | 14 |
| 1JN9-06-04L | 9/16″X18 | Z1/4″X18 | 26.9 | 40.1 | 14 |
| 1JN9-06-08L | 9/16″X18 | Z1/2″X14 | 32 | 55.1 | 22 |
| 1JN9-08-06L | 3/4″X16 | Z3/8″X18 | 32 | 46.2 | 19 |
| 1JN9-08L | 3/4″X16 | Z1/2″X14 | 34.8 | 55.1 | 22 |
| 1JN9-10-08L | 7/8″X14 | Z1/2″X14 | 37.8 | 55.1 | 22 |
| 1JN9-12-08L | 1.1/16″X12 | Z1/2″X14 | 44.2 | 56.9 | 27 |
| 1JN9-12L | 1.1/16″X12 | Z3/4″X14 | 44.2 | 62 | 27 |
| 1JN9-16-12L | 1.5/16″X12 | Z3/4″X14 | 49 | 69.9 | 33 |
| 1JN9-16L | 1.5/16″X12 | Z1″X11.5 | 49 | 76.5 | 33 |
| 1JN9-20L | 1.5/8″X12 | Z1.1/4″X11.5 | 55.5 | 93.7 | 41 |
| 1JN9-24L | 1.7/8″X12 | Z1.1/2″X11.5 | 62.5 | 104.1 | 48 |
