1CN/1DN Metric Male NPT Fitting

Description:

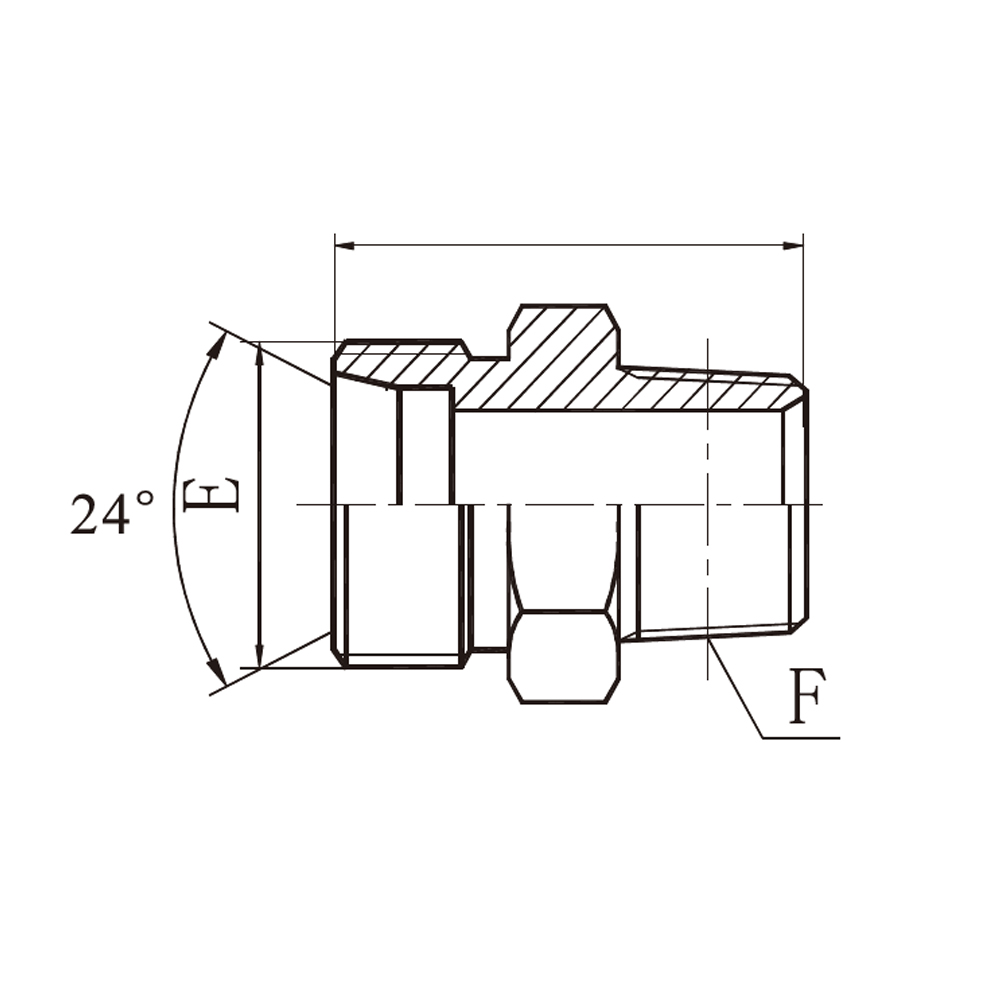

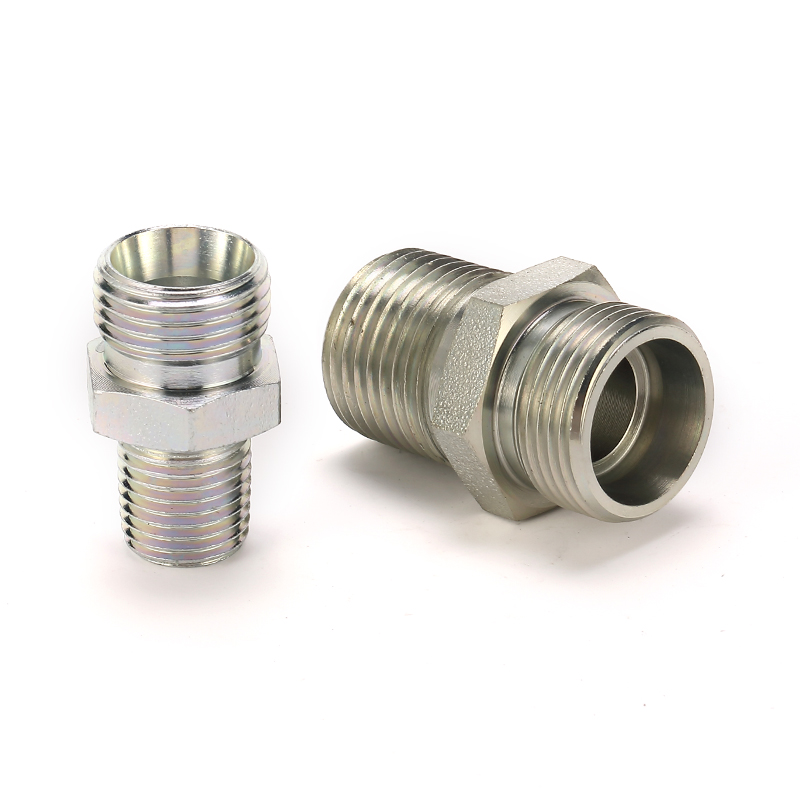

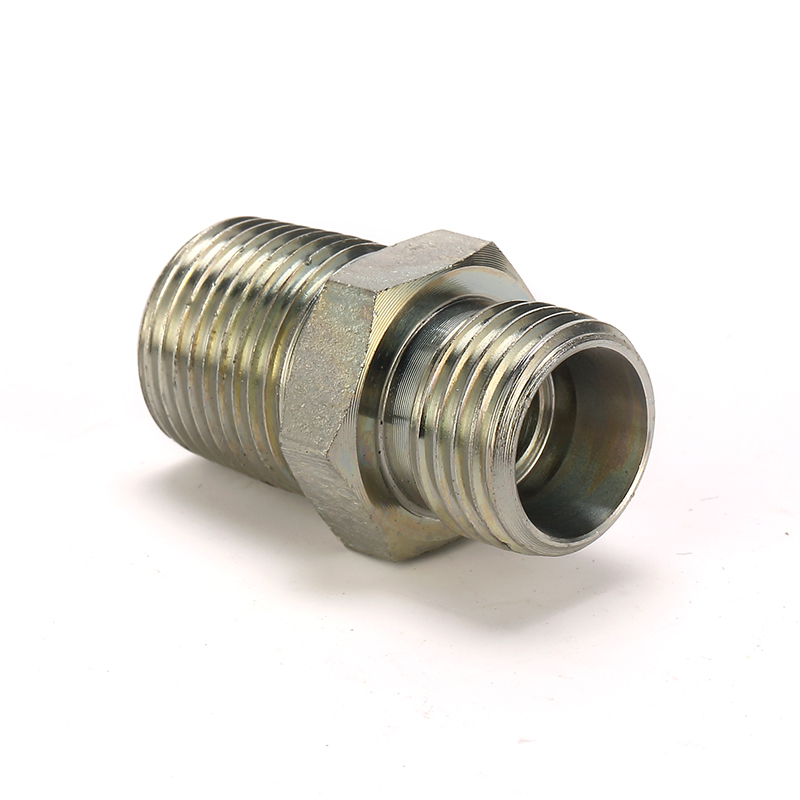

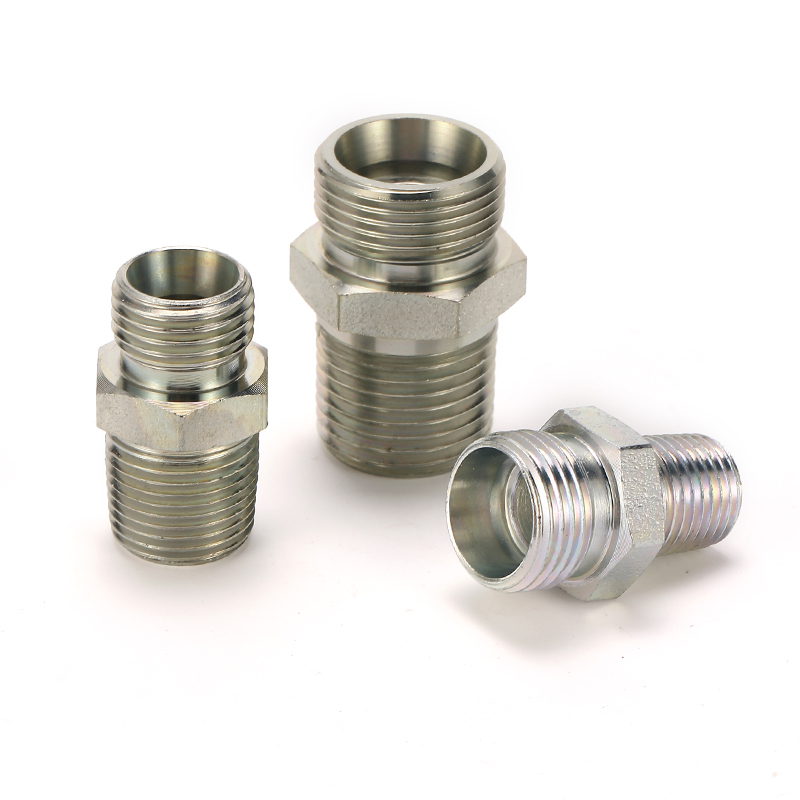

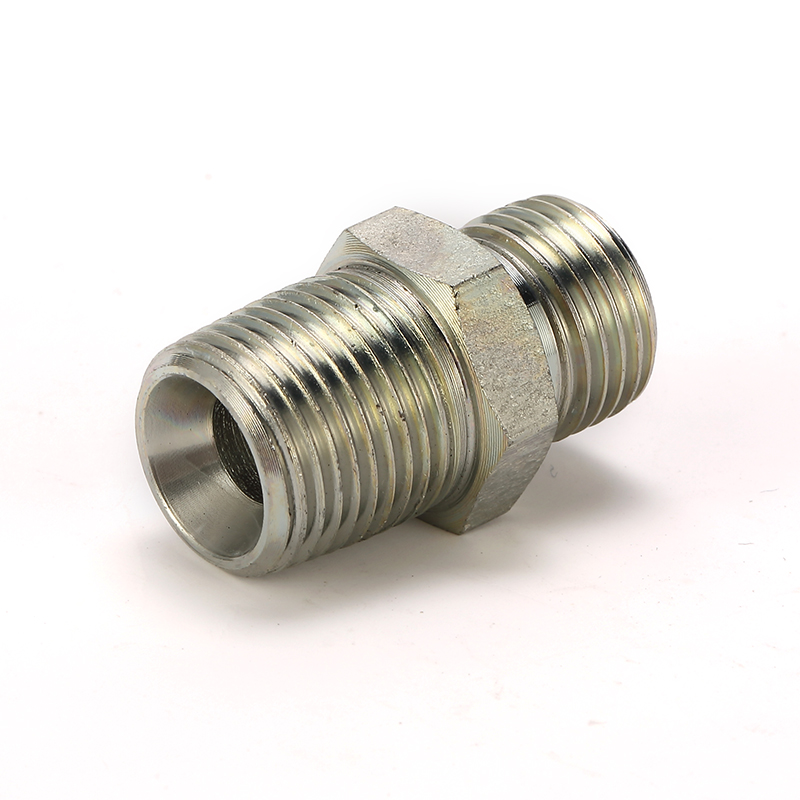

1CN/1DN metric NPT fitting is a male adapter that has a male 24-degree cone metric thread, and a male NPT thread.

"*" indicates required fields

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

PART NO.	THREAD		TUBE O.D.	DIMENSIONS				MPa
PART NO.	E	F	D1	L1	L2	S1	S2	MPa
1CN-12-02	M12X1.5	Z1/8″X27	6	14.4	25.5	12	14	25 L series
1CN-12-04	M12X1.5	Z1/4″X18	6	17.2	30	17	14
1CN-14-04	M14X1.5	Z1/4″X18	8	17.2	30	14	17
1CN-16-04	M16X1.5	Z1/4″X18	10	18.2	31	17	19
1CN-16-06	M16X1.5	Z3/8″X18	10	19.9	33	19	19
1CN-18-04	M18X1.5	Z1/4″X18	12	19.2	32	19	22
1CN-18-06	M18X1.5	Z3/8″X18	12	19.9	33	19	22
1CN-18-08	M18X1.5	Z1/2″X14	12	21.4	36.5	22	22
1CN-22-08	M22X1.5	Z1/2″X14	15	22.4	37.5	24	27
1CN-22-20	M22X1.5	Z1.1/4″X11.5	15	29.8	47.5	46	27
1CN-26-08	M26X1.5	Z1/2″X14	18	22.9	38.5	27	32	16 L series
1CN-26-12	M26X1.5	Z3/4″X14	18	22.4	38.5	30	32
1CN-30-08	M30X2	Z1/2″X14	22	24.9	40.5	32	36
1CN-30-12	M30X2	Z3/4″X14	22	24.4	40.5	32	36
1CN-36-16	M36X2	Z1″X11.5	28	29.8	47.5	41	41
1CN-36-20	M36X2	Z1.1/4″X11.5	28	31.3	49.5	46	41
1CN-45-20	M45X2	Z1.1/4″X11.5	35	30.3	51.5	46	50
1CN-52-20	M52X2	Z1.1/4″X11.5	42	31.8	53.5	55	60
1CN-52-24	M52X2	Z1.1/2″X11.5	42	32.8	54.5	55	60
1DN-14-04	M14X1.5	Z1/4″X18	6	22.2	35	17	17	40 S series
1DN-16-04	M16X1.5	Z1/4″X18	8	22.2	35	17	19
1DN-18-04	M18X1.5	Z1/4″X18	10	21.7	35	19	22
1DN-18-06	M18X1.5	Z3/8″X18	10	22.4	36	19	22
1DN-20-04	M20X1.5	Z1/4″X18	12	23.7	37	22	24
1DN-20-06	M20X1.5	Z3/8″X18	12	24.4	38	22	24
1DN-20-08	M20X1.5	Z1/2″X14	12	26.4	42	22	24
1DN-22-08	M22X1.5	Z1/2″X14	14	27.4	43.5	24	27
1DN-24-08	M24X1.5	Z1/2″X14	16	26.9	43.5	27	30
1DN-30-12	M30X2	Z3/4″X14	20	28.4	47.5	32	36	25 S series
1DN-36-12	M36X2	Z3/4″X14	25	30.9	51.5	41	46
1DN-36-16	M36X2	Z1″X11.5	25	35.3	57.5	41	46
1DN-42-16	M42X2	Z1″X11.5	30	35.8	59.5	46	50
1DN-42-20	M42X2	Z1.1/4″X11.5	30	36.3	60.5	46	50
1DN-52-24	M52X2	Z1.1/2″X11.5	38	39.8	66.5	55	60

Click to enlarge

Category: DIN Hose Adapters Tags: Carbon Steel, Metric, 1CN, 1DN, NPT Adapter

Description
Package& Shipping

Description

PART NO.	THREAD		TUBE O.D.	DIMENSIONS				MPa
PART NO.	E	F	D1	L1	L2	S1	S2	MPa
1CN-12-02	M12X1.5	Z1/8″X27	6	14.4	25.5	12	14	25 L series
1CN-12-04	M12X1.5	Z1/4″X18	6	17.2	30	17	14
1CN-14-04	M14X1.5	Z1/4″X18	8	17.2	30	14	17
1CN-16-04	M16X1.5	Z1/4″X18	10	18.2	31	17	19
1CN-16-06	M16X1.5	Z3/8″X18	10	19.9	33	19	19
1CN-18-04	M18X1.5	Z1/4″X18	12	19.2	32	19	22
1CN-18-06	M18X1.5	Z3/8″X18	12	19.9	33	19	22
1CN-18-08	M18X1.5	Z1/2″X14	12	21.4	36.5	22	22
1CN-22-08	M22X1.5	Z1/2″X14	15	22.4	37.5	24	27
1CN-22-20	M22X1.5	Z1.1/4″X11.5	15	29.8	47.5	46	27
1CN-26-08	M26X1.5	Z1/2″X14	18	22.9	38.5	27	32	16 L series
1CN-26-12	M26X1.5	Z3/4″X14	18	22.4	38.5	30	32
1CN-30-08	M30X2	Z1/2″X14	22	24.9	40.5	32	36
1CN-30-12	M30X2	Z3/4″X14	22	24.4	40.5	32	36
1CN-36-16	M36X2	Z1″X11.5	28	29.8	47.5	41	41
1CN-36-20	M36X2	Z1.1/4″X11.5	28	31.3	49.5	46	41
1CN-45-20	M45X2	Z1.1/4″X11.5	35	30.3	51.5	46	50
1CN-52-20	M52X2	Z1.1/4″X11.5	42	31.8	53.5	55	60
1CN-52-24	M52X2	Z1.1/2″X11.5	42	32.8	54.5	55	60
1DN-14-04	M14X1.5	Z1/4″X18	6	22.2	35	17	17	40 S series
1DN-16-04	M16X1.5	Z1/4″X18	8	22.2	35	17	19
1DN-18-04	M18X1.5	Z1/4″X18	10	21.7	35	19	22
1DN-18-06	M18X1.5	Z3/8″X18	10	22.4	36	19	22
1DN-20-04	M20X1.5	Z1/4″X18	12	23.7	37	22	24
1DN-20-06	M20X1.5	Z3/8″X18	12	24.4	38	22	24
1DN-20-08	M20X1.5	Z1/2″X14	12	26.4	42	22	24
1DN-22-08	M22X1.5	Z1/2″X14	14	27.4	43.5	24	27
1DN-24-08	M24X1.5	Z1/2″X14	16	26.9	43.5	27	30
1DN-30-12	M30X2	Z3/4″X14	20	28.4	47.5	32	36	25 S series
1DN-36-12	M36X2	Z3/4″X14	25	30.9	51.5	41	46
1DN-36-16	M36X2	Z1″X11.5	25	35.3	57.5	41	46
1DN-42-16	M42X2	Z1″X11.5	30	35.8	59.5	46	50
1DN-42-20	M42X2	Z1.1/4″X11.5	30	36.3	60.5	46	50
1DN-52-24	M52X2	Z1.1/2″X11.5	38	39.8	66.5	55	60
